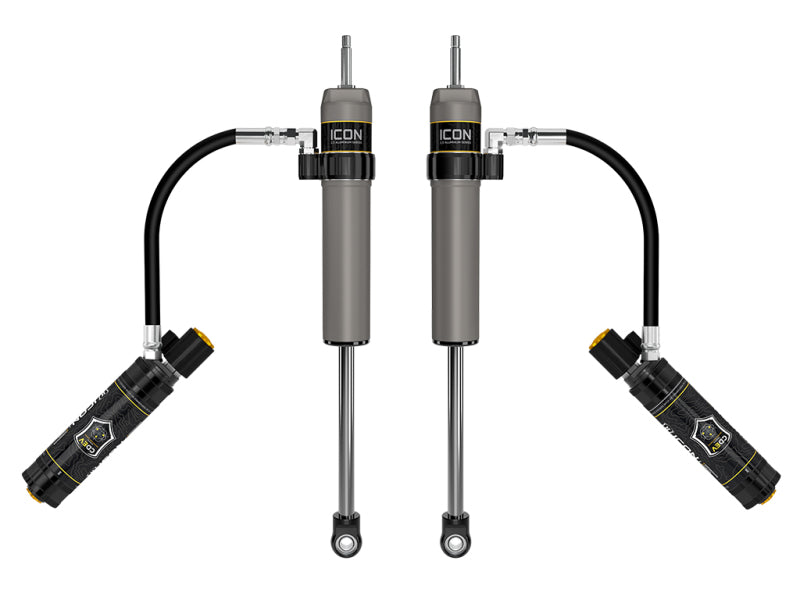

ICON 3.5in Rear 2.5 V.S. CDEV Remote Reservoir Shock Pair for 2022-2024 Toyota Tundra - 57841EP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

This Part Fits:

Features

• Vehicle-specific 2.5-inch performance shock
• Fully serviceable/re-tunable design
• Reservoir configuration matched to packaging and heat-management needs
• CDEV-equipped configuration supports electronic compression-damping control
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Shocks and Struts
• Manufacturer Part Number: 57841EP
• Variant SKU: ICO57841EP
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES | OPTIONS: C = CDC VALVE SHOCK IR: INTERNAL RESERVOIR PB: PIGGYBACK RR: REMOTE RESERVOIR
• GTIN: 00840103425610
• Weight: 355 lb
• Application: 2022-2024 Toyota Tundra

Product Family

ICON V.S. 2.5 Series shocks are built around vehicle-specific damping, a larger performance shock body and a fully serviceable design. Internal-reservoir, piggyback and remote-reservoir configurations let the suspension package balance packaging, heat control and performance for the listed vehicle.

Important Notes

• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Not compatible with vehicles equipped with load-leveling rear height control air suspension.
• Not compatible with adaptive variable suspension (AVS) equipped vehicles.

Fitment

Year	Make	Model	Submodel
2022-2023	Toyota	Tundra	1794 Edition
2022	Toyota	Tundra	Capstone
2022-2023	Toyota	Tundra	Limited
2022-2023	Toyota	Tundra	Platinum
2022-2023	Toyota	Tundra	SR
2022-2023	Toyota	Tundra	SR5
2022-2023	Toyota	Tundra	TRD Pro
