ICON 2.5 V.S. Remote Reservoir CDXS Coilover Kit for 2022-2025 Toyota Tundra/23-24 Toyota Sequoia - 58770X

Upgrade 2022-2025 Toyota Tundra/23-24 Toyota Sequoia with the ICON 2.5 V.S. Remote Reservoir CDXS Coilover Kit. This application-specific component is designed to improve or support the suspension, steering, protection, or vehicle function described in the product name.

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity

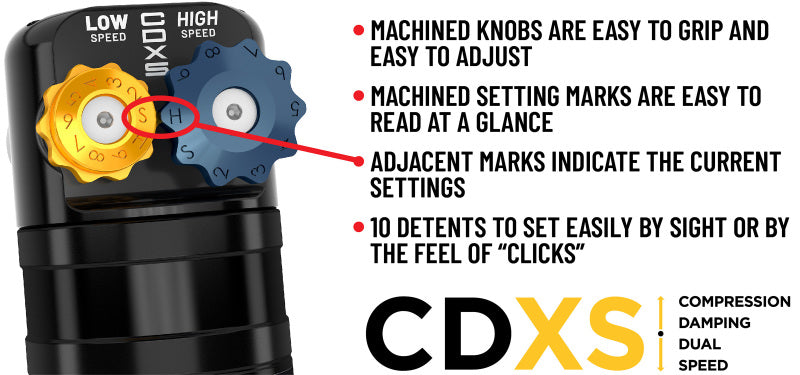

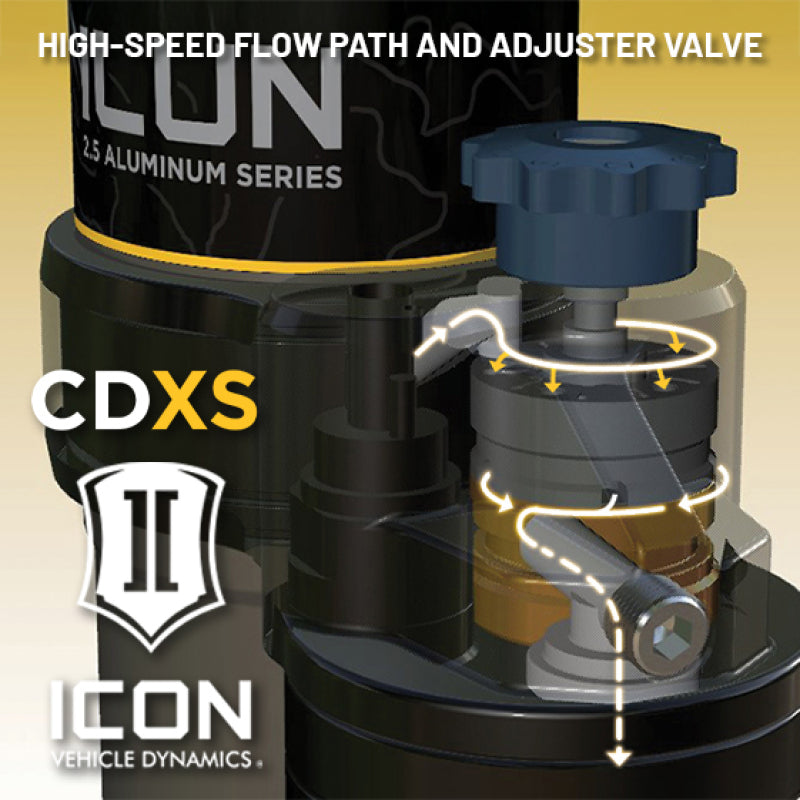

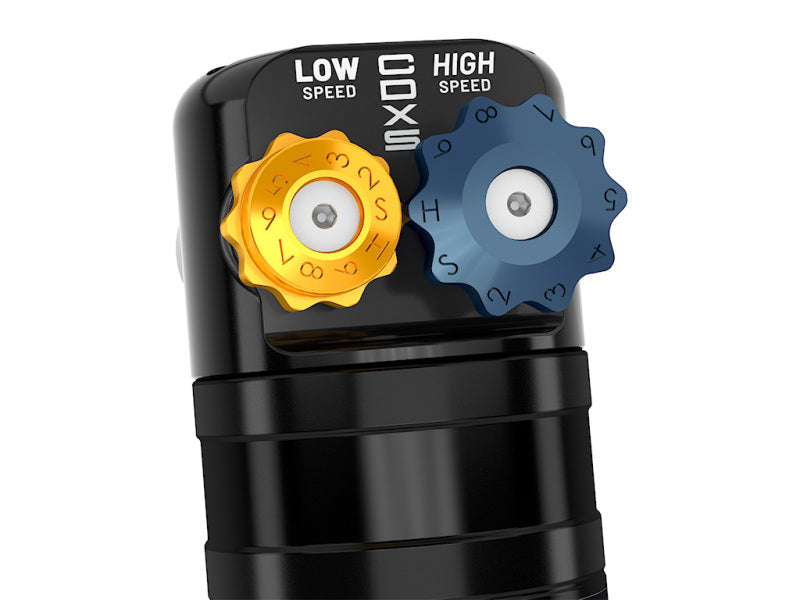

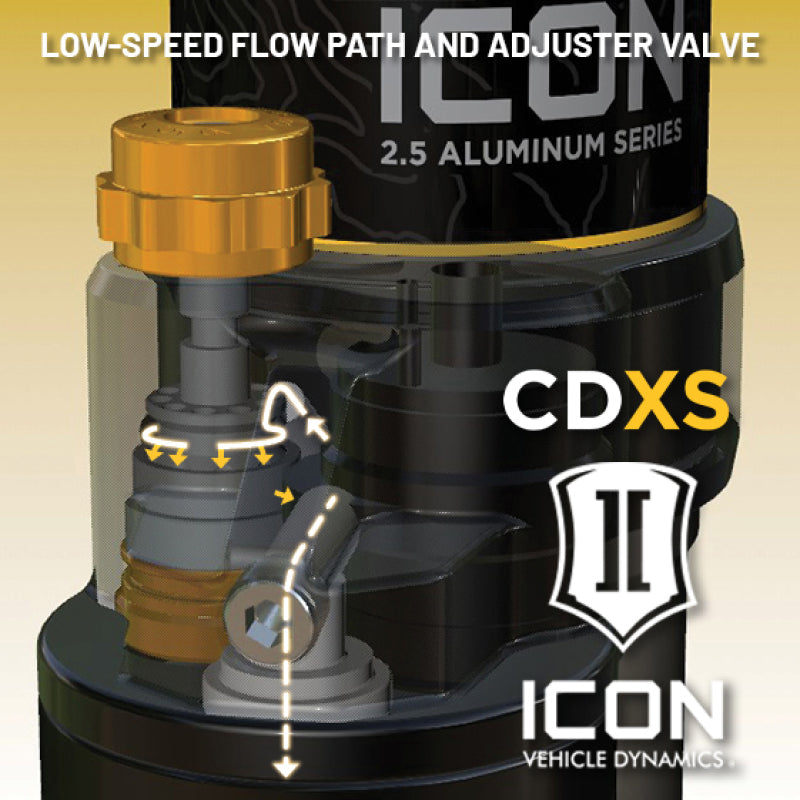

• CDXS provides independent high-speed and low-speed compression adjustment

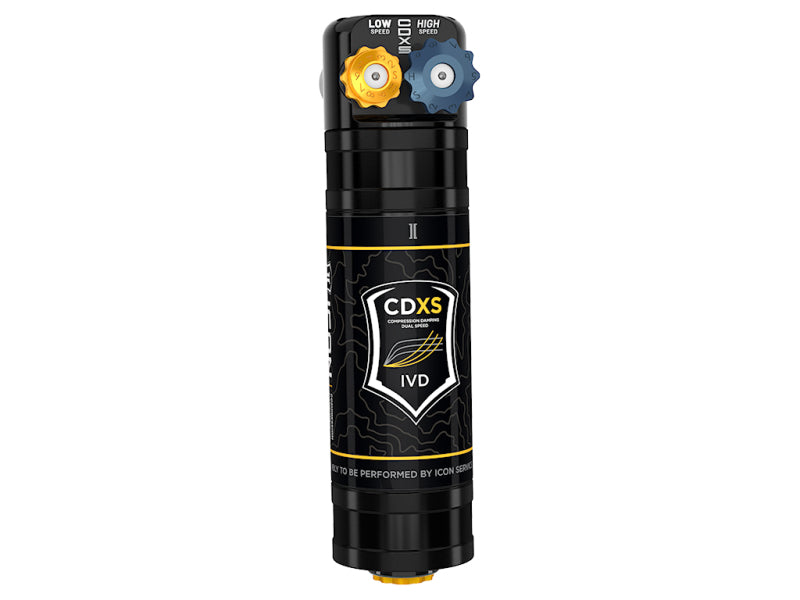

• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 58770X
• Variant SKU: ICO58770X
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• Weight: 58 lb
• Application: 2022-2025 Toyota Tundra/23-24 Toyota Sequoia

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 on 17x8.5" wide wheel with 5.75" BACK SPACE
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• 22-UP Tundra SR5 equipped with TRD sport package lift range will be 1.75-4".
• ICON does not recommend lifting above 2.25" of lift without an ICON upper control arm, failure to do so can cause damage to axles.
• For non TRD models ICON recommends using ICON diff drop (part# 55156) or using Toyota TRD axles (part# 434200C020 driver / 434100C020 pass) failure to do so could result in axle damage.
• If equipped with TRD aluminum skid plate part # 55164 is also required.
• Not compatible with OE TRD billet front upper control arms regardless of lift height. Vehicles equipped with these will require ICON delta joint pro UCAs (part number 58461DJ or 58561DJ) for fitment.

Fitment

Fits 2022-2025 Toyota Tundra/23-24 Toyota Sequoia.
