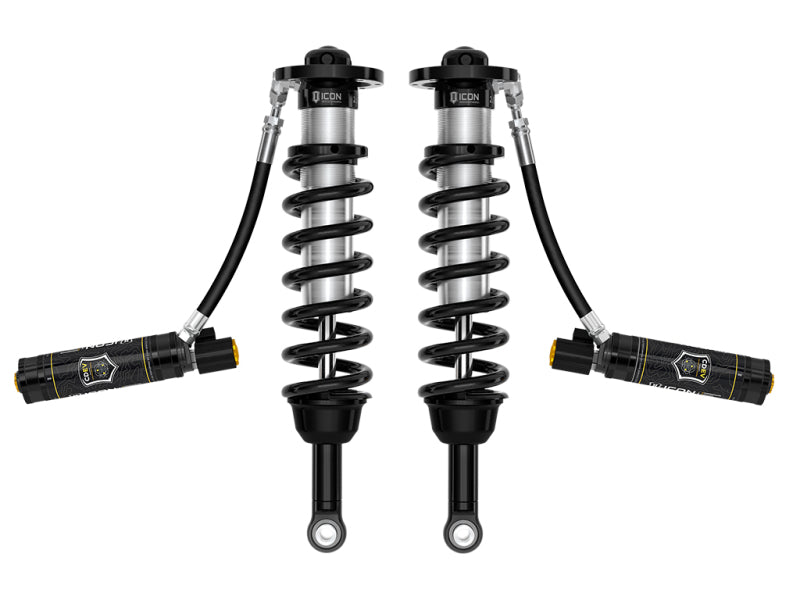

ICON 2.5 V.S. Remote Reservoir CDEV Coilover Kit for 2023-2024 Toyota Sequoia TRD Pro - 58772E

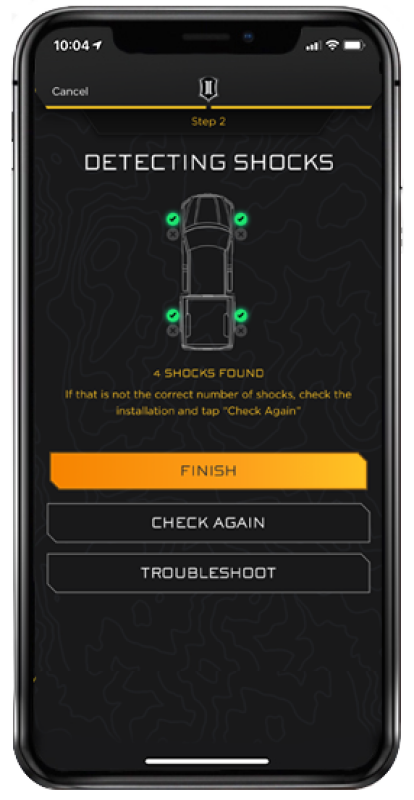

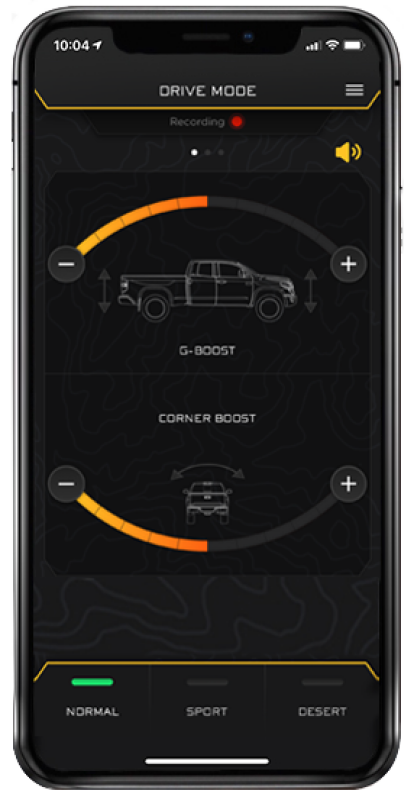

The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity
• CDEV-equipped configuration supports electronic compression-damping control
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 58772E
• Variant SKU: ICO58772E
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103432168
• Weight: 61 lb
• Application: 2023-2024 Toyota Sequoia TRD Pro

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 on 17x8.5" wide wheel with 5.75" BACK SPACE
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• For Sequoia TRD pro ICON diff drop (part# 55156) is recommended but not required. If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
• Designed for use with stock billet TRD front upper control arms.

Fitment

Fits 2023-2024 Toyota Sequoia TRD Pro.
