ICON 3in Stage 1 Suspension System for 1991-1997 Land Cruiser 80 Series - K53091

Upgrade the suspension on your 1991-1997 Land Cruiser 80 Series with the ICON Vehicle Dynamics 3in Stage 1 Suspension System, part number K53091. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

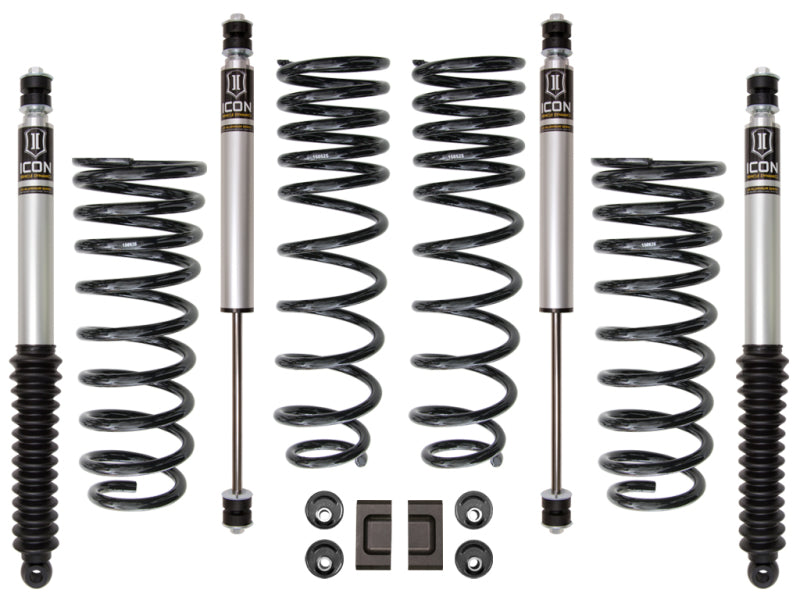

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear.

For buyers who want the complete 3in Stage 1 Suspension System instead of piecing a suspension together one part number at a time, the K53091 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K53091
• System: 3in Stage 1 Suspension System
• Fitment: 1991-1997 Land Cruiser 80 Series
• Total Kit Weight: 109 lb
• GTIN: 00840103417189

• Qty 2 – 56509: 91-97 Land Cruiser 80 0-3" Front 2.0 VS IR
• Qty 1 – 53007: 91-97 Land Cruiser Front Sway Bar Relocation Kit
• Qty 1 – 53008: 91-97 Land Cruiser 4.6 Deg Caster Correction Kit
• Qty 1 – 53009: 93-97 Land Cruiser Brake Line Kit +3"
• Qty 1 – 53005: 91-97 Land Cruiser 3" Front Dual Rate Spring Kit
• Qty 1 – 53006: 91-97 Land Cruiser 3" Rear Dual Rate Spring Kit
• Qty 2 – 56510: 91-07 Land Cruiser 80/100 0-3" Rear 2.0 VS IR

• Application Notes: 150
• Tire & Wheel: 33X11.50 On 8.5" Wide Wheel W/ 4.63" Backspace

• 1991-1997 Land Cruiser 80 Series
