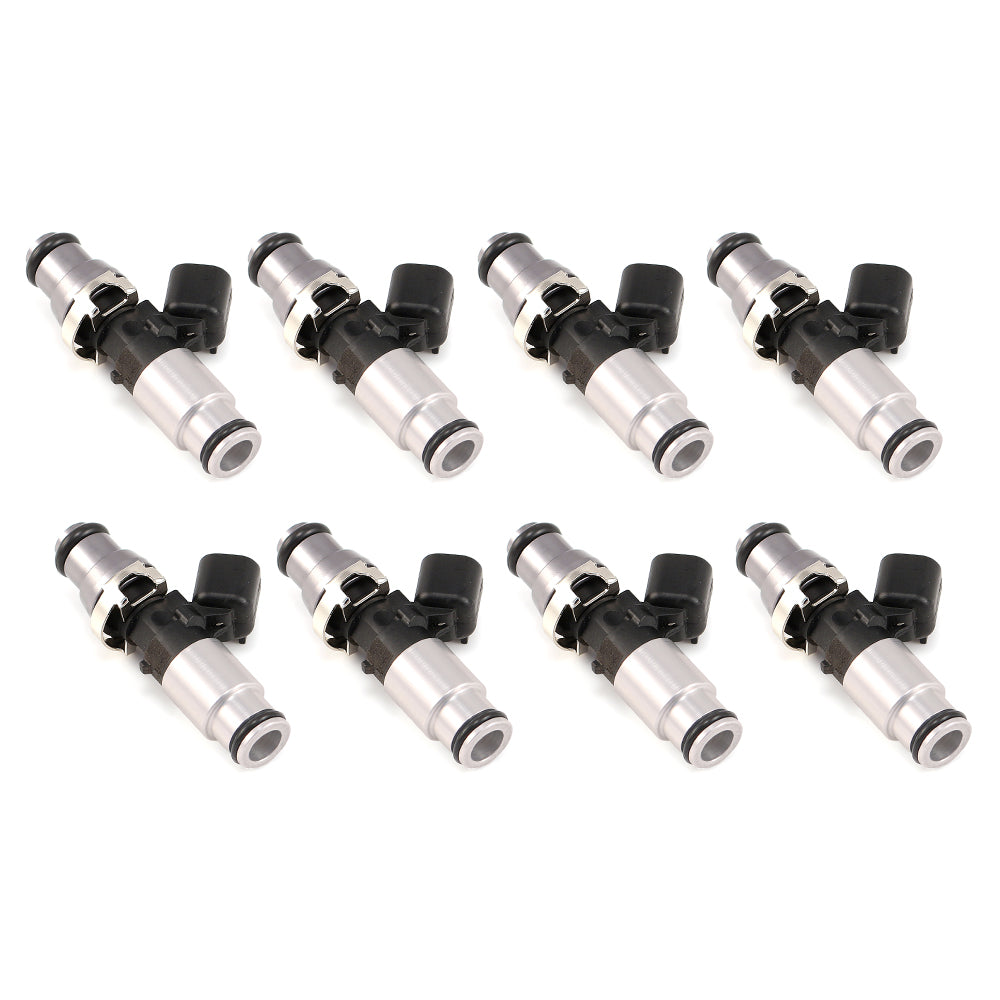

Injector Dynamics - ID1050-XDS Fuel Injectors - 2011+ Ford 5.0L Coyote / 2020+ GT500 / 2011-2014 SVT Raptor 6.2L - 1050.60.14.14B.8

Upgrade your Ford performance build with Injector Dynamics ID1050-XDS injectors (P/N 1050.60.14.14B.8)—a true motorsport, built-to-spec injector developed through the Injector Dynamics + Bosch Motorsport partnership. Designed for tuners who demand consistent fueling and excellent control at both low and high flow, the ID1050x X-Series delivers improved output versus the original ID1000 while maintaining strong low-flow behavior. This direct plug-in set of 8 uses a USCAR connector and includes 14mm (grey) top adapters plus (silver) bottom adapters for the listed Ford applications.

Why you’ll want it

• Built-to-spec motorsport injector (not a modified production injector)

• ~5% increased output vs. the original ID1000 (per Injector Dynamics)

• Corrosion-resistant internals for compatibility with all known fuels

• Stable operation up to 10 bar thanks to a stronger magnetic circuit

• Replaceable inlet filter to help extend service life

• Compact short-body design for broad fitment across modern engine platforms

Fitment

This set is configured as ID1050-XDS for the following applications (direct plug-in where noted):

• 2011+ Ford F-150 5.0L

• 2011+ Ford Mustang GT 5.0L (includes GT350) — Direct plug-in, set of 8

• 2020+ Ford Mustang GT500 — Direct plug-in, set of 8

• 2011–2014 Ford SVT Raptor 6.2L — set of 8

Key Specifications

• Nominal Flow Rate: 1065 cc/min @ 3.0 bar (43.5 psi)
  (Gasoline @ 52°C / 125°F)

• Max Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: Compatible with all known fuels

• Electrical Connector: USCAR

• Included Adapters: 14 mm (grey) top + (silver) bottom

• Quantity: Set of 8 injectors
