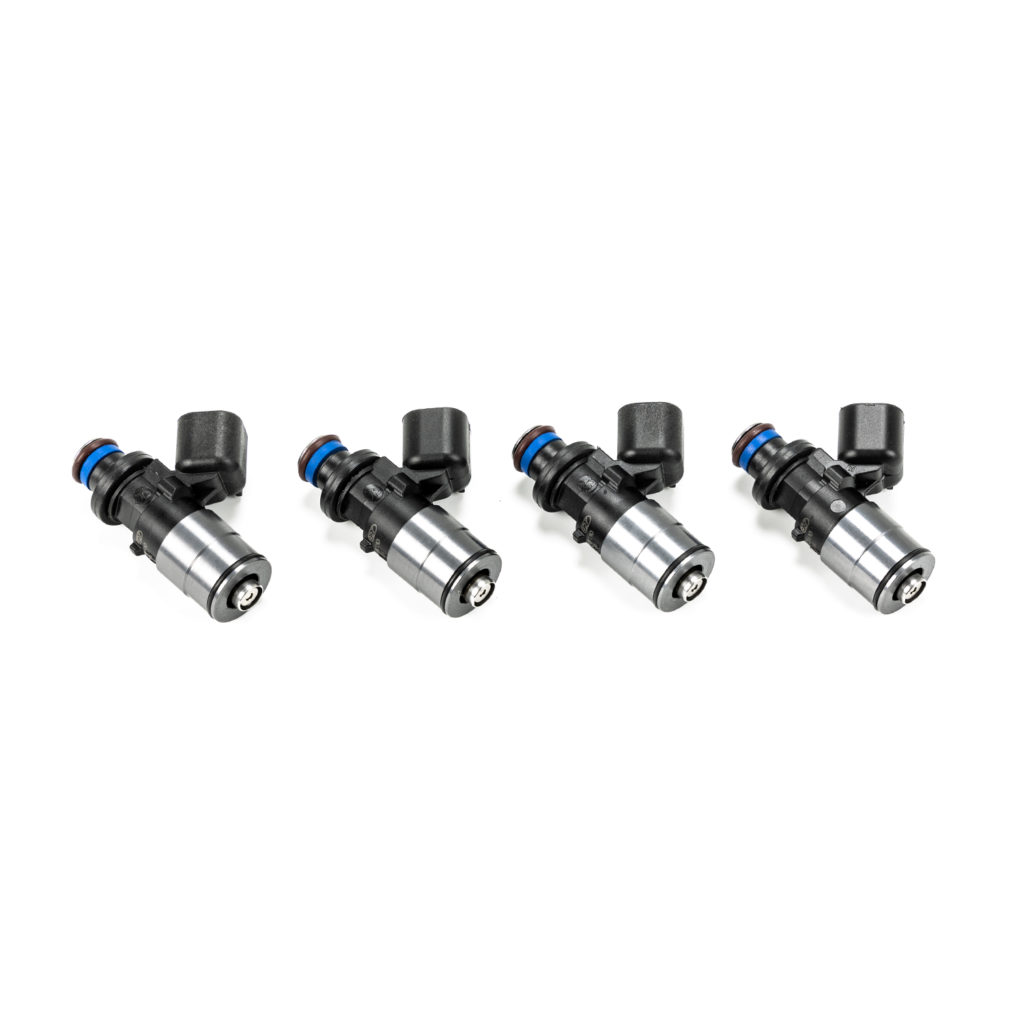

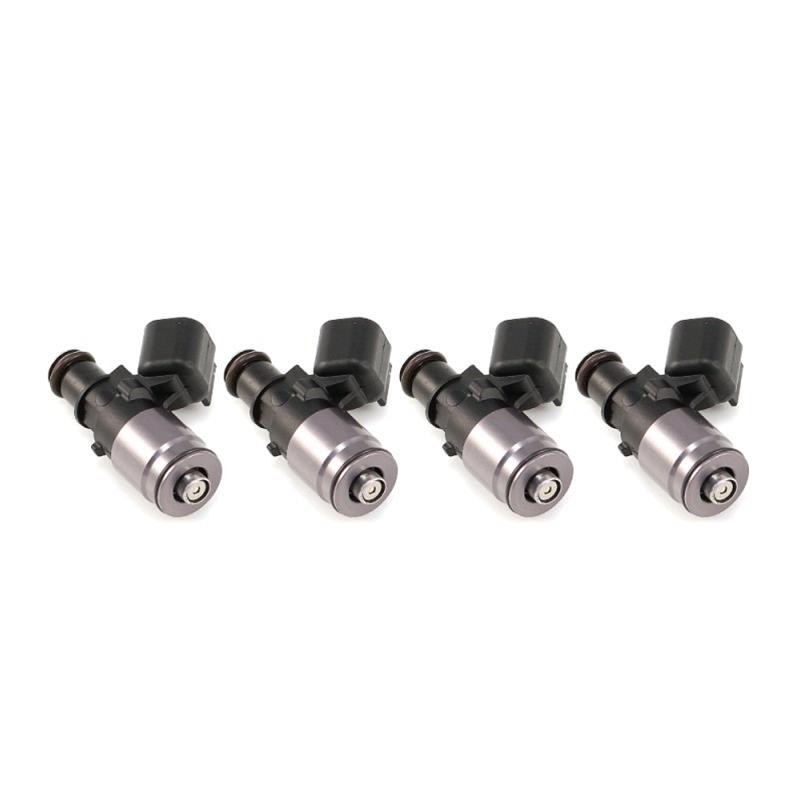

Injector Dynamics - ID1050x XDS Fuel Injectors - Arctic Cat 1100 Turbo 2009–2016 - 1050.28.01.36.11.4

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.28.01.36.11.4) are a motorsport-grade fueling upgrade engineered specifically for the Arctic Cat 1100 Turbo (2009–2016). As the evolution of the renowned ID1000, the ID1050x represents the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using data from the ID1300x and ID1700x programs.

Unlike modified OEM injectors, the ID1050x is built to spec from the ground up, delivering precise low-pulse control while supporting high-output turbocharged applications. With corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors are designed for long service life and consistent performance in demanding powersports environments.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent low-speed and idle control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design fits 200+ applications

• Stronger magnetic circuit for high-pressure stability

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment

• Arctic Cat 1100 Turbo: 2009–2016

What’s Included

• Injector Dynamics ID1050x XDS Fuel Injectors (application-specific set)

Part Number

• 1050.28.01.36.11.4
