Injector Dynamics - ID1050x XDS Fuel Injectors - Audi VR6 12-Valve - 1050.60.14.14B.6

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.60.14.14B.6) are a motorsport-grade fueling solution engineered specifically for Audi VR6 12-valve applications. As the evolution of the trusted ID1000, the ID1050x represents the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using data from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is built to spec from the ground up, delivering exceptional low-pulse control while supporting high-horsepower naturally aspirated or forced-induction VR6 builds. With corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors offer the precision, reliability, and longevity demanded by serious performance enthusiasts.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and low-load control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design fits 200+ applications

• Stronger magnetic circuit for consistent high-pressure operation

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment

• Audi VR6 – 12-Valve Engines

What’s Included

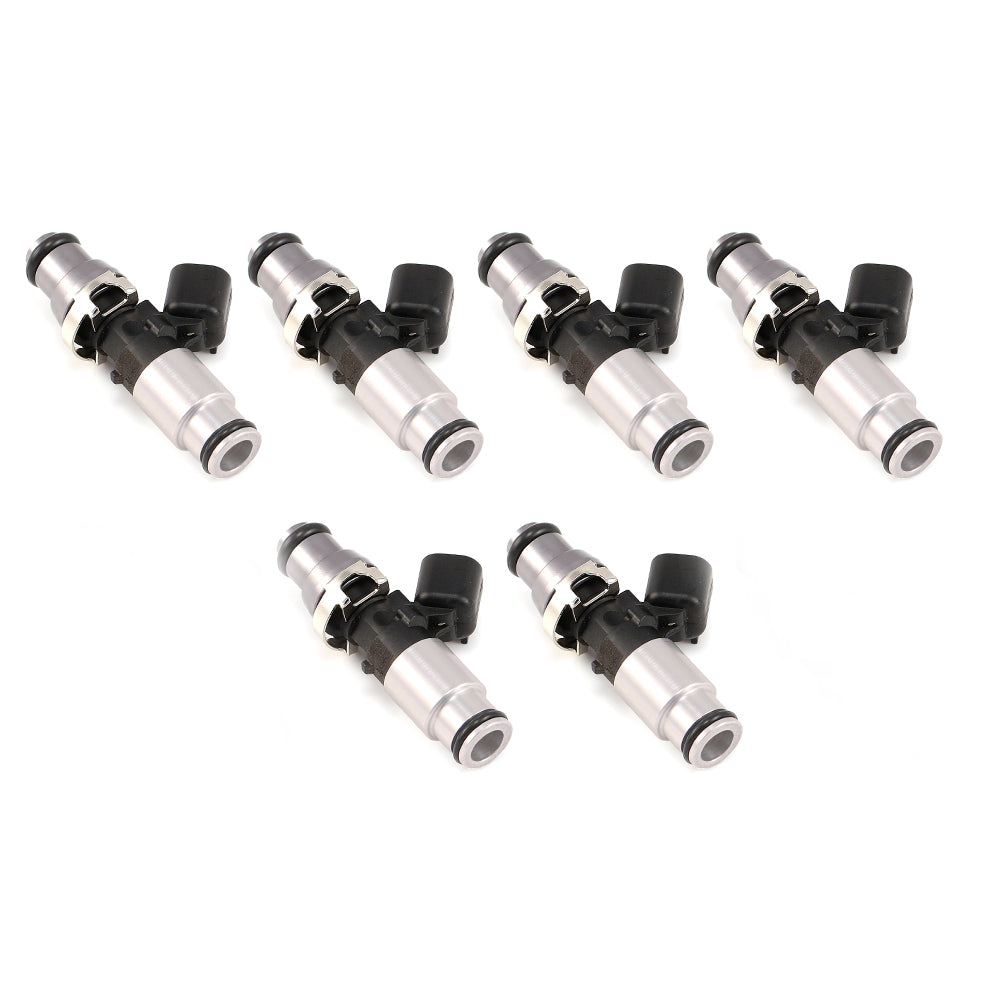

• Injector Dynamics ID1050x XDS Fuel Injectors (application-specific matched set)

Part Number

• 1050.60.14.14B.6
