Injector Dynamics - ID1050x XDS Fuel Injectors - Audi & VW EA888 Gen 3 - 1050.34.14.14.4

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.34.14.14.4) are a direct-replacement, plug-and-play fueling solution engineered specifically for Audi and Volkswagen EA888 Gen 3 engines. As the evolution of the proven ID1000, the ID1050x is the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using technology from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is a purpose-built motorsport injector, offering exceptional low-pulse control, improved flow efficiency, and long-term durability. With corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors are ideal for high-performance street and track EA888 Gen 3 builds—no adapters required.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and low-load control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design

• Stronger magnetic circuit for consistent high-pressure performance

• Replaceable inlet filter for extended service life

• USCAR electrical connector

• Direct replacement – no adapters required

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment

• Audi EA888 Gen 3 engines – direct replacement, no adapters

• Volkswagen EA888 Gen 3 engines – direct replacement, no adapters

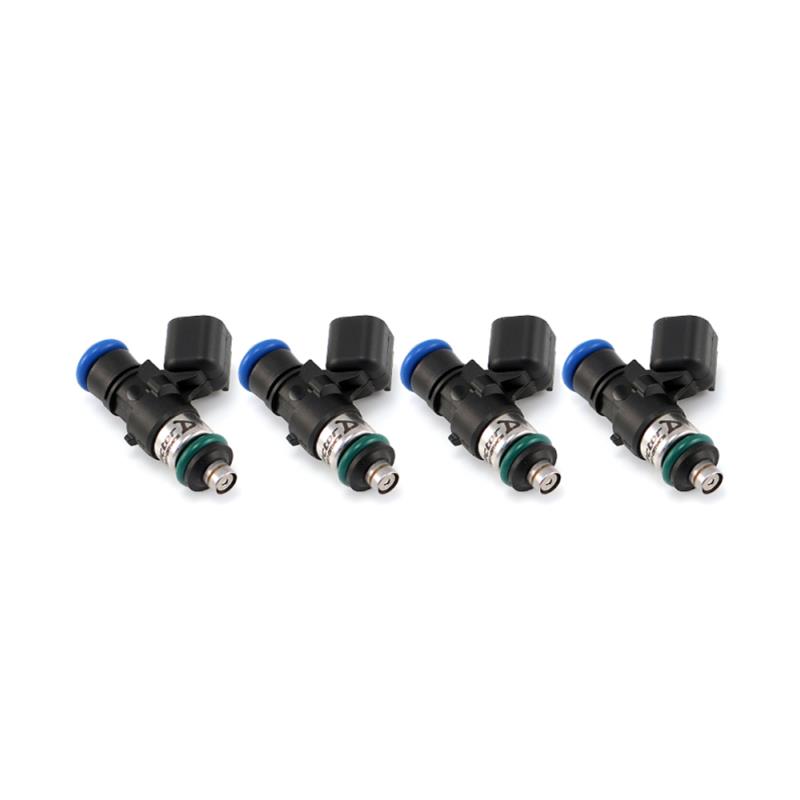

Includes a matched set of 4 injectors

What’s Included

• (4) Injector Dynamics ID1050x XDS Fuel Injectors for EA888 Gen 3 applications

Part Number

• 1050.34.14.14.4
