Injector Dynamics - ID1050x XDS Fuel Injectors - BMW M54 (60mm, 14mm Adapters) - 1050.02.01.60.14.6

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.02.01.60.14.6) are a complete, application-specific fueling solution for BMW M54 engines. This kit includes 60mm-length injectors with 14mm top (purple) and bottom (black) adapters, making it a true plug-and-play upgrade with no guesswork.

As the evolution of the legendary ID1000, the ID1050x is the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport. Unlike modified OEM injectors, the ID1050x is built to spec from the ground up, delivering outstanding low-pulse control, improved flow efficiency, and long-term durability. With corrosion-resistant internals and stable operation up to 10 bar fuel pressure, these injectors are fully compatible with all known fuels, including ethanol blends.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and part-throttle control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• 60mm injector length for BMW M54 applications

• 14mm top (purple) and bottom (black) adapters included

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment

• BMW M54 Engines

Includes a matched set of 6 injectors with required adapters for direct installation.

What’s Included

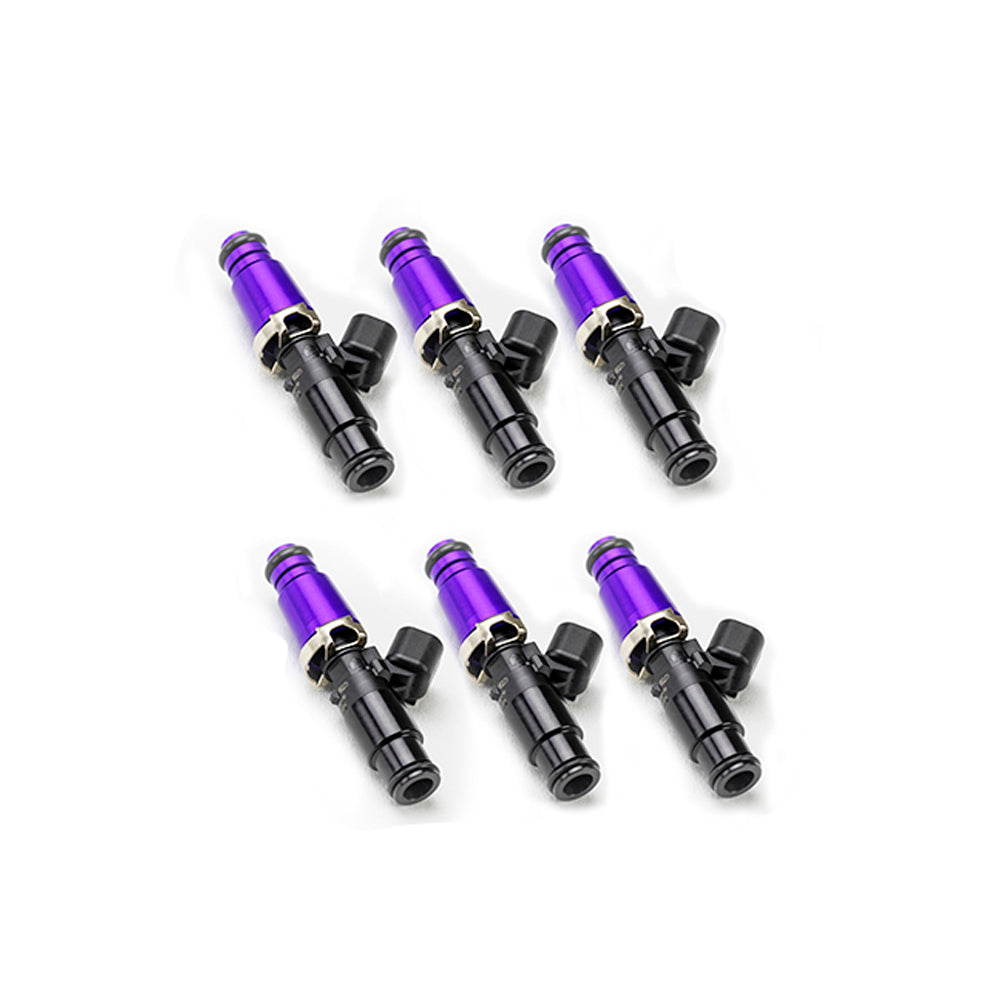

• (6) Injector Dynamics ID1050x XDS Fuel Injectors

• 14mm top adapters (purple)

• 14mm bottom adapters (black)

Part Number

• 1050.02.01.60.14.6
