Injector Dynamics - ID1050x XDS Fuel Injectors - BMW S58 / Raptor 3.5 EcoBoost / 2JZ-GTE - 1050.34.14.14.6

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.34.14.14.6) are a motorsport-grade, application-specific fueling solution designed for several high-performance modern and legacy platforms. As the evolution of the highly respected ID1000, the ID1050x is the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using engineering lessons from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is built to spec from the ground up, delivering exceptional low-pulse control while supporting high-horsepower turbocharged and naturally aspirated engines. Featuring corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors offer the consistency, durability, and tunability demanded by professional tuners and serious enthusiasts.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and low-load control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design fits 200+ applications

• Stronger magnetic circuit for consistent high-pressure performance

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment

• BMW S58 engines

• Ford Raptor (2017+) – 3.5L EcoBoost, direct fit, no adapters, set of 6

• Hyundai Genesis V6 (2009–2012) – direct replacement, 14mm lower O-ring, set of 6

• Toyota Supra Turbo (1993–1998) – 2JZ-GTE with Radium fuel rail, no adapters, set of 6

What’s Included

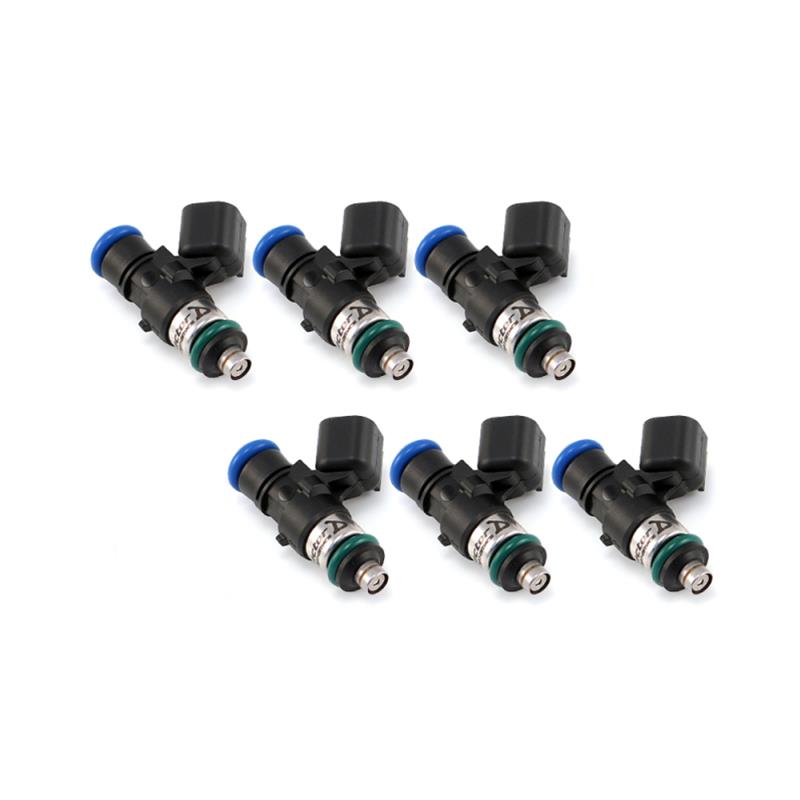

• Injector Dynamics ID1050x XDS Fuel Injectors

• Supplied as vehicle-specific matched sets where applicable

Part Number

• 1050.34.14.14.6
