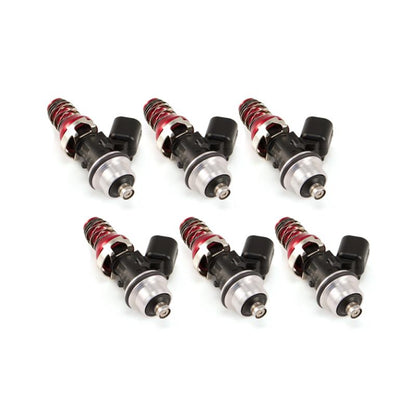

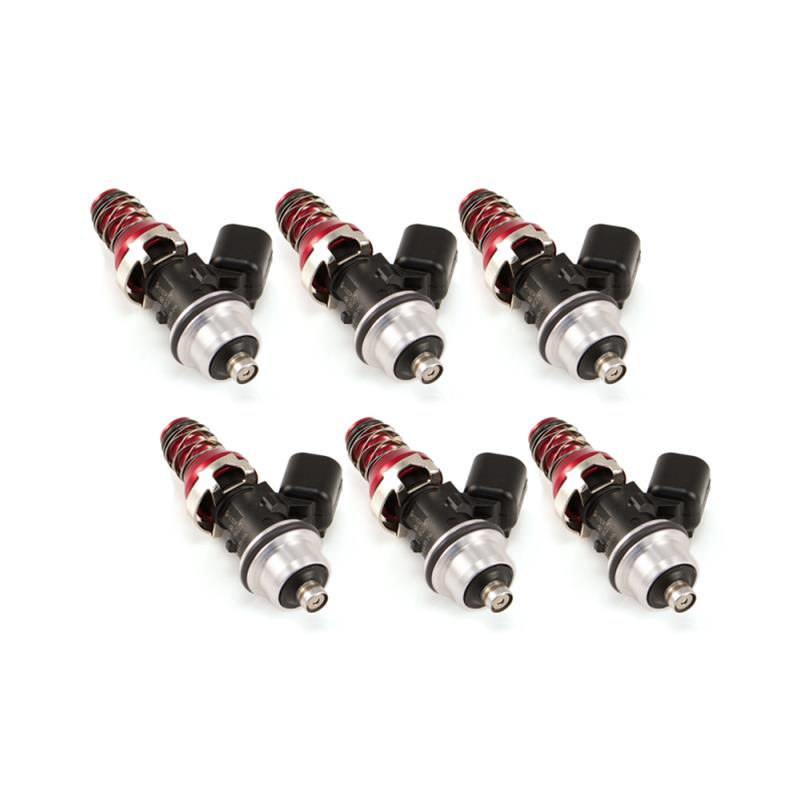

Injector Dynamics - ID1050x XDS Fuel Injectors - Honda/Acura J-Series V6 - 1050.48.11.F20.6

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.48.11.F20.6) are a complete, application-specific fueling upgrade designed for Honda and Acura J-Series V6 platforms. As the evolution of the highly regarded ID1000, the ID1050x represents the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using technology from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is built to spec from the ground up, delivering exceptional low-pulse control, improved flow efficiency, and long-term durability. With corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors are ideal for high-performance naturally aspirated or forced-induction J-Series builds.

This kit includes the required 11mm (red) adapter tops and S2000-style lower seals, making it a true plug-and-play solution for supported applications.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and part-throttle control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design

• Stronger magnetic circuit for consistent high-pressure performance

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment (Set of 6)

• Honda Accord: 2003–2007 (J-Series V6)

• Honda Odyssey: 2002–2004 (J-Series V6)

• Acura CL: 2001–2003 (J-Series V6)

• Acura TL: 2001–2003 (J-Series V6)

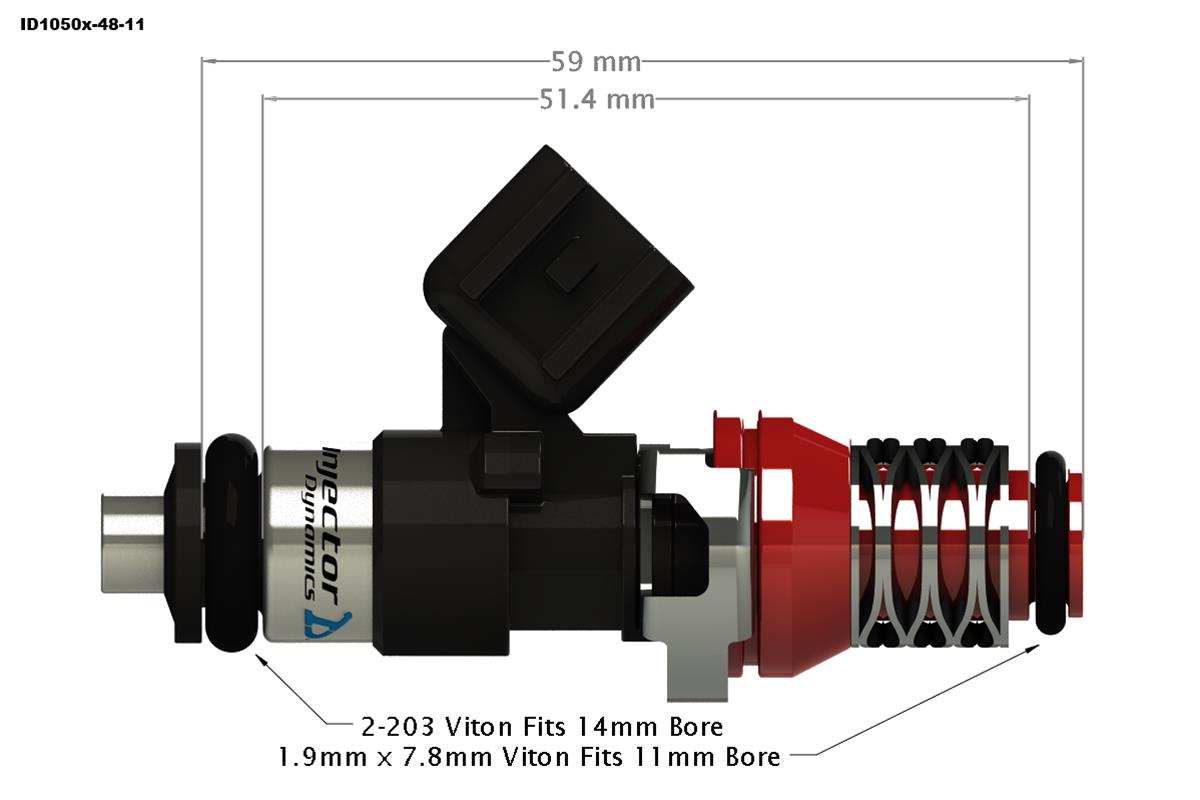

Includes 11mm red adapter tops and S2000-style lower seals for direct installation.

What’s Included

• (6) Injector Dynamics ID1050x XDS Fuel Injectors

• 11mm (red) adapter tops

• S2000-style lower seals

Part Number

• 1050.48.11.F20.6
