Injector Dynamics - ID1050x XDS Fuel Injectors - GM LS2 / Commodore VZ / Monaro - 1050.48.14.15.8

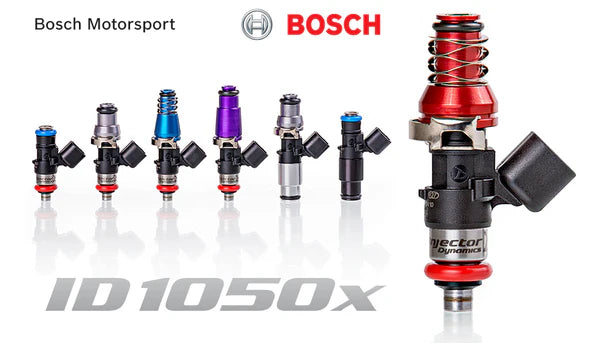

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.48.14.15.8) are a motorsport-grade fueling solution engineered specifically for GM LS2-powered vehicles. As the evolution of the legendary ID1000, the ID1050x is the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using lessons learned from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is built to spec from the ground up, delivering excellent idle quality and precise low-pulse control while supporting high-horsepower naturally aspirated and forced-induction LS builds. Featuring corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors are designed for consistent performance and long service life.

This kit includes the required 14mm (grey) adapter tops and orange lower O-rings, making it a true application-specific, plug-and-play solution for LS2 platforms.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and part-throttle control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design

• Stronger magnetic circuit for high-pressure stability

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment

• GM LS2 engines

• Holden Commodore VZ (LS2)

• Holden Monaro (LS2)

Includes 14mm grey adapter tops, orange lower O-rings, and a matched set of 8 injectors.

What’s Included

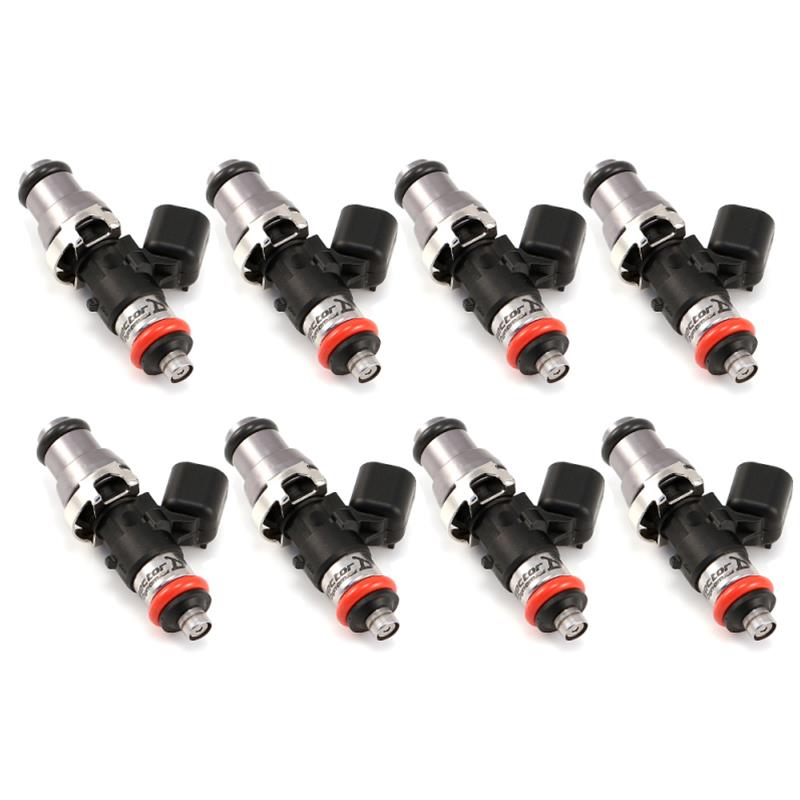

• (8) Injector Dynamics ID1050x XDS Fuel Injectors

• 14mm grey adapter tops

• Orange lower O-rings

Part Number

• 1050.48.14.15.8
