Injector Dynamics - ID1050x XDS Fuel Injectors - Toyota 1GR V6 / Nissan RB26 - 1050.60.14.D.6

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.60.14.D.6) are a motorsport-grade, application-specific fueling solution designed for both Toyota 1GR V6 platforms and Nissan RB26-powered Skylines. As the evolution of the proven ID1000, the ID1050x is the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using technology from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is built to spec from the ground up, offering excellent idle quality, precise low-pulse control, and the fueling capacity required for high-horsepower naturally aspirated or turbocharged builds. With corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors deliver the consistency and reliability demanded by professional tuners worldwide.

This kit includes 14mm (purple) adapter tops and Denso-style lower seals, making it a true plug-and-play solution for supported Toyota and Nissan applications.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and part-throttle control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design fits 200+ applications

• Stronger magnetic circuit for consistent high-pressure performance

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels (including ethanol blends)

• Electrical Connector: USCAR

Fitment (Set of 6)

Toyota – 1GR V6

• FJ Cruiser

• 4Runner

• Tundra

• Includes 14mm (purple) adapter tops and Denso lower seals

Nissan – RB26

• Skyline GT-R R32 / R33 / R34

• Includes 14mm (purple) adapter tops and Denso lower seals

What’s Included

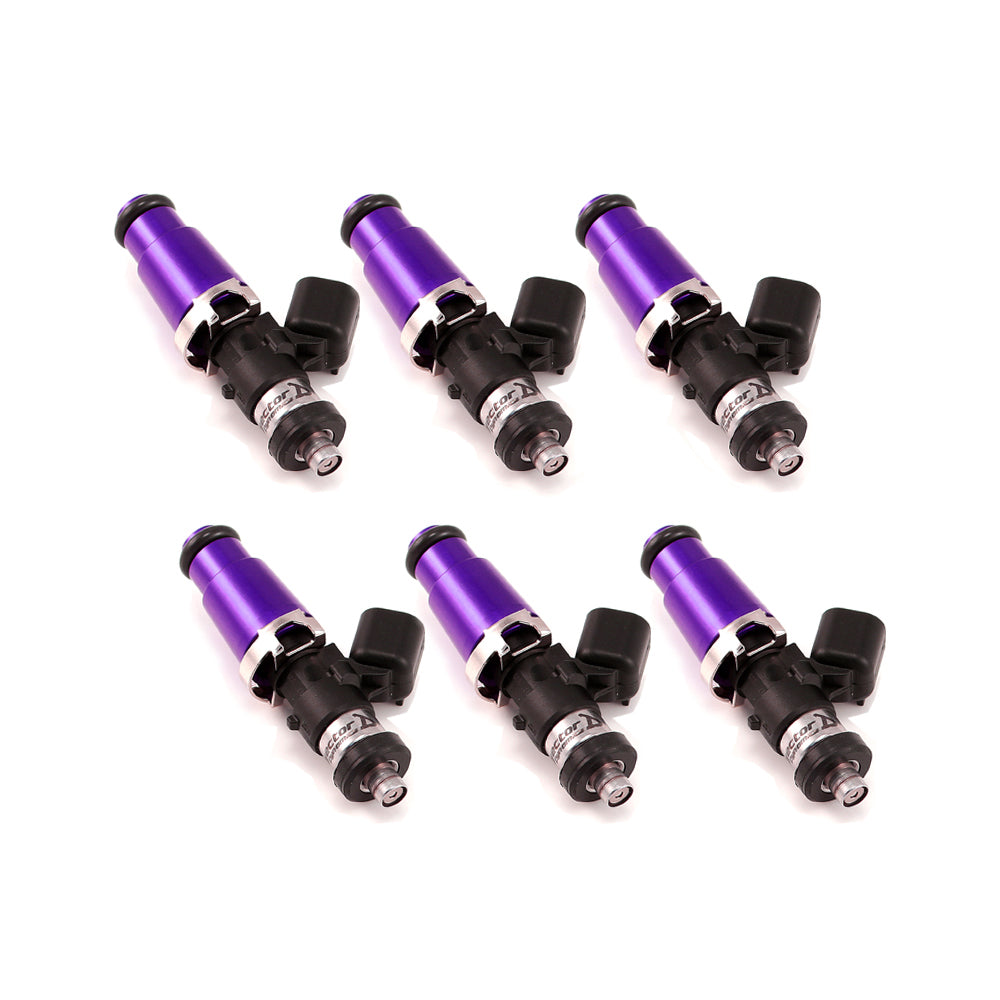

• (6) Injector Dynamics ID1050x XDS Fuel Injectors

• 14mm purple adapter tops

• Denso-style lower seals

Part Number

• 1050.60.14.D.6
