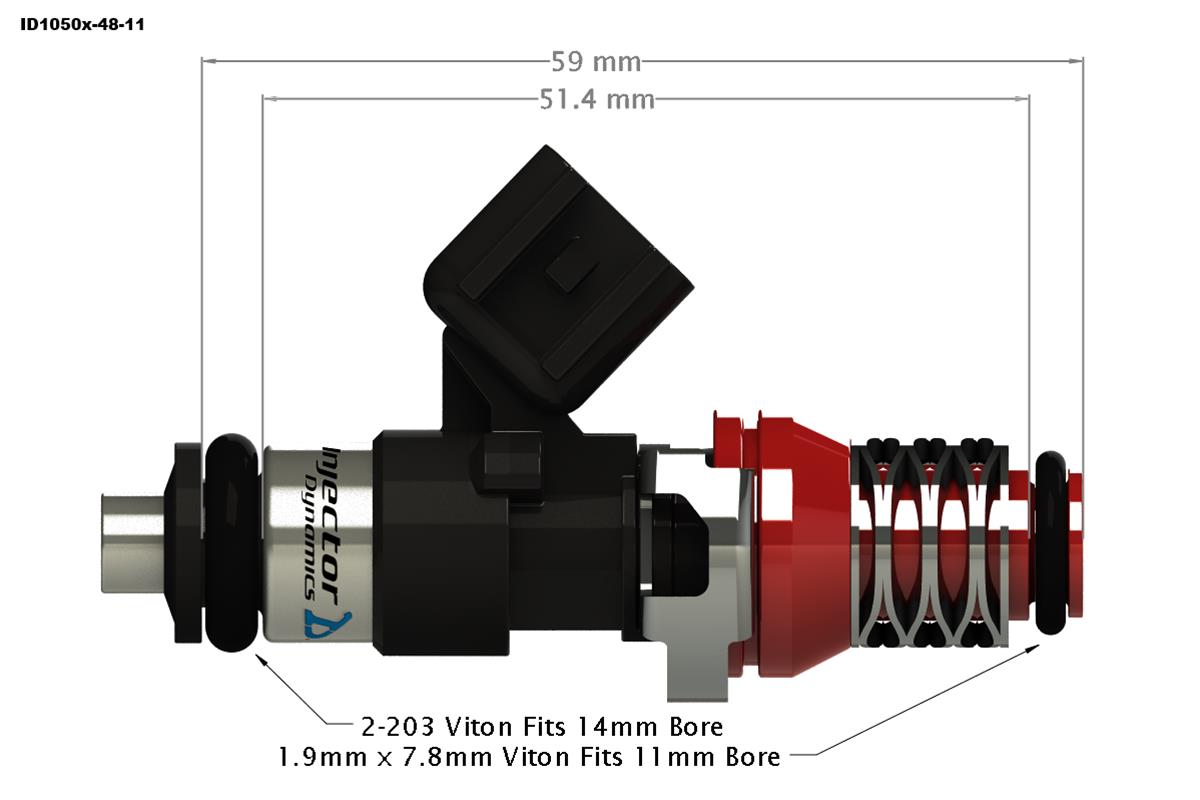

Injector Dynamics - ID1050x XDS Fuel Injectors - Yamaha Nytro Snowmobile 2008–2012 - 1050.48.11.14.3

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.48.11.14.3) are a motorsport-grade fueling upgrade engineered specifically for the Yamaha Nytro Snowmobile (2008–2012). As the evolution of the proven ID1000, the ID1050x represents the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using technology from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is built to spec from the ground up, delivering precise low-speed control and the fueling capacity required for high-performance snowmobile applications. With corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors are designed to perform reliably in harsh, cold-weather riding conditions.

This kit includes the correct 11mm (red) adapter tops, making it a true plug-and-play solution for Yamaha Nytro models.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and low-speed control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design

• Stronger magnetic circuit for high-pressure stability

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels

• Electrical Connector: USCAR

Fitment

• Yamaha Nytro Snowmobile: 2008–2012

  • Includes 11mm (red) adapter tops

  • Set of 3 injectors

What’s Included

• (3) Injector Dynamics ID1050x XDS Fuel Injectors

• 11mm (red) adapter tops

Part Number

• 1050.48.11.14.3
