Injector Dynamics - ID1050x XDS Fuel Injectors - Yamaha YXZ1000 / YXZ1000R UTV - 1050.27.02.34.11.3

The Injector Dynamics ID1050x XDS Fuel Injectors (Part #1050.27.02.34.11.3) are a motorsport-grade, application-specific fueling upgrade designed for Yamaha YXZ1000 and YXZ1000R UTV platforms. As the evolution of the proven ID1000, the ID1050x represents the latest advancement in Injector Dynamics’ X-Series, developed in partnership with Bosch Motorsport and refined using technology from the ID1300x and ID1700x programs.

Unlike modified production injectors, the ID1050x is built to spec from the ground up, delivering precise low-speed control and the fueling capacity required for high-performance UTV applications. With corrosion-resistant internals, compatibility with all known fuels, and stable operation up to 10 bar fuel pressure, these injectors are engineered to withstand extreme riding conditions while delivering consistent, reliable performance.

This kit includes machined 11mm adapter tops with integrated O-ring support, making it a true direct-fit solution when installed per Injector Dynamics guidelines.

Key Features

• 1065cc/min nominal flow rate @ 3.0 bar (43.5 psi)

• Purpose-built motorsport injector (not modified OEM)

• X-Series (XDS) design with improved internal flow path (+5% output)

• Excellent idle and low-speed control

• Corrosion-resistant internals compatible with all known fuels

• Stable operation up to 10 bar (145 psi)

• Compact short-body design

• Stronger magnetic circuit for high-pressure stability

• Replaceable inlet filter for extended service life

• USCAR electrical connector

Technical Specifications

• Nominal Flow Rate: 1065cc/min @ 3.0 bar (43.5 psi)

• Maximum Differential Fuel Pressure: 10.0 bar (145 psi)

• Fuel Compatibility: All known fuels

• Electrical Connector: USCAR

Fitment

• Yamaha YXZ1000 UTV

• Yamaha YXZ1000R UTV

Installation Notes

• Includes machined 11mm adapter tops with 11mm O-ring and O-ring support

• Remove lower O-ring and retainer from injector

• Reuse OE lower cushion

• Set of 3 injectors

What’s Included

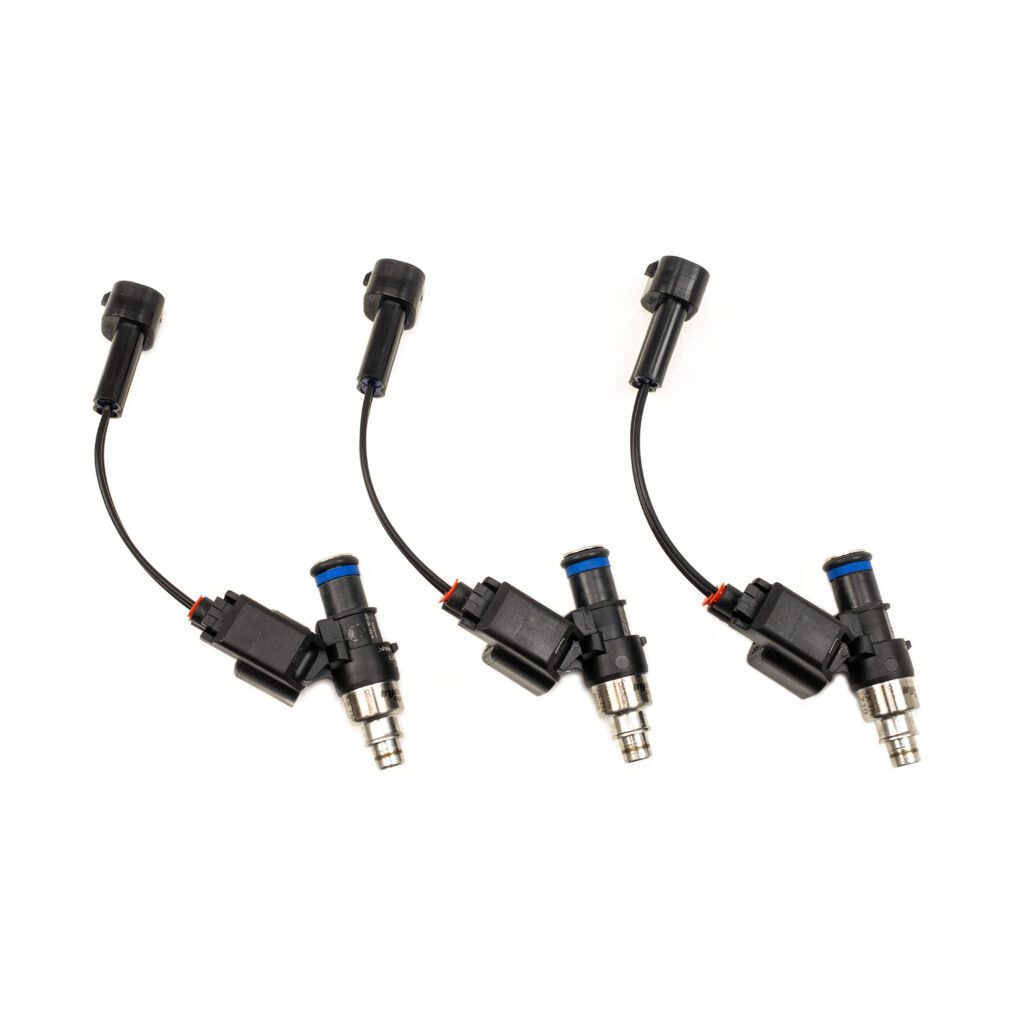

• (3) Injector Dynamics ID1050x XDS Fuel Injectors

• Machined 11mm adapter tops with O-ring support

Part Number

• 1050.27.02.34.11.3
