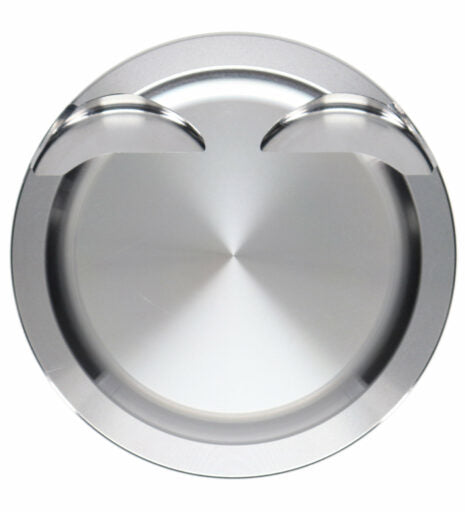

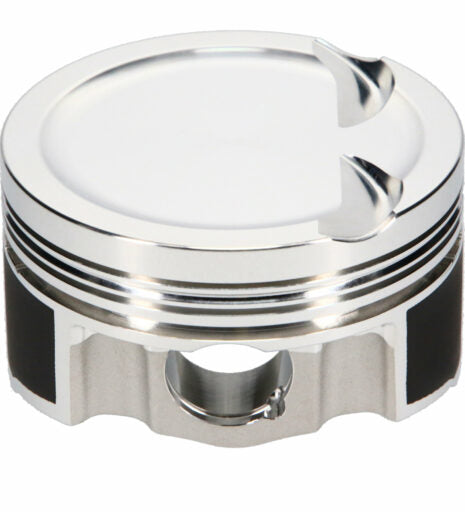

The JE Pistons forged piston kit for Volkswagen and Audi 2.0T TSI engines using 22mm wrist pins gives your performance engine build a strong foundation for demanding street, track, and racing use. Manufactured in the USA from 2618 aluminum, these pistons combine durable construction with JE's application-specific engineering and decades of motorsport experience. The Forged Side Relief (FSR) design uses a reduced skirt width and shorter wrist pin to help lower friction and reciprocating weight. Precision machining carries that design through to the finished piston, giving engine builders a purposeful component for a performance short block. Supplied as a set of four with piston rings, this kit brings proven materials and carefully developed dimensions to your next engine build.
| Specification | Details |
|---|---|
| Brand | JE Pistons |
| Manufacturer Part Number | 353853 |
| SKU | JEP353853 |
| UPC | 193564036711 |
| Series | JE Pistons |
| Engine Application | Volkswagen and Audi 2.0T TSI engines using 22mm wrist pins |
| Engine | 2.0T TSI 2013-2015 22 mm Pin |
| Cylinder Head | 2.0 TSI |
| Engine Detail | 2.0T TSI 2013-2015 22 mm Pin |
| Compression Ratio | 10:1 |
| Connecting Rod Length | 5.669 in |
| Engine Stroke | 3.654 in |
| Engine Displacement | 2 L |
| Vehicle Make | Volkswagen |
| Engine Type | Internal Combustion |
| Bore Diameter | 83.00 mm |
| Compression Height | 1.165 in |
| Piston Material | Forged 2618 Aluminum |
| Piston Quantity | 4 |
| Piston Design | Forged Side Relief (FSR) |
| Piston Crown | Dished |
| Piston Volume | -5.20 cc |
| Piston Rings Included | Yes |
| Associated Part Number | JG1001-3268 |
| Top Ring Thickness | 0.0400 in |
| Second Ring Thickness | 0.0480 in |
| Oil Ring Thickness | 0.1110 in |
| Top Ring Groove Width | 0.04000 in |
| Second Ring Groove Width | 0.04800 in |
| Oil Ring Groove Width | 0.11100 in |
| Wrist Pin Diameter | 0.866 in |
| Wrist Pin Length | 2.250 in |
| Wrist Pin Wall Thickness | 0.150 in |
| Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
| Piston-to-Wall Clearance | 0.0040 in |
| Intake Valve Relief Diameter | 1.440 in |
| Intake Valve Relief Depth | 0.190 in |
| Intake Valve Relief Angle | 23° |
| Exhaust Valve Relief Angle | 23° |
| 3D Undercrown Milling | No |
| Accumulator Groove | Yes |
| Anodized Top Ring Groove | No |
| Combo 2 | No |
| Contact Reduction | No |
| Double Pin Oilers | No |
| DVGP | No |
| Economy Undercrown Milling | No |
| EN Plating | No |
| Gas Distribution | No |
| Lateral Gas Ports | No |
| Milled Undercrown | No |
| Precision Pin Fit | Yes |
| Skirt Coating | Yes |
| Smooth Crown Finish | No |
| Thermal Crown | No |
| Tuff Skirt | No |
| Ultra Dome | No |
| Ultra Groove | No |
| Ultra Groove with Gas Port | No |
| Vertical Gas Ports | No |
| Product Type | Engine Piston Kit |
| Product Market | European |
| Industry | Automotive |
| Country of Manufacture | USA |
