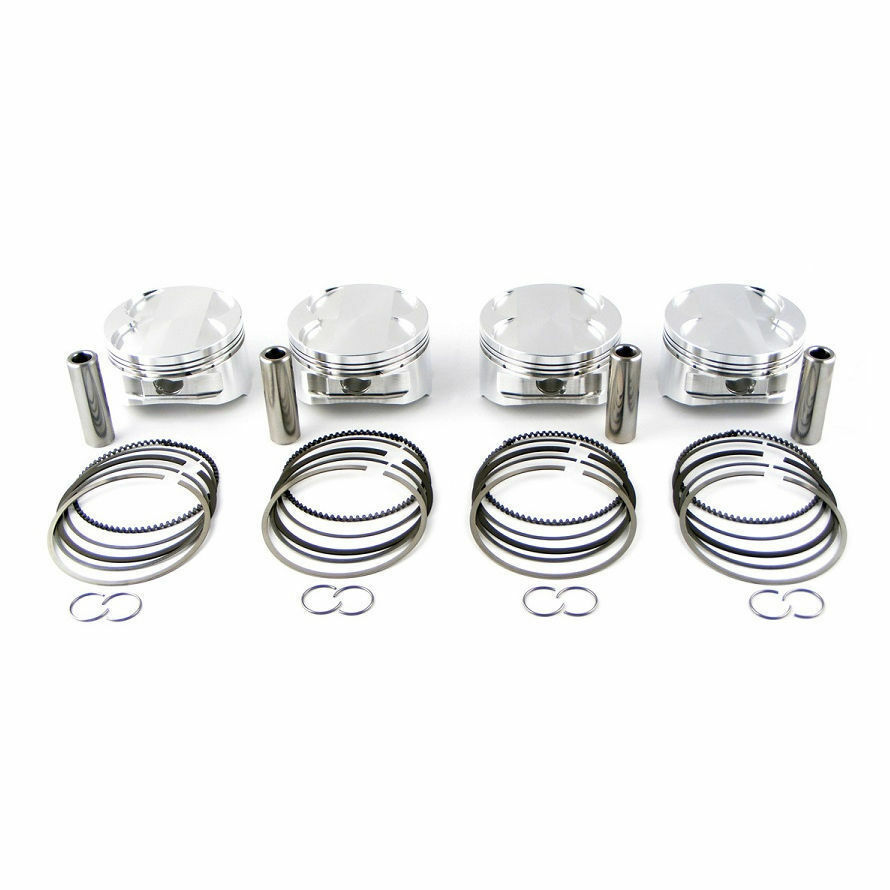

The JE Pistons forged piston kit for Honda K20C gives your performance engine build a strong foundation for demanding street, track, and racing use. Manufactured in the USA from 2618 aluminum, these pistons combine durable forged construction with JE's application-specific engineering and decades of motorsport experience. The Forged Side Relief (FSR) design uses a reduced skirt width and shorter wrist pin to help lower friction and reciprocating weight. In-house forging and precision machining produce the crown geometry and piston dimensions needed for a dedicated performance short block. Supplied as a set of four with piston rings, this kit brings proven materials and purposeful design to your next engine build.
| Specification | Details |
|---|---|
| Brand | JE Pistons |
| Manufacturer Part Number | 357426 |
| Series | JE Pistons |
| Engine Application | Honda K20C |
| Cylinder Head | K20C |
| Bore Diameter | 86.50 mm |
| Compression Ratio | 10.5:1 |
| Compression Height | 1.260 in. |
| Piston Material | Forged 2618 Aluminum |
| Piston Quantity | 4 |
| Forging Type | FSR (Forged Side Relief) |
| Piston Head Type | Dome |
| Piston Volume | 2.04 cc |
| Piston Ring Set Included | Yes |
| Top Compression Ring Thickness | 0.0480 in. |
| Second Compression Ring Thickness | 0.0480 in. |
| Oil Ring Thickness | 0.0790 in. |
| Top Ring Groove Width | 0.04800 in. |
| Second Ring Groove Width | 0.04800 in. |
| Oil Ring Groove Width | 0.07900 in. |
| Wrist Pin Outer Diameter | 0.866 in. |
| Wrist Pin Length | 2.250 in. |
| Wrist Pin Wall Thickness | 0.180 in. |
| Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
| Connecting Rod Length | 5.653 in. |
| Engine Stroke | 3.382 in. |
| Intake Valve Relief Depth | 0.143 in. |
| Intake Valve Relief Diameter | 1.240 in. |
| Exhaust Valve Relief Depth | 0.151 in. |
| Exhaust Valve Relief Diameter | 1.040 in. |
| Intake Valve Relief Angle | 14° |
| Exhaust Valve Relief Angle | 14° |
| Accumulator Groove | Yes |
| Precision Pin Fit | Yes |
| Skirt Coating | Yes |
| Manufacturing Location | USA |
