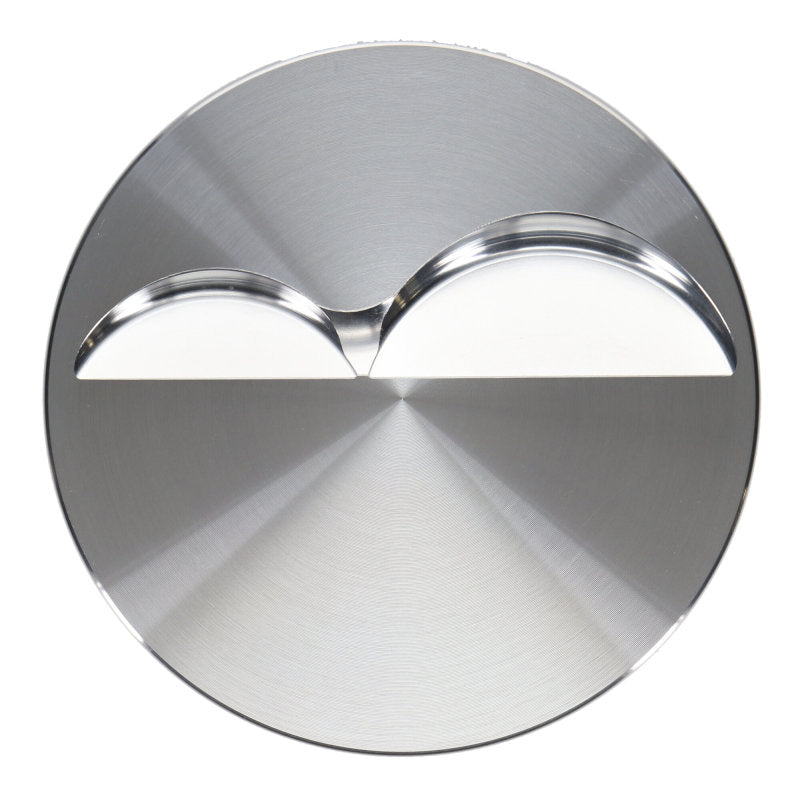

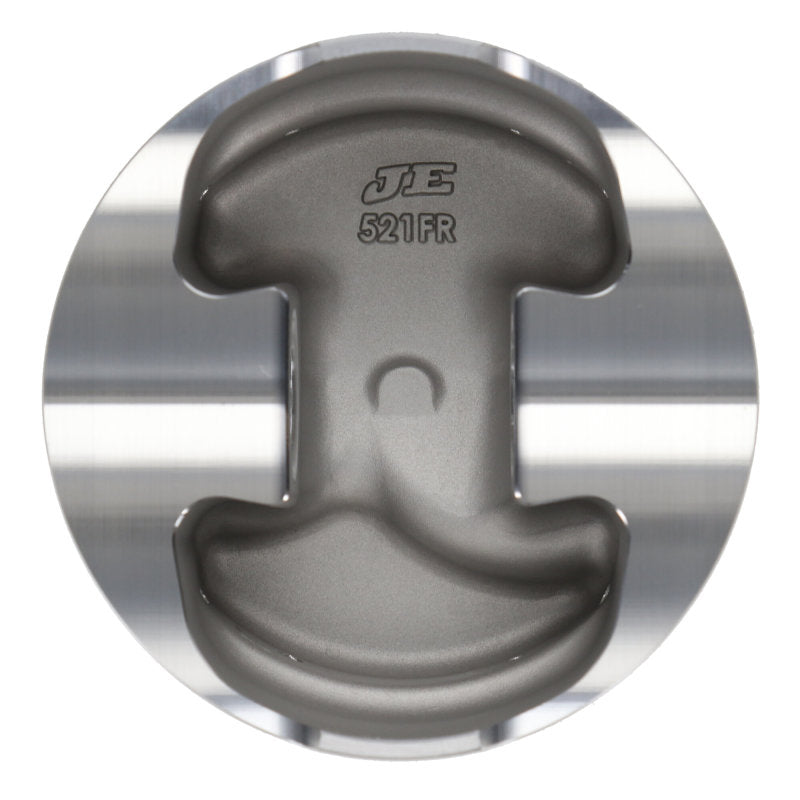

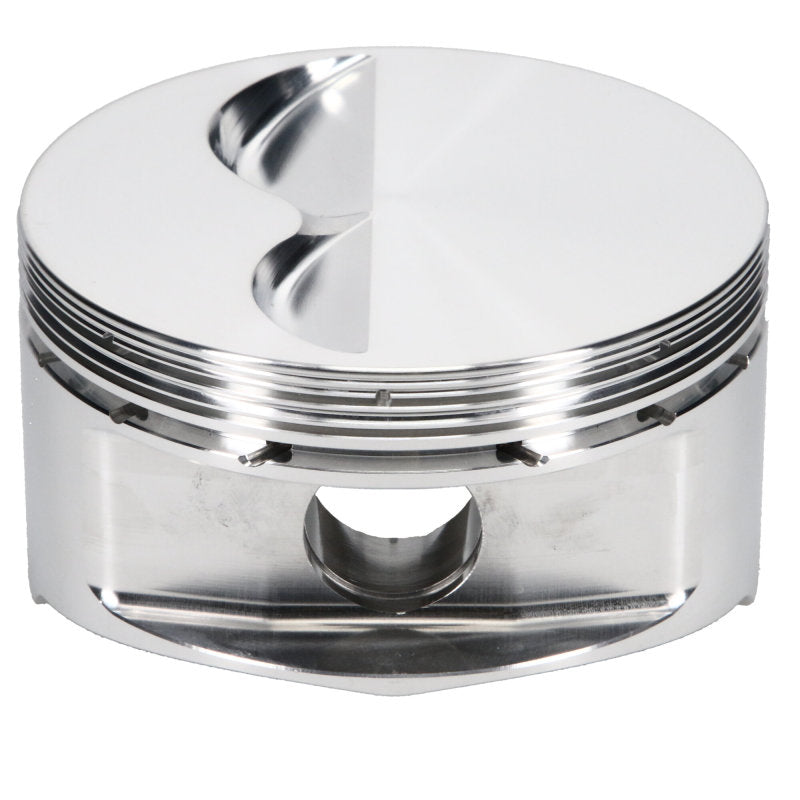

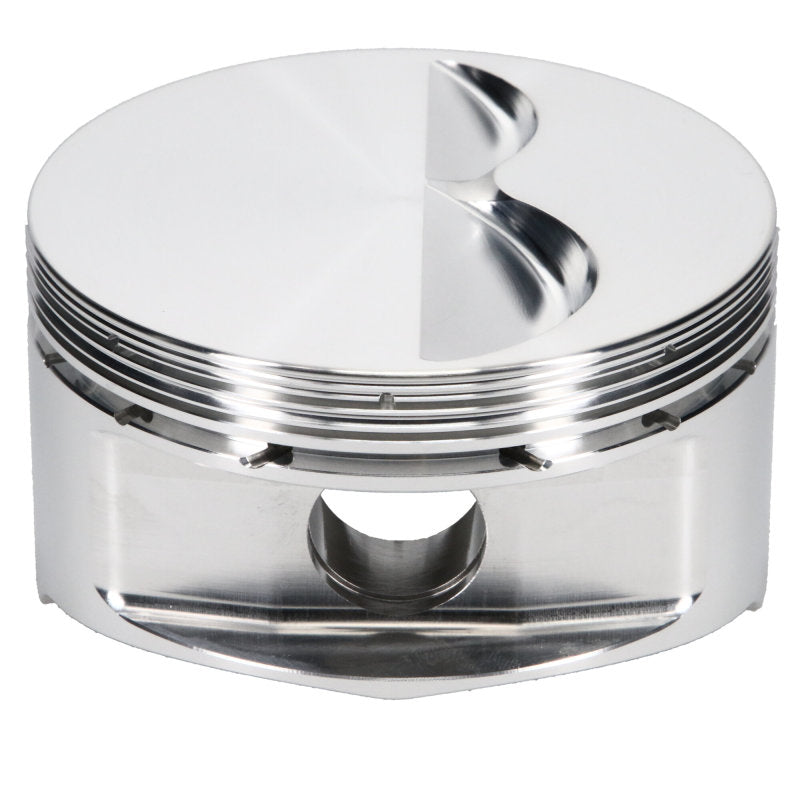

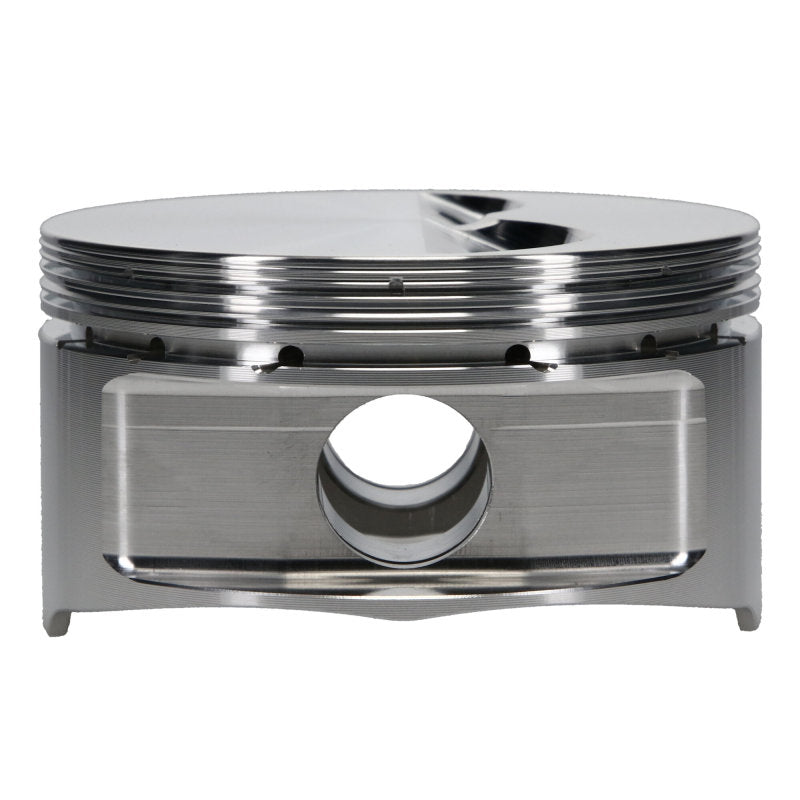

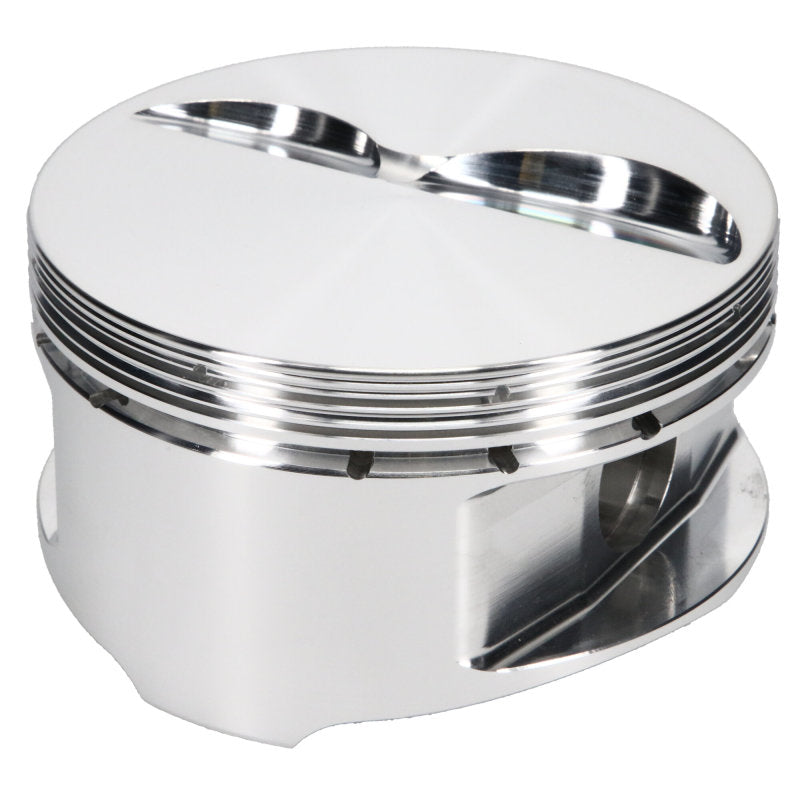

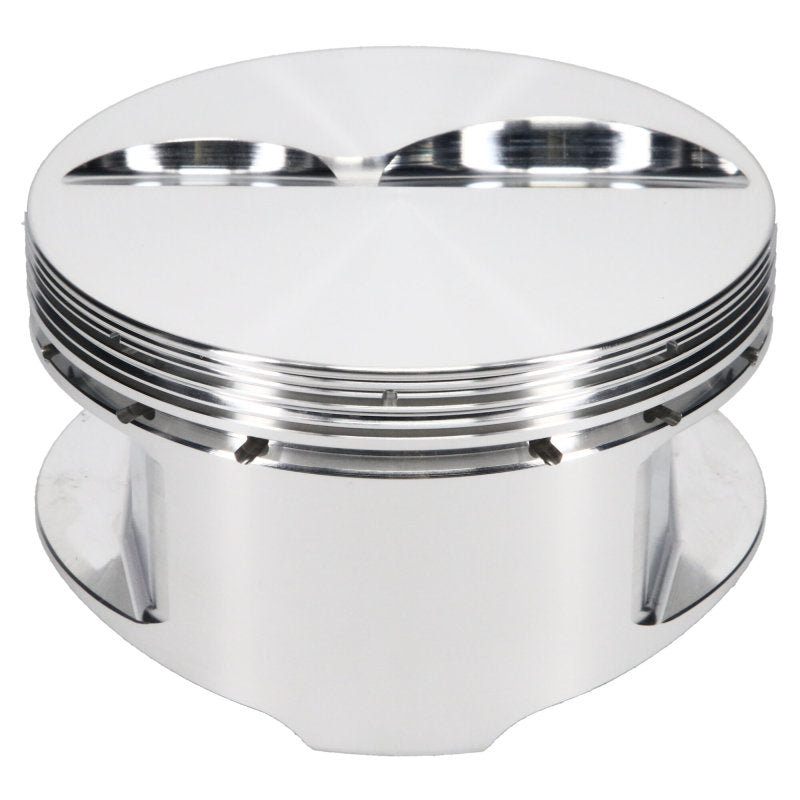

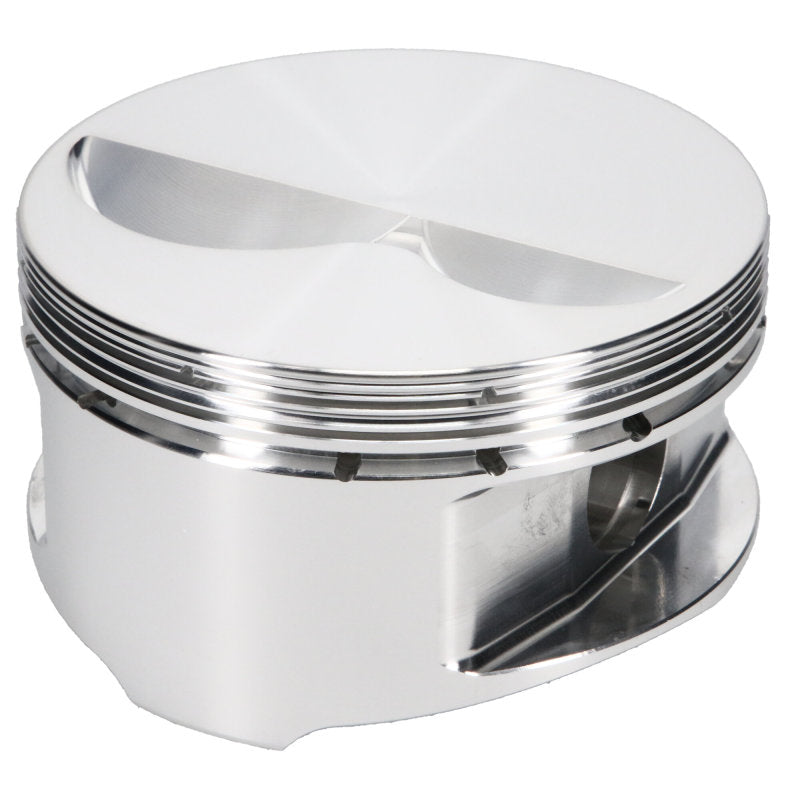

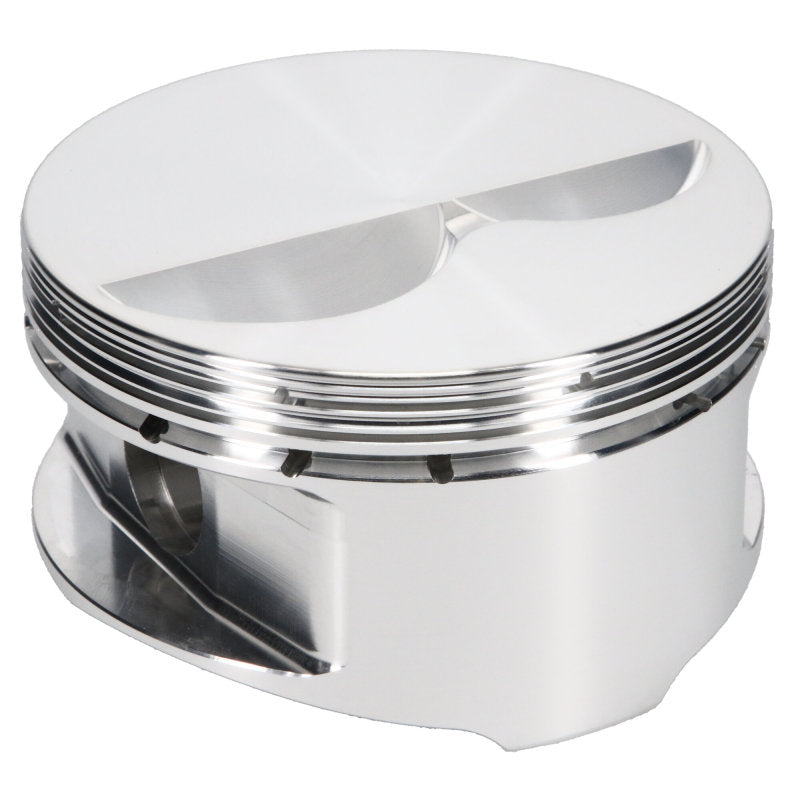

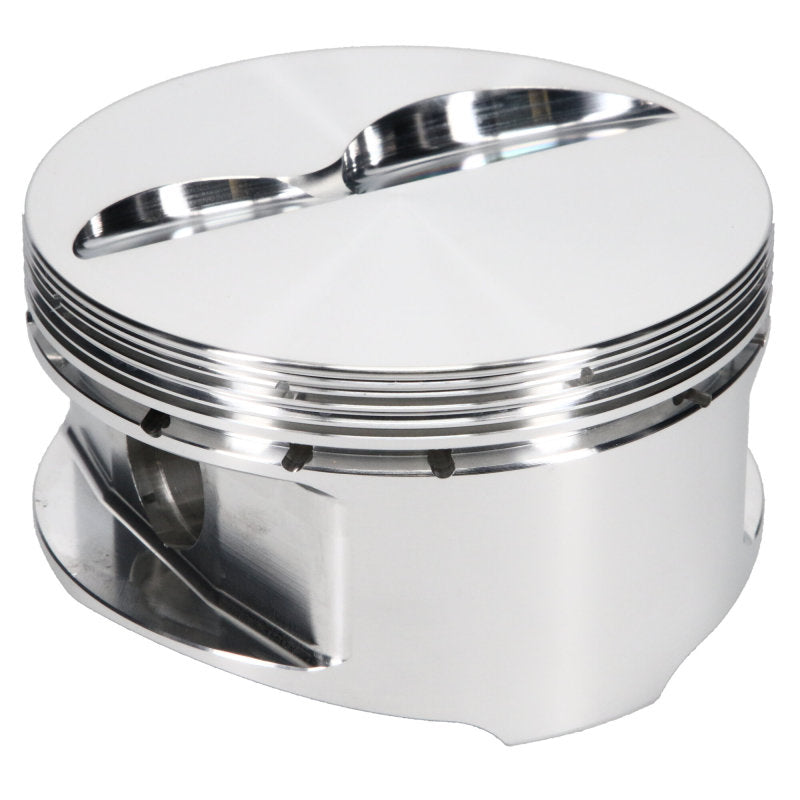

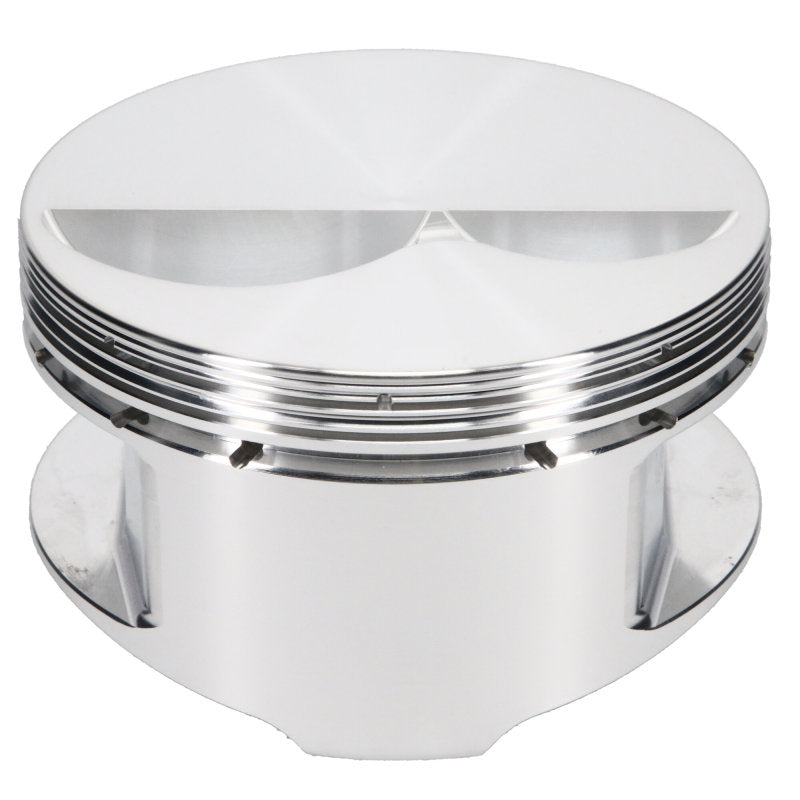

The JE Pistons forged piston set for Chevrolet small-block V8 engines with 23-degree cylinder heads gives your performance engine build a durable foundation for demanding use. The Tour Series combines forged 2618 aluminum construction with lateral gas ports, an accumulator groove, and double pin oilers. Its design brings JE's racing experience to a small-block rotating assembly, with crown geometry and ring grooves developed for the intended cylinder head and ring package. The round forging and application-specific machining provide a purposeful piston for a performance short block. This 4.040 in bore kit uses a 1.125 in compression height and is supplied as a matched set of eight pistons for your next V8 build.
| Specification | Details |
|---|---|
| Brand | JE Pistons |
| Piston Series | JE Pistons |
| Product Line | Tour Series Gas Ported |
| Manufacturer Part Number | 170698 |
| SKU | JEP170698 |
| UPC | 193564040008 |
| Application | Chevrolet small-block V8 engines with 23-degree cylinder heads |
| Piston Quantity | 8 |
| Package | Set of 8 pistons |
| Bore Diameter | 4.040 in |
| Bore Oversize | 0.040 in |
| Compression Height | 1.125 in |
| Crown Design | Flat Top |
| Crown Volume | -4.10 cc |
| Piston Alloy | 2618 forged aluminum |
| Forging Type | Round |
| Average Piston Weight | 389 g |
| Cylinder Head | Chevrolet 23° 20/30 |
| Engine Make | Chevrolet |
| Engine Architecture | Small Block |
| Engine Family | Small Block |
| Engine Detail | 23 Degree |
| Compatible Stroke Options | 3.480 in / 3.500 in |
| Block Height — Reference Build | 9.000 in |
| Ring Set Included | No |
| Recommended Ring Set | J70008-4040-5 |
| Add-On Part Number | J71408-4040-5 |
| Top Compression Ring Thickness | 0.0436 in |
| Second Compression Ring Thickness | 0.0440 in |
| Oil Ring Thickness | 0.1190 in |
| Top Ring Groove Width | 0.04360 in |
| Second Ring Groove Width | 0.04400 in |
| Oil Ring Groove Width | 0.11900 in |
| Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter | 0.927 in |
| Wrist Pin Length | 2.500 in |
| Wrist Pin Wall Thickness | 0.150 in |
| Intake Angle | 22.5° |
| Intake Diameter | 2.250 in |
| Intake Depth | 0.320 in |
| Exhaust Angle | 22.5° |
| Exhaust Diameter | 1.870 in |
| 3.500 in Stroke — Connecting Rod Length | 6.125 in |
| 3.500 in Stroke — Engine Displacement | 358 cu in |
| 3.500 in Stroke — Compression Ratio, 58cc Head | 11.2:1 |
| 3.500 in Stroke — Compression Ratio, 64cc Head | 10.3:1 |
| 3.500 in Stroke — Compression Ratio, 76cc Head | 9.1:1 |
| 3.750 in Stroke — Connecting Rod Length | 6.000 in |
| 3.750 in Stroke — Engine Displacement | 385 cu in |
| 3.750 in Stroke — Compression Ratio, 58cc Head | 11.9:1 |
| 3.750 in Stroke — Compression Ratio, 64cc Head | 11.1:1 |
| 3.750 in Stroke — Compression Ratio, 76cc Head | 9.7:1 |
| Product Type | Engine Piston Kit |
| Engine Type | Internal combustion |
| Pin Fit | Yes |
| Skirt Coating | No |
| Smooth Crown Finish | No |
| Thermal Crown | No |
| Ultra Groove | No |
| Ultra Groove Plus Gas Port | No |
| Vertical Gas Ports | No |
| Ultra Dome | No |
| Tuff Skirt | No |
| Combo 2 | Yes |
| Anodized Top Ring Groove | No |
| Accumulator Groove | Yes |
| 3D Undercrown Milling | No |
| Contact Reduction | Yes |
| Double Pin Oilers | Yes |
| DVGP | No |
| Econo Undercrown Milling | No |
| EN Plating | No |
| Gas Distribution | No |
| Lateral Gas Ports | Yes |
| Mill Undercrown | No |
