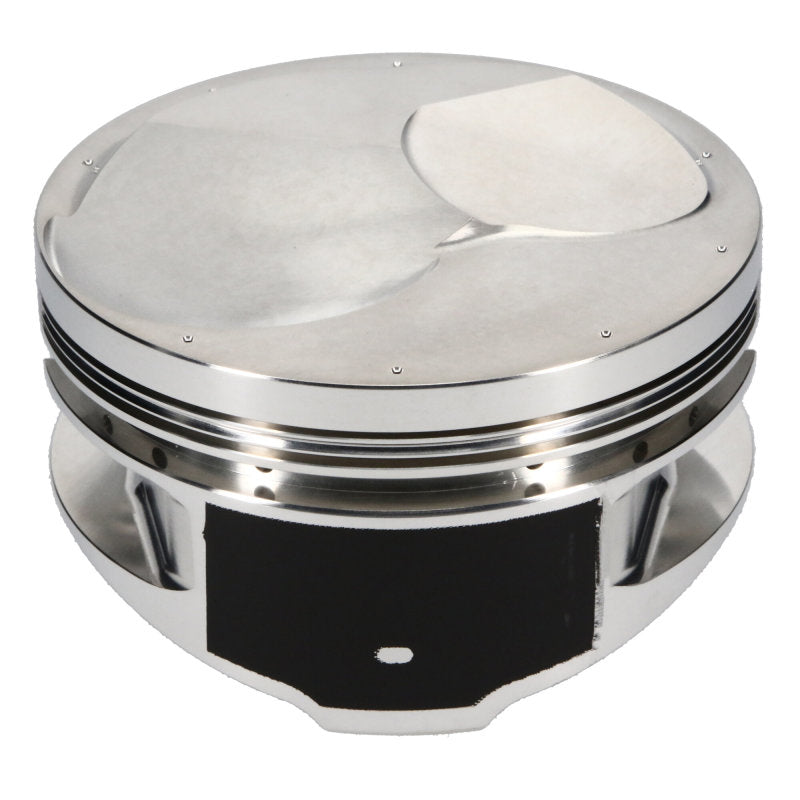

The JE Pistons forged piston set for Chevrolet big-block V8 builds using 18-degree Big Chief, Duke, or Victor heads gives your performance engine build a durable foundation for demanding use. Forged from 2618 aluminum, these pistons combine JE's application-specific engineering with carefully machined crown geometry, ring grooves, and pin bores. The round forging brings a purposeful piston design to your performance rotating assembly. JE's experience in performance piston design carries through to the finished component, with dimensions developed around the intended cylinder head, connecting rod, and stroke combination. This 4.530 in bore kit uses a 1.270 in compression height and is supplied as a matched set of eight pistons for your next V8 build.
| Specification | Details |
|---|---|
| Brand | JE Pistons |
| Piston Series | JE Pistons |
| Manufacturer Part Number | 170671 |
| SKU | JEP170671 |
| UPC | 193564217653 |
| Application | Chevrolet big-block V8 builds using 18-degree Big Chief, Duke, or Victor heads |
| Piston Quantity | 8 |
| Package | Set of 8 pistons |
| Bore Diameter | 4.530 in |
| Bore Oversize | 0.064 in |
| Compression Height | 1.270 in |
| Crown Design | Dome |
| Crown Volume | 13.00 cc |
| Piston Alloy | 2618 forged aluminum |
| Forging Type | Round |
| Average Piston Weight | 615 g |
| Cylinder Head | Big Chief / Duke / Victor 18° |
| Engine Make | Chevrolet |
| Engine Architecture | Big Block |
| Engine Family | Big Block |
| Engine Detail | BIG CHIEF |
| Engine Displacement — Reference Build | 548 cu in |
| Connecting Rod Length | 6.385 in |
| Engine Stroke | 4.250 in |
| Block Height — Reference Build | 9.780 in |
| Ring Set Included | No |
| Recommended Ring Set | J20008-4530-5 |
| Add-On Part Number | J20008-4530-5 |
| Top Compression Ring Thickness | 0.0436 in |
| Second Compression Ring Thickness | 0.0640 in |
| Oil Ring Thickness | 0.2180 in |
| Top Ring Groove Width | 0.04360 in |
| Second Ring Groove Width | 0.06400 in |
| Oil Ring Groove Width | 0.21800 in |
| Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter | 0.990 in |
| Wrist Pin Length | 2.930 in |
| Wrist Pin Wall Thickness | 0.150 in |
| Oil Rail Support Required | Yes |
| Oil Rail Support Included | Yes |
| Oil Rail Support Part Number | 4500-203 |
| Intake Angle | 18° |
| Intake Diameter | 2.575 in |
| Intake Depth | 0.325 in |
| Exhaust Angle | 9° |
| Exhaust Diameter | 2.100 in |
| Compression Ratio — 97cc Head | 12.9:1 |
| Compression Ratio — 82cc Head | 15.1:1 |
| Compression Ratio — 87cc Head | 14.2:1 |
| Product Type | Engine Piston Kit |
| Engine Type | Internal combustion |
| 3D Undercrown Milling | No |
| Accumulator Groove | Yes |
| Anodized Top Ring Groove | No |
| Combo 2 | No |
| Contact Reduction | No |
| Double Pin Oilers | Yes |
| DVGP | No |
| Econo Undercrown Milling | No |
| EN Plating | No |
| Gas Distribution | No |
| Lateral Gas Ports | No |
| Mill Undercrown | No |
| Pin Fit | Yes |
| Skirt Coating | No |
| Smooth Crown Finish | Yes |
| Thermal Crown | No |
| Tuff Skirt | No |
| Ultra Dome | No |
| Ultra Groove | No |
| Ultra Groove Plus Gas Port | No |
| Vertical Gas Ports | Yes |
