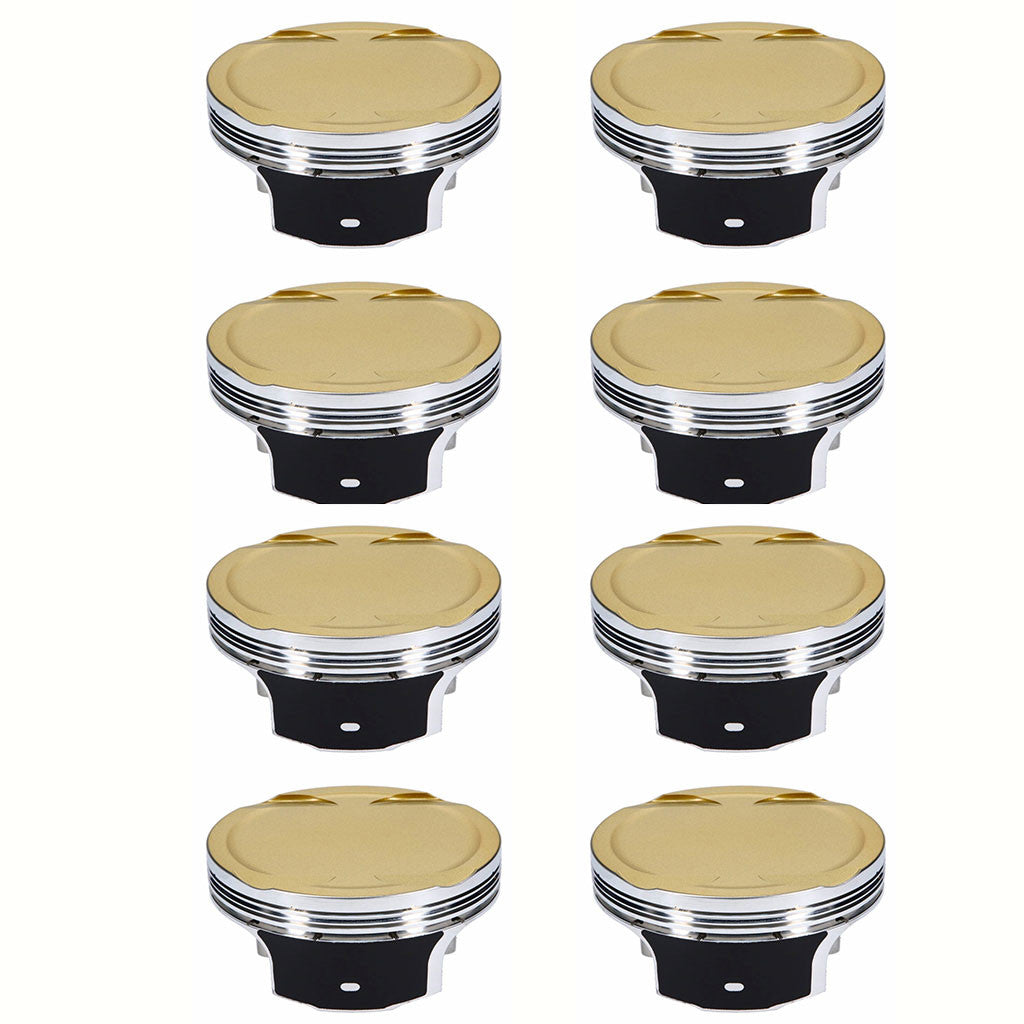

The JE Pistons Ultra Series forged piston set for Ford 5.0L Coyote Gen 3 gives your performance engine build a durable foundation for demanding use. Forged from 2618 aluminum, these Ultra Series pistons combine JE's application-specific engineering with features developed for demanding performance builds. This kit pairs an FSR forging with lateral gas ports, an accumulator groove, skirt coating, and Thermal Crown treatment. Carefully machined crown geometry, ring grooves, and pin bores bring those features together in a piston designed around its engine application. This 3.661 in bore kit uses a 1.168 in compression height and is supplied as a matched set of eight pistons for your next V8 build.
| Specification | Details |
|---|---|
| Brand | JE Pistons |
| Piston Series | JE Ultra Series |
| Manufacturer Part Number | 360833 |
| SKU | JEP360833 |
| UPC | 193564031099 |
| Application | Ford 5.0L Coyote Gen 3 |
| Piston Quantity | 8 |
| Package | Set of 8 pistons |
| Bore Diameter | 3.661 in |
| Compression Height | 1.168 in |
| Crown Design | Dome |
| Crown Volume | 1.36 cc |
| Piston Alloy | 2618 forged aluminum |
| Forging Type | FSR |
| Cylinder Head | Ford 5.0L Coyote Gen 3 |
| Engine Make | Ford |
| Engine Architecture | Modular |
| Connecting Rod Length | 5.933 in |
| Engine Stroke | 3.650 in |
| Compression Ratio — Reference Configuration | 11:1 |
| Ring Set Included | No |
| Add-On Part Number | JG1001-3661 |
| Top Compression Ring Thickness | 0.0395 in |
| Second Compression Ring Thickness | 0.0480 in |
| Oil Ring Thickness | 0.1110 in |
| Top Ring Groove Width | 0.03950 in |
| Second Ring Groove Width | 0.04800 in |
| Oil Ring Groove Width | 0.11100 in |
| Wrist Pin Material | 9310 Nickel Carbon Steel Alloy |
| Wrist Pin Outer Diameter | 0.866 in |
| Wrist Pin Length | 2.250 in |
| Wrist Pin Wall Thickness | 0.230 in |
| Intake Angle | 12.5° |
| Intake Diameter | 1.600 in |
| Intake Depth | 0.133 in |
| Exhaust Angle | 12.5° |
| Exhaust Diameter | 1.600 in |
| Exhaust Depth | 0.133 in |
| Product Type | Engine Piston Kit |
| Engine Type | Internal combustion |
| Pin Fit | Yes |
| Skirt Coating | Yes |
| Smooth Crown Finish | No |
| Thermal Crown | Yes |
| Tuff Skirt | No |
| Ultra Dome | No |
| Ultra Groove | No |
| Ultra Groove Plus Gas Port | No |
| Vertical Gas Ports | No |
| 3D Undercrown Milling | No |
| Accumulator Groove | Yes |
| Anodized Top Ring Groove | No |
| Combo 2 | No |
| Contact Reduction | No |
| Double Pin Oilers | No |
| DVGP | No |
| Econo Undercrown Milling | No |
| EN Plating | No |
| Gas Distribution | No |
| Lateral Gas Ports | Yes |
| Mill Undercrown | No |
