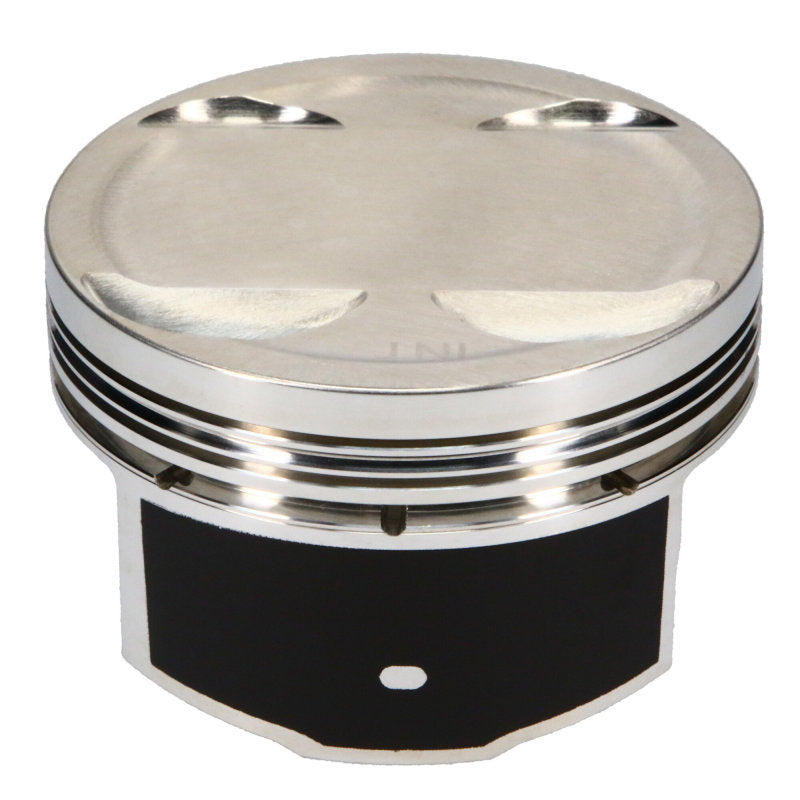

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Specifications:
| Piston Series |
JE Pistons |
|---|---|
| Cylinder Head |
H22A VTEC |
| Bore Diameter |
87.00 MM |
| Piston Head Type |
Dome |
| Compression Height |
1.220 IN |
| Piston Volume |
9.80 CC |
| Piston Material |
2618 |
| Piston Quantity |
4 |
| Forging Type |
Round |
| Piston Average Weight |
354 GR |
| Ring Set Included |
Yes |
| Top Compression Ring Thickness |
0.0480 IN |
| Second Compression Ring Thickness |
0.0480 IN |
| Oil Ring Thickness |
0.111 IN |
| Wrist Pin Outer Diameter |
0.866 IN |
| Wrist Pin Length |
2.500 IN |
| Wrist Pin Wall Thickness |
0.150 IN |
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2001 | Honda | Prelude | Base |
| 1997-2001 | Honda | Prelude | Type SH |
| 1993-1996 | Honda | Prelude | VTEC |
