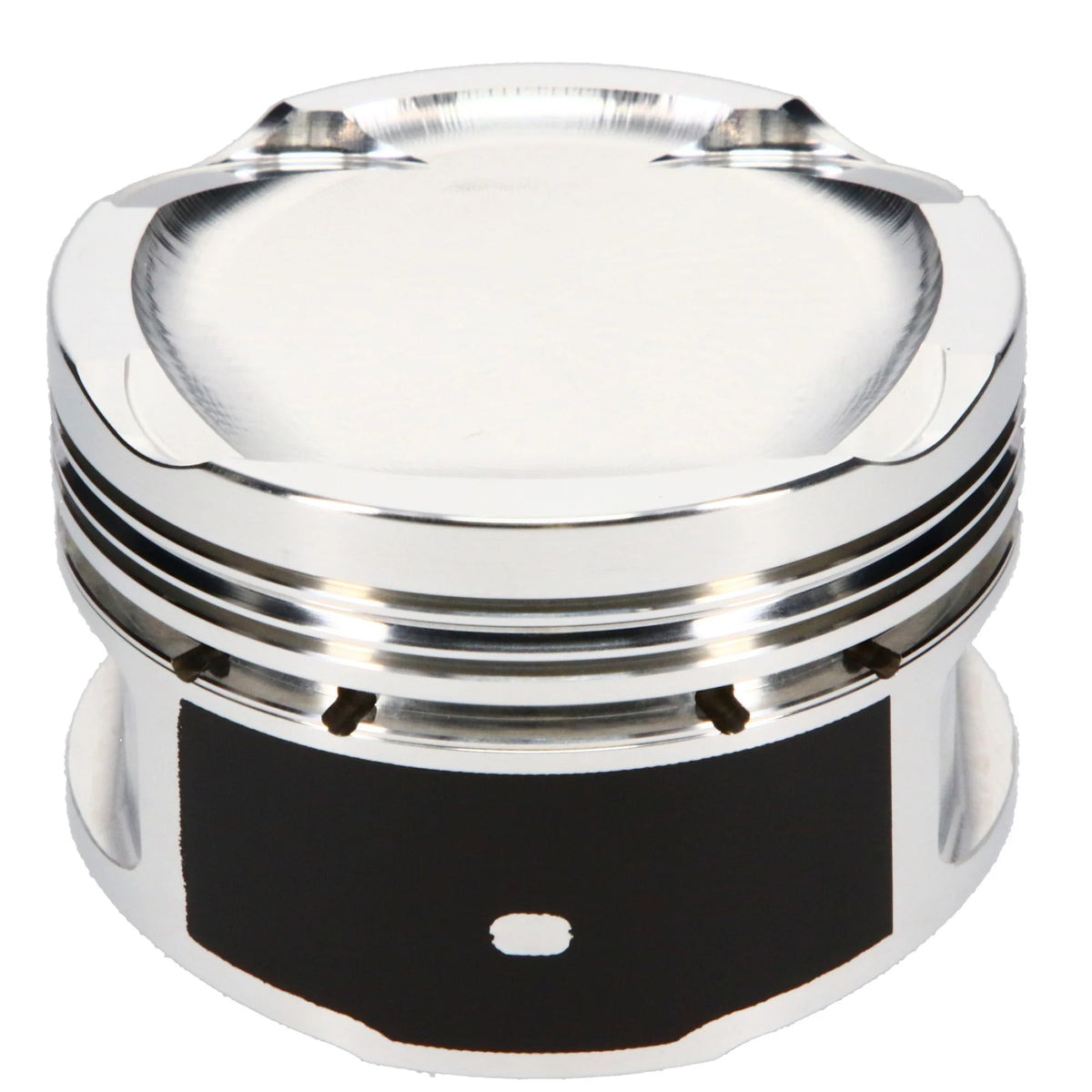

JE Pistons Forged Piston Kit for Honda Civic 1.5T L15B7 73.5mm 10.3:1 - 357430

Honda Civic 1.5T L15B7 | 73.5mm Bore | 10.3:1 | -10.10cc Dish | Forged 2618 | Round Forging | 20mm Pins | Set of 4

Building a Honda Civic 1.5T that's ready for more than a factory-style rebuild? The JE Pistons Forged Piston Kit, part number 357430, gives your L15B7 turbo engine a performance-focused foundation for increased boost, upgraded turbochargers, and demanding street or track use. Whether you're replacing damaged pistons or assembling a stronger short block from the ground up, these American-made forged pistons are designed to handle the elevated cylinder pressures associated with properly engineered turbocharged performance builds.

This kit features a 73.50mm bore, 0.50mm larger than the standard L15B7 bore, along with a 10.3:1 nominal compression ratio and -10.10cc dished crown. JE's forged 2618 aluminum construction is combined with accumulator grooves for improved ring control, precision wrist pin fitting, and coated piston skirts to help reduce friction, wear, and operating noise. With JE Pro Seal piston rings, wrist pins, and retaining locks included, this four-piston set delivers the essential components for a carefully machined Honda 1.5T short block.

Key Features & Specifications:

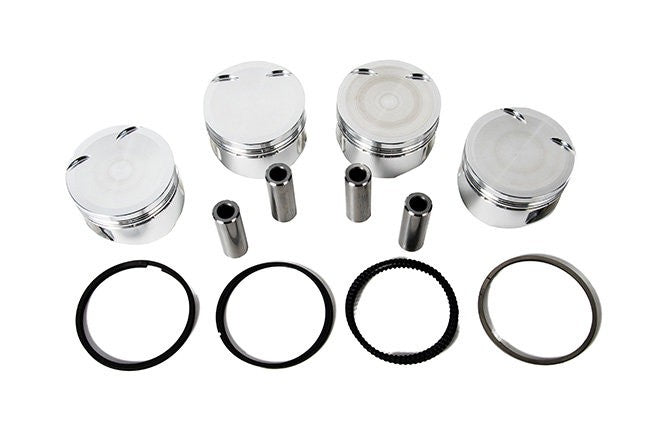

Kit Includes:

• 4 x JE Pistons Forged 2618 Aluminum Pistons

• JE Pro Seal Premium Piston Ring Set

• 4 x Case-Hardened Steel Wrist Pins

• Wrist Pin Retaining Locks

About the JE Pistons Honda L15B7 Turbo Piston Kit

Build Your Honda 1.5T for More

Honda's L15B7 has become a popular engine for enthusiasts who want responsive turbocharged performance from a compact four-cylinder. But when you're planning a larger turbocharger or asking more from the engine under heavy load, strengthening the internal components becomes an important part of the build.

JE's 2618 forged aluminum pistons are designed for demanding combustion conditions where strength and ductility matter. They're an upgrade option for builders who want a stronger foundation for increased power rather than simply installing another factory-style piston set.

The 73.50mm bore makes part 357430 particularly useful for engine rebuilds requiring a 0.50mm overbore. This allows a properly prepared L15B7 block to use an oversize forged piston configuration instead of relying on the original 73.00mm cylinder diameter.

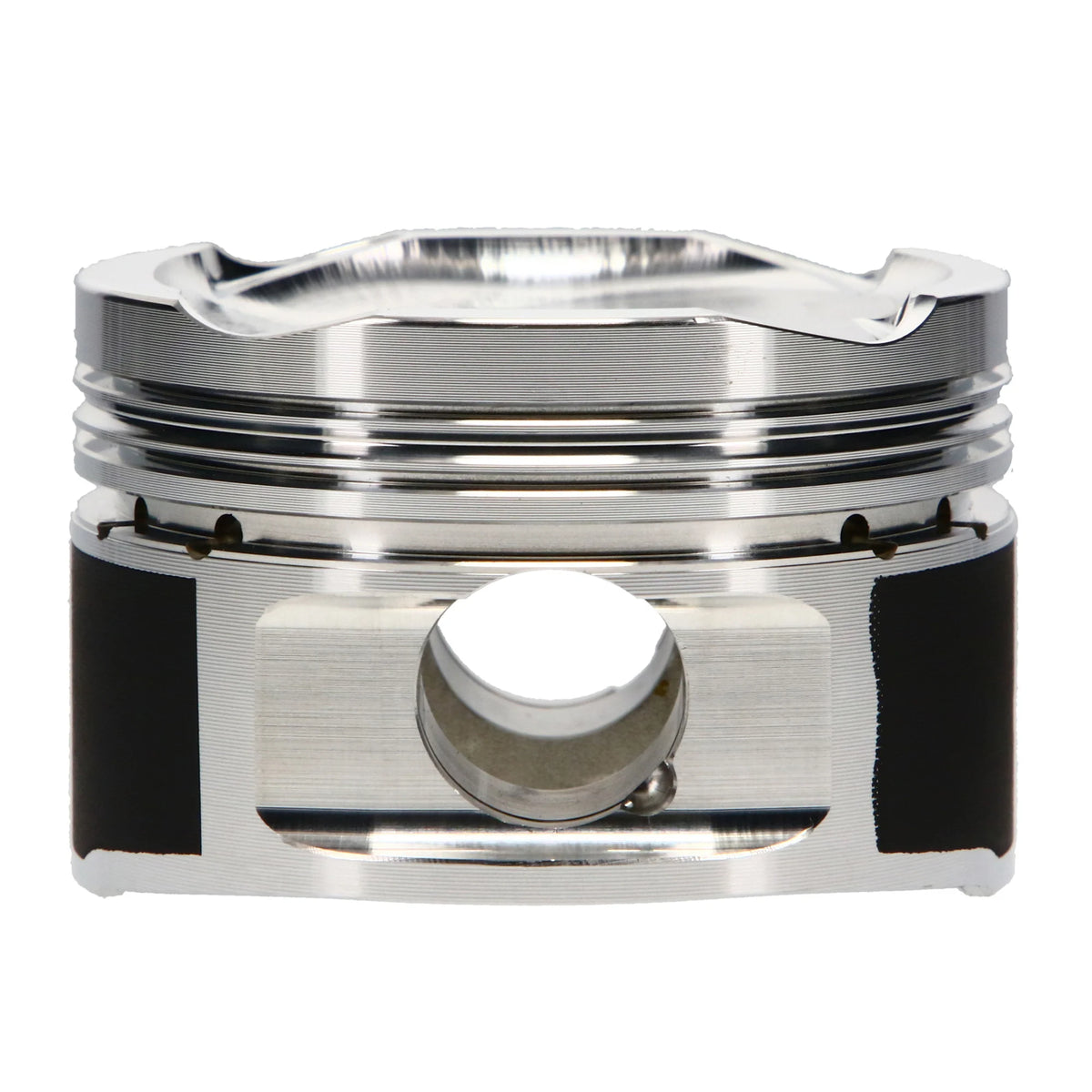

Accumulator Grooves for Better Ring Control

As boost and cylinder pressure increase, gases passing the top compression ring can create pressure between the top and second rings.

JE's accumulator groove provides additional volume for those gases, helping reduce inter-ring pressure and limit ring flutter. This supports more consistent top-ring sealing during demanding engine operation.

For a modified Honda 1.5T, effective ring sealing is an important part of maintaining consistent combustion performance.

Skirt Coating for Friction and Wear Reduction

These pistons feature JE's specialized skirt coating, designed to reduce friction and wear between the piston skirts and cylinder walls.

The coating also helps reduce operating noise, making it particularly useful for enthusiasts assembling an upgraded engine that will continue to see regular street driving.

Combined with proper cylinder machining and piston clearances, the coated skirts contribute to a carefully engineered forged piston installation.

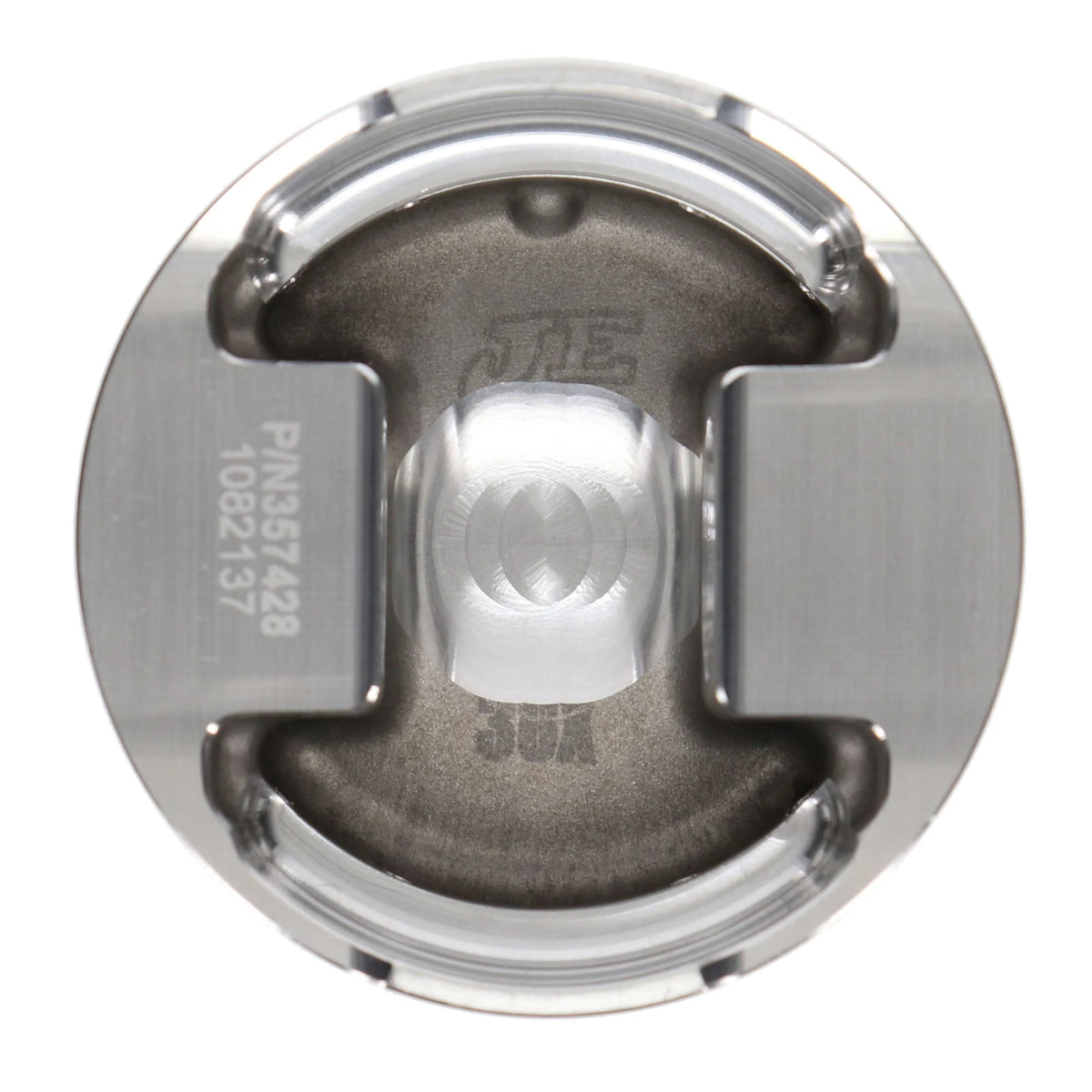

Precision Wrist Pin Fit

JE precision-hones the wrist pin bores to help achieve controlled pin clearance. Typical pin-to-bore clearances range from 0.0003 to 0.0010 inches, with final measurements established during engine assembly.

The included case-hardened 5115 steel wrist pins measure 20mm nominal diameter and are accompanied by retaining locks and JE Pro Seal piston rings.

Whether you're rebuilding a damaged L15B7 or preparing for more demanding turbocharged performance, JE Pistons 357430 provides forged construction, application-specific dimensions, and practical ring-control and friction-reduction features in one complete four-piston package.

Fitment & Installation Notes:

• Honda Civic 1.5T: Designed for compatible L15B7 turbocharged engine configurations.

• Engine Requirement: Honda L15B7 1.5L turbocharged four-cylinder.

• Honda Accord / CR-V: Not confirmed as direct applications for this part number. Engine-code and internal-component compatibility must be established before considering installation.

• Required Finished Bore: 73.50mm.

• Overbore: +0.50mm compared with the standard 73.00mm L15B7 bore.

• Compression Ratio: Nominal 10.3:1 with the intended L15B7 engine geometry. Actual assembled compression depends on combustion chamber volume, head gasket dimensions, and deck clearance.

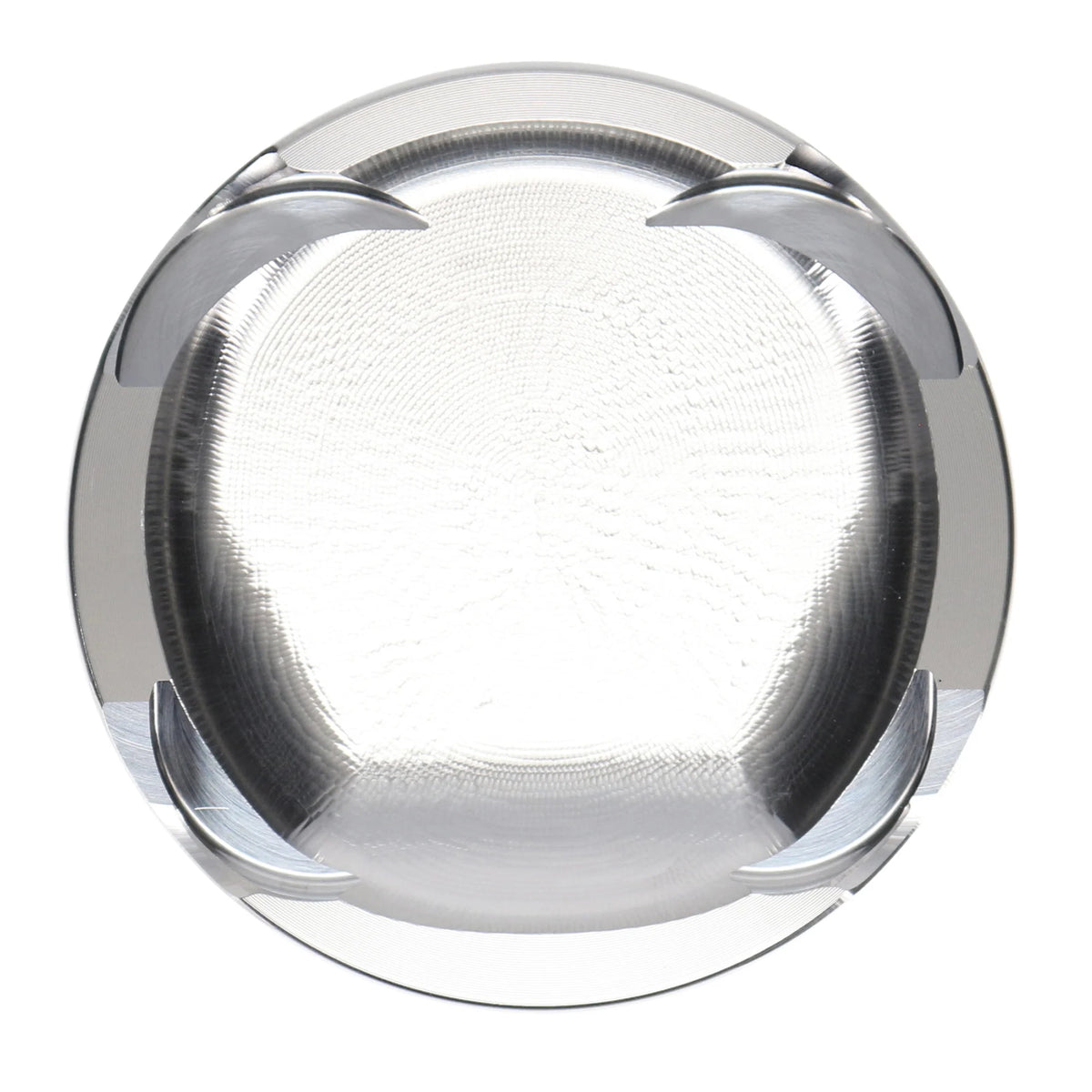

• Piston Configuration: -10.10cc dished crown with 1.126-inch compression height.

• Wrist Pin Diameter: 0.787 in. (20mm nominal).

• Connecting Rod Compatibility: Confirm connecting rod length, small-end dimensions, and wrist pin fit before assembly.

• Cylinder Machining: The engine block must be measured and machined for the 73.50mm piston configuration and the correct JE piston-to-wall clearance.

• Piston Ring Installation: Measure and adjust ring end gaps according to JE's recommendations for the intended boost, fuel, and operating conditions.

• Piston-to-Valve Clearance: Verify clearance during assembly, especially when using aftermarket camshafts or modified cylinder heads.

• Engine Calibration: Fuel delivery, ignition timing, boost control, and ECU tuning should match the completed engine build.

• Horsepower Rating: No fixed horsepower limit is specified for part 357430. Overall engine capability depends on the complete build, machining, supporting components, and tuning.

For Honda enthusiasts building a stronger L15B7 turbo engine, the JE Pistons 357430 kit combines forged 2618 aluminum construction, 10.3:1 nominal compression, accumulator grooves, precision pin fit, and coated skirts in a performance-oriented four-cylinder piston package.
