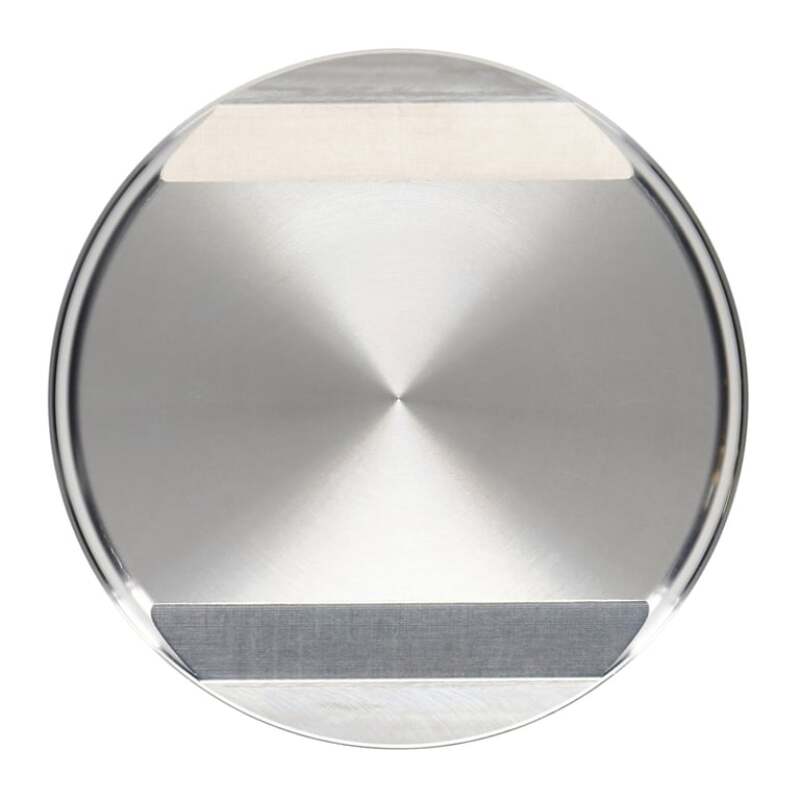

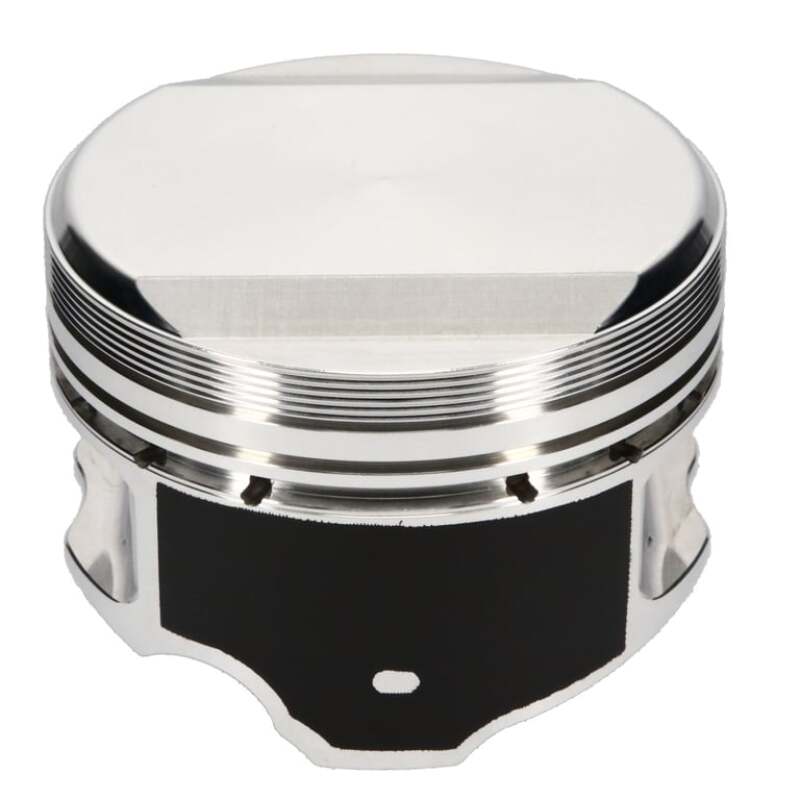

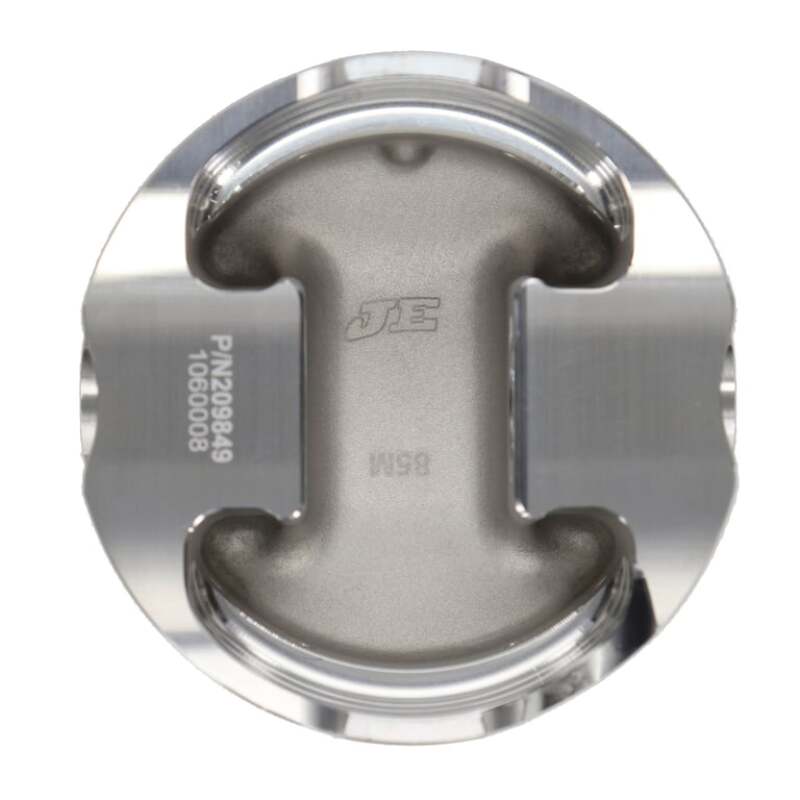

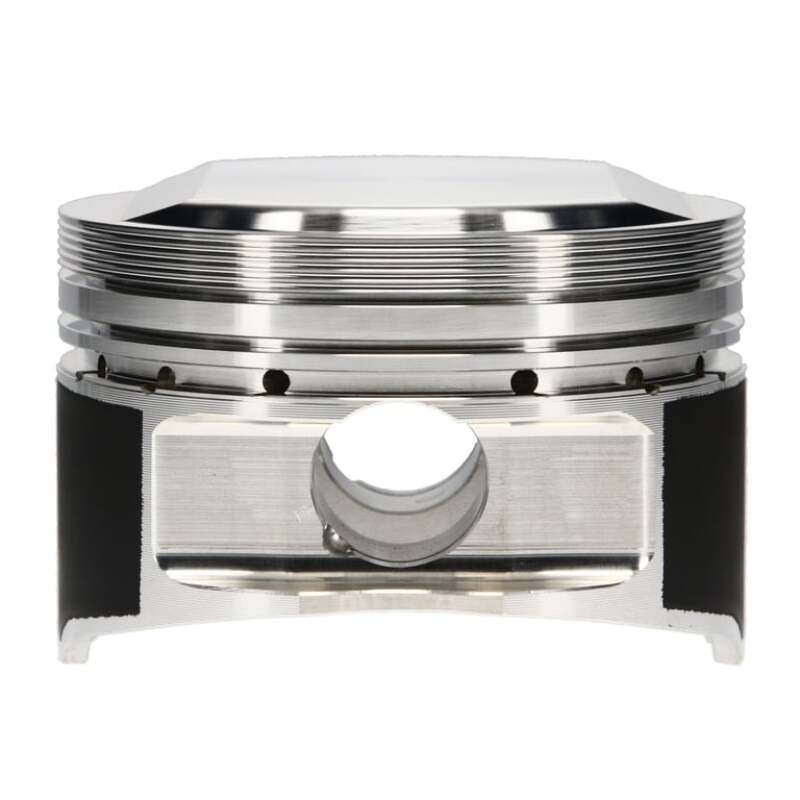

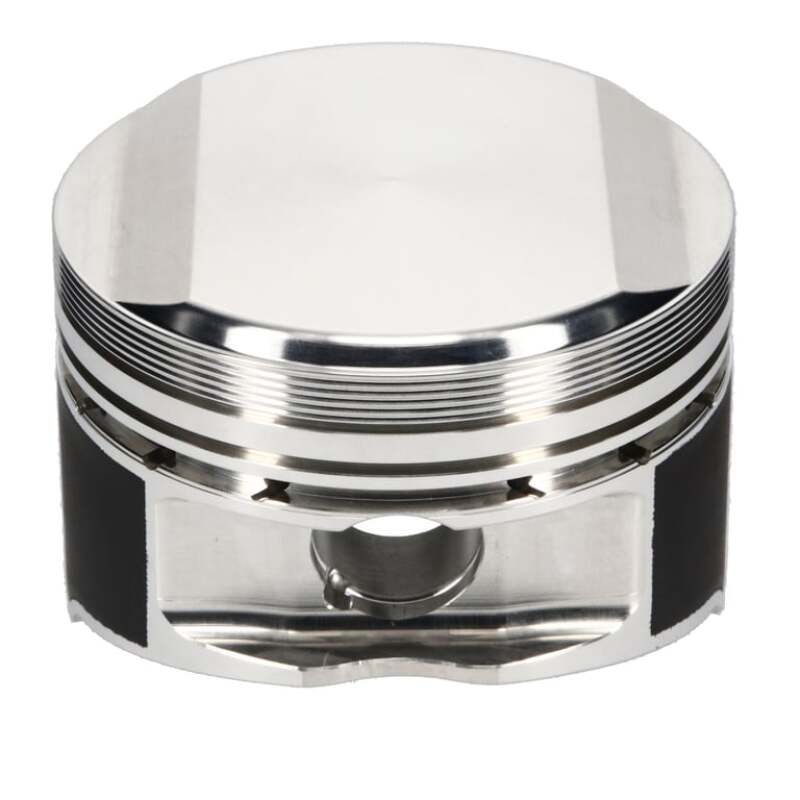

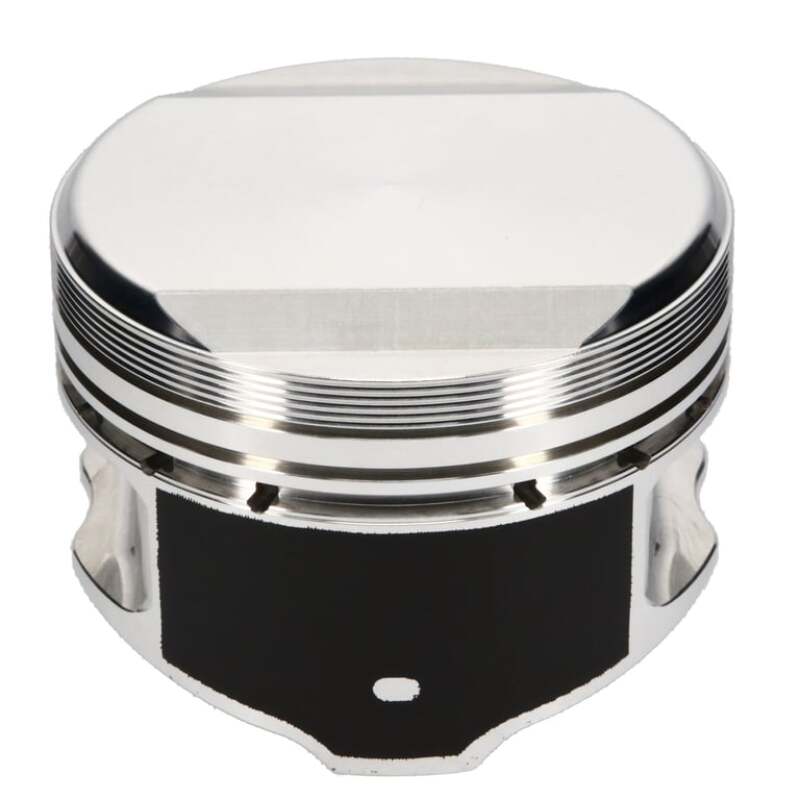

The JE Pistons forged piston kit for Nissan SR20VE VVL engines gives your performance engine build a strong foundation for demanding street, track, and racing use. Manufactured in the USA from 2618 aluminum, these pistons combine durable construction with JE's application-specific engineering and decades of motorsport experience. The Forged Side Relief (FSR) design uses a reduced skirt width and shorter wrist pin to help lower friction and reciprocating weight. Precision machining carries that design through to the finished piston, giving engine builders a purposeful component for a performance short block. Supplied as a set of four with piston rings, this kit brings proven materials and carefully developed dimensions to your next engine build.
| Specification | Details |
|---|---|
| Brand | JE Pistons |
| Manufacturer Part Number | 318016 |
| SKU | JEP318016 |
| UPC | 193564032492 |
| Series | JE Pistons |
| Engine Application | Nissan SR20VE VVL engines |
| Engine | SR Series |
| Cylinder Head | SR20VE VVL |
| Compression Ratio | 9:1 |
| Connecting Rod Length | 5.364 in |
| Engine Stroke | 3.386 in |
| Engine Displacement | 2.0 L |
| Vehicle Make | Nissan |
| Engine Type | Internal Combustion |
| Bore Diameter | 89.00 mm |
| Compression Height | 1.260 in |
| Piston Material | Forged 2618 Aluminum |
| Piston Quantity | 4 |
| Piston Design | Forged Side Relief (FSR) |
| Piston Crown | Dished |
| Piston Volume | -16.90 cc |
| Average Piston Weight | 330 g |
| Piston Rings Included | Yes |
| Associated Part Number | JG1001-3504 |
| Ring Set Part Number | JG1001-3504 |
| Top Ring Thickness | 0.0400 in |
| Second Ring Thickness | 0.0480 in |
| Oil Ring Thickness | 0.1110 in |
| Top Ring Groove Width | 0.04000 in |
| Second Ring Groove Width | 0.04800 in |
| Oil Ring Groove Width | 0.11100 in |
| Wrist Pin Diameter | 0.866 in |
| Wrist Pin Length | 2.250 in |
| Wrist Pin Wall Thickness | 0.150 in |
| Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
| Piston-to-Wall Clearance | 0.0040 in |
| Intake Valve Relief Diameter | 1.485 in |
| Intake Valve Relief Depth | 0.135 in |
| Intake Valve Relief Angle | 14.5° |
| Exhaust Valve Relief Diameter | 1.290 in |
| Exhaust Valve Relief Depth | 0.120 in |
| Exhaust Valve Relief Angle | 14.5° |
| Product Type | Engine Piston Kit |
| Product Market | Sport Compact |
| Industry | Automotive |
| Country of Manufacture | USA |
