JE Pistons FSR Forged Piston Kit for Subaru WRX EJ205 92.5mm 8.5:1 - 314438

Subaru WRX EJ205 | 92.5mm Bore | 8.5:1 | Forged 2618 | FSR | 23mm Pins | Skirt Coated | Set of 4

If you're rebuilding a Subaru EJ205 after piston damage or preparing your WRX for more demanding turbocharged performance, the JE Pistons Forged Piston Kit, part number 314438, gives you a solid foundation for a properly built 2.0L boxer engine. Rather than returning to factory-style pistons, this kit uses forged 2618 aluminum designed for the elevated combustion pressures found in performance engine applications. It's a compelling option for enthusiasts planning a stronger street-driven WRX, larger turbocharger setup, or weekend track build.

These pistons feature a 92.50mm bore, 8.5:1 nominal compression ratio, and -11.70cc dished crown. JE's lightweight Forged Side Relief (FSR) design helps reduce friction and reciprocating weight, while accumulator grooves support ring stability under boost. Smooth crown finishing, precision wrist pin fitting, and coated skirts add useful refinements for an engine expected to work harder than stock. The kit includes four pistons, JE Pro Seal rings, wrist pins, and retaining locks.

Key Features & Specifications:

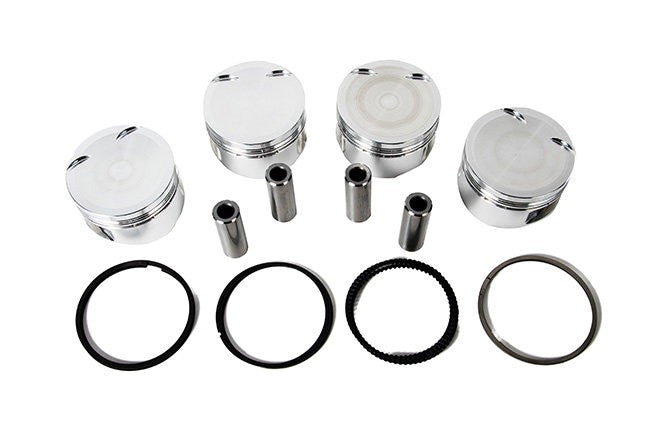

Kit Includes:

• 4 x JE Pistons FSR Forged 2618 Aluminum Pistons

• JE Pro Seal Premium Piston Ring Set

• 4 x Steel Wrist Pins

• Wrist Pin Retaining Locks

About the JE Pistons Subaru WRX EJ205 Piston Kit

Build Your WRX for More Than a Factory-Style Rebuild

The Subaru EJ205 has earned its place among turbocharged performance enthusiasts, but pushing an aging WRX harder means paying attention to the condition and construction of the engine's internals.

Whether your original engine suffered piston damage or you're building a fresh short block to support more boost, JE's forged 2618 aluminum pistons provide a performance-focused alternative to factory-style components. The material is selected for its strength and ductility under demanding combustion conditions, making it suitable for properly engineered turbocharged builds.

This kit uses an 8.5:1 nominal compression configuration and a -11.70cc dished crown designed around the EJ205 WRX cylinder head. Its 92.50mm bore also provides an oversize option for blocks requiring cylinder machining.

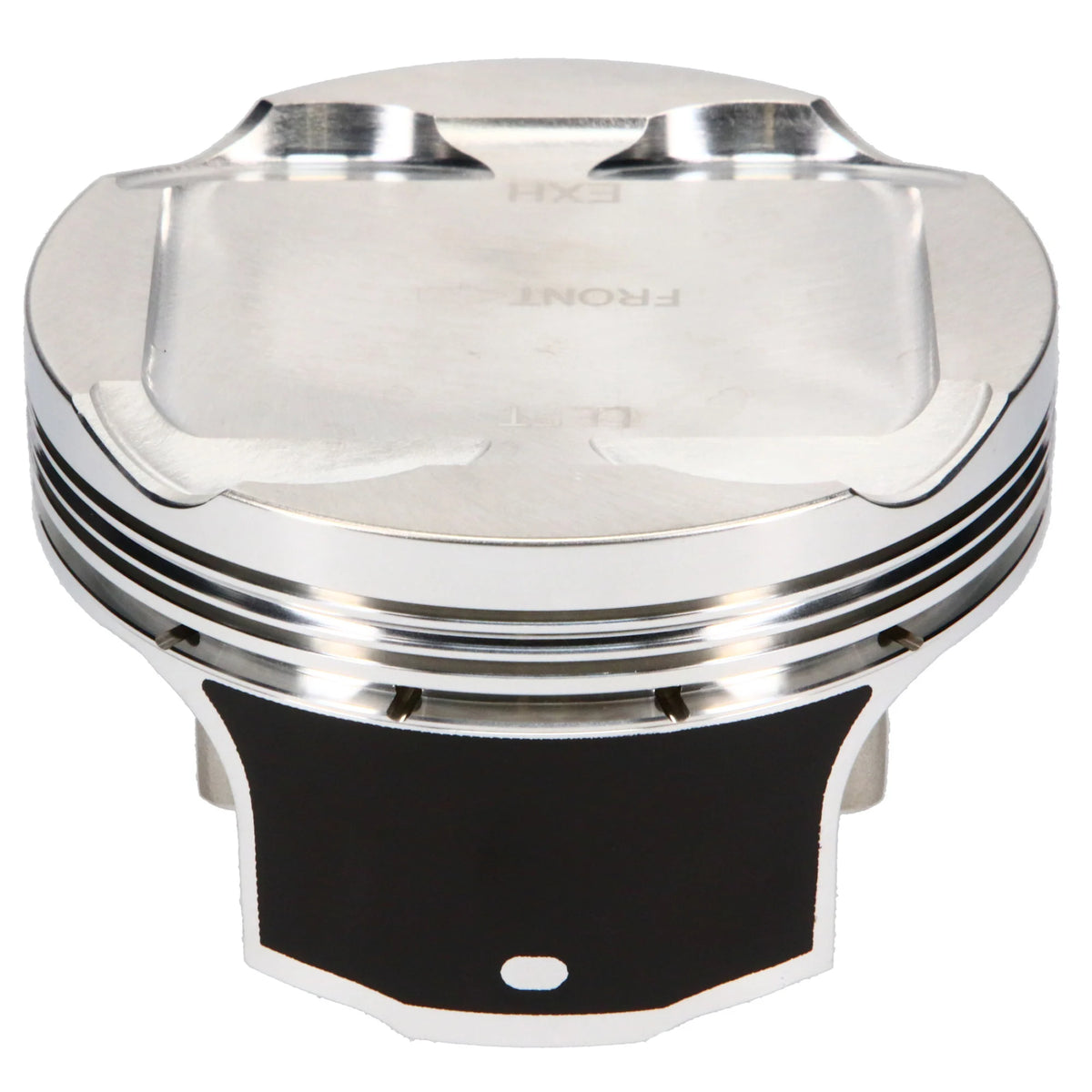

Lightweight Forged Side Relief Construction

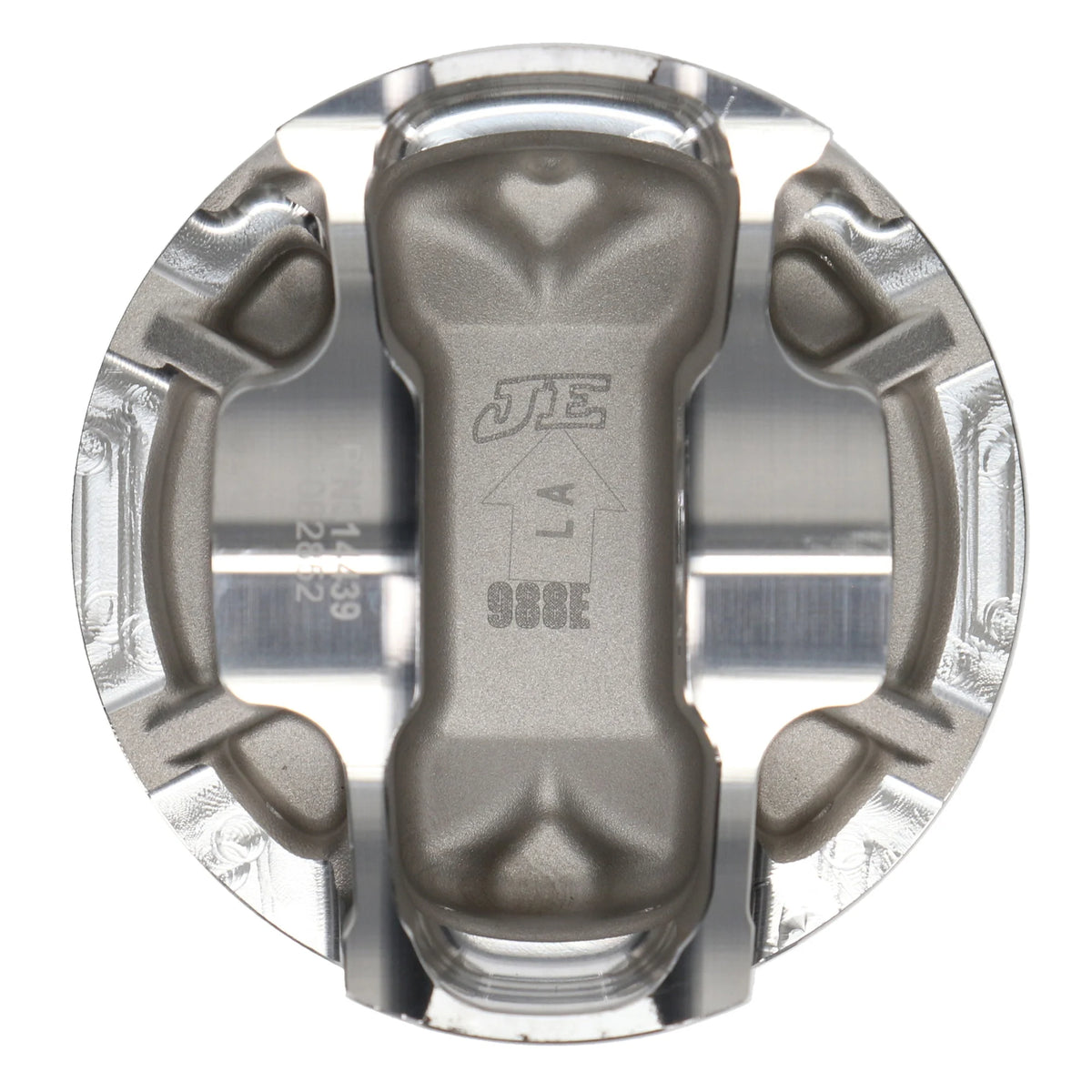

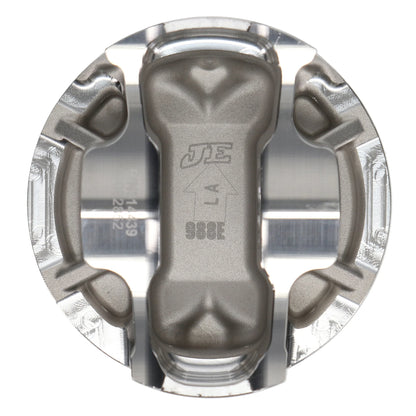

JE's proprietary Forged Side Relief design reduces piston skirt width to help minimize friction and unnecessary reciprocating weight. The forging also accommodates a shorter wrist pin, contributing to a more efficient piston assembly.

At an average weight of 363 grams per piston, the kit combines forged construction with a design focused on reducing excess mass, an important consideration in an engine that regularly sees rapid changes in RPM.

Accumulator Grooves for Improved Ring Sealing

When an engine is operating under boost, gases that pass the top compression ring can increase pressure between the first and second rings.

JE's accumulator groove provides additional volume for these gases, helping reduce pressure buildup and ring flutter. This supports more consistent top-ring sealing during demanding operation.

For a modified EJ205, maintaining effective ring control is an important part of getting the most out of a carefully assembled turbocharged engine.

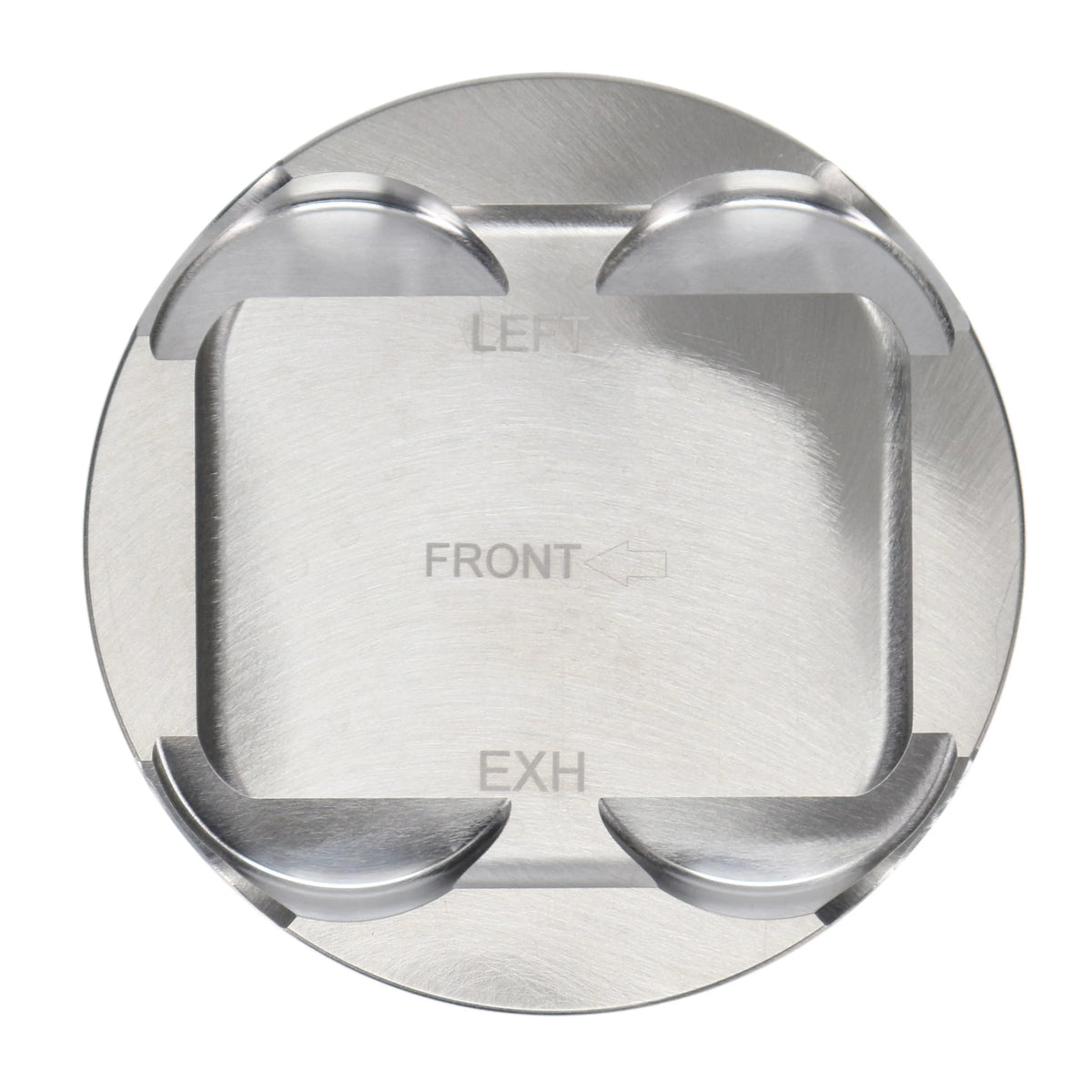

Smooth Crown Finish and Coated Skirts

JE's smooth crown finish removes sharp edges around the piston crown and valve relief areas. This helps reduce potential hot spots and stress concentrations under elevated combustion temperatures.

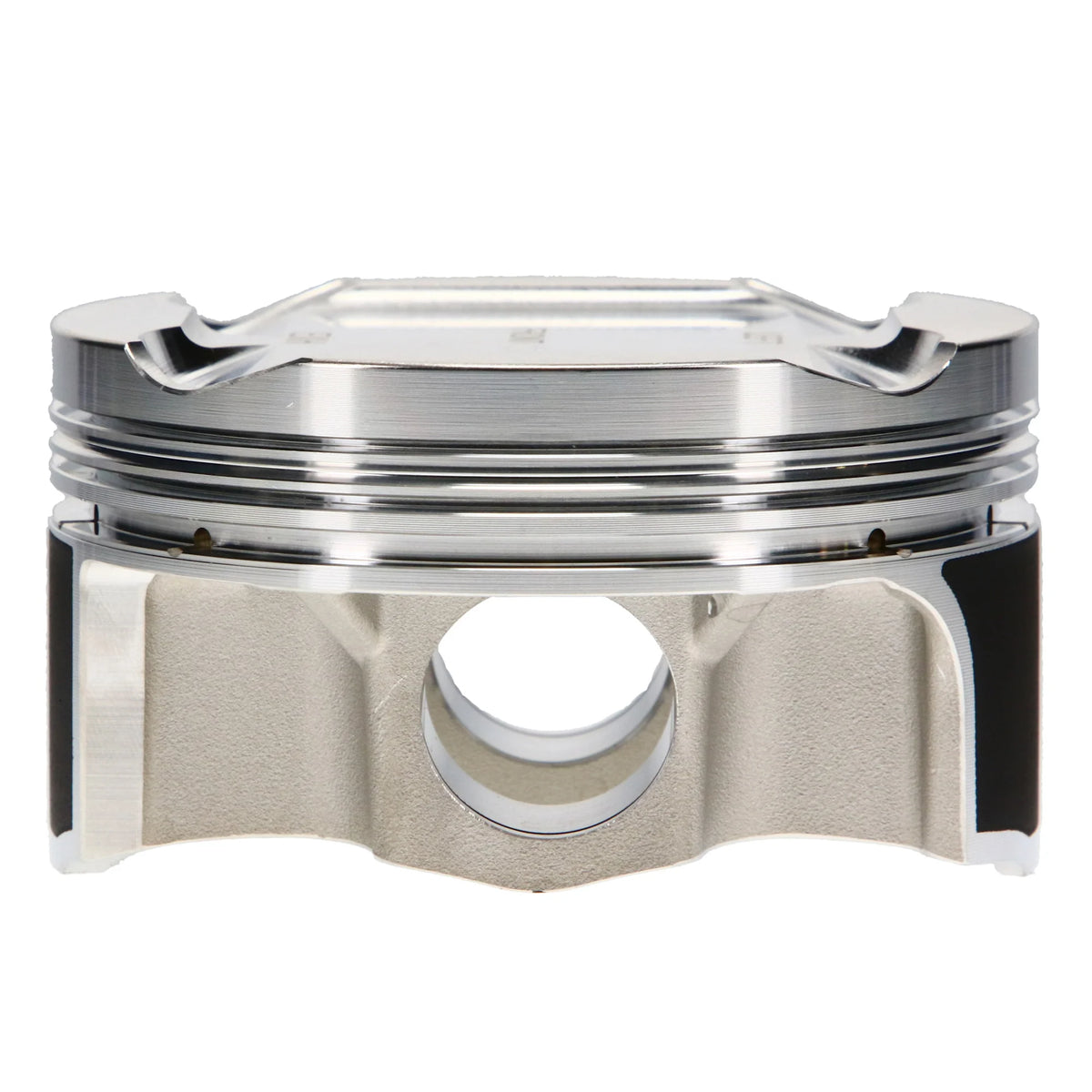

The coated piston skirts are designed to reduce friction and wear against the cylinder walls while helping minimize operating noise. That's a useful feature for enthusiasts who want an upgraded engine that still spends plenty of time on the street.

Precision Pin Fit and Complete Piston Hardware

JE precision-hones the wrist pin bores to achieve controlled pin-to-piston clearance. Typical pin-fit clearances range from 0.0003 to 0.0010 inches, with final measurements established during engine assembly.

The included wrist pins, retaining locks, and JE Pro Seal rings complete the piston package, allowing the engine builder to focus on proper machining, assembly, and supporting components.

The JE Pistons 314438 kit is a practical choice for Subaru owners rebuilding an EJ205 or preparing a stronger WRX engine for demanding turbocharged performance.

Fitment & Installation Notes:

• Subaru WRX EJ205: Designed specifically for compatible EJ205 2.0L turbocharged engine applications.

• Cylinder Head: EJ205 WRX configuration.

• Required Finished Bore: 92.50mm.

• Overbore: +0.50mm compared with the standard 92.00mm EJ205 bore.

• Compression Ratio: Nominal 8.5:1 for the intended engine geometry. Actual assembled compression depends on combustion chamber volume, head gasket thickness, and deck clearance.

• Piston Configuration: -11.70cc dished crown with 1.287-inch compression height.

• Engine Stroke: 75mm reference configuration.

• Connecting Rod Length: 130.5mm reference configuration.

• Wrist Pin Diameter: 0.905 in., approximately 23mm.

• Connecting Rod Compatibility: Verify connecting rod small-end dimensions and wrist pin fit before assembly.

• Cylinder Machining: Measure the actual pistons and finish the cylinder bores to JE's required piston-to-wall clearance.

• Piston Ring Installation: Measure and adjust ring end gaps according to the intended fuel, boost pressure, and operating conditions.

• Piston-to-Valve Clearance: Confirm clearance during assembly, especially with aftermarket camshafts, modified heads, or altered valve timing.

• Engine Tuning: Fuel delivery, ignition calibration, boost control, and supporting engine components must match the completed build.

• Horsepower Rating: No fixed horsepower limit is specified for part 314438. Engine capability depends on the complete build, machining, supporting components, and tuning.

For enthusiasts rebuilding a damaged EJ205 or putting together a stronger Subaru WRX for future turbocharger upgrades, JE Pistons 314438 combines forged 2618 aluminum construction, lightweight FSR design, accumulator grooves, smooth crown finishing, and coated skirts in a complete four-cylinder piston kit.
