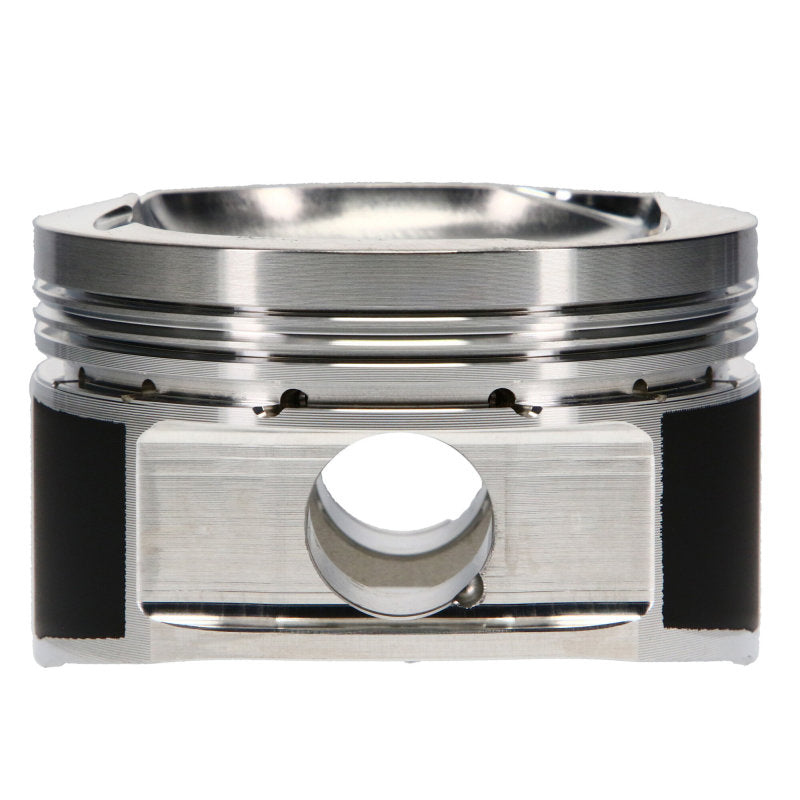

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Specifications
| Piston Series |
JE Pistons |
|---|---|
| Cylinder Head |
3SGE BEAMS |
| Bore Diameter |
86.00 MM |
| Piston Head Type |
Dish |
| Compression Height |
1.331 IN |
| Piston Volume |
-13.80 CC |
| Piston Material |
2618 |
| Piston Quantity |
4 |
| Forging Type |
FSR |
| Piston Average Weight |
325 GR |
| Ring Set Included |
Yes |
| Top Compression Ring Thickness |
0.0400 IN |
| Second Compression Ring Thickness |
0.0480 IN |
| Oil Ring Thickness |
0.111 IN |
| Wrist Pin Outer Diameter |
0.866 IN |
| Wrist Pin Length |
2.250 IN |
| Wrist Pin Wall Thickness |
0.180 IN |
