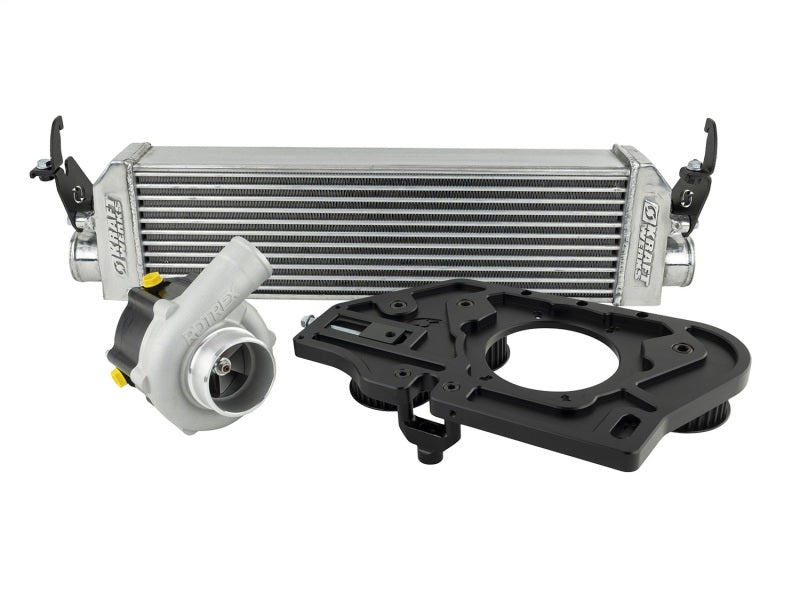

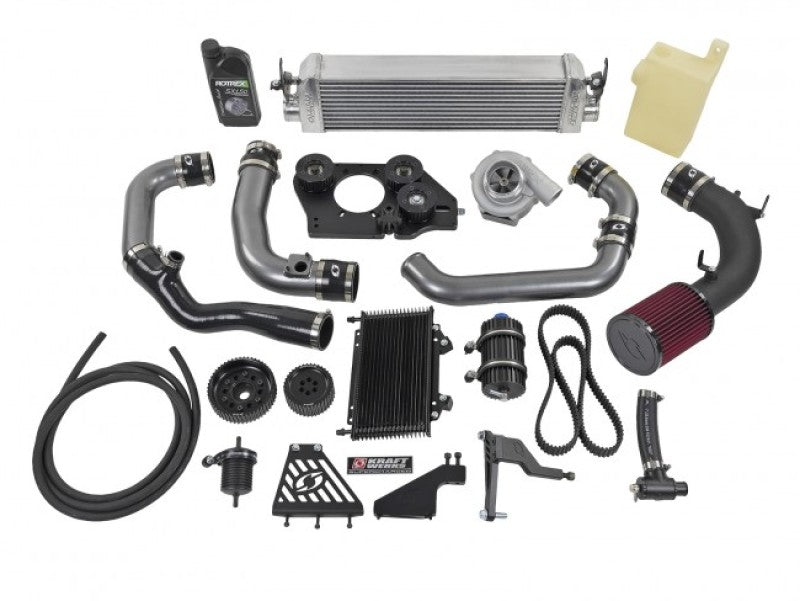

KraftWerks Supercharger Kit (w/ EcuTek) - 2018-2020 Subaru BRZ 2.0L Race System - 150-12-4306

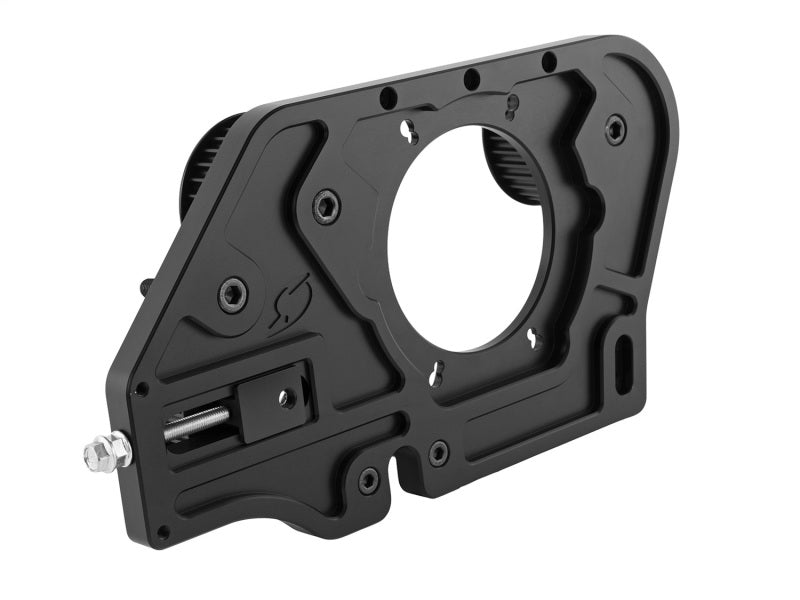

KraftWerks has taken the core components of the extremely popular RACE Supercharger Kit and added redesigned supercharger mounting brackets, wider drive pulley set, and a more robust 30mm belt. The wider belt is 57% stronger than KraftWerks previous offering, making the new kit the most reliable and best-performing supercharger on the market! Performance and reliability are what you get with KraftWerks! KraftWerks supercharger systems are built around compact Rotrex centrifugal supercharger technology for progressive boost and efficient high-rpm airflow.

Features

• Centrifugal forced-induction system is designed to build power progressively with engine speed for a smooth, usable power curve.
• KraftWerks systems center on compact Rotrex traction-drive superchargers engineered for efficient, quiet operation.
• Application-specific brackets, charge piping and supporting hardware are designed to simplify installation compared with assembling a universal system.

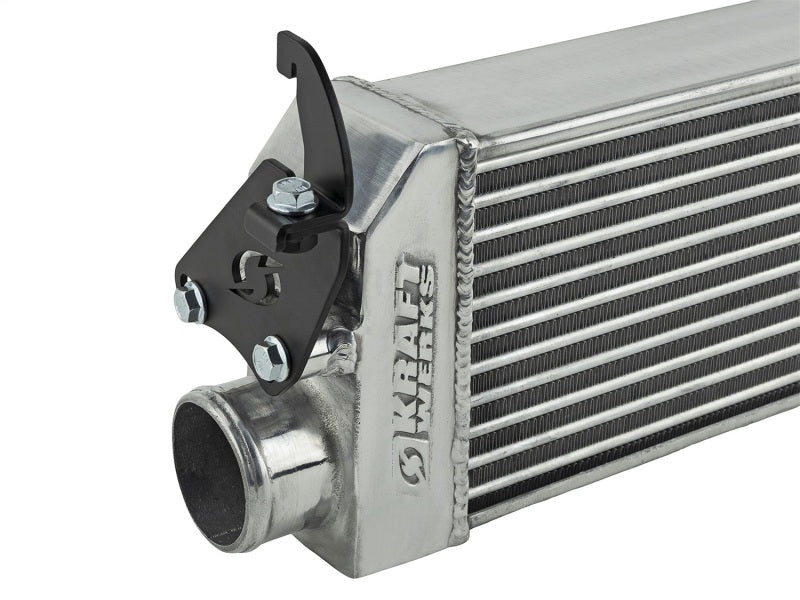

• Intercooled kits help reduce compressed-air temperatures to support more consistent power and detonation resistance.
• Retain Factory A/C and Accessories
• ECUTEK Tuning Solution - No Map
• Rotrex C38-81 Supercharger (9psi)

Specifications

• Brand:KraftWerks
• Product Type:Supercharger Kit
• Manufacturer Part Number:150-12-4306
• UPC:841150912542
• Weight:83 lb
• Broad Category:Induction
• System / Subcategory:Supercharger Kit
• Fitment:2018-2020 Subaru/Toyota Subaru BRZ 2.0L 18-20, Toyota 86 2.0L 18-20
• Warranty:12-month limited manufacturer warranty against qualifying defects in materials and workmanship

Notes

Will work with both M/T and A/T vehicles · Upgraded Clutch recommended for M/T vehicles to properly accommodate increase TQ · Two step and rev limiter usage at your own risk, can void warranty · Does not include Aftermarket Map Sensor. Rotrex C30-94 Black Supercharger Unit • Ultra-High Efficiency • Silent Operation • Low Operating Temperatures • Self-Contained Lubrication and Cooling System • Extremely Reliable Independent Drive System • Does not share belt with engine accessories for greater reliability • If the drive belt breaks, you will not be left stranded • Allows for more flexible offset supercharger placement Toothed Belt System • NEW 30mm wide belt for better load handling capability - 57% Stronger • Zero slip under the heaviest loads and hardest acceleration • Low belt tension eliminates radial load on supercharger nose bearing, thus improving reliability Offset Supercharger Placement • Allows for greater clearance around belts, thus reducing chances for rubbing • Allows for simple and more efficient tubing layout • No poorly designed, inefficient and goofy-looking custom hoses/tubing into the throttle body • Allows for a single shot from the ‘cold air’ intake section of the front bumper Cold Air Intake • Filter location in front of the radiator in the ‘cold air’ section, just behind the front bumper • Minimum of 20°F cooler intake temperatures than under the hood Easily Upgradeable • Dual bolt patterns on the mounting plate allow enthusiast to easily upgrade to the larger C38 Rotrex supercharger head units capable of up to 700bhp Optimized Tubing and Intercooler Layout • 2.5” mandrel bent aluminum hot side tubing into intercooler made possible because of newly designed washer bottle (included) • 3.0” mandrel bent aluminum cold side tubing into throttle body made possible because of independent drive and offset supercharger configuration • 11-row high-efficiency intercooler • Lower intake air temperatures than any other system • Intercooler good up to 460whp Ease of Installation and Tuning • Simple bolt-on installation. No cutting, drilling, or welding required • 8-hour installation time (approximate)

Fitment Note:Confirm the exact year, model, engine and KraftWerks system configuration before ordering. Some replacement/service components differ between early and later kit revisions.
