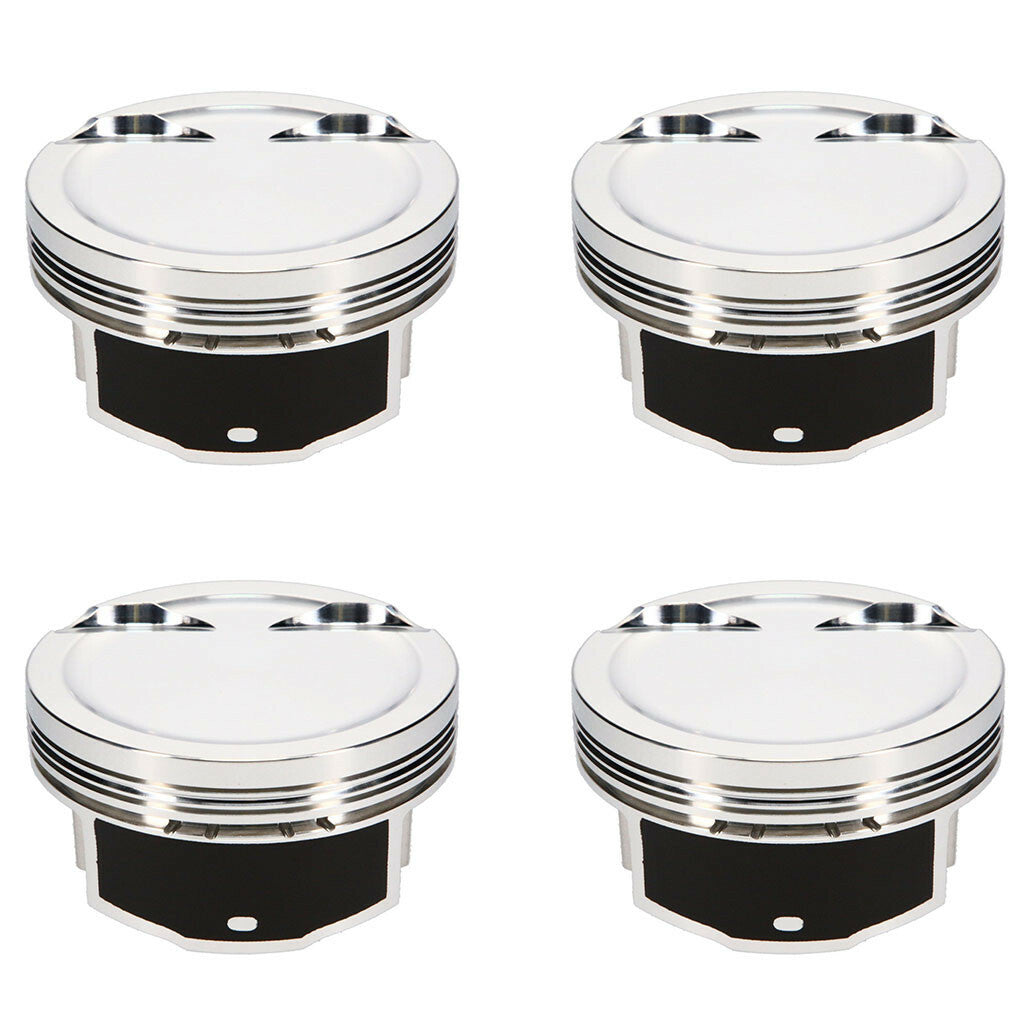

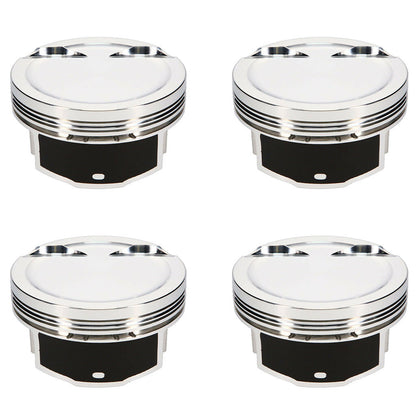

MANLEY 620005C-4 Platinum Series Lightweight Pistons Set of 4 Includes Ringset Part # 46925-4
MANLEY 620005C-4 Platinum Series Lightweight Pistons Set of 4 Includes Ringset Part # 46925-4
Click to zoom in

MANLEY 620005C-4 Platinum Series Lightweight Pistons Set of 4 Includes Ringset Part # 46925-4

MAN620005C-4
In stock
Piston Sets - Forged - 4cyl
$678.96
$678.96

customers are viewing this product
MANLEY 620005C-4 Platinum Series Lightweight Pistons Set of 4 Includes Ringset Part # 46925-4

Product Note:

Platinum Series Lightweight Pistons Set of 4 Includes Ringset Part # 46925-4

Specs:

Bore: 92.5mm (+.5mm)
Comp Distance: 1.209"
Comp Ratio: 8.5:1
Cylinder Head: 48cc
Dome Volume: -16cc
Piston Type: Dish
Rod Length: 5.137"mm
Stroke: 79mm
Weight: 361g

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique “one fixturing” manufacturing method that assures maximum horsepower. Round wire locks, tool steel wrist pins, and rings are included with every set at no additional charge.

Forging

  • 2618 alloy for maximum high temperature strength and fatigue resistance.

Attributes

  • “Contour forgings” provide the optimum balance between strength and weight with no grain-interrupting internal milling.
  • Proprietary multi-step top ring groove machining process assures optimum control of the groove’s size, geometry, flatness, and finish.
  • All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
  • Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
  • Value – added features such as a pressure balance groove included in all series.
  • Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.

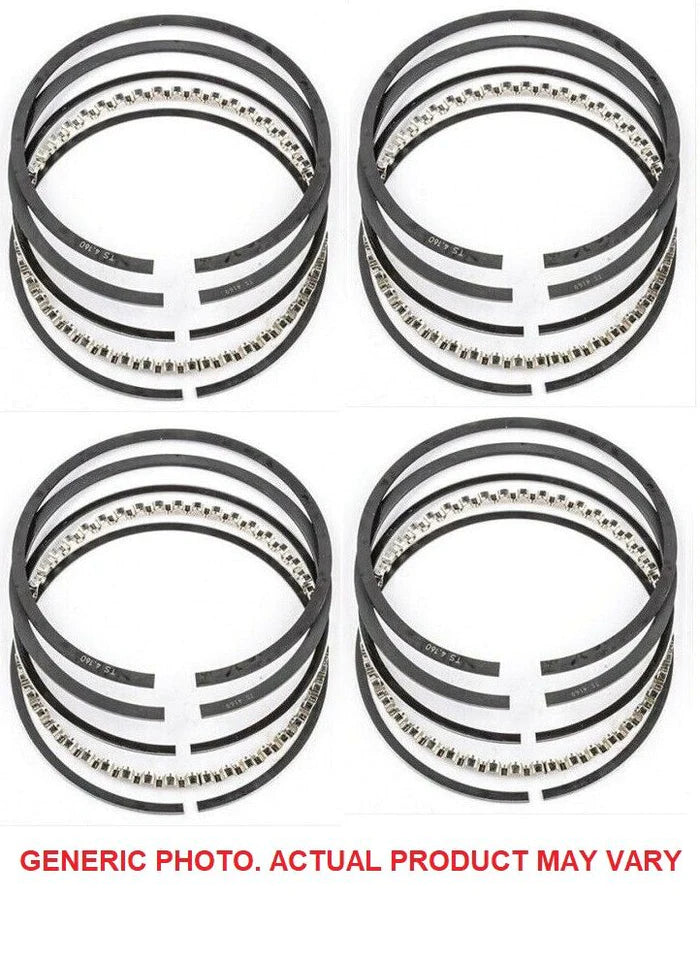

Manley Sport Compact Platinum series pistons come complete with pistons, rings, pins, and locks
