5.700 in. Length | 2.125 in. Big-End Bore | 0.875–0.927 in. Pin | Set of 8 | Chevy 350 Small Block

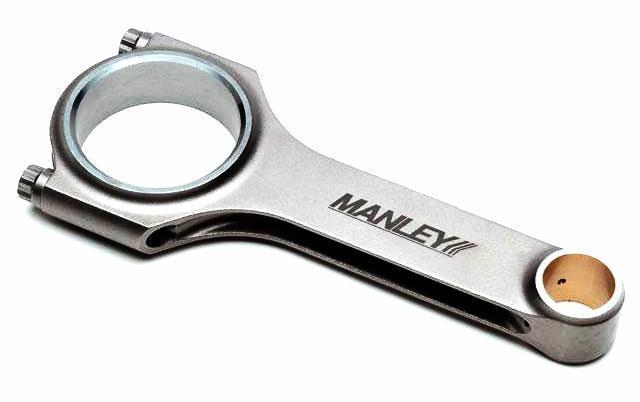

Build your Chevrolet 350 Small Block V8 rotating assembly around Manley 14440-8, a 8-piece connecting rod set in the NHRA Super Stock I-Beam range. This version combines 5.700 in. center-to-center length, a 2.125 in. big-end housing bore and a 0.875–0.927 in. wrist-pin configuration with ARP 2000 cap screws. The exact dimensions, material and supplied fasteners identify the rod combination you are buying.

Key Features & Specs:

• Center-to-Center Length: 5.700 in.
• Wrist Pin Diameter: 0.875–0.927 in.
• Pin End Bore: 0.8761–0.9281 in.
• Big End Housing Bore: 2.125 in.
• Crank Journal Diameter: 2.000 in.
• Length Configuration: Stock
• Pin End Width: 1.000 in.
• Rod Material: Forged 4340 steel
• Rod Bolts: ARP 2000 cap screws
• Quantity: Set of 8
• Series: NHRA Super Stock I-Beam
• Beam Design: I-Beam
• Subseries: NHRA Legal Super Stock
• Approximate Rod Weight: 560 g per rod
• Engine Type: Internal combustion
• Pin Configuration: Selectable pin bore within the published range
• Engine Application: Chevrolet 350 Small Block V8
• Brand: Manley Performance
• Manufacturer Part Number: 14440-8
• Product Type: Engine connecting rod set

Performance Construction:

This Pro Series variant is cataloged by Manley for NHRA Super Stock applications. It combines a fully machined 4340 I-Beam with the specified journal arrangement and a selectable pin-bore range. Those details distinguish it from a general-purpose rod set: the stock-length geometry, listed weight and class-specific configuration are central to the product’s purpose.

For a Small Block Chevrolet build, rod length and crank journal size are defining parts of the rotating assembly. This configuration brings those dimensions together with its stated wrist-pin size, making the set a clear choice for an engine combination designed around the listed length and journal arrangement.

The 0.8761–0.9281 in. pin-end bore and 2.125 in. big-end housing bore describe the two rod ends, while the 5.700 in. center-to-center measurement defines rod length. The crankshaft journal configuration is 2.000 in., paired with the housing bore specified below. Average rod weight is approximately 560 g per rod, giving this exact MPN a useful weight reference alongside its dimensions. The pin end measures 1.000 in. wide.

The supplied ARP 2000 cap screws are part of this rod’s specification. This ARP 2000 version brings the stated fastener grade together with the 4340 steel I-Beam profile, pairing the documented fastener package with the forged rod construction.

Fitment:

• Chevrolet 350 Small Block V8

What’s Included:

• 8 Manley NHRA Super Stock I-Beam connecting rods, manufacturer part number 14440-8
• ARP 2000 cap screws supplied with the rods
