6.000 in. Length | 2.225 in. Big-End Bore | 0.927 in. Pin | Set of 8 | Small Block Chevy

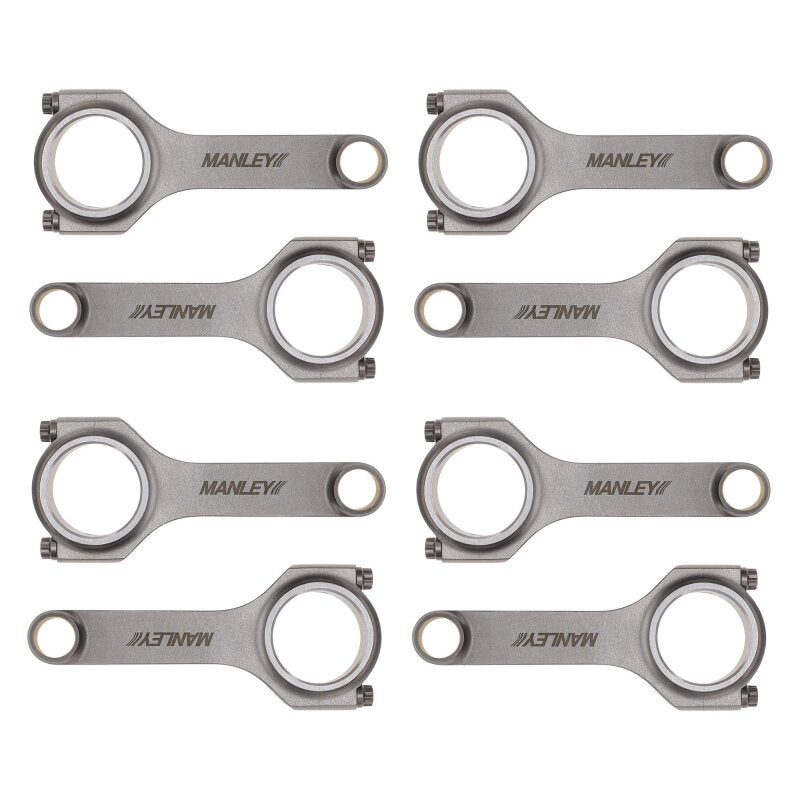

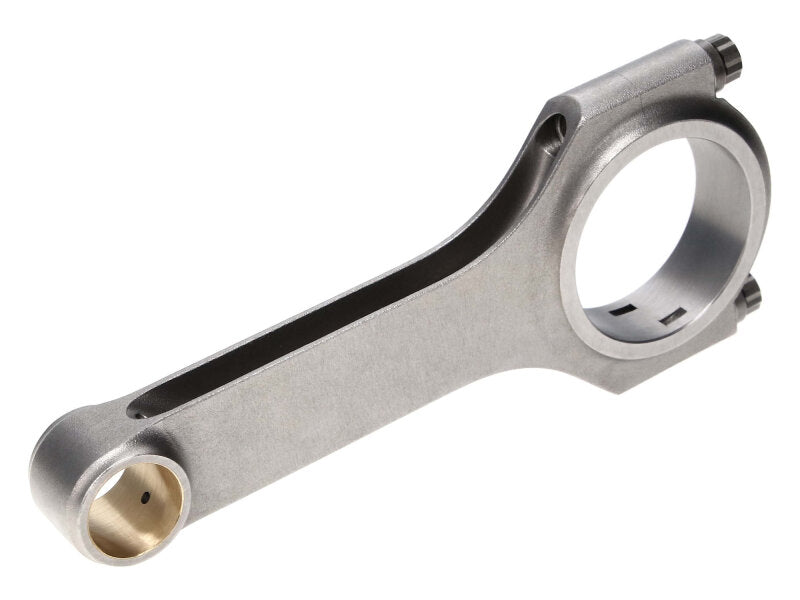

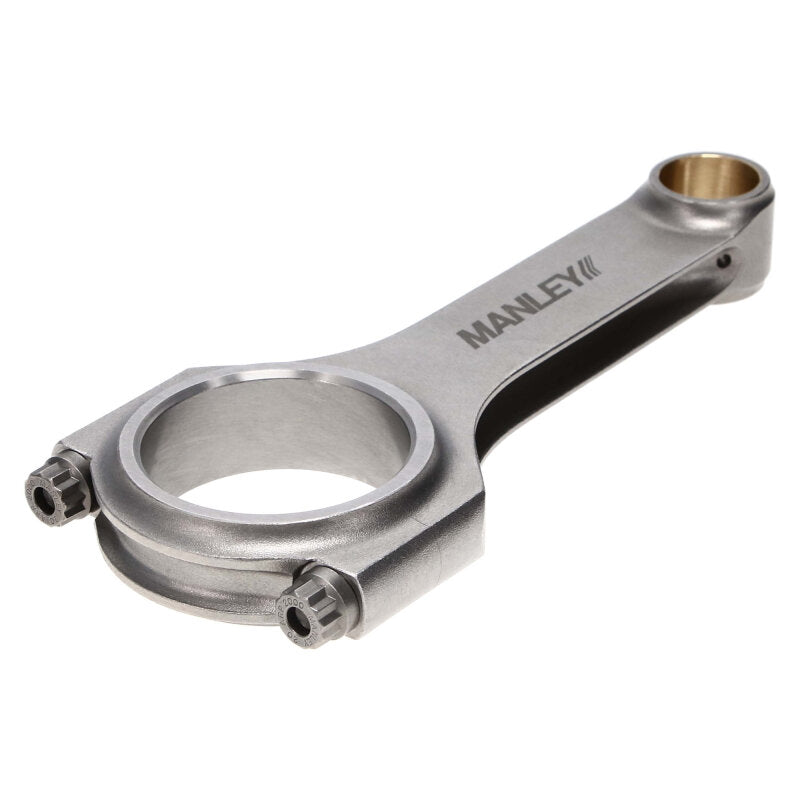

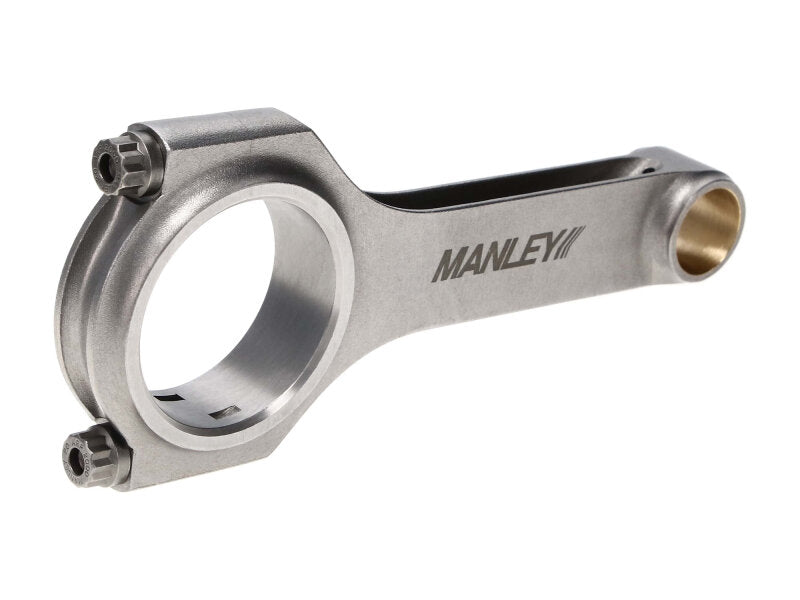

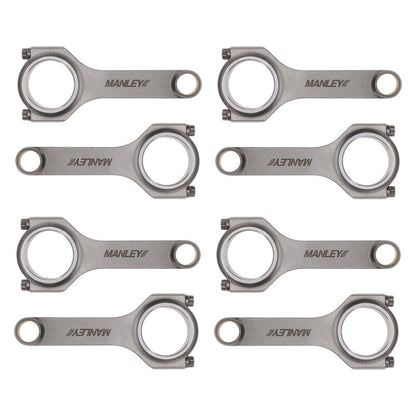

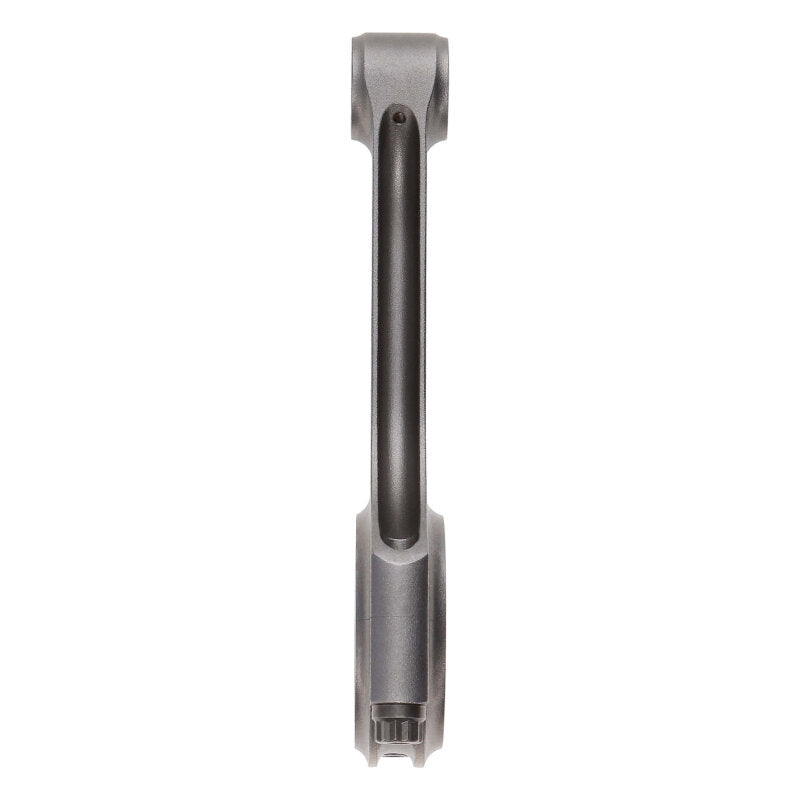

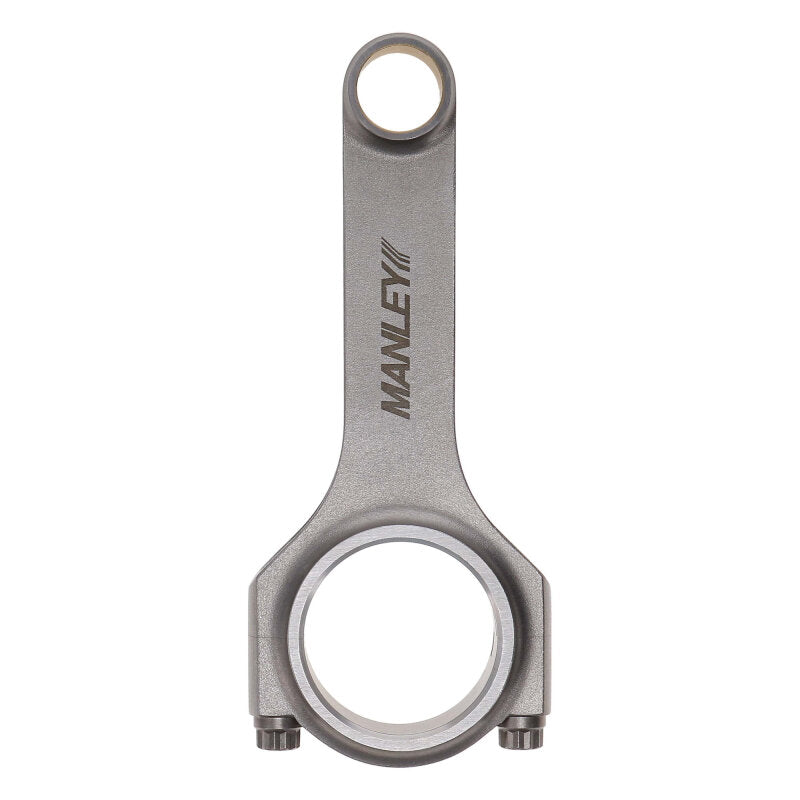

Build your Chevrolet Small Block V8 rotating assembly around Manley 14034-8, a 8-piece connecting rod set in the H-Lite H-Beam range. This version combines 6.000 in. center-to-center length, a 2.225 in. big-end housing bore and a 0.927 in. wrist-pin configuration with 3/8 in. ARP 2000 cap screws. The exact dimensions, material and supplied fasteners identify the rod combination you are buying.

Key Features & Specs:

• Center-to-Center Length: 6.000 in.
• Wrist Pin Diameter: 0.927 in.
• Pin End Bore: 0.9281 in.
• Big End Housing Bore: 2.225 in.
• Crank Journal Diameter: 2.100 in.
• Length Configuration: 0.300 in. longer than stock
• Pin End Width: 1.000 in.
• Rod Material: Forged 4340 steel
• Rod Bolts: 3/8 in. ARP 2000 cap screws
• Quantity: Set of 8
• Series: H-Lite H-Beam
• Beam Design: H-Beam
• Subseries: H-Lite
• Approximate Rod Weight: 595 g per rod
• Engine Type: Internal combustion
• Engine Application: Chevrolet Small Block V8
• Brand: Manley Performance
• Manufacturer Part Number: 14034-8
• Product Type: Engine connecting rod set

Performance Construction:

The H-Lite series gives this application a lighter H-Beam option while retaining forged 4340 construction and ARP 2000 fasteners. Its named weight class makes it a useful choice for a build centered on rotating-assembly mass. Manley finishes these rods with the same focus on bore sizing, thread quality and alignment that defines its broader H-Beam range.

For a Small Block Chevrolet build, rod length and crank journal size are defining parts of the rotating assembly. This configuration brings those dimensions together with its stated wrist-pin size, making the set a clear choice for an engine combination designed around the listed length and journal arrangement.

The 0.9281 in. pin-end bore and 2.225 in. big-end housing bore describe the two rod ends, while the 6.000 in. center-to-center measurement defines rod length. The crankshaft journal configuration is 2.100 in., paired with the housing bore specified below. Average rod weight is approximately 595 g per rod, giving this exact MPN a useful weight reference alongside its dimensions. The pin end measures 1.000 in. wide.

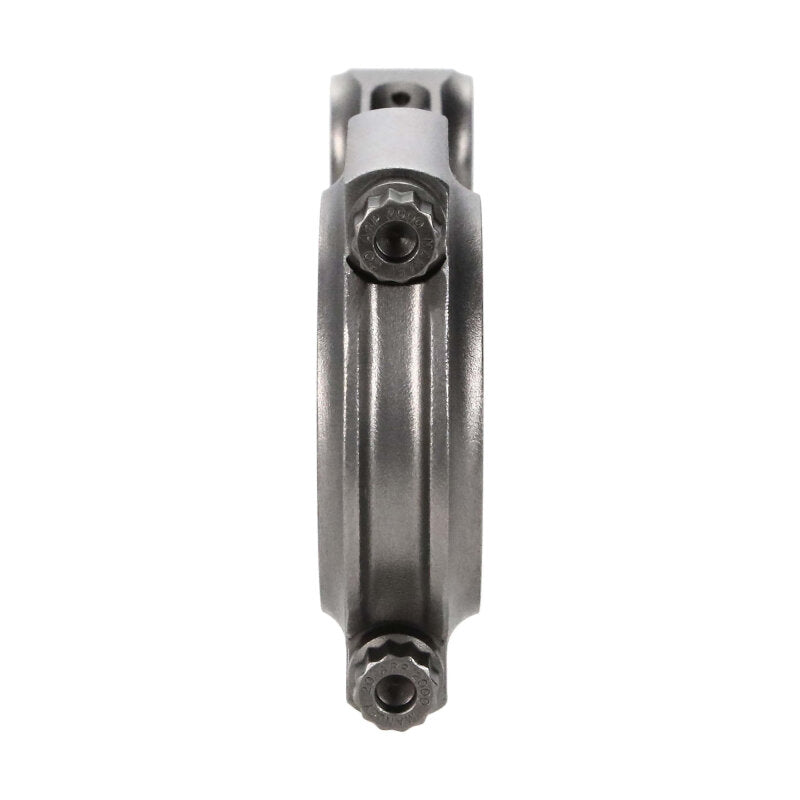

The supplied 3/8 in. ARP 2000 cap screws are part of this rod’s specification. This ARP 2000 version brings the stated fastener grade together with the 4340 steel H-Beam profile, pairing the documented fastener package with the forged rod construction.

Fitment:

• Chevrolet Small Block V8

What’s Included:

• 8 Manley H-Lite H-Beam connecting rods, manufacturer part number 14034-8
• 3/8 in. ARP 2000 cap screws supplied with the rods
