6.240 in. Length | 2.252 in. Big-End Bore | 24 mm Pin | Set of 8 | 5.7L HEMI

Build your Chrysler Gen III 5.7L HEMI V8 rotating assembly around Manley 14086R-8, a 8-piece connecting rod set in the H-Beam range. This version combines 6.240 in. center-to-center length, a 2.252 in. big-end housing bore and a 24 mm (0.945 in.) wrist-pin configuration with 7/16 in. ARP 2000 cap screws. The exact dimensions, material and supplied fasteners identify the rod combination you are buying.

Key Features & Specs:

• Center-to-Center Length: 6.240 in.
• Wrist Pin Diameter: 24 mm (0.945 in.)
• Pin End Bore: 0.9457 in.
• Big End Housing Bore: 2.252 in.
• Crank Journal Diameter: 2.126 in.
• Length Configuration: Stock
• Pin End Width: 1.000 in.
• Rod Material: Forged 4340 steel
• Rod Bolts: 7/16 in. ARP 2000 cap screws
• Quantity: Set of 8
• Series: H-Beam
• Beam Design: H-Beam
• Approximate Rod Weight: 675 g per rod
• Engine Type: Internal combustion
• Engine Application: Chrysler Gen III 5.7L HEMI V8
• Brand: Manley Performance
• Manufacturer Part Number: 14086R-8
• Product Type: Engine connecting rod set

Performance Construction:

Manley’s H-Beam construction brings forged 4340 steel and precision-finished rod geometry together in a practical performance-engine upgrade. The manufacturing process includes heat treatment, stress relief, shot peening and magnetic-particle inspection. Attention to the housing finish, threads, bend and twist gives this series the machining detail expected in a purpose-built rotating assembly.

This Gen III HEMI family is built around a 6.240 in. stock-length rod. Manley offers distinct small-end configurations within the range, so this MPN’s listed wrist-pin diameter and pin-end bore identify the version being supplied. The housing bore and journal configuration complete the dimensional package.

The 0.9457 in. pin-end bore and 2.252 in. big-end housing bore describe the two rod ends, while the 6.240 in. center-to-center measurement defines rod length. The crankshaft journal configuration is 2.126 in., paired with the housing bore specified below. Average rod weight is approximately 675 g per rod, giving this exact MPN a useful weight reference alongside its dimensions. The pin end measures 1.000 in. wide.

The supplied 7/16 in. ARP 2000 cap screws are part of this rod’s specification. This ARP 2000 version brings the stated fastener grade together with the 4340 steel H-Beam profile, pairing the documented fastener package with the forged rod construction.

Fitment:

• Chrysler Gen III 5.7L HEMI V8

What’s Included:

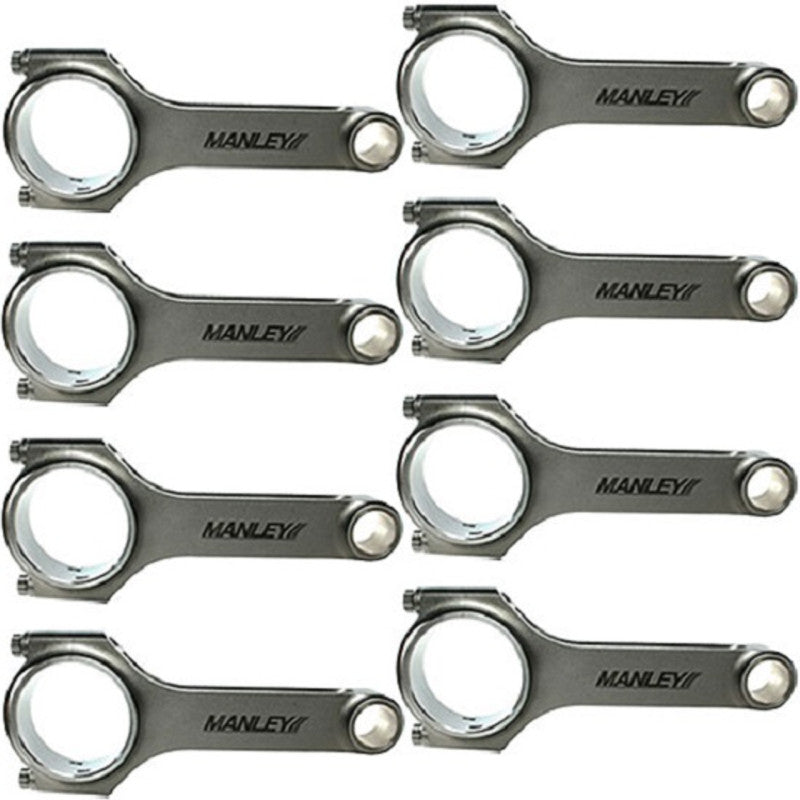

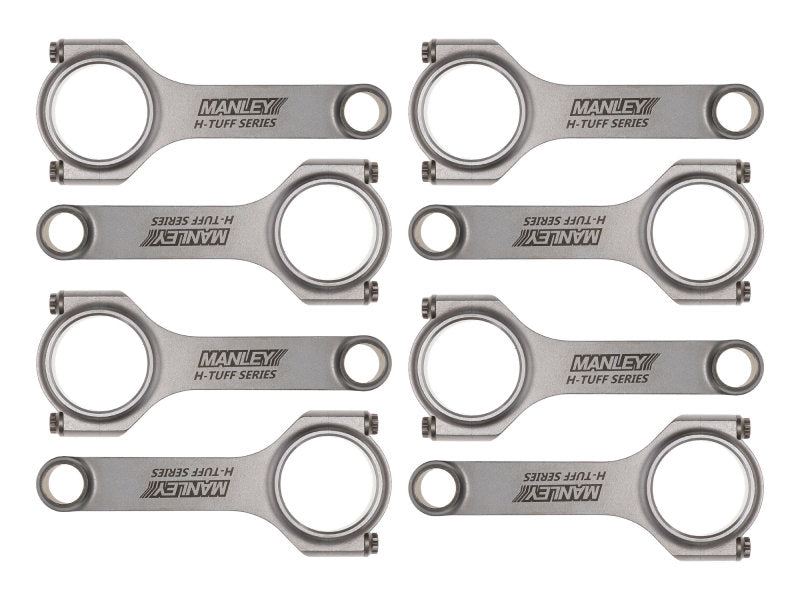

• 8 Manley H-Beam connecting rods, manufacturer part number 14086R-8
• 7/16 in. ARP 2000 cap screws supplied with the rods
