6.125 in. Length | 2.125 in. Big-End Bore | 0.866 in. Pin | Set of 8 | 5.7L/6.1L/6.4L HEMI Stroker

Build your Chrysler Gen III 5.7L / 6.1L / 6.4L HEMI stroker V8 rotating assembly around Manley 14057R-8, a 8-piece connecting rod set in the H-Beam range. This version combines 6.125 in. center-to-center length, a 2.125 in. big-end housing bore and a 0.866 in. wrist-pin configuration with 7/16 in. ARP 2000 cap screws. The exact dimensions, material and supplied fasteners identify the rod combination you are buying.

Key Features & Specs:

• Center-to-Center Length: 6.125 in.
• Wrist Pin Diameter: 0.866 in.
• Pin End Bore: 0.8671 in.
• Big End Housing Bore: 2.125 in.
• Crank Journal Diameter: 2.000 in.
• Length Configuration: 6.125 in. stroker configuration with 2.000 in. SBC crank journal
• Pin End Width: 0.930 in.
• Rod Material: Forged 4340 steel
• Rod Bolts: 7/16 in. ARP 2000 cap screws
• Quantity: Set of 8
• Series: H-Beam
• Beam Design: H-Beam
• Approximate Rod Weight: 625 g per rod
• Engine Type: Internal combustion
• Crank Journal Configuration: 2.000 in. Small Block Chevrolet journal
• Additional Engine Application: Small Block Chevrolet V8 with 6.125 in. rod and 2.000 in. crank journal
• Engine Application: Chrysler Gen III 5.7L / 6.1L / 6.4L HEMI stroker V8
• Brand: Manley Performance
• Manufacturer Part Number: 14057R-8
• Product Type: Engine connecting rod set

Performance Construction:

Manley’s H-Beam construction brings forged 4340 steel and precision-finished rod geometry together in a practical performance-engine upgrade. The manufacturing process includes heat treatment, stress relief, shot peening and magnetic-particle inspection. Attention to the housing finish, threads, bend and twist gives this series the machining detail expected in a purpose-built rotating assembly.

This Gen III HEMI stroker configuration uses a 6.125 in. rod and a 2.000 in. Small Block Chevrolet-style crank journal. The 2.125 in. housing bore and stated pin dimensions are central to the combination. It is a purpose-specific stroker rod with the application and geometry identified together.

The 0.8671 in. pin-end bore and 2.125 in. big-end housing bore describe the two rod ends, while the 6.125 in. center-to-center measurement defines rod length. The crankshaft journal configuration is 2.000 in., paired with the housing bore specified below. Average rod weight is approximately 625 g per rod, giving this exact MPN a useful weight reference alongside its dimensions. The pin end measures 0.930 in. wide.

The supplied 7/16 in. ARP 2000 cap screws are part of this rod’s specification. This ARP 2000 version brings the stated fastener grade together with the 4340 steel H-Beam profile, pairing the documented fastener package with the forged rod construction.

Fitment:

• Chrysler Gen III 5.7L / 6.1L / 6.4L HEMI stroker V8
• Small Block Chevrolet V8, 6.125 in. rod / 2.000 in. journal configuration

What’s Included:

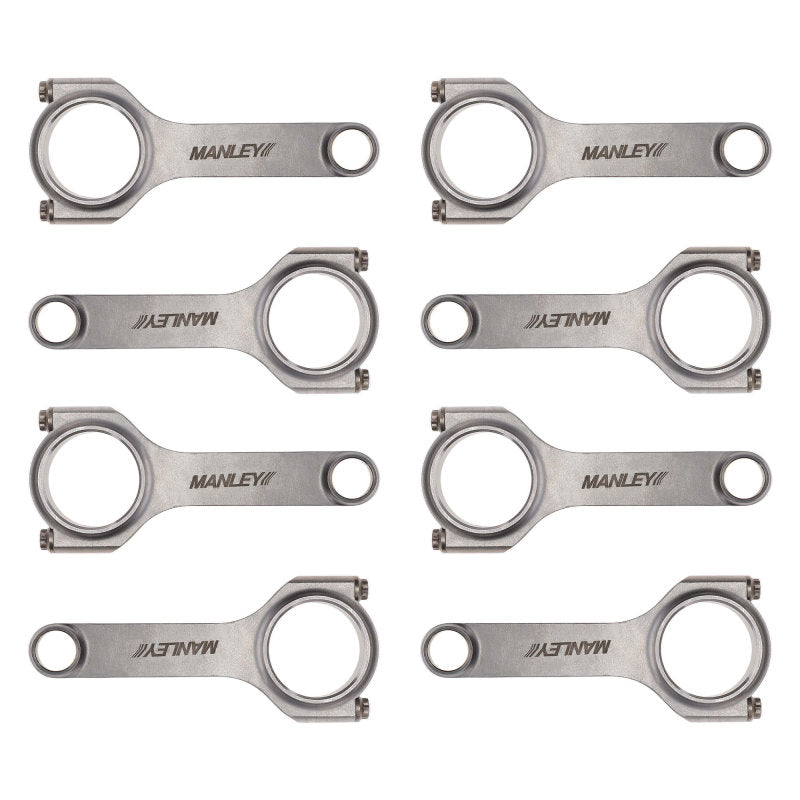

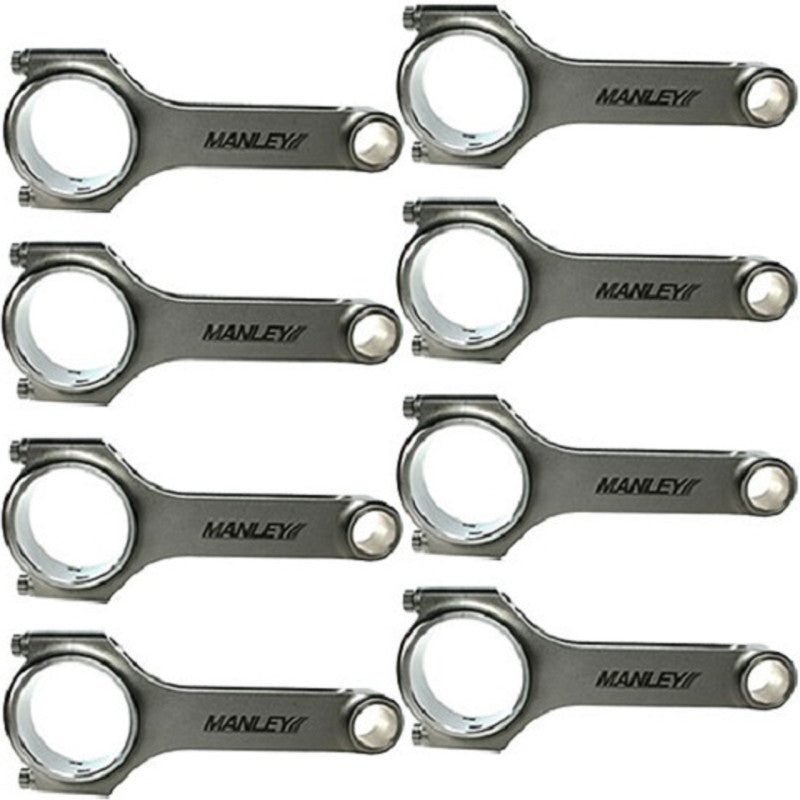

• 8 Manley H-Beam connecting rods, manufacturer part number 14057R-8
• 7/16 in. ARP 2000 cap screws supplied with the rods
