6.125 in. Length | 2.225 in. Big-End Bore | 0.945 in. Pin | Set of 8 | Chevy LS/LT

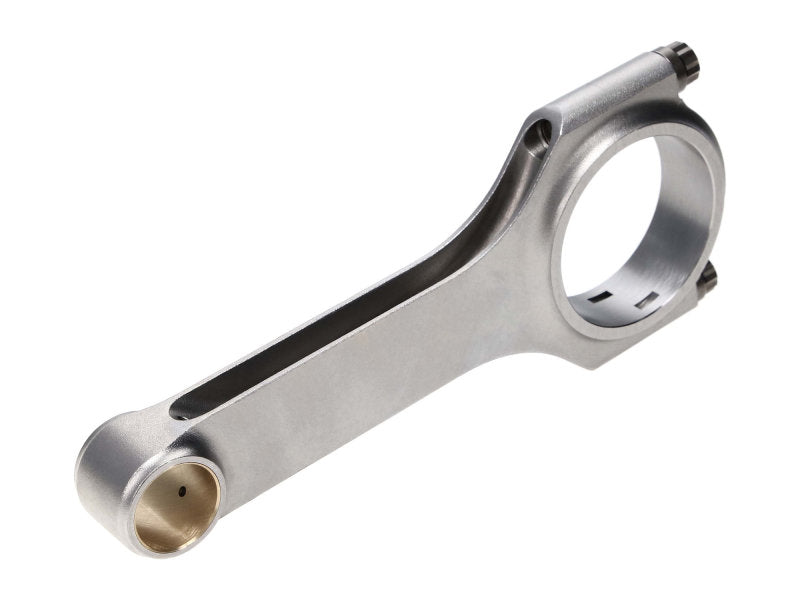

Build your Chevrolet LS / LT1 V8 rotating assembly around Manley 14033-8, a 8-piece connecting rod set in the H-Lite H-Beam range. This version combines 6.125 in. center-to-center length, a 2.225 in. big-end housing bore and a 0.945 in. wrist-pin configuration with 3/8 in. ARP 2000 cap screws. The exact dimensions, material and supplied fasteners identify the rod combination you are buying.

Key Features & Specs:

• Center-to-Center Length: 6.125 in.
• Wrist Pin Diameter: 0.945 in.
• Pin End Bore: 0.9457 in.
• Big End Housing Bore: 2.225 in.
• Crank Journal Diameter: Stock journal configuration
• Length Configuration: 0.025 in. longer than stock
• Pin End Width: 1.060 in.
• Rod Material: Forged 4340 steel
• Rod Bolts: 3/8 in. ARP 2000 cap screws
• Quantity: Set of 8
• Series: H-Lite H-Beam
• Beam Design: H-Beam
• Subseries: H-Lite
• Approximate Rod Weight: 615 g per rod
• Engine Type: Internal combustion
• Journal Configuration: Large journal, no offset
• Set Weight Matching: ±1.5 g
• Final-Honed Bore Tolerance: ±0.0002 in.
• Engine Application: Chevrolet LS / LT1 V8
• Brand: Manley Performance
• Manufacturer Part Number: 14033-8
• Product Type: Engine connecting rod set

Performance Construction:

The H-Lite series gives this application a lighter H-Beam option while retaining forged 4340 construction and ARP 2000 fasteners. Its named weight class makes it a useful choice for a build centered on rotating-assembly mass. Manley finishes these rods with the same focus on bore sizing, thread quality and alignment that defines its broader H-Beam range.

This Chevrolet LS/LT rod configuration identifies the rod length, small-end dimensions and housing bore for a performance rotating assembly. On 6.125 in. versions, the rod is 0.025 in. longer than the 6.100 in. stock-length reference. The dimensional package gives a precise starting point for an LS/LT engine combination built around that geometry.

The 0.9457 in. pin-end bore and 2.225 in. big-end housing bore describe the two rod ends, while the 6.125 in. center-to-center measurement defines rod length. Average rod weight is approximately 615 g per rod, giving this exact MPN a useful weight reference alongside its dimensions. The pin end measures 1.060 in. wide.

The supplied 3/8 in. ARP 2000 cap screws are part of this rod’s specification. This ARP 2000 version brings the stated fastener grade together with the 4340 steel H-Beam profile, pairing the documented fastener package with the forged rod construction.

Fitment:

• Chevrolet LS / LT1 V8

What’s Included:

• 8 Manley H-Lite H-Beam connecting rods, manufacturer part number 14033-8
• 3/8 in. ARP 2000 cap screws supplied with the rods
