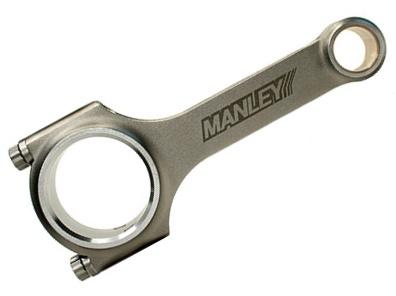

5.850 in. Length | 2.125 in. Big-End Bore | 22 mm Pin | Set of 8 | Ford 4.6L Modular Stroker

Build your Ford 4.6L Modular V8 stroker rotating assembly around Manley 14044-8, a 8-piece connecting rod set in the H-Beam range. This version combines 5.850 in. center-to-center length, a 2.125 in. big-end housing bore and a 22 mm (0.866 in.) wrist-pin configuration with 3/8 in. ARP 8740 cap screws. The exact dimensions, material and supplied fasteners identify the rod combination you are buying.

Key Features & Specs:

• Center-to-Center Length: 5.850 in.
• Wrist Pin Diameter: 22 mm (0.866 in.)
• Pin End Bore: 0.8671 in.
• Big End Housing Bore: 2.125 in.
• Crank Journal Diameter: 2.000 in.
• Length Configuration: 0.083 in. shorter than stock
• Big End Width: .940 in.
• Pin End Width: 0.940 in.
• Rod Material: Forged 4340 steel
• Rod Bolts: 3/8 in. ARP 8740 cap screws
• Quantity: Set of 8
• Series: H-Beam
• Beam Design: H-Beam
• Approximate Rod Weight: 605 g per rod
• Engine Type: Internal combustion
• Set Weight Matching: ±1.5 g
• Final-Honed Bore Tolerance: ±0.0002 in.
• Engine Application: Ford 4.6L Modular V8 stroker
• Brand: Manley Performance
• Manufacturer Part Number: 14044-8
• Product Type: Engine connecting rod set

Performance Construction:

Manley’s H-Beam construction brings forged 4340 steel and precision-finished rod geometry together in a practical performance-engine upgrade. The manufacturing process includes heat treatment, stress relief, shot peening and magnetic-particle inspection. Attention to the housing finish, threads, bend and twist gives this series the machining detail expected in a purpose-built rotating assembly.

This Ford Modular/Coyote family uses a 22 mm wrist-pin configuration. The stock-length versions measure 5.933 in. center to center, while the stroker versions use the shorter length and special crank journal stated for the individual part. Those details make the exact MPN more useful than a broad Ford V8 label.

The 0.8671 in. pin-end bore and 2.125 in. big-end housing bore describe the two rod ends, while the 5.850 in. center-to-center measurement defines rod length. The crankshaft journal configuration is 2.000 in., paired with the housing bore specified below. Average rod weight is approximately 605 g per rod, giving this exact MPN a useful weight reference alongside its dimensions. The pin end measures 0.940 in. wide.

The supplied 3/8 in. ARP 8740 cap screws are part of this rod’s specification. This ARP 8740 version brings the stated fastener grade together with the 4340 steel H-Beam profile, pairing the documented fastener package with the forged rod construction.

Fitment:

• Ford 4.6L Modular V8 stroker

What’s Included:

• 8 Manley H-Beam connecting rods, manufacturer part number 14044-8
• 3/8 in. ARP 8740 cap screws supplied with the rods
