5.700 in. Length | 2.225 in. Big-End Bore | 0.927 in. Pin | Set of 8 | Small Block Chevy

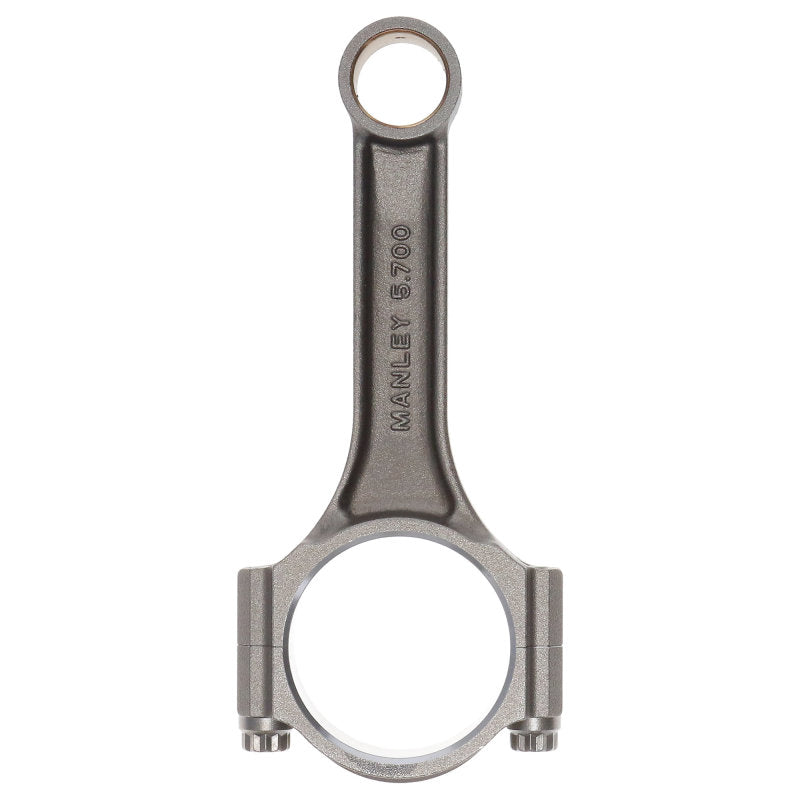

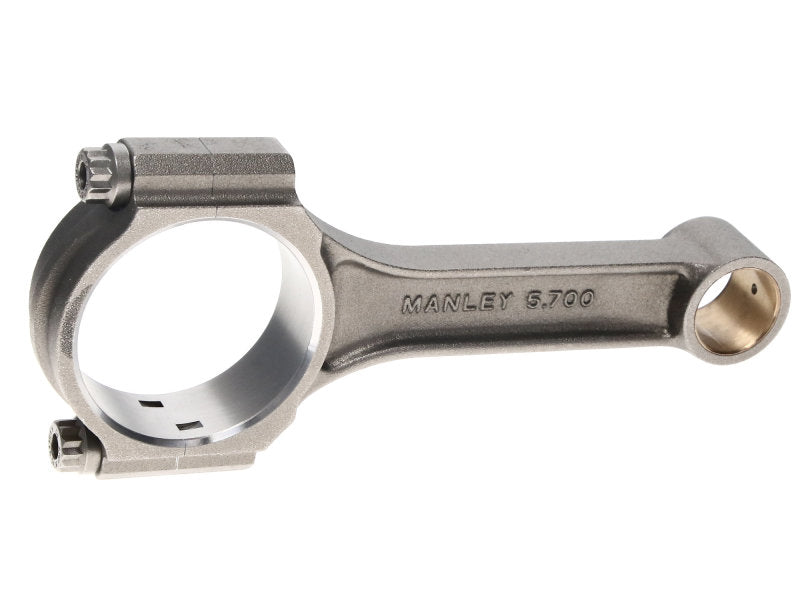

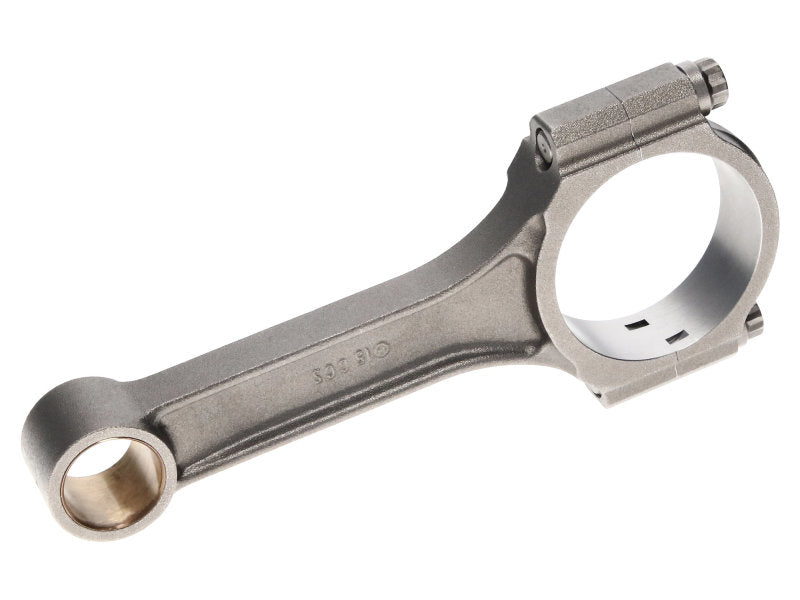

Build your Chevrolet Small Block V8 rotating assembly around Manley 14101-8, a 8-piece connecting rod set in the Sportsmaster I-Beam range. This version combines 5.700 in. center-to-center length, a 2.225 in. big-end housing bore and a 0.927 in. wrist-pin configuration with 3/8 in. ARP 8740 cap screws. The exact dimensions, material and supplied fasteners identify the rod combination you are buying.

Key Features & Specs:

• Center-to-Center Length: 5.700 in.
• Wrist Pin Diameter: 0.927 in.
• Pin End Bore: 0.9281 in.
• Big End Housing Bore: 2.225 in.
• Crank Journal Diameter: 2.100 in.
• Length Configuration: Stock
• Pin End Width: 0.980 in.
• Rod Material: Forged 4340 steel
• Rod Bolts: 3/8 in. ARP 8740 cap screws
• Quantity: Set of 8
• Series: Sportsmaster I-Beam
• Beam Design: I-Beam
• Approximate Rod Weight: 565 g per rod
• Engine Type: Internal combustion
• Engine Application: Chevrolet Small Block V8
• Brand: Manley Performance
• Manufacturer Part Number: 14101-8
• Product Type: Engine connecting rod set

Performance Construction:

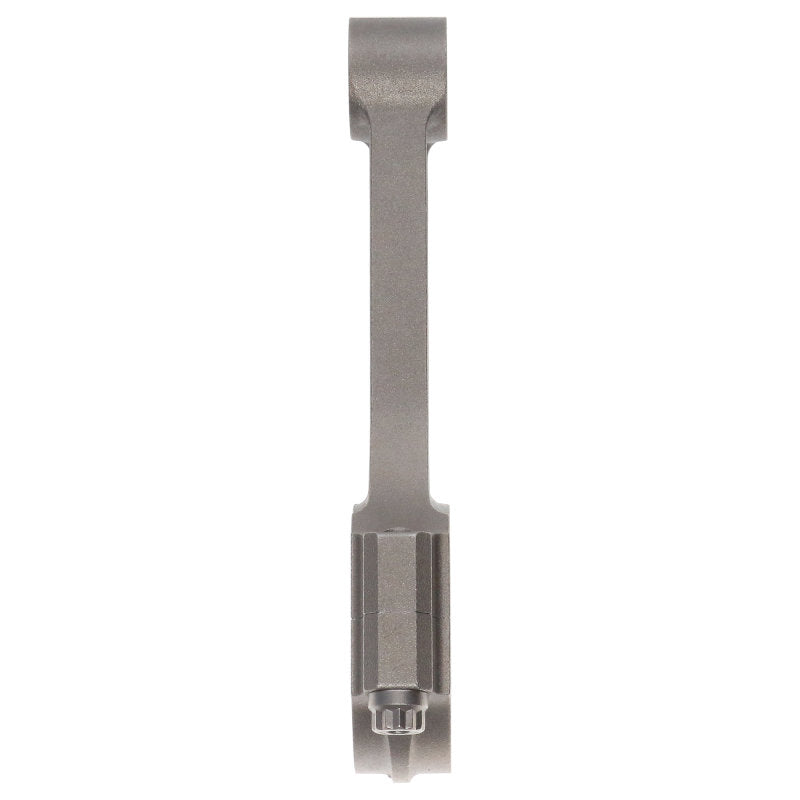

Sportsmaster combines a stock-appearing I-Beam profile with forged 4340 steel and ARP 8740 fasteners. Manley positions the series for stock-level replacement and mild to moderate performance builds. Its machined beam and cap details make it a useful choice for an engine combination where a traditional rod profile, defined dimensions and purpose-made performance hardware matter.

For a Small Block Chevrolet build, rod length and crank journal size are defining parts of the rotating assembly. This configuration brings those dimensions together with its stated wrist-pin size, making the set a clear choice for an engine combination designed around the listed length and journal arrangement.

The 0.9281 in. pin-end bore and 2.225 in. big-end housing bore describe the two rod ends, while the 5.700 in. center-to-center measurement defines rod length. The crankshaft journal configuration is 2.100 in., paired with the housing bore specified below. Average rod weight is approximately 565 g per rod, giving this exact MPN a useful weight reference alongside its dimensions. The pin end measures 0.980 in. wide.

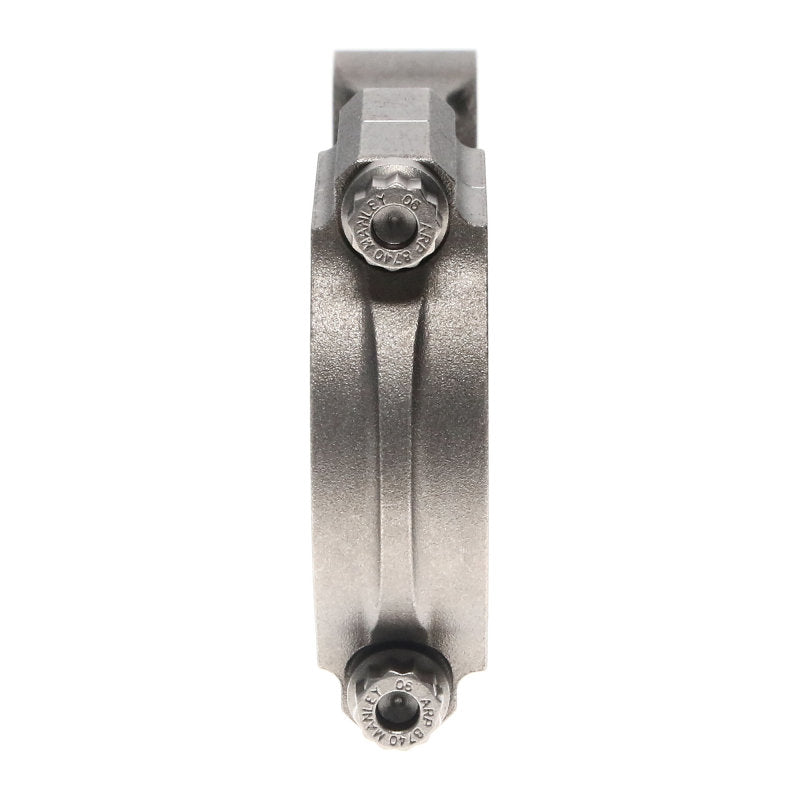

The supplied 3/8 in. ARP 8740 cap screws are part of this rod’s specification. This ARP 8740 version brings the stated fastener grade together with the 4340 steel I-Beam profile, pairing the documented fastener package with the forged rod construction.

Fitment:

• Chevrolet Small Block V8

What’s Included:

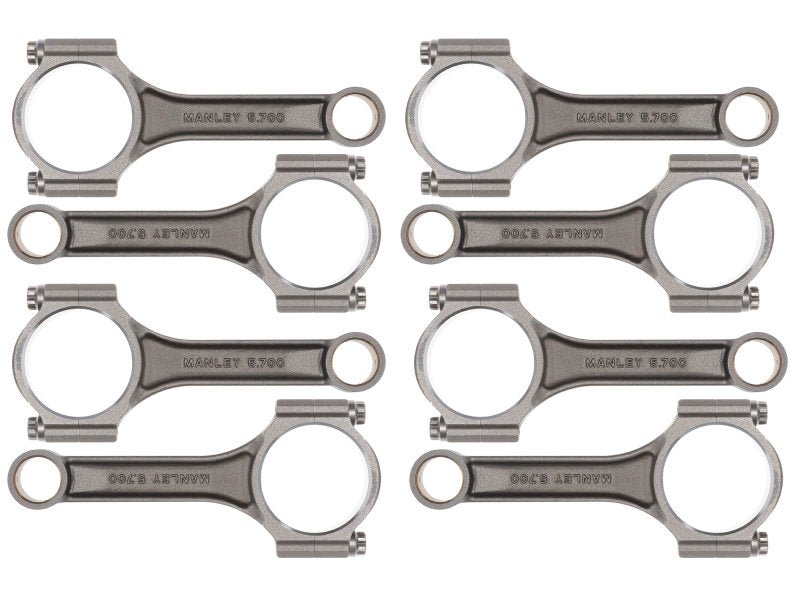

• 8 Manley Sportsmaster I-Beam connecting rods, manufacturer part number 14101-8
• 3/8 in. ARP 8740 cap screws supplied with the rods
