Mishimoto MMINT-G80-21BK Performance Charge Air Cooler Manifold for 2021-2025 BMW G80/G82 M3 & M4 S58

Mishimoto Performance Charge Air Cooler Manifold – BMW G8X M3 / M4 (S58)

Part Number: MMINT-G80-21BK

The Mishimoto Performance Charge Air Cooler Manifold for BMW G8X M3 and M4 models is engineered for high-boost reliability, improved airflow, and superior charge-air cooling. Designed as a direct-fit replacement for the factory intercooler/manifold assembly, this upgraded unit eliminates the known weak points of the OEM plastic design while dramatically increasing cooling efficiency and flow balance—making it ideal for both aggressively tuned street cars and race-focused builds.

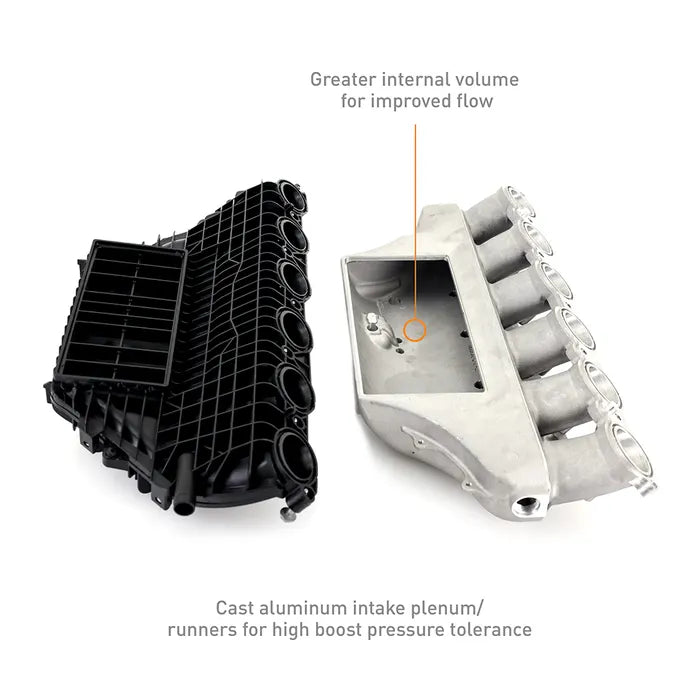

Constructed from a cast aluminum intake manifold TIG-welded to a robust bar-and-plate intercooler core, this system is rated for boost pressures up to 60 PSI and supports power levels up to 1,150 horsepower. Advanced CFD modeling ensures even airflow distribution to each cylinder, promoting consistent fueling, lower intake air temperatures, and improved engine safety under high load.

Key Features & Benefits

• Direct bolt-on fit for BMW G8X M3/M4 and select X3 M / X4 M models
• Bar-and-plate intercooler core welded to cast-aluminum manifold
• Rated for over 60 PSI of boost—far exceeding factory limits
• 33% larger core volume and 24% greater flow area than stock
• Improves airflow to each cylinder by an average of 14%
• Intake air temperatures as low as 11°F above ambient under load
• No increase in pressure drop compared to OEM design
• CFD-optimized lower plenum with internal diverter for even airflow

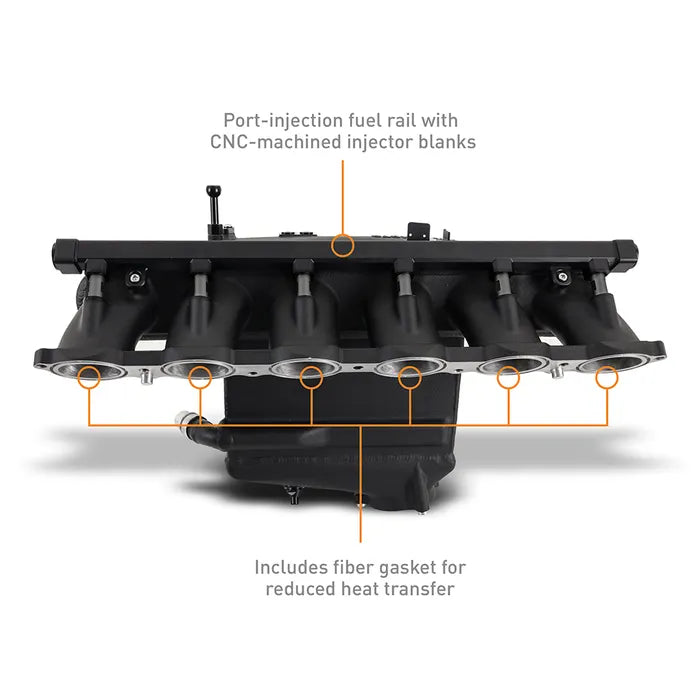

• CNC-machined runners accept factory O-rings or included thermal gasket

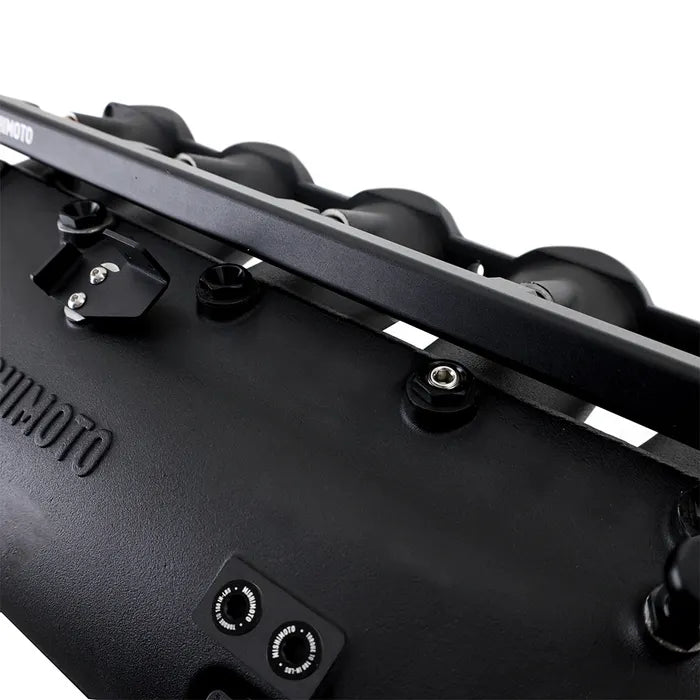

• Integrated billet fuel rail and injector ports for optional port injection*
• Nitrous-ready with multiple 1/8-NPT and 1/16-NPT ports
• Additional NPT ports for boost reference or sensor inputs
• Includes custom EVAP hoses, wiring brackets, and engine cover mounts

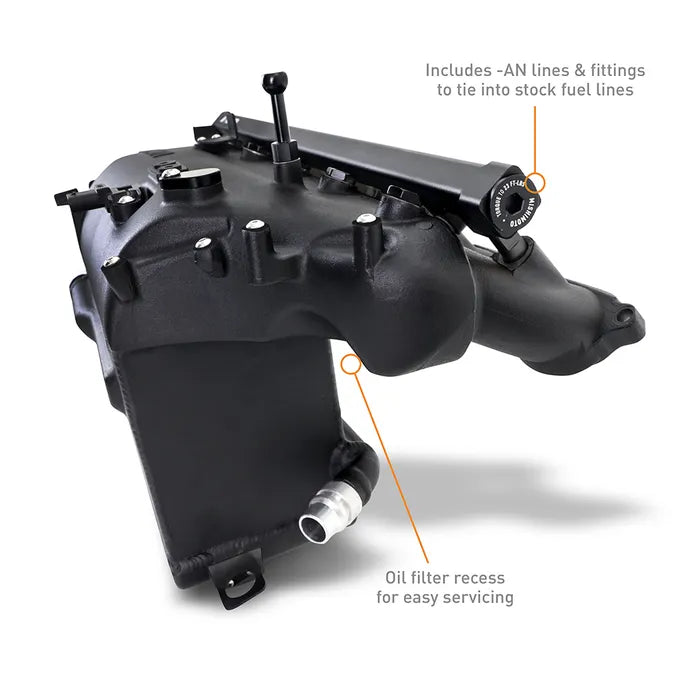

• Oil filter access cutout for easier service
• Backed by the Mishimoto Lifetime Warranty

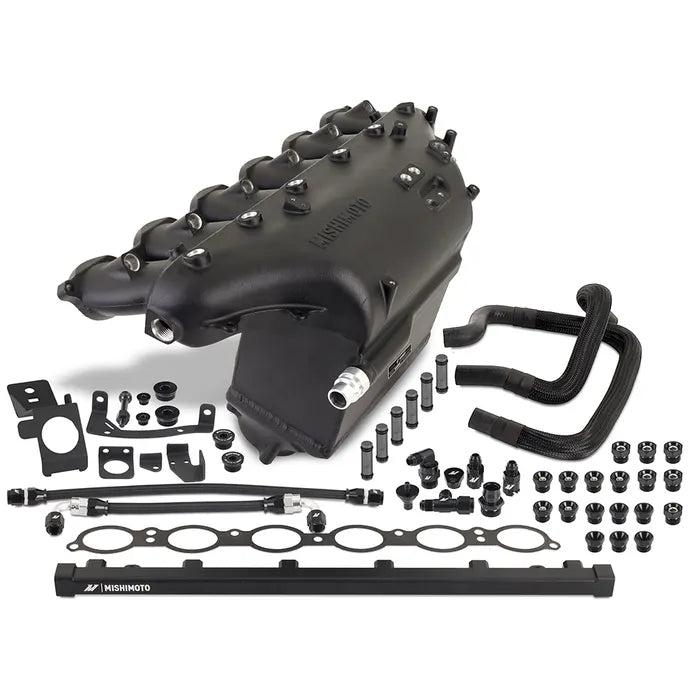

What’s Included

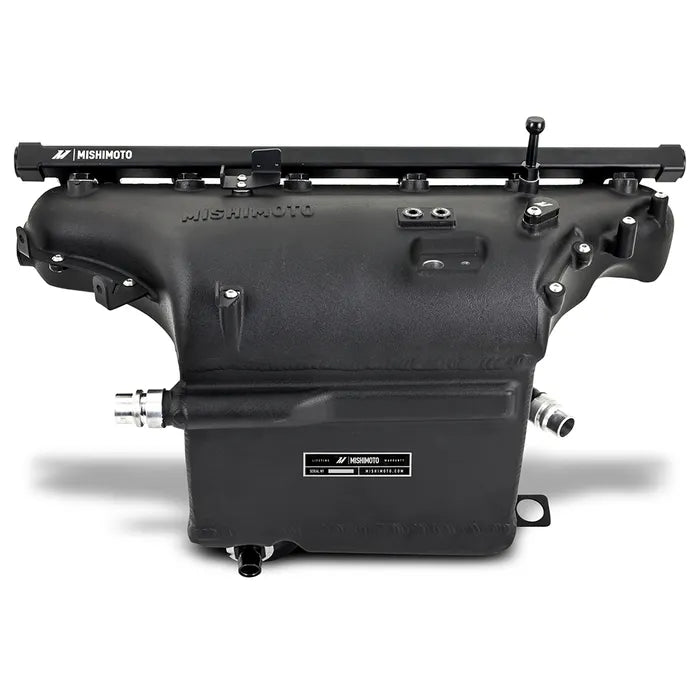

• (1) Charge Air Cooler Manifold Assembly
• (1) Intake Manifold Gasket
• (1) Manifold / Intercooler Accessory Bracket Set
• (1) Billet Fuel Rail*
• (6) Fuel Injector Blanks
• (6) -6 ORB Plugs
• (6) -6 ORB to 1/8" NPT Adapters
• (6) -6 ORB to 1/16" NPT Adapters
• (2) -8 ORB Plugs

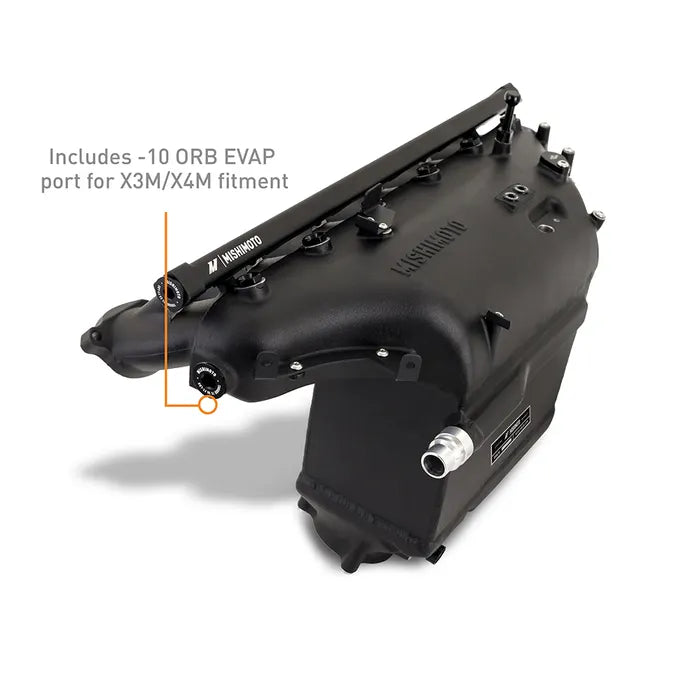

• (1) -10 ORB Plug
• (2) 1/8" NPT Plugs
• (2) EVAP System Hoses

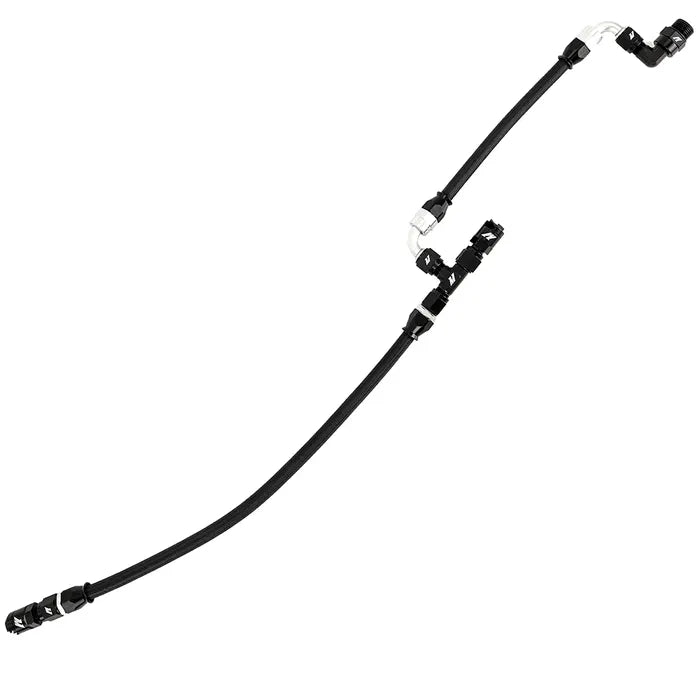

• (1) Port Injection Fuel Line Kit
• (1) Complete Hardware Kit

Vehicle Fitment

Engine: S58B30
Chassis Codes: G80, G82, G83, F97, F98

BMW Applications

• 2021–2025 BMW M3 / M3 Competition / M3 Competition xDrive
• 2021–2025 BMW M4 / M4 Competition / M4 Competition xDrive
• 2019–2025 BMW X3 M / X3 M Competition
• 2019–2025 BMW X4 M / X4 M Competition

(Also compatible with select BMW M2 applications using the S58 platform)

Technical Specifications

• Core Type: Bar-and-Plate
• Maximum Boost Pressure: 60 PSI
• Maximum Recommended Power: 1,150 HP
• Core Thickness: 4.9 in
• Core Length: 9.8 in
• Core Height: 6.3 in

• Overall Dimensions: Length: 11.5 in / Width: 21.0 in / Height: 13.1 in

Installation Notes

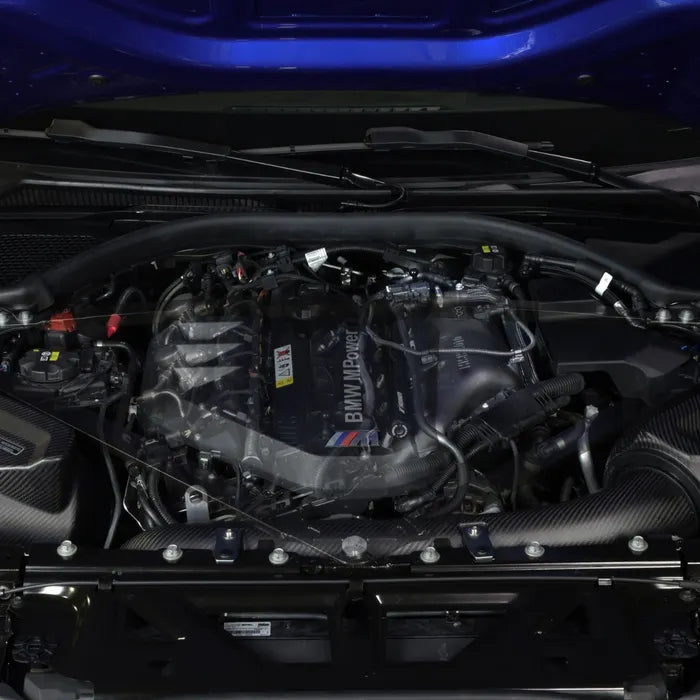

• Direct replacement using factory mounting points
• Includes all required brackets, hoses, and hardware
• No permanent modifications required
• Professional installation recommended for port injection or nitrous setups

Important Emissions & Usage Notice

*The included fuel rail is for race-use only. Removal or use may affect emissions compliance. Check all local and state regulations before installation. Once removed for race use, the vehicle should not be operated on public roads.
