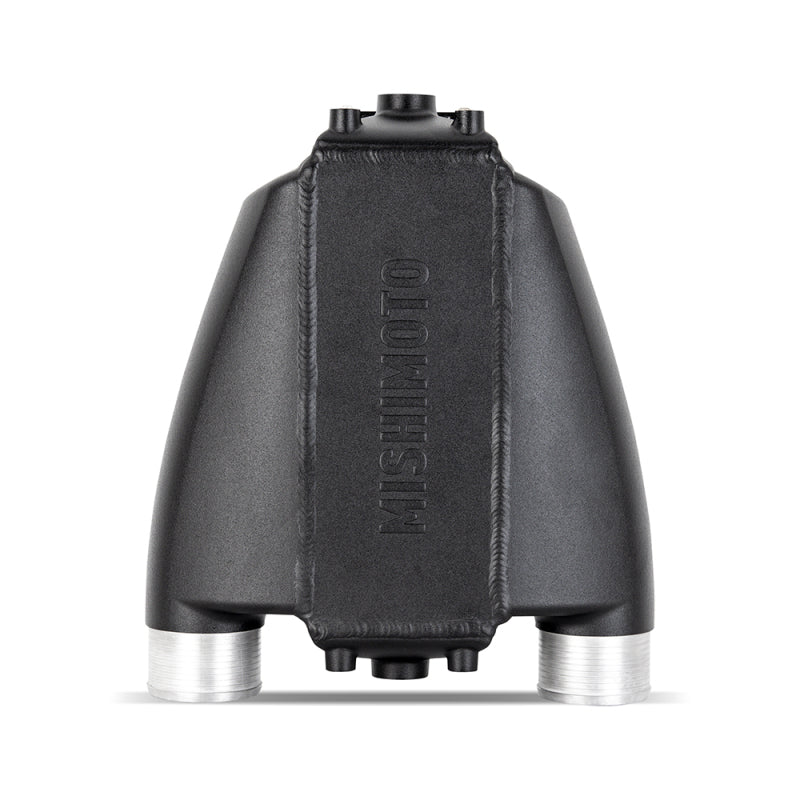

Mishimoto Universal Air-To-Water Intercooler Single Pass (1000hp) - Same Side Inlet/Outlet
Part Number:
misMMINT-A2W-SP-2
Description:
Mishimoto Universal Air-To-Water Intercooler Single Pass (1000hp) - Same Side Inlet/Outlet
TechSpec Maximum Recommended Boost Pressure (PSI):
100
TechSpec Maximum Recommended Horsepower:
1000
TechSpec Overall Length (in):
15.7
TechSpec Overall Height (in):
N/A
TechSpec Overall Width (in):
N/A
TechSpec Core Type:
Bar-and-Plate
TechSpec Core Thickness (in):
3.25
TechSpec Core Length (in):
17.75
TechSpec Core Height (in):
6.5
Highly efficient air-to-water design delivers effective cooling in a compact package
Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
Sleek, subtle, and durable micro-wrinkle black powder coat finish
-12ORB coolant ports provide leak-free line connections
Includes robust 1/8-in thick steel mounting bracket and hardware
Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings
Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
Multiple core sizes to choose from to fit the needs of your project
Mishimoto Lifetime Warranty
Highly efficient air-to-water design delivers effective cooling in a compact package
Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
Sleek, subtle, and durable micro-wrinkle black powder coat finish
-12ORB coolant ports provide leak-free line connections
Includes robust 1/8-in thick steel mounting bracket and hardware
