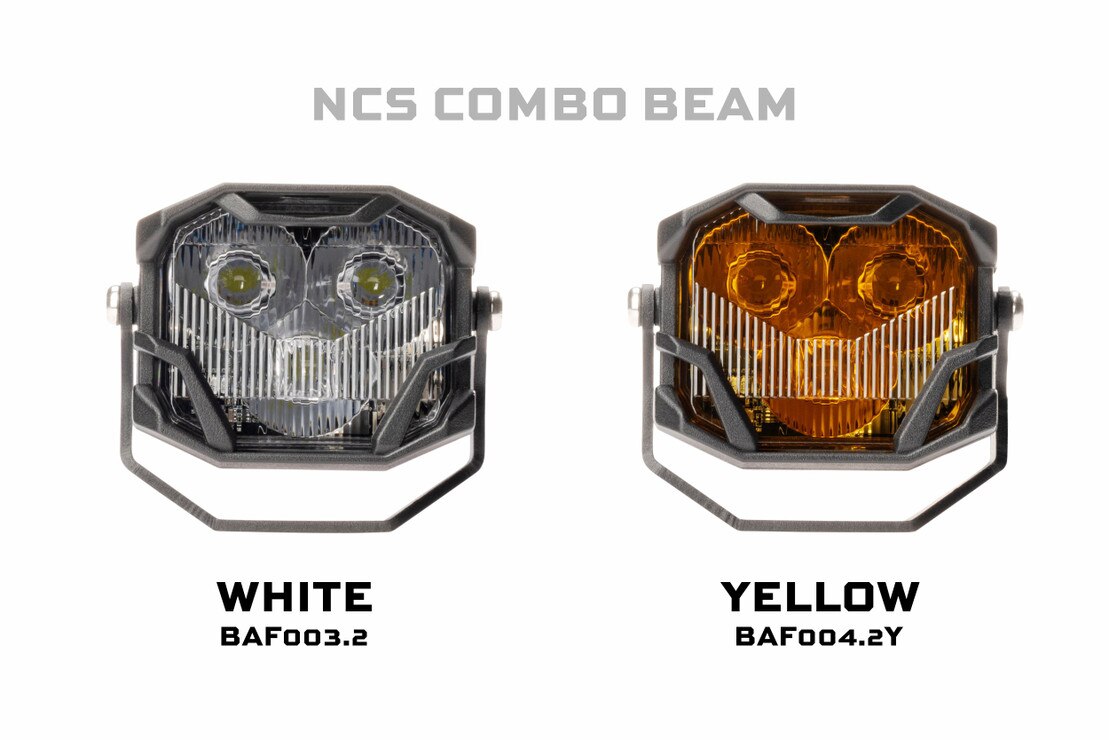

Morimoto 4Banger NCS Combo Beam LED Pods 5700K White Universal Auxiliary Off Road Light Pair - BAF046

Key Features

• Color Temperature - 5700K White
• Intensity per pod - 55,500 Cd post warm-up 555 lux at 10m
• Peak Luminosity raw - 1,350 lumens per pod

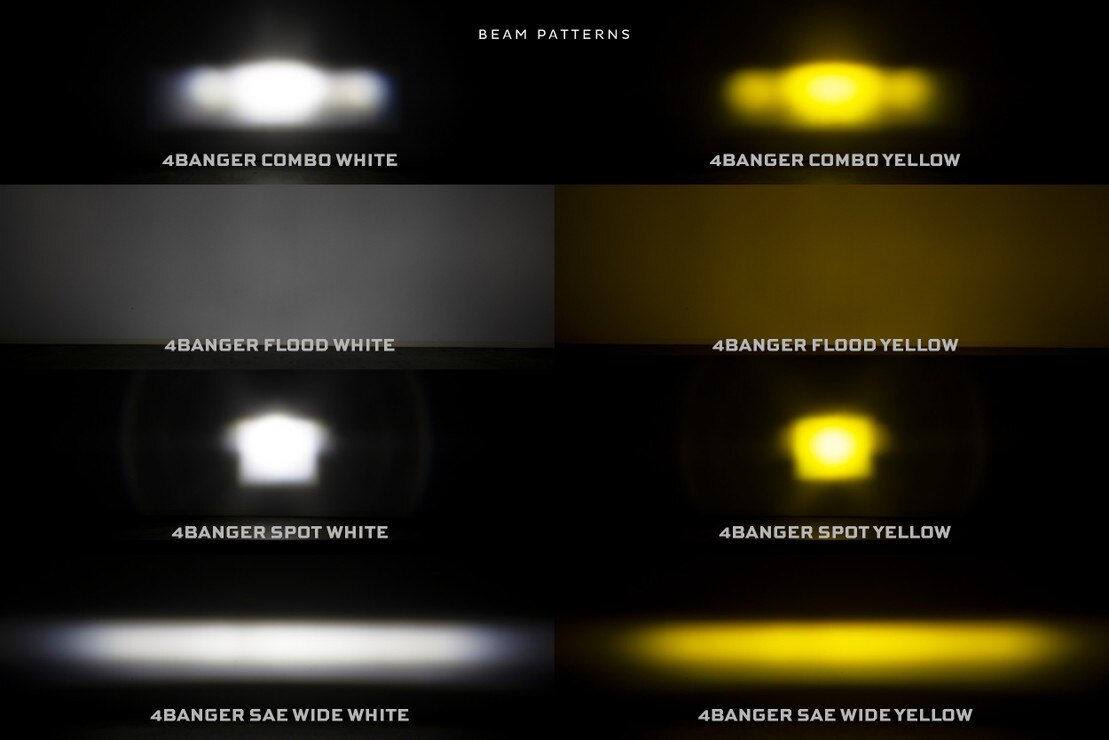

• Combo beam pattern for balanced width and distance
• Light Source - 3x Nichia NCS LEDs per pod
• Power stabilized - 15.6W
• Current - 1.5A at 13.5V DC

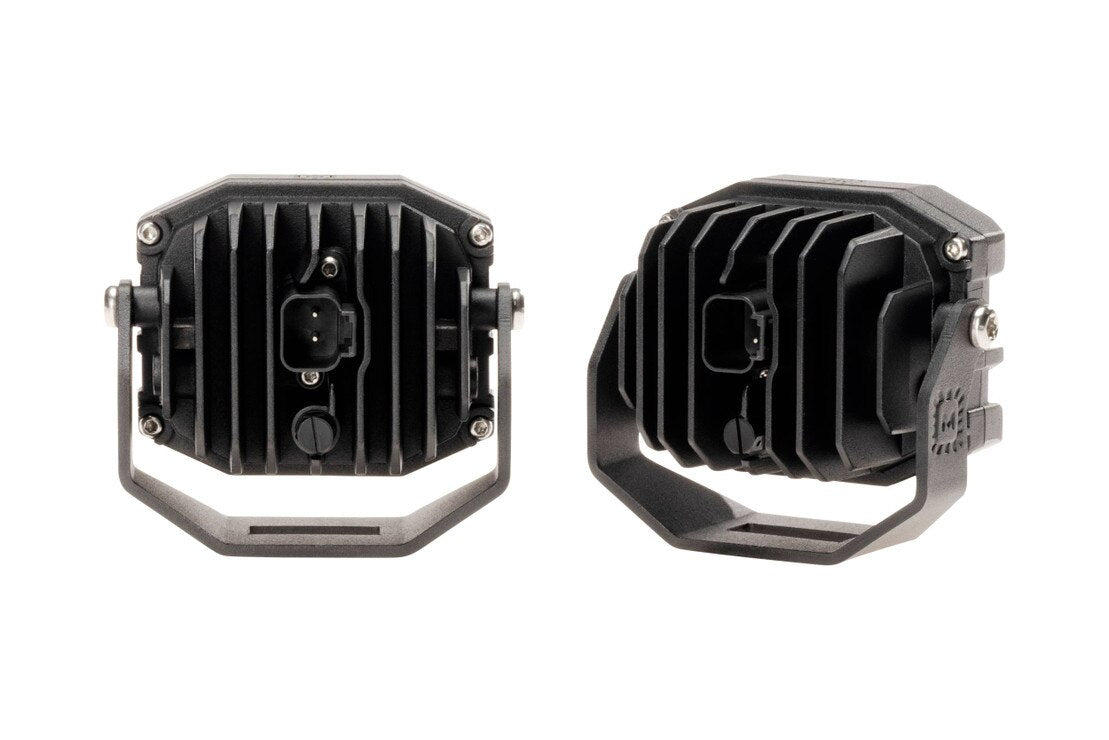

• Integrated Deutsch DT 2-pin input
• Compact dimensions - 82mm W x 67mm H x 60mm D
• Makrolon LED polycarbonate lens
• Powdercoated die cast aluminum housing

What Is Included

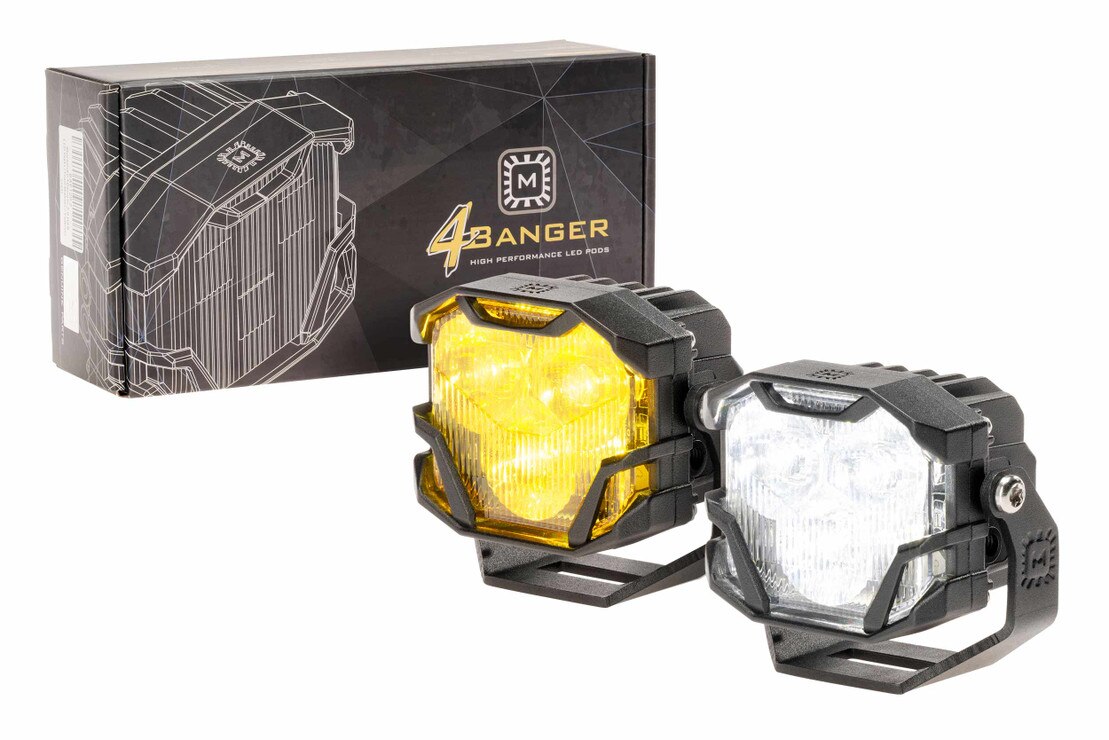

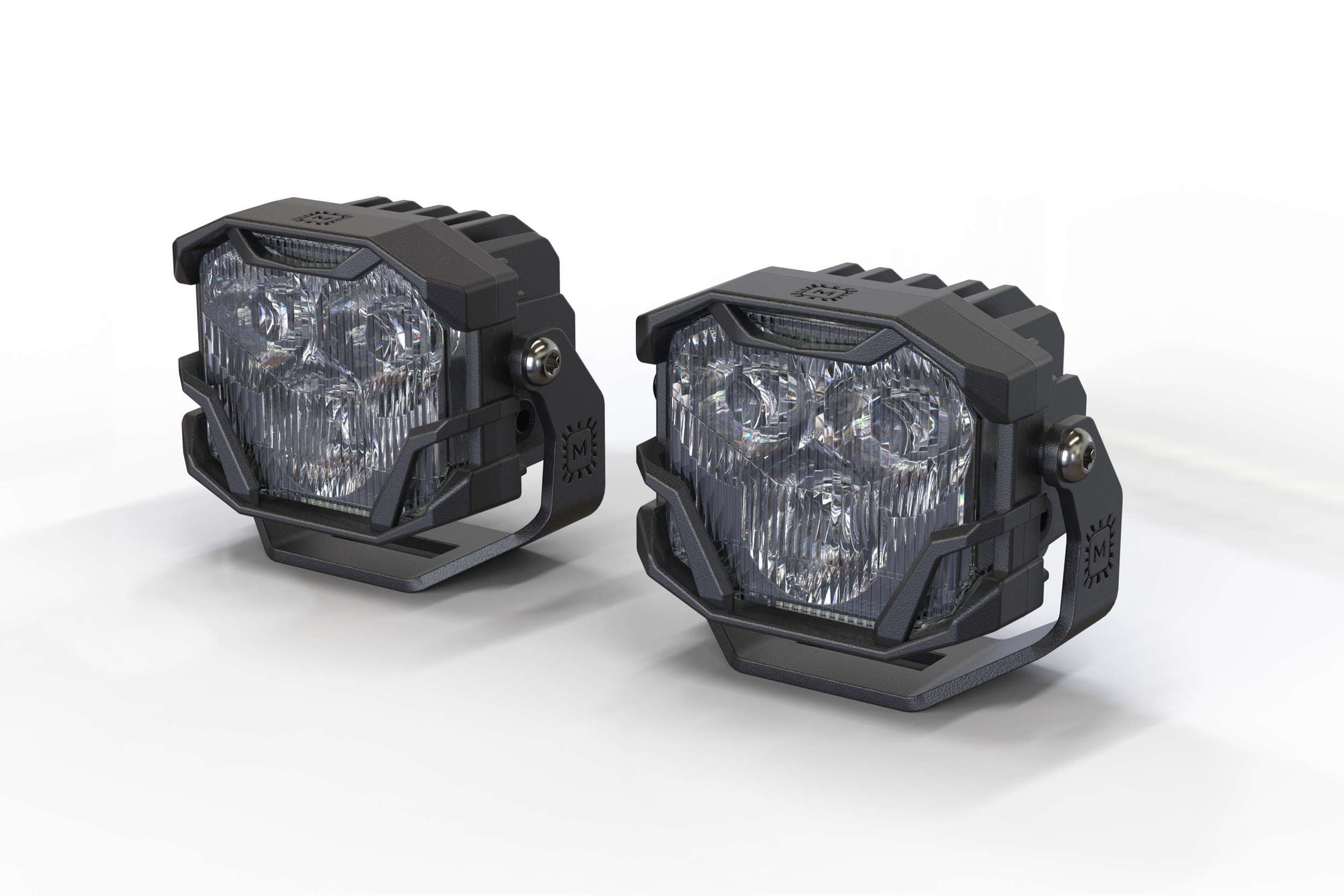

• 2x Morimoto 4Banger NCS Combo Beam LED Pods 5700K White
• Hardware Included:
• M6x1.0 8mm hardware for 4Banger to U-bracket mounting
• M10x1.5 20mm hardware for U-bracket base mounting

Vehicle Fitment

• Universal fit.
  Designed for use with compatible bottom mount brackets and wiring harness.
• Bottom Mount Bracket - BAF046
• Wiring Harness - BAF000H
• Suitable for trucks, SUVs, UTVs, off road vehicles, and custom auxiliary lighting setups.

The Morimoto 4Banger NCS Combo Beam LED Pods in 5700K white deliver high-intensity auxiliary lighting in a compact, durable housing. Designed around three Nichia NCS LEDs per pod, the NCS Combo configuration provides a balanced blend of distance and usable width, making it ideal for off road, trail, and utility lighting applications.

Each pod produces 55,500 candela after warm-up with a tightly controlled beam pattern and efficient 15.6W stabilized output. Built with a powdercoated die cast aluminum housing and Makrolon polycarbonate lens, the 4Banger is engineered for durability and consistent performance in demanding environments. An integrated Deutsch DT 2-pin connector ensures reliable, weather-resistant connectivity.
