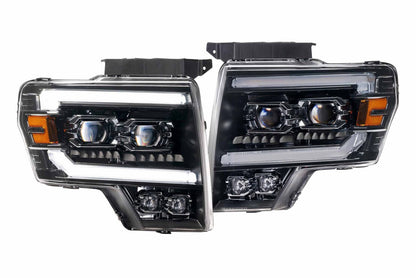

Morimoto LF2-506 XB Evo LED Headlights – Ford F-150 (2009–2014) / SVT Raptor (2010–2014)

The Morimoto LF2-506 XB Evo LED Headlights upgrade the 2009–2014 Ford F-150 and 2010–2014 SVT Raptor with premium Bi-LED performance, modern styling, and OEM-level fitment. Featuring dual Bi-LED projectors powered by Nichia automotive LEDs, these headlights deliver exceptional low-beam width, powerful high beams, and excellent light distribution.

Unique features like the Frost-Free lens heating system, configurable DRL and turn signal modes, and plug-and-play compatibility with factory halogen or HID systems make the XB Evo a top-tier solution for both street and off-road enthusiasts. Designed, engineered, and tested in the USA, they are DOT-compliant in standard configuration and backed by Morimoto’s 5-year warranty.

Key Features & Benefits

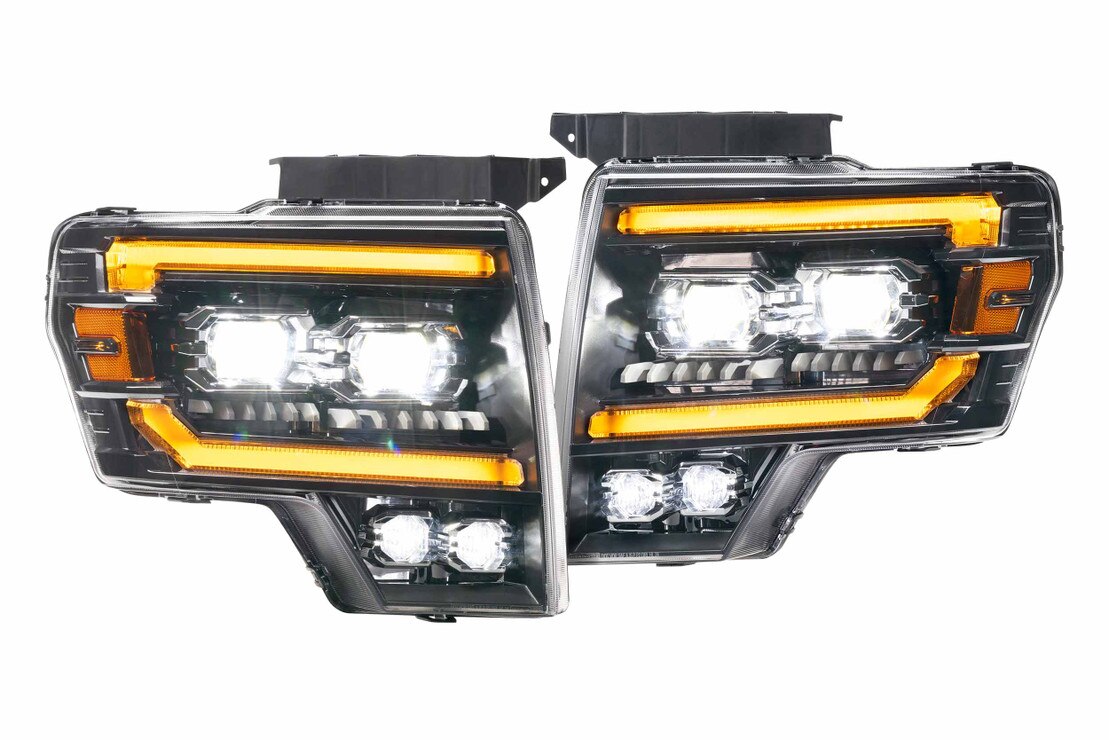

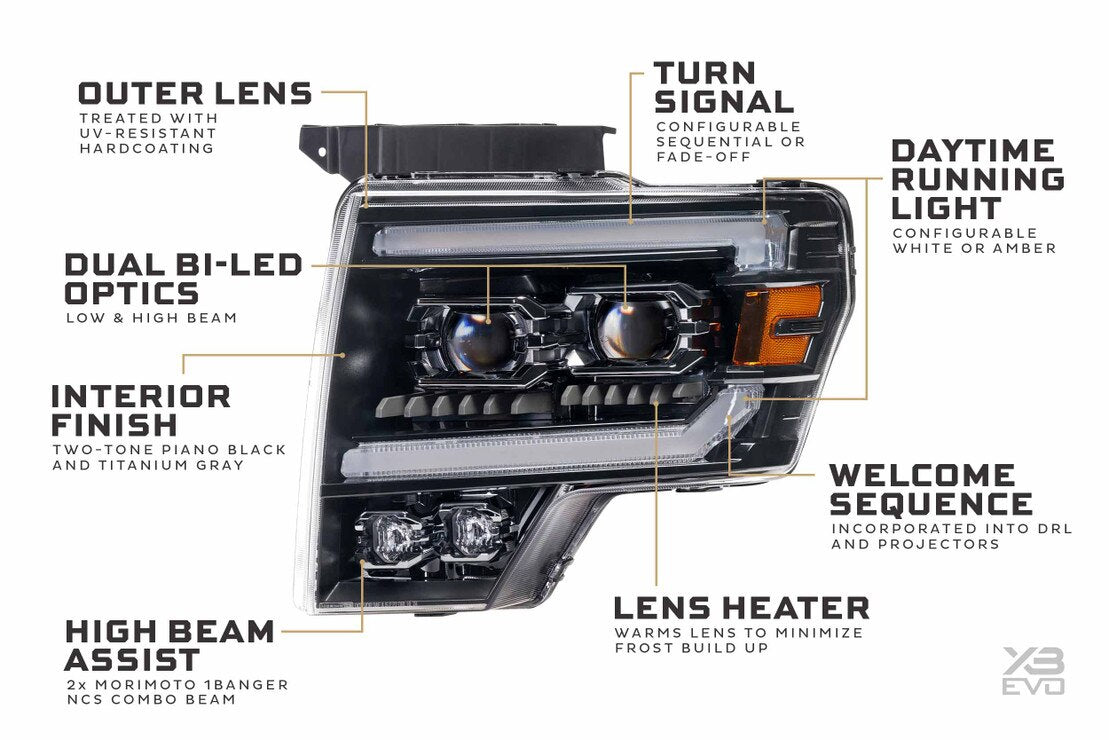

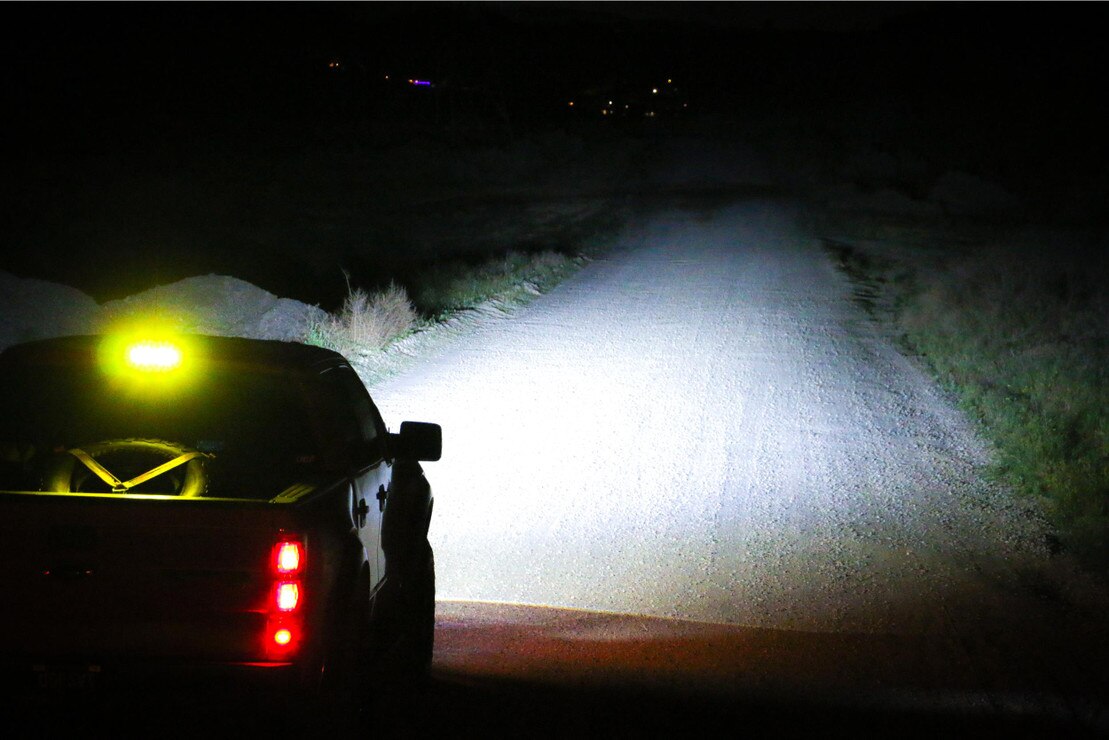

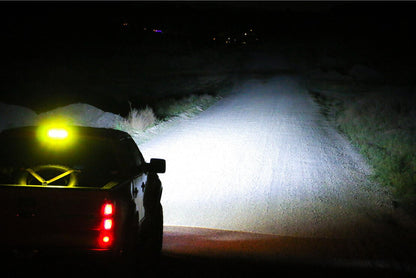

• Dual Bi-LED Projectors: Type 1 Ishida optics deliver exceptional brightness, clarity, and beam uniformity
• Nichia Automotive LEDs: OE-grade LEDs ensure long life and consistent output
• DOT / FMVSS108 Compliant: Street-legal in standard configuration

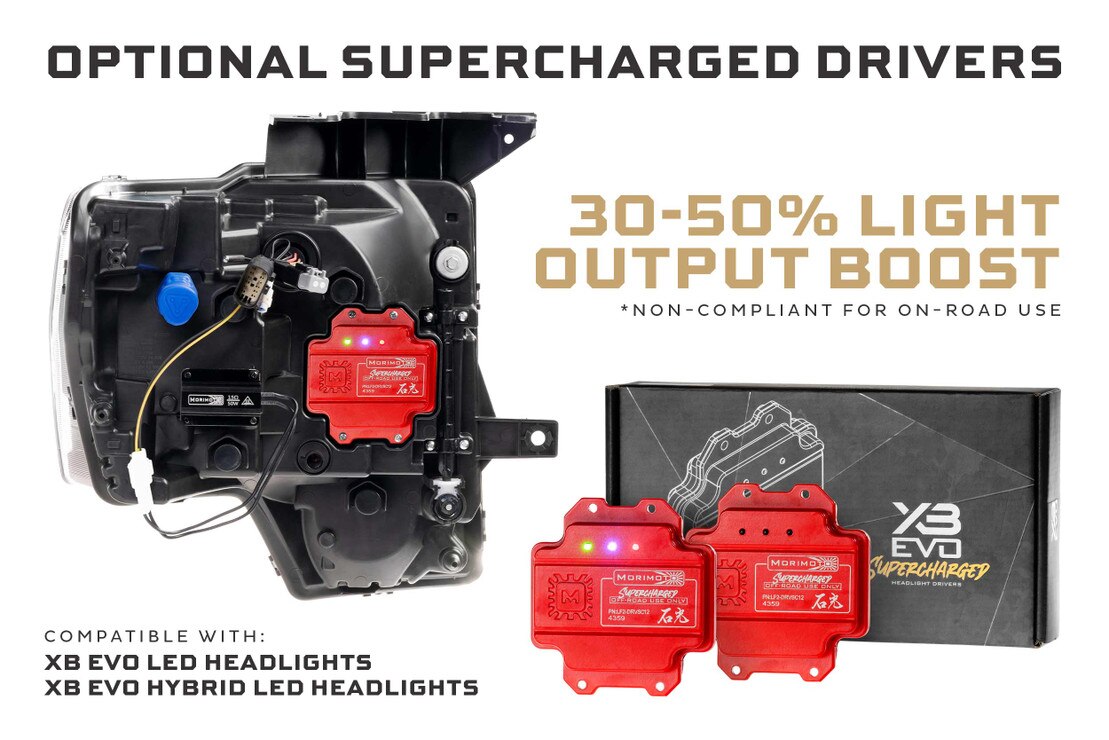

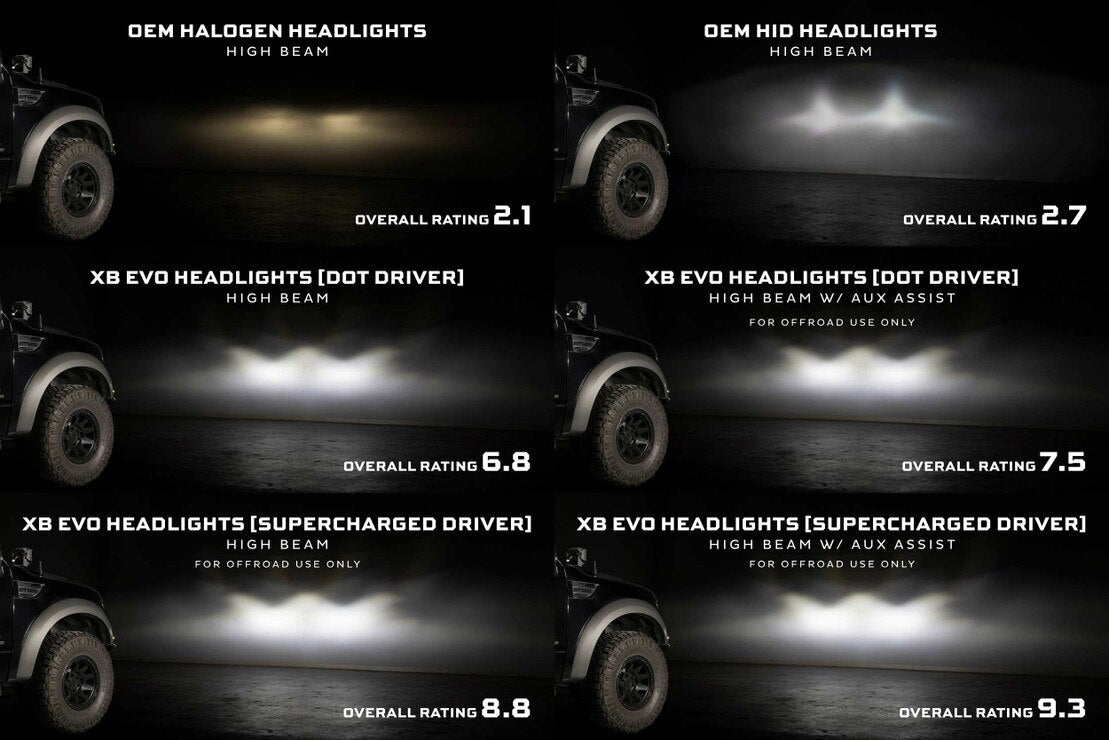

• Optional Supercharged Drivers: Increase output by 30–50% for off-road use (non-compliant)
• Frost-Free Heating System: Integrated ceramic heater warms the lens to prevent ice and frost buildup

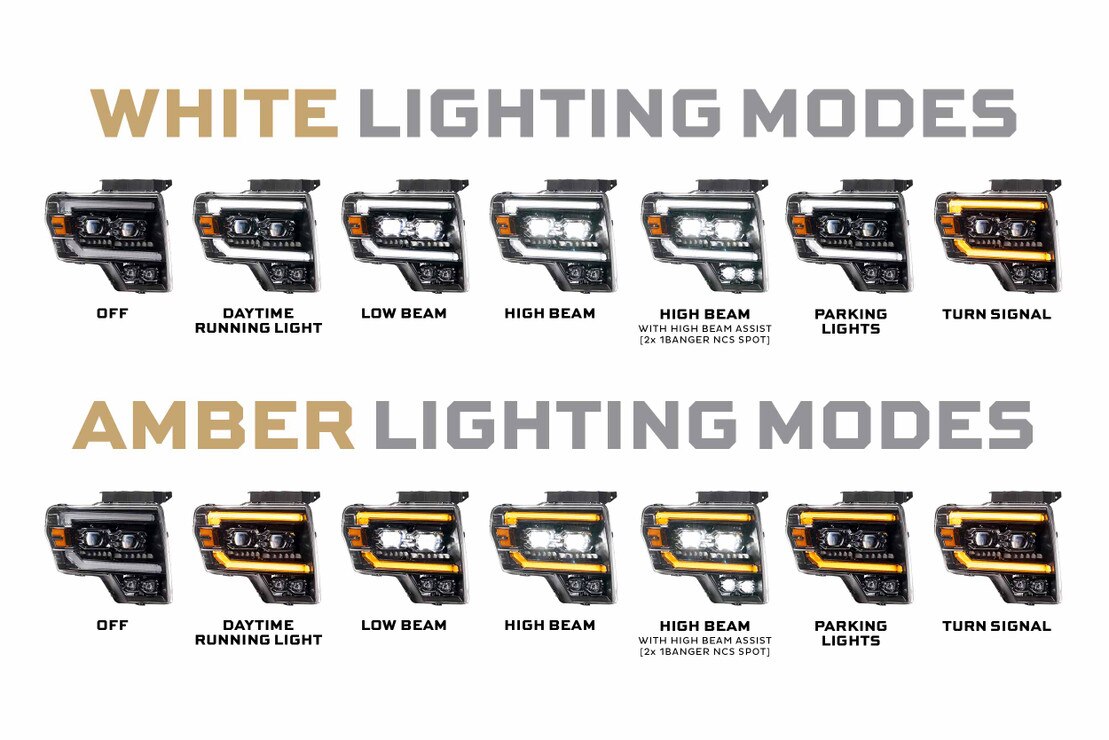

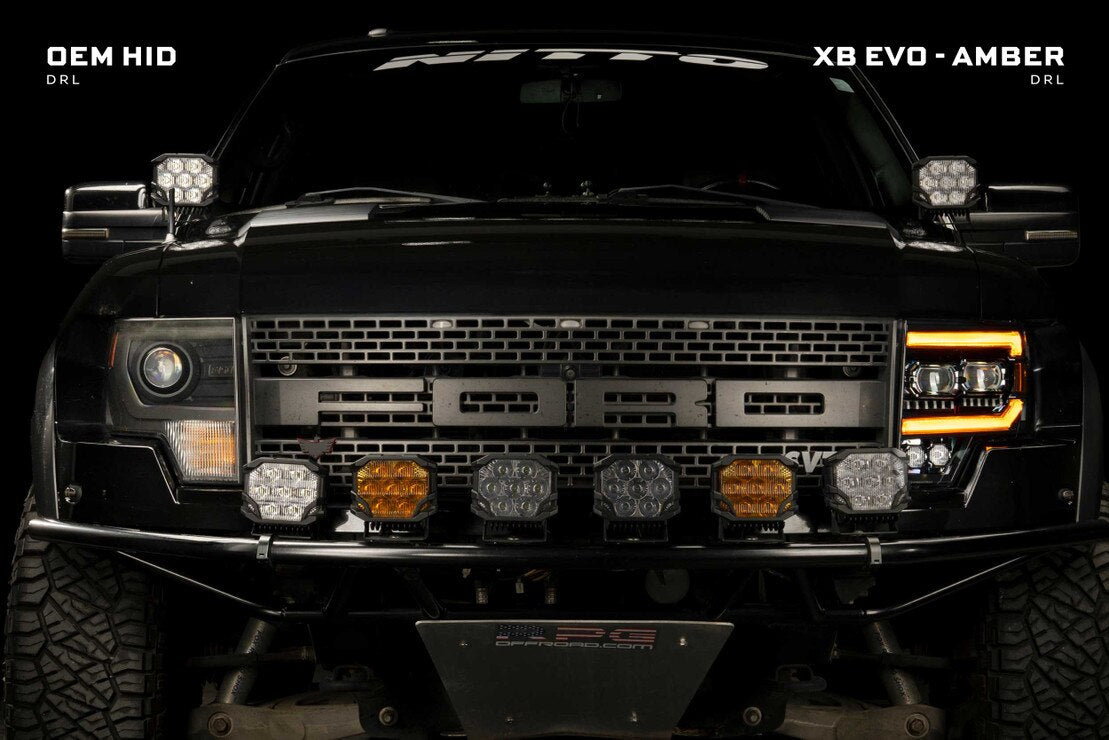

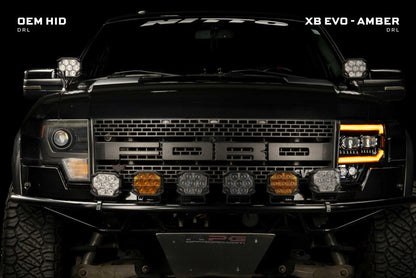

• Signal Swap System: Configure DRLs (white or amber) and turn signals (sequential or fade-off)
• Startup Light Sequence: Multi-stage welcome animation on vehicle start
• Auxiliary High Beam Pods: Integrated Morimoto 1Banger NCS combo beams for added output
• OEM-Style Plug-and-Play: Includes adapters for factory halogen and HID systems
• Premium Construction: UV-coated polycarbonate lenses exceed OE durability benchmarks
• 5-Year Warranty: Supported by Morimoto in Atlanta, GA

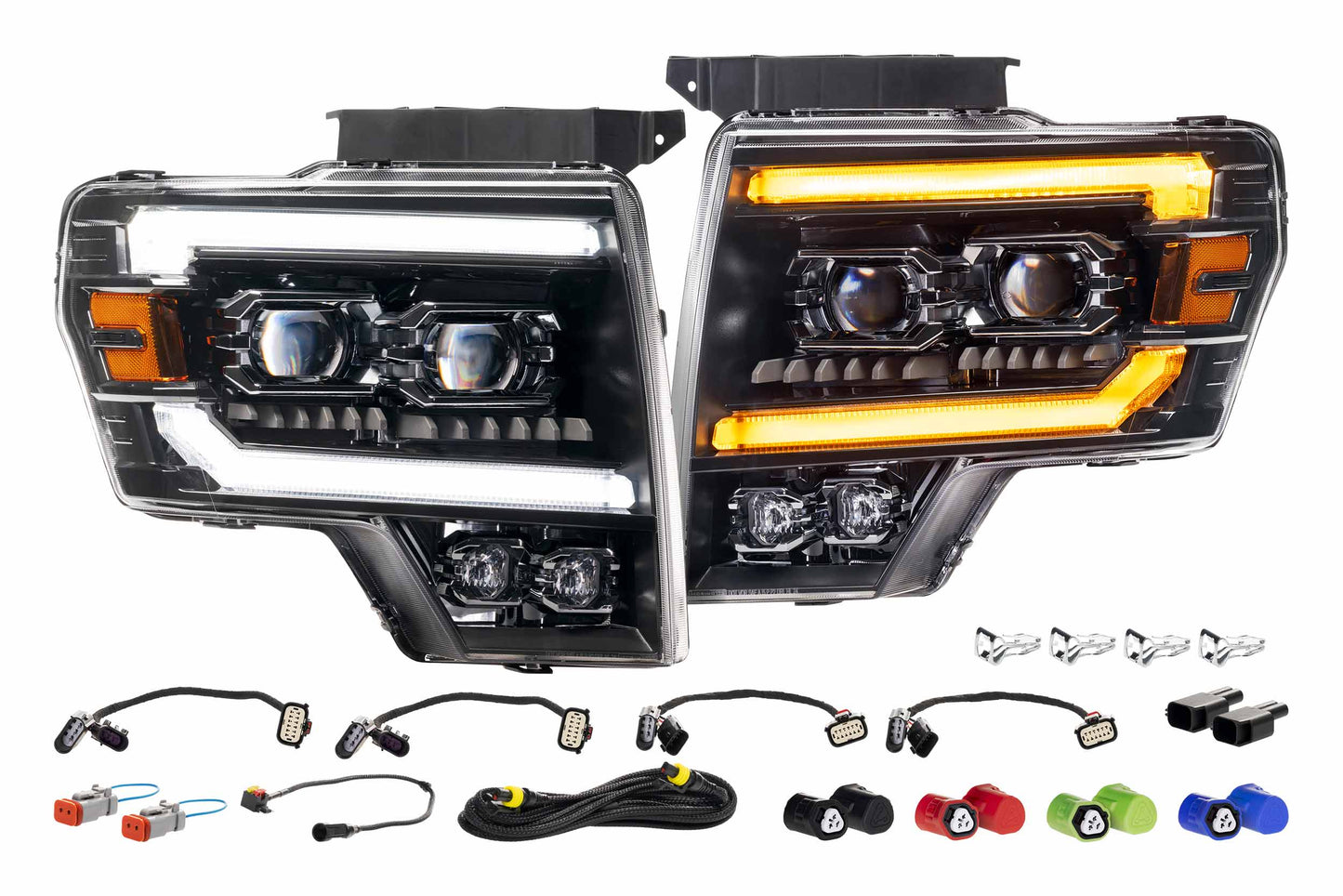

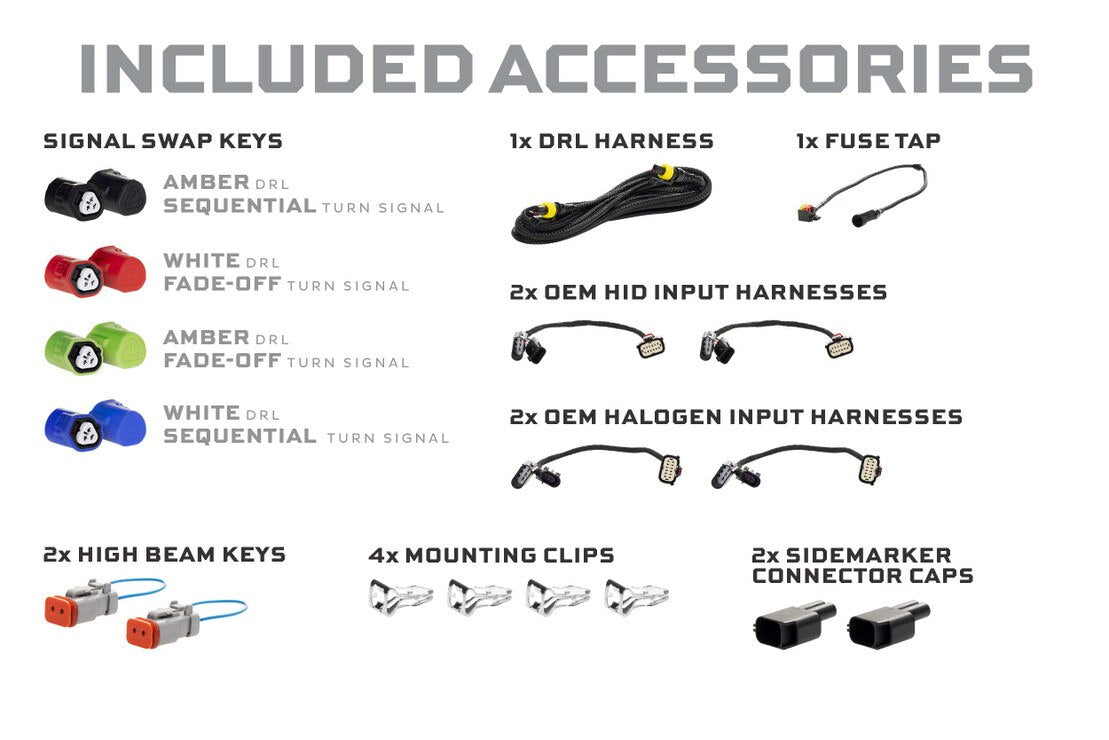

What’s Included

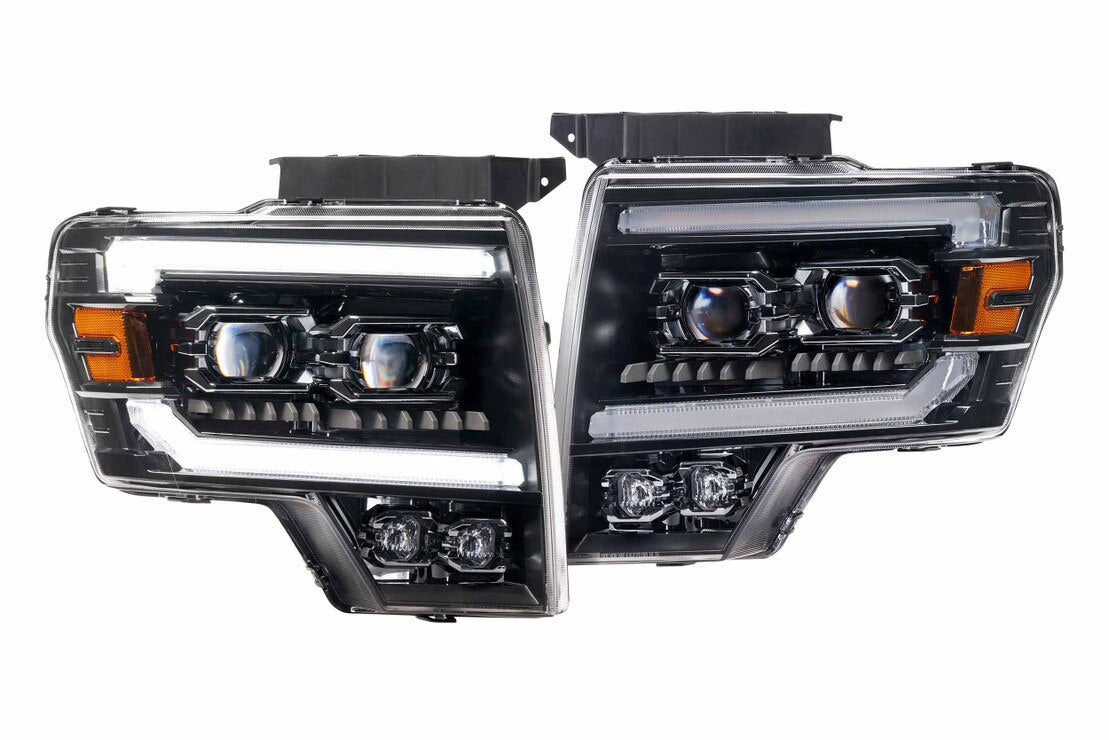

Headlights

• (1) Driver Side / LH Morimoto XB Evo Headlight

• (1) Passenger Side / RH Morimoto XB Evo Headlight

Function Selectors

• (8) DRL & Turn Signal Configuration Keys (4 pairs)

Accessories

• (2) Halogen Adapters
• (2) OEM HID Adapters
• (1) DRL Harness
• (2) Auxiliary High Beam Keys
• (4) Mounting Clips
• (2) Side Marker Connector Caps
• Fuse Tap Hardware

Optional (Sold Separately)

• Supercharged LED Drivers – LF2-DRVSC12

Technical Specifications

• Traffic Pattern: LHD / Right-Hand Traffic Only
• Output (Standard Drivers): DOT / FMVSS108 Compliant (LB2V & UB2)
• Output (Supercharged Drivers): +30–50% (Non-Compliant)
• Main Optics:

• • (2) Type 1 Ishida Optic Bi-LED

  • Nichia NC4W193F LEDs @ 750mA

• High Beam Assist: (2) Morimoto 1Banger NCS Combo Beams*
• Functions: Low Beam, High Beam, Parking Light, Turn Signal, DRL, Welcome Sequence, Lens Heating
• Turn Signal Modes: Sequential or Fade-Off (Configurable)
• DRL Colors: White or Amber (Configurable)
• DRL / Signal Optics: Glass-Like 3D Optics

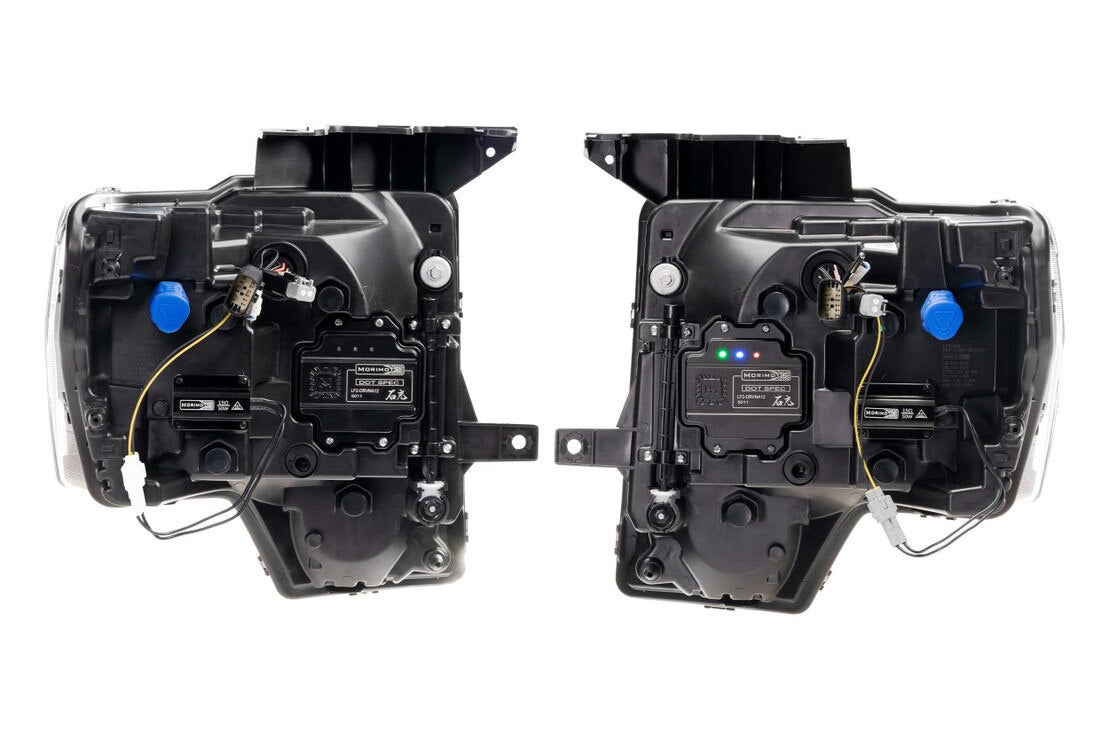

• Frost-Free System: Logic-controlled 50W ceramic heater with circulation fans
• Internal Finish: Two-tone Piano Black & Titanium with contrasting textures
• Side Marker: Amber DOT-compliant reflex reflector
• Wiring: Plug-and-play adapters for OEM halogen & HID inputs
• Lens Material: UV-coated polycarbonate (exceeds OE benchmarks)

Vehicle Fitment

Ford F-150

• 2009–2014

• All trim levels: XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, Limited

• Factory halogen & factory HID/xenon equipped models

Ford SVT Raptor

• 2010–2014

• Factory halogen & factory HID/xenon equipped models

Compliance & Important Notes

• Meets DOT, SAE, and FMVSS108 standards in standard configuration
• Auxiliary high beam pods are not compliant for on-road use in the USA or Canada
• Installation of optional Supercharged Drivers results in non-compliant intensity
• Supercharged configuration is for off-road use only
• Developed for North American vehicles only
• Do not power auxiliary high beam connectors directly — permanent damage will occur and is not covered under warranty

OEM Replacement References

Replaces Ford Part Numbers:
FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB
