Morimoto LF2-506Y XB Evo Hybrid LED Headlights – Ford F-150 (2009–2014)

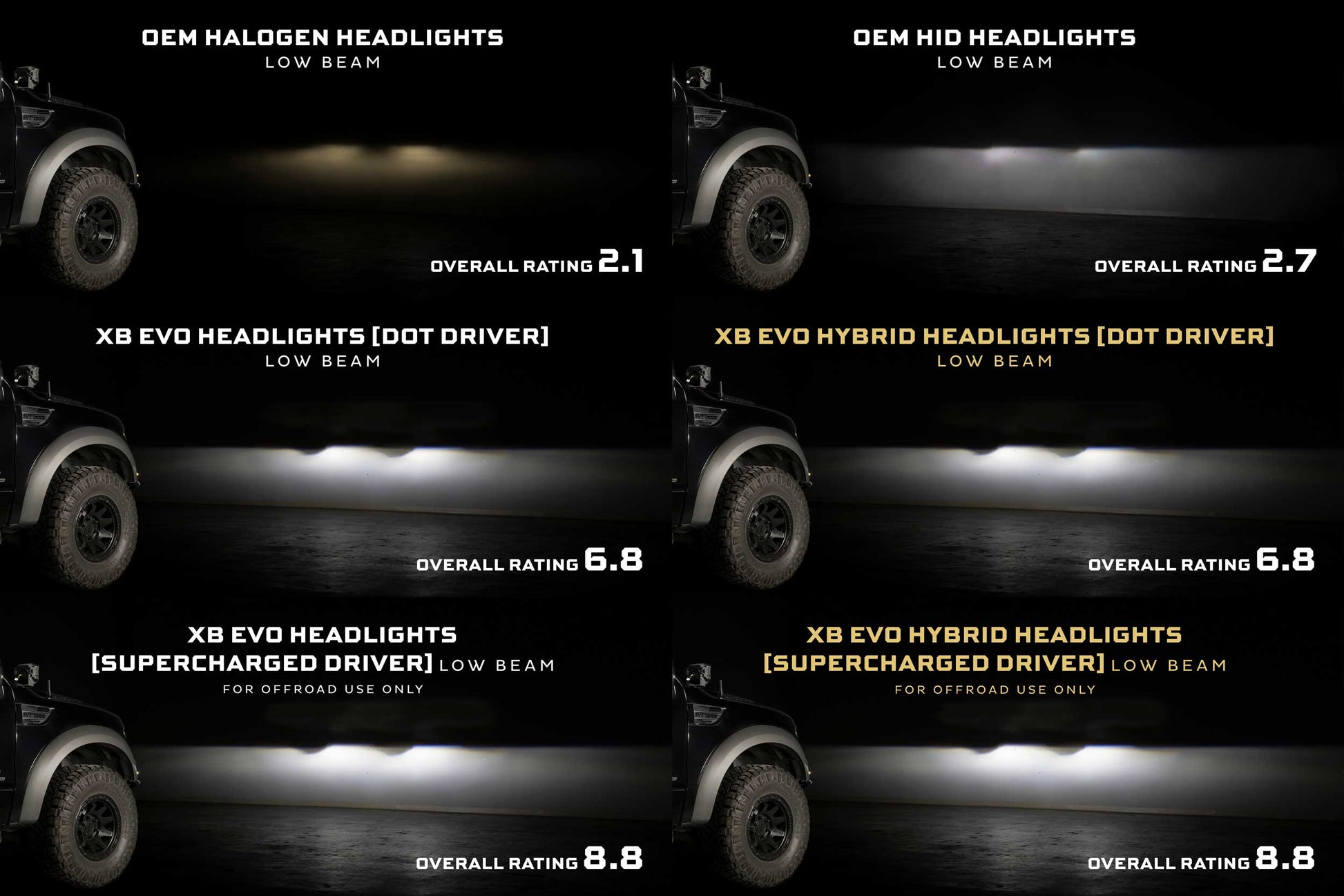

The Morimoto XB Evo Hybrid LED Headlights for the 2009–2014 Ford F-150 deliver flagship-level performance and styling at a more accessible price point. Built using the same advanced Bi-LED projector technology found in Morimoto’s higher-end XB Evo lineup, these headlights provide exceptional light output, wide low-beam coverage, and a powerful high beam that eliminates dark spots on and off the road.

Engineered, designed, and tested in the USA, the XB Evo Hybrid headlights utilize OE-grade Nichia automotive LEDs from Japan, ensuring long-term reliability and consistent performance. With DOT compliance in standard configuration, striking white LED DRLs, amber turn signals with fade-off effect, and a premium piano-black internal finish, these headlights are a major upgrade in both form and function for Raptor owners.

Key Features & Benefits

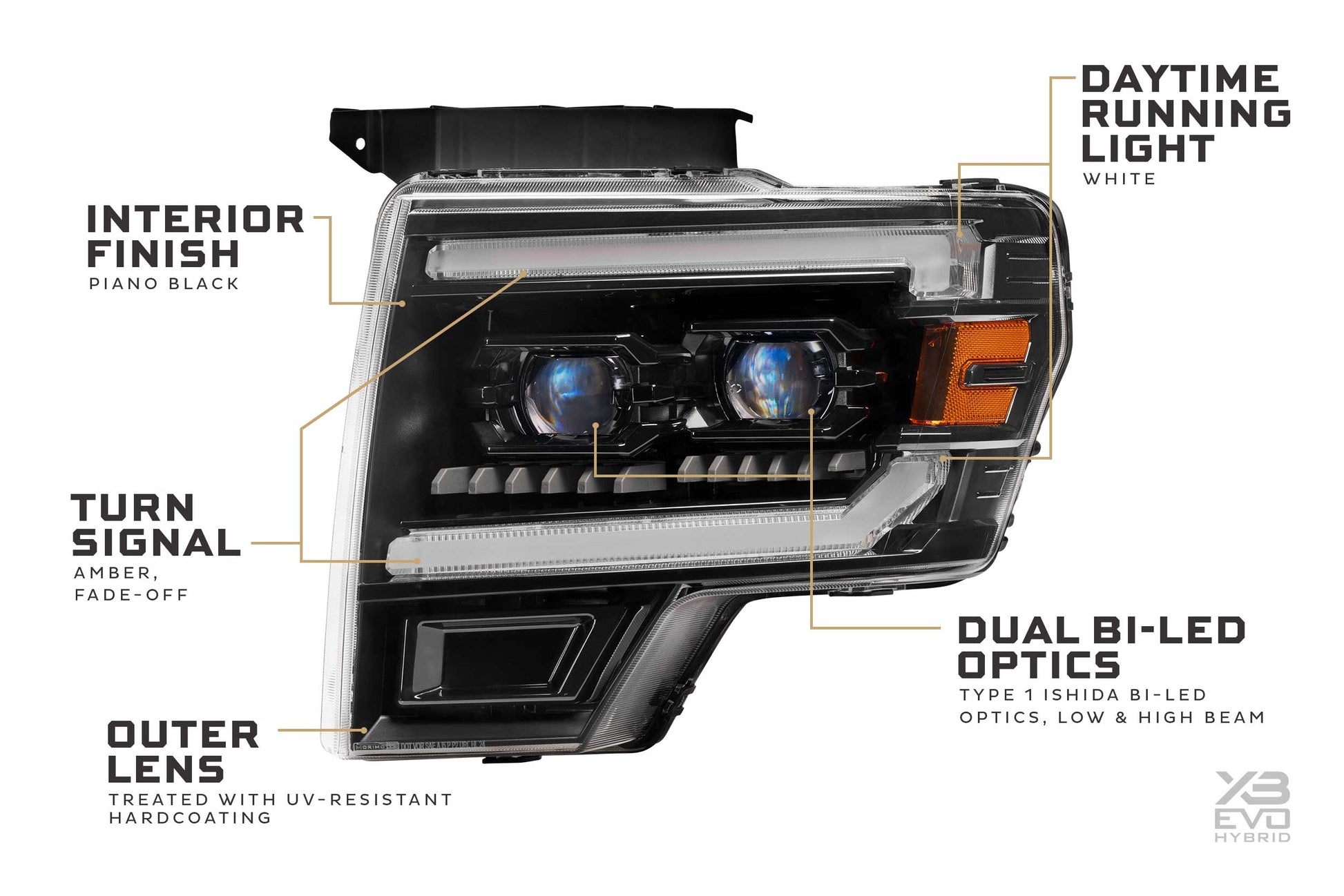

• Dual Bi-LED Projectors: Advanced Type 1 Ishida optics deliver class-leading brightness and beam distribution
• Nichia Automotive LEDs: OE-grade LEDs ensure longevity and consistent output
• DOT / FMVSS108 Compliant: Street-legal in standard configuration

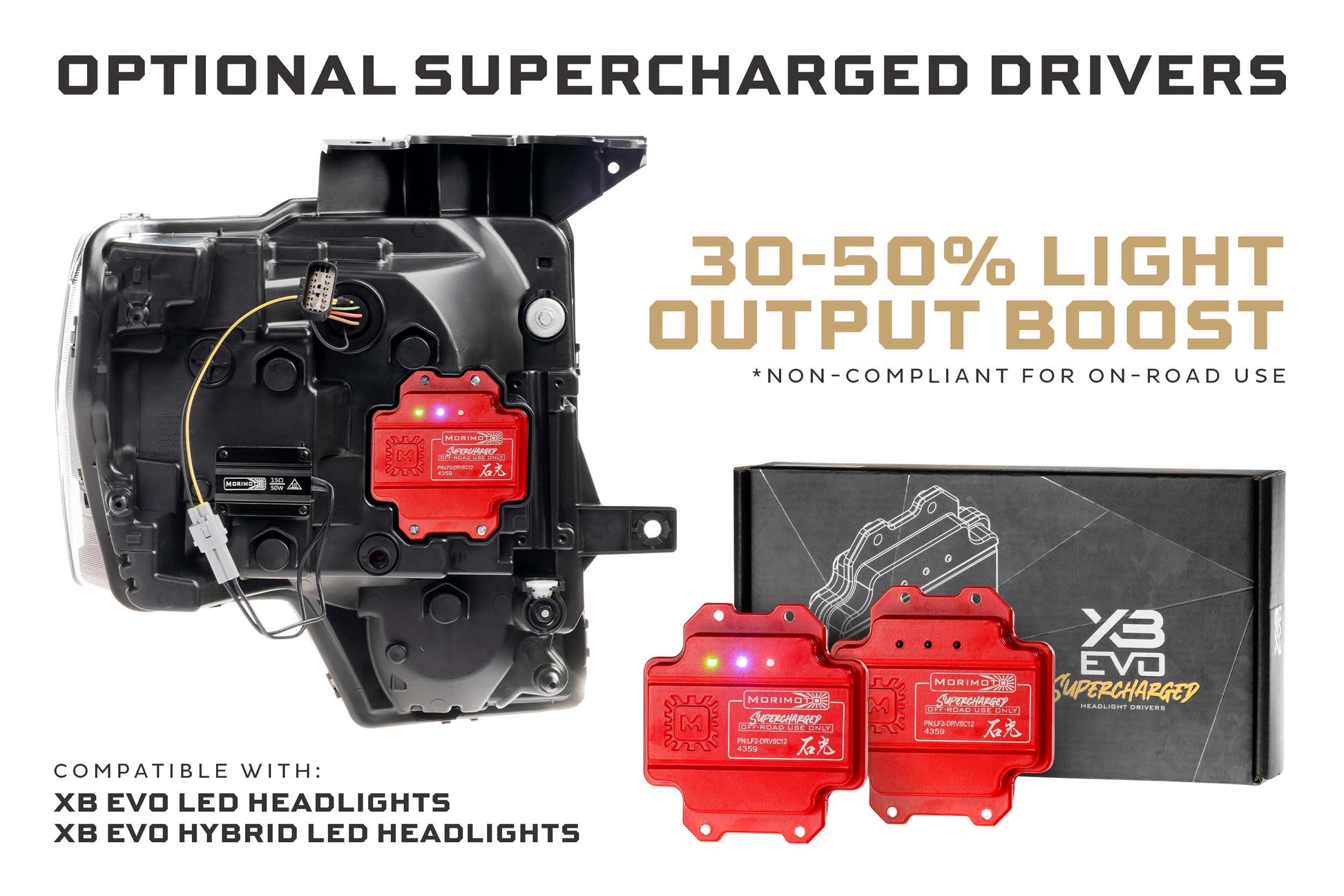

• Optional Supercharged Drivers: Increase output by 30–50% for off-road use (non-compliant)

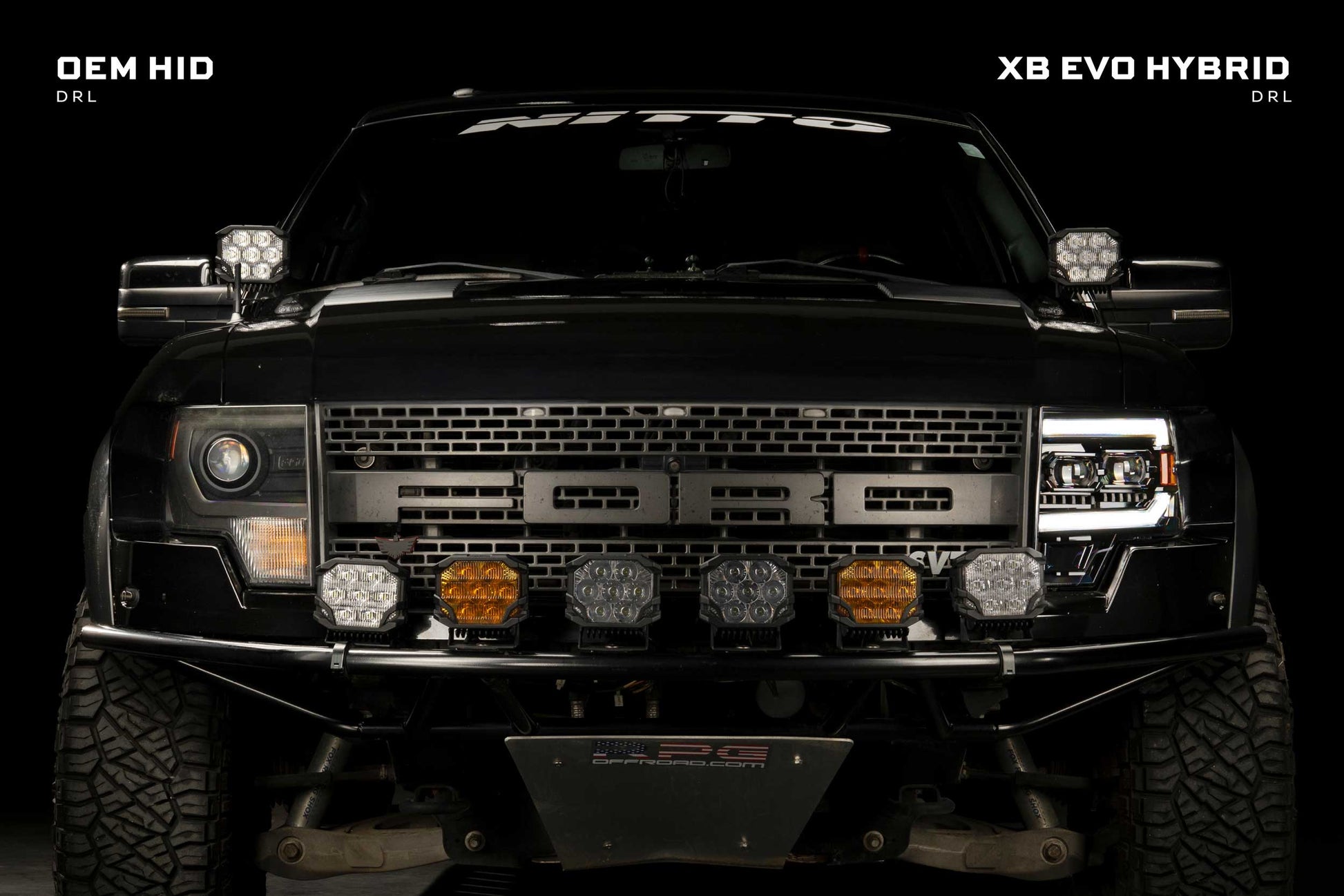

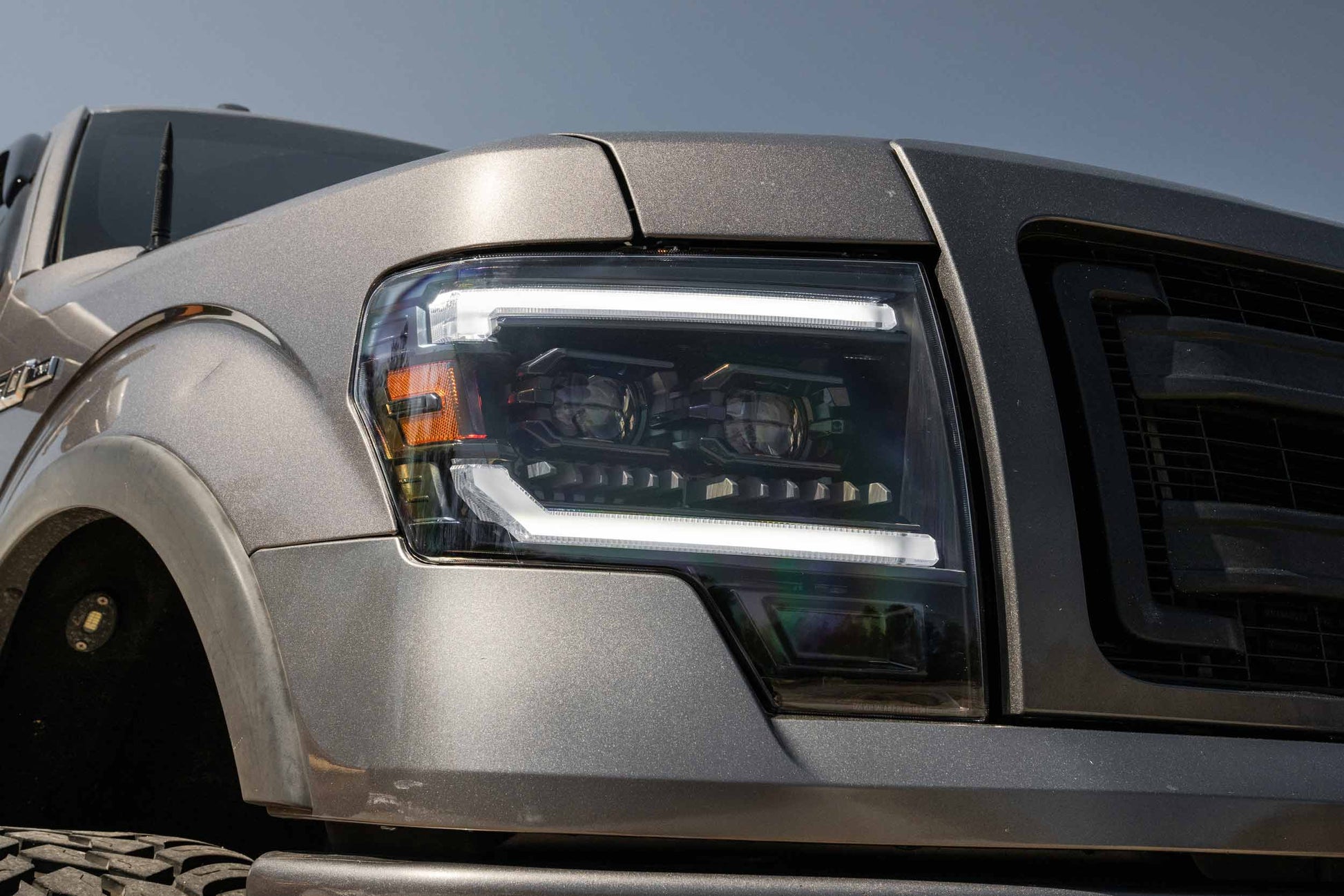

• Signature DRL Design: Bright white LED DRLs with glass-like 3D optics
• Amber Turn Signals: Instant-on with fade-off effect
• Factory-Style Plug-and-Play: Adapters included for OEM halogen and HID systems
• Premium Construction: UV-coated polycarbonate lenses exceed OE durability benchmarks
• 5-Year Warranty: Industry-leading coverage from Morimoto

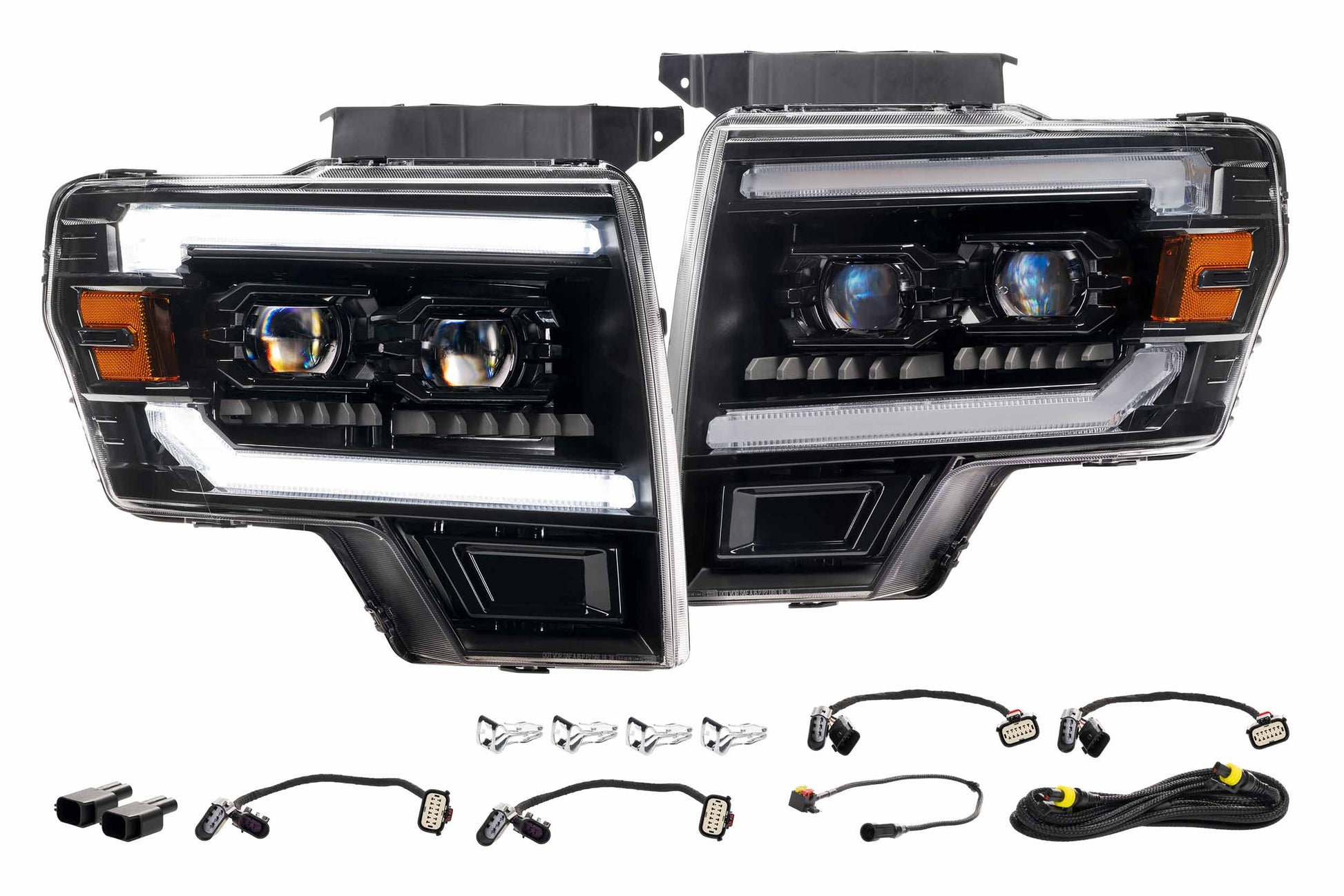

What’s Included

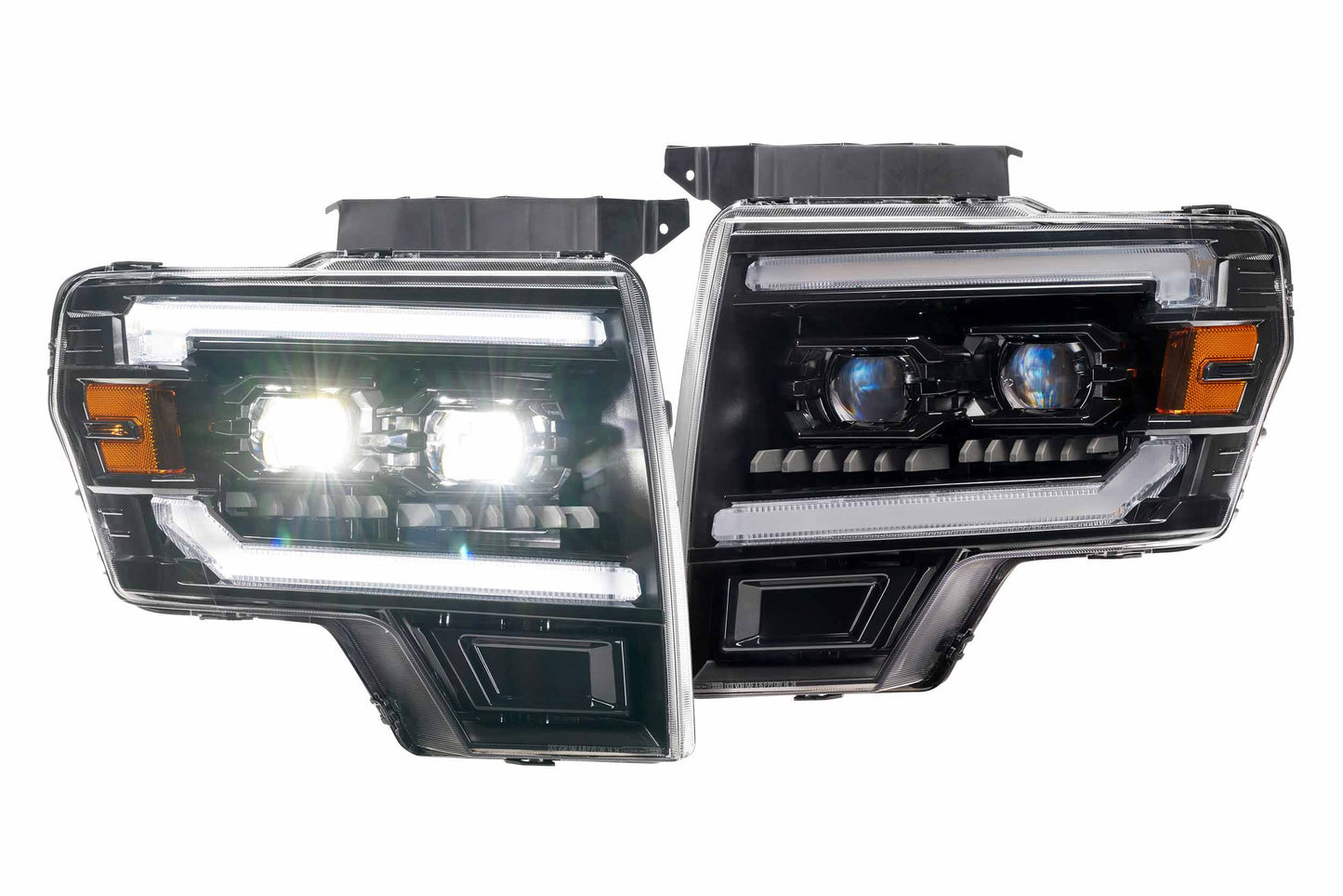

Headlights

• (1) Driver Side / LH XB Evo Hybrid Headlight

• (1) Passenger Side / RH XB Evo Hybrid Headlight

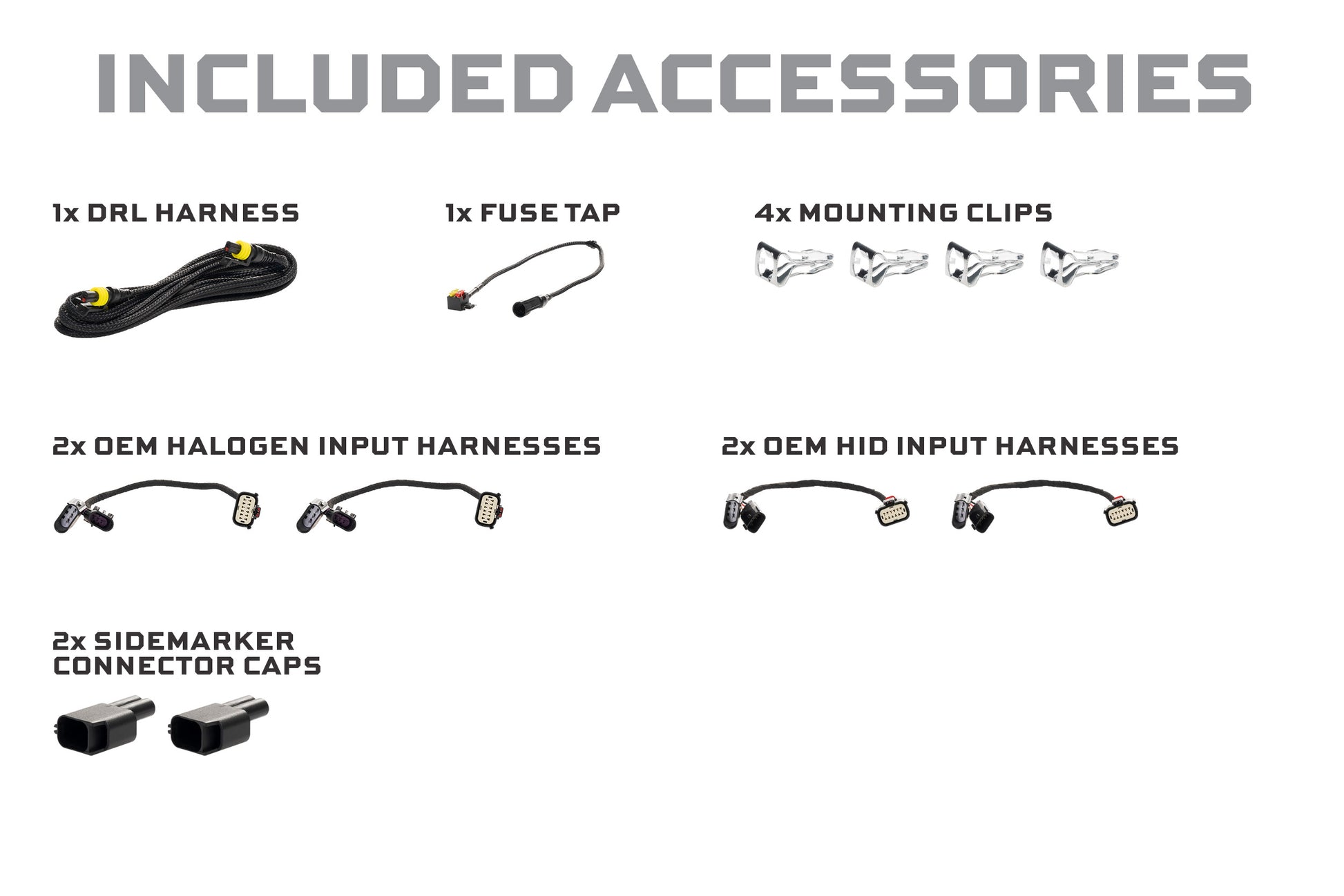

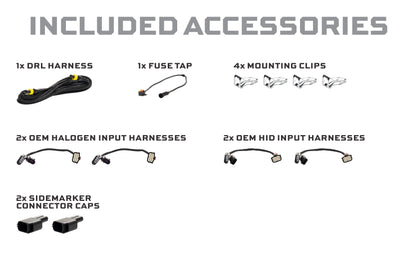

Accessories

• (2) Halogen Adapters
• (2) OEM HID Adapters
• (1) DRL Harness
• (4) Mounting Clips
• (2) Side Marker Connector Caps
• Fuse Tap Hardware

Optional (Sold Separately)

• Supercharged LED Drivers – LF2-DRVSC12

Technical Specifications

• Traffic Pattern: LHD / Right-Hand Traffic Only
• Output (Standard Drivers): DOT / FMVSS108 Compliant (LB2V & UB2)

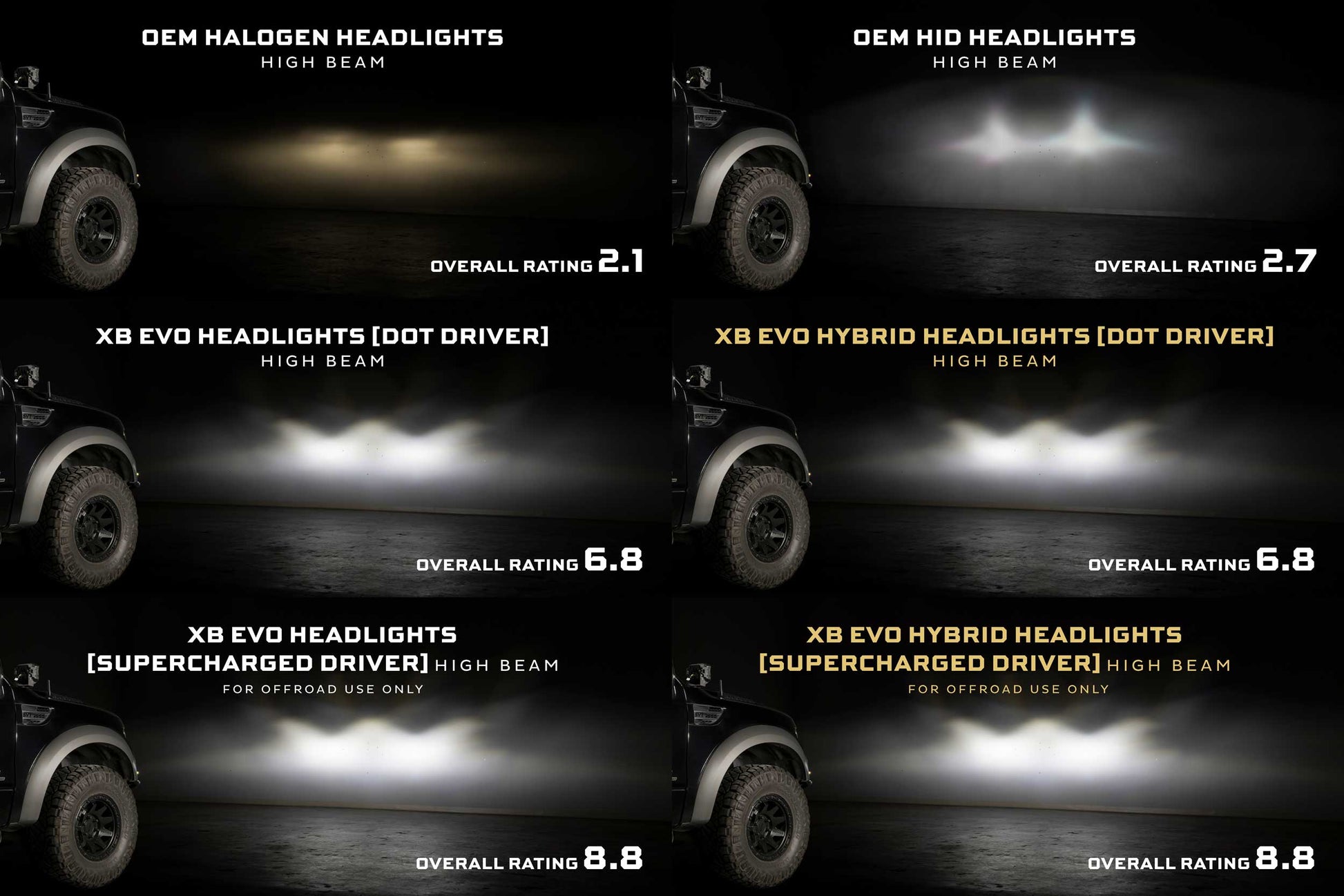

• Output (Supercharged Drivers): +30–50% (Non-Compliant)
• Main Optics:

  • (2) Type 1 Ishida Optic Bi-LED

  • (1) Nichia NC4W193F @ 750mA per projector

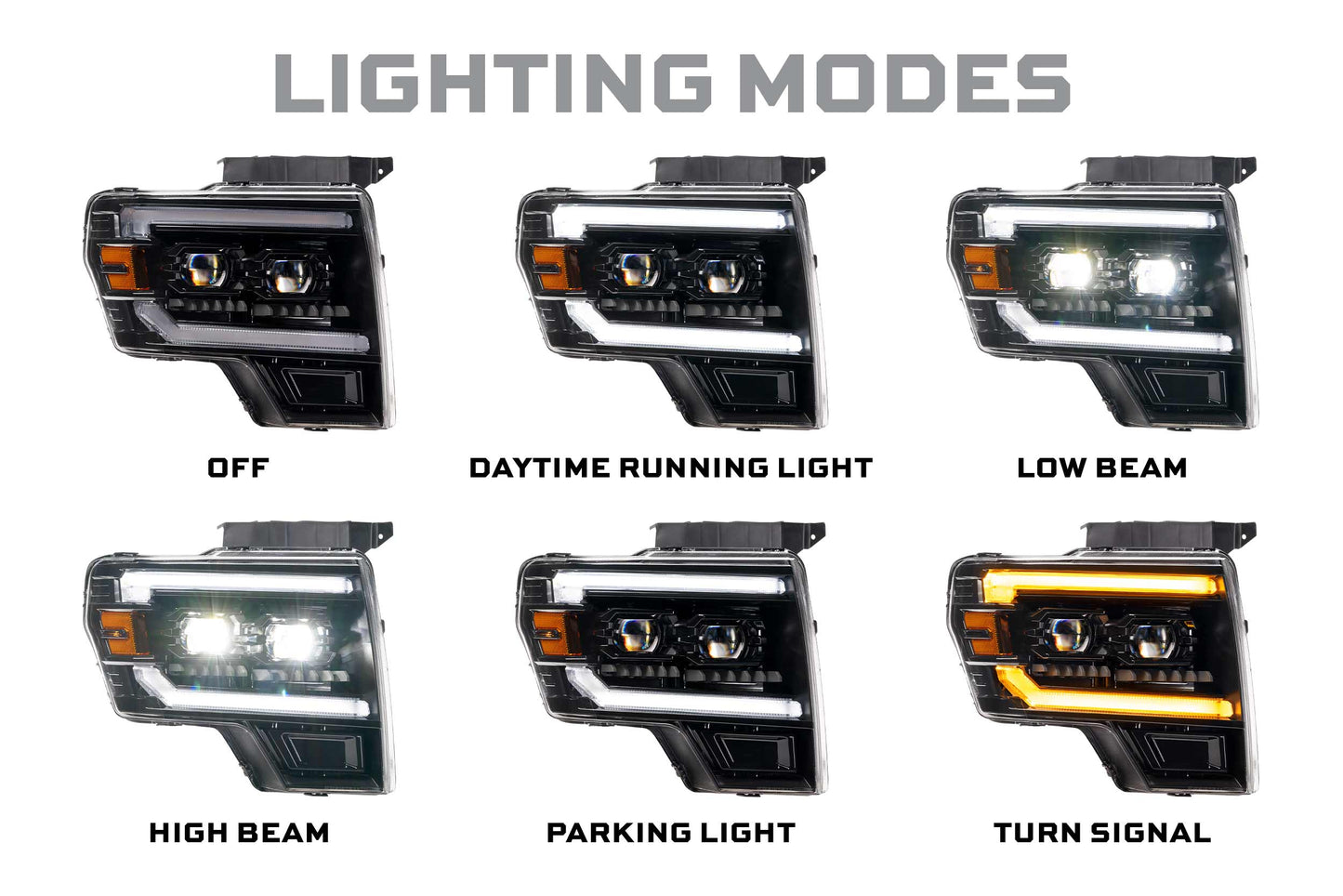

• Functions: Low Beam, High Beam, Parking Light, Turn Signal, DRL
• Turn Signal Mode: Instant-On / Fade-Off
• DRL Color: White
• DRL / Signal Optics: Glass-Like 3D Optics
• Internal Finish: Piano Black with contrasting textures
• Side Marker: Amber DOT-compliant reflex reflector

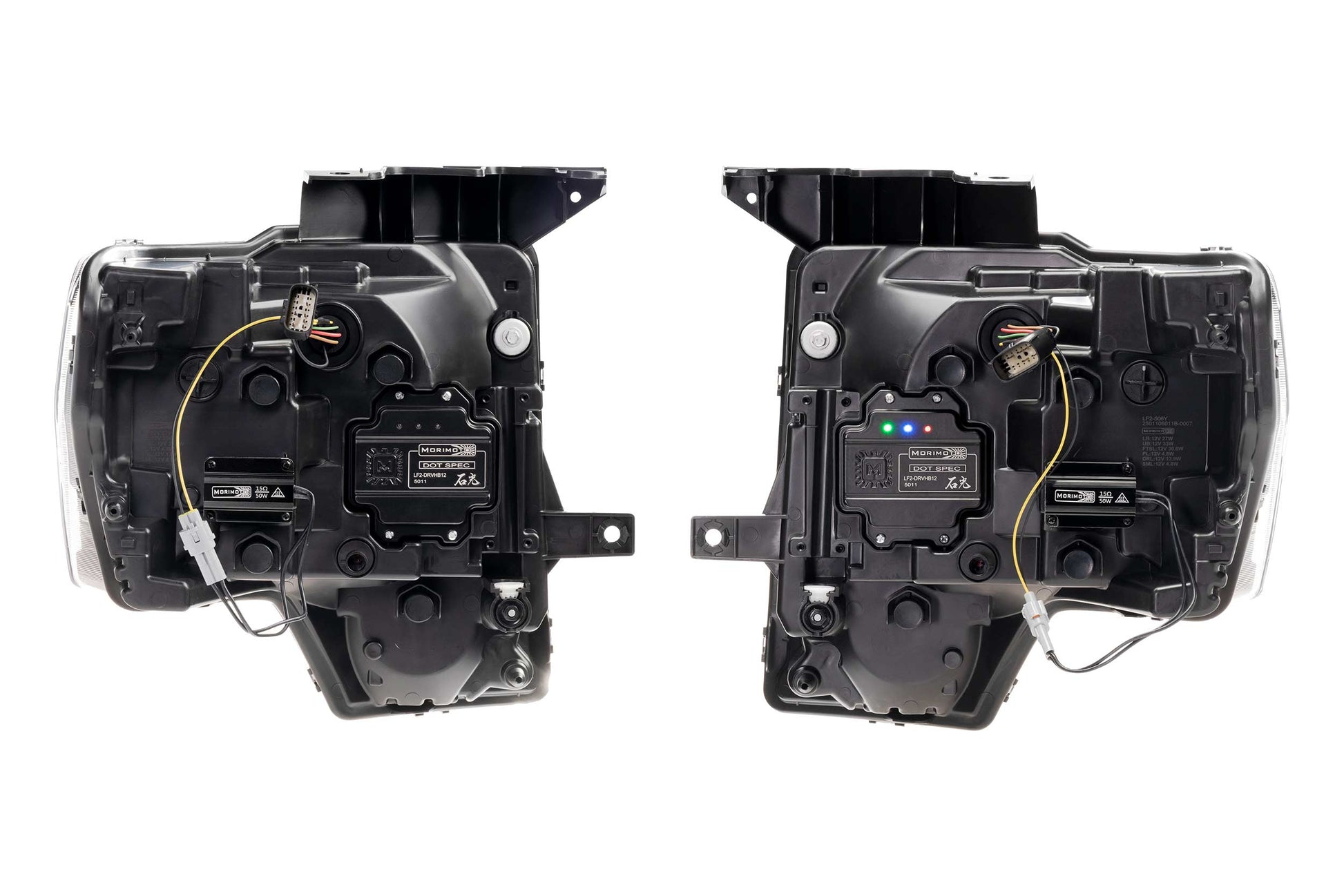

• Wiring: Plug-and-play adapters for OEM Halogen & HID inputs
• Lens Material: UV-coated Polycarbonate (exceeds OE benchmarks)

Vehicle Fitment

• Ford F-150 2009-2014

• Ford SVT Raptor: 2010–2014

  • Compatible with factory halogen and factory HID/xenon models

Compliance & Notes

• Meets all DOT, SAE, and FMVSS108 standards in standard configuration
• Installation of optional Supercharged Drivers results in non-compliant intensity
• Supercharged configuration is for off-road use only in the USA and Canada
• Developed specifically for North American vehicles
• Compatibility outside North America is not guaranteed

OEM Replacement References

Replaces Ford Part Numbers:
FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB
