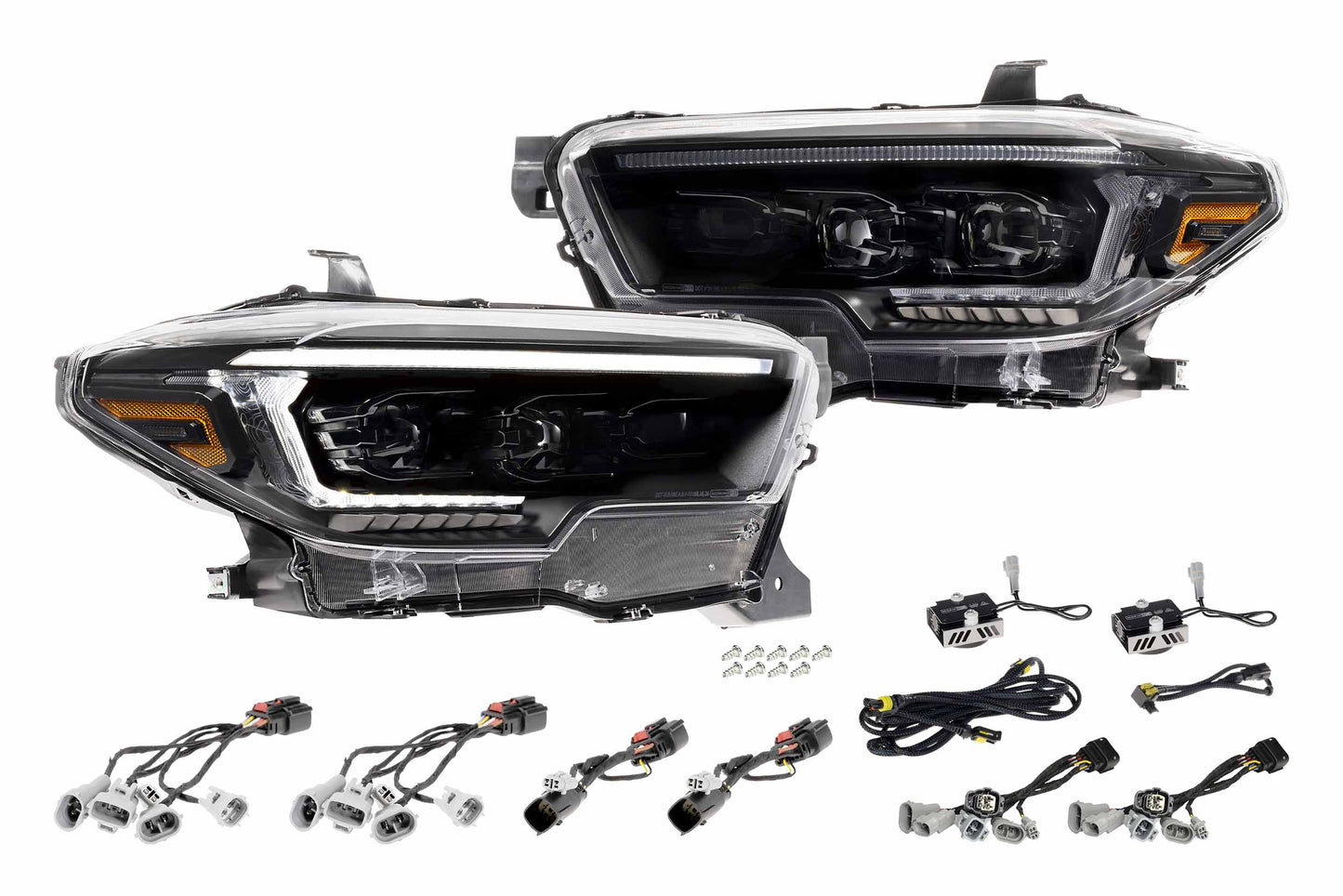

Morimoto XB Evo Hybrid LED Headlights for Toyota Tacoma (2016–2023) – LF2-530Y

Upgrade your Toyota Tacoma with the Morimoto XB Evo Hybrid LED Headlights (Part #LF2-530Y) — a premium lighting solution that blends cutting-edge performance, OEM-level fitment, and refined design. Built for serious enthusiasts, these headlights deliver top-tier visibility, durability, and aesthetics that complement the Tacoma’s rugged personality.

Product Features

• Evolutionary Design:
  The XB Evo Hybrid headlights are more than just a refresh — they represent Morimoto’s full engineering capability from concept to completion. Each component is purpose-built with attention to detail, combining advanced technology, precise optics, and high-end styling for a true enthusiast-grade upgrade.

• Maximum Performance:

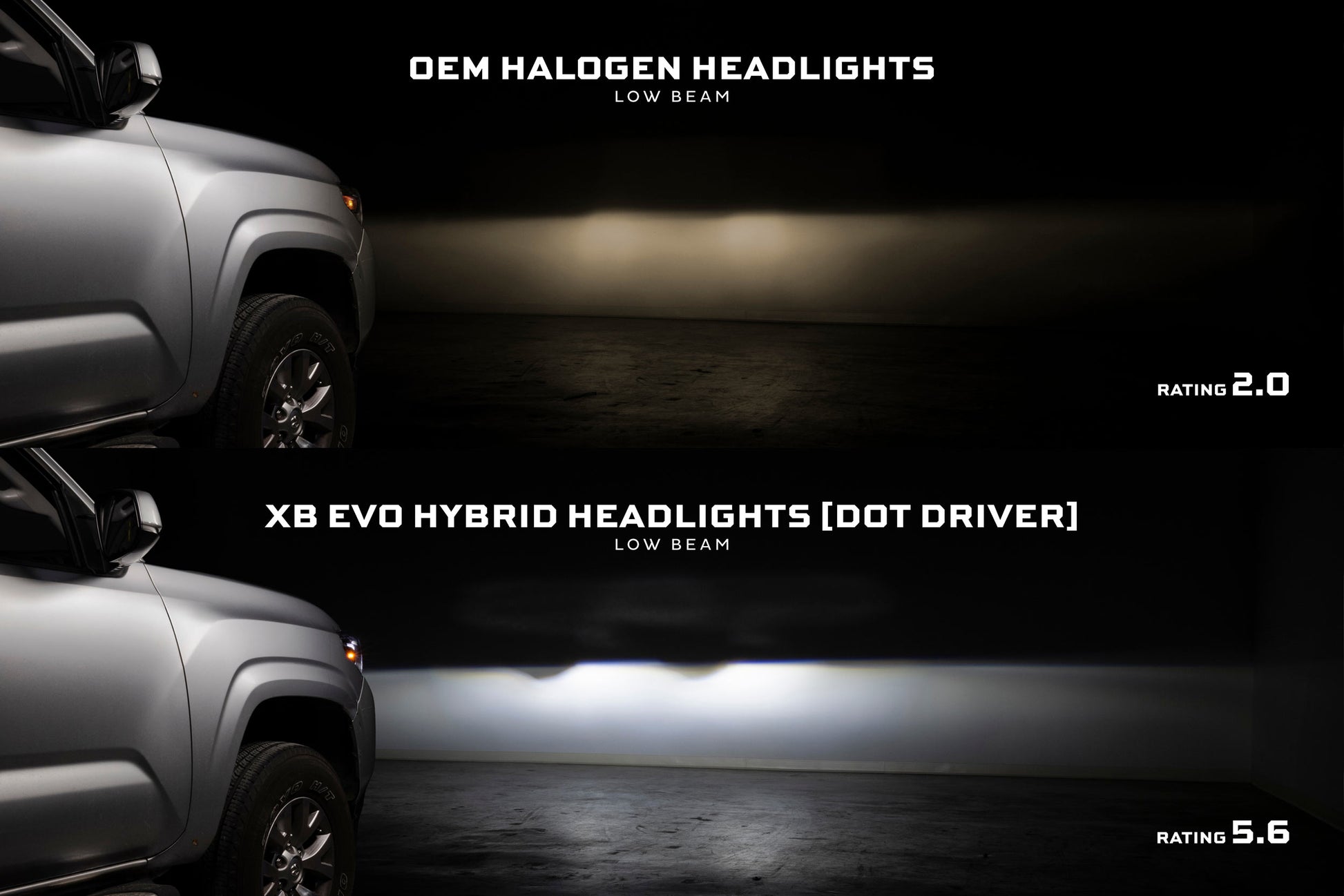

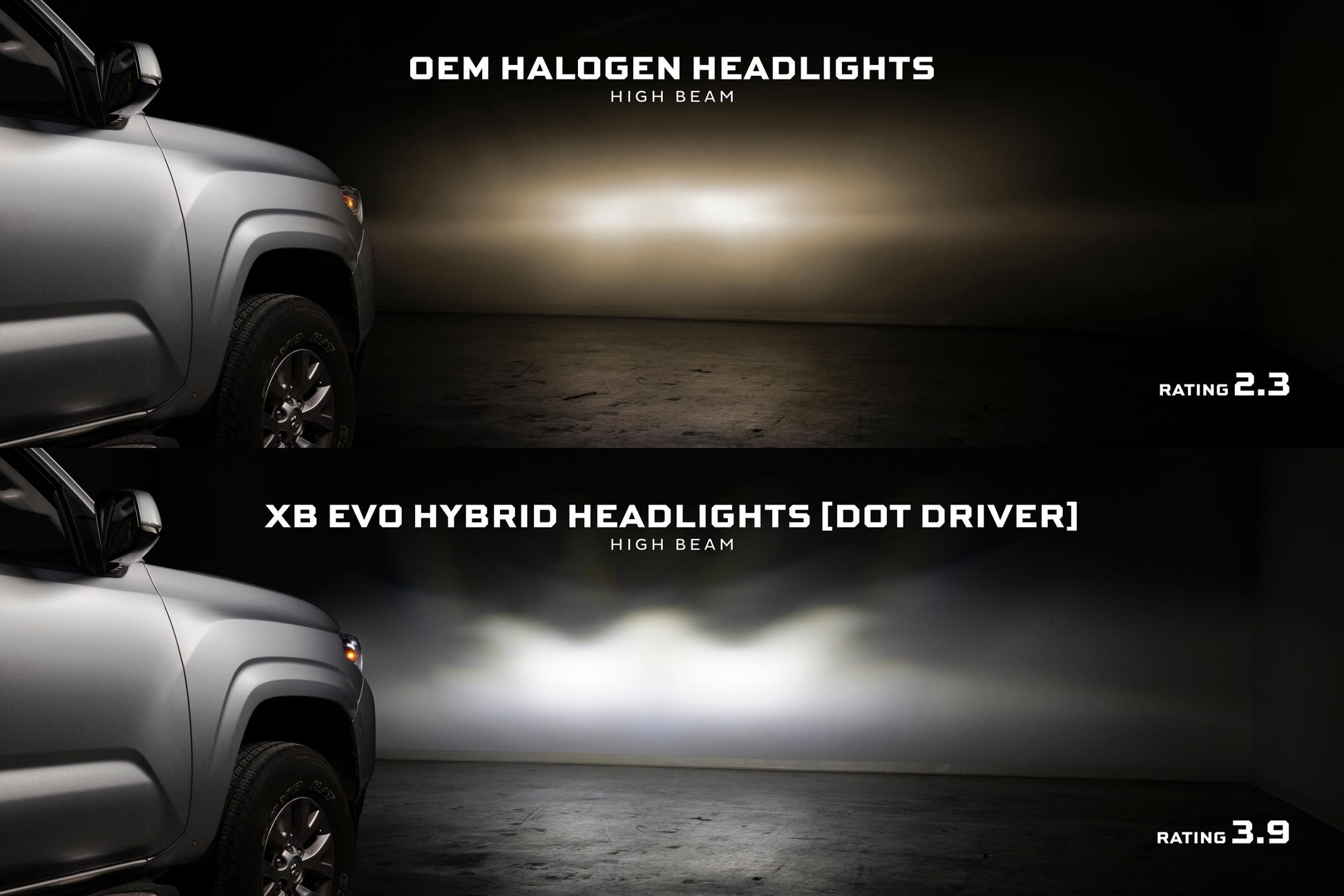

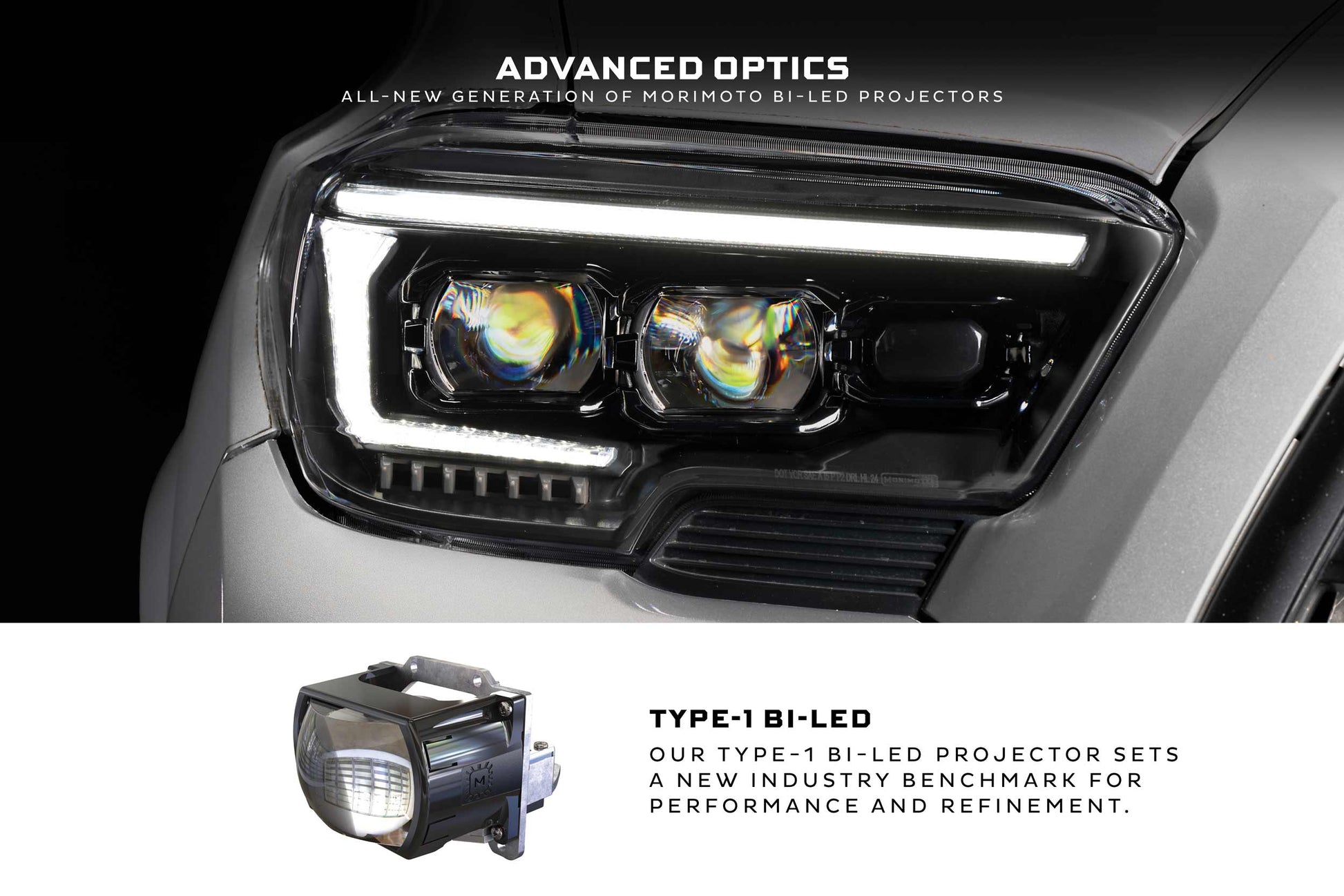

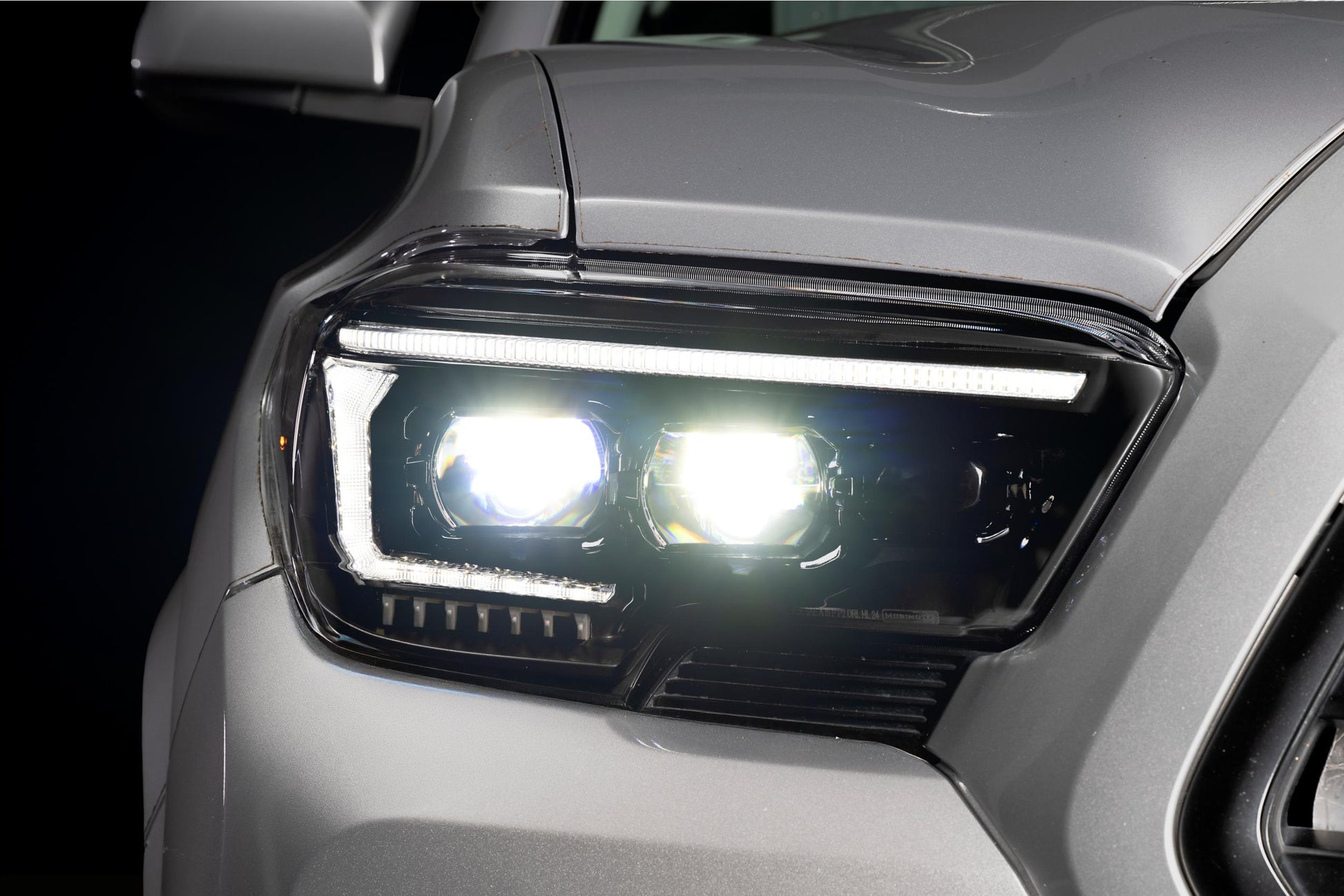

  Featuring dual Bi-LED projectors powered by OE-grade Nichia LEDs from Japan, these headlights produce a bright, wide low beam and an intensely powerful high beam. Designed by Morimoto’s optical engineer Yoshi Ishida, the projector system meets and exceeds IIHS performance standards, delivering luxury-level visibility and safety.

• On-Road Compliance:
  The XB Evo Hybrids are DOT, SAE, and FMVSS108 compliant, ensuring legal operation in the U.S. Their LEDs operate at about 50% of full intensity for compliance, and each assembly includes an adjustable vertical aim range of ±6 degrees for precise beam alignment.

• Off-Road Power (Optional):

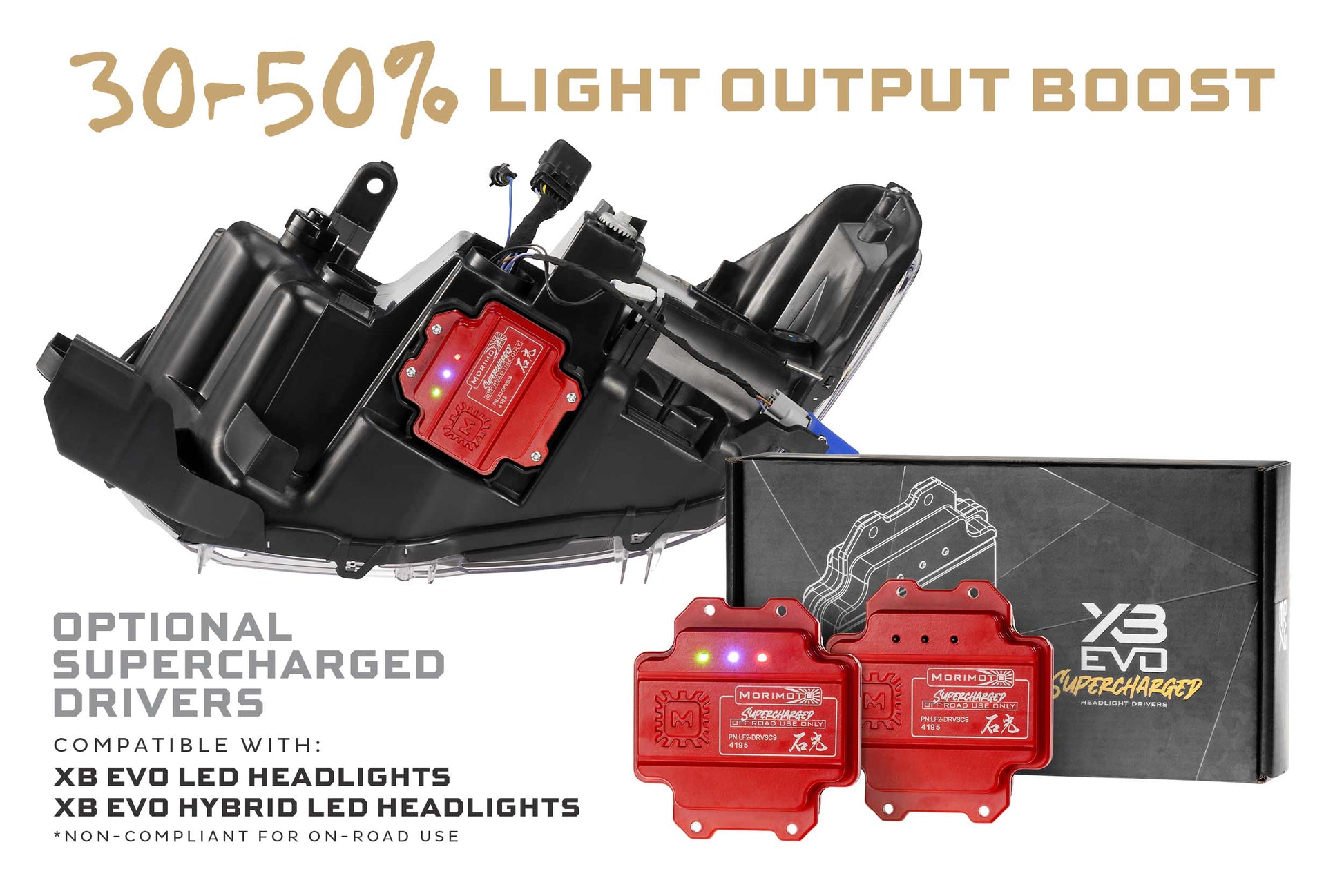

  For those seeking even more output, the optional Supercharged LED drivers (LF2-DRVSC9) boost light intensity by 30–50%. This mode transforms the Evo Hybrid into the most powerful Tacoma headlight available — but should only be used off-road due to non-compliant brightness levels.

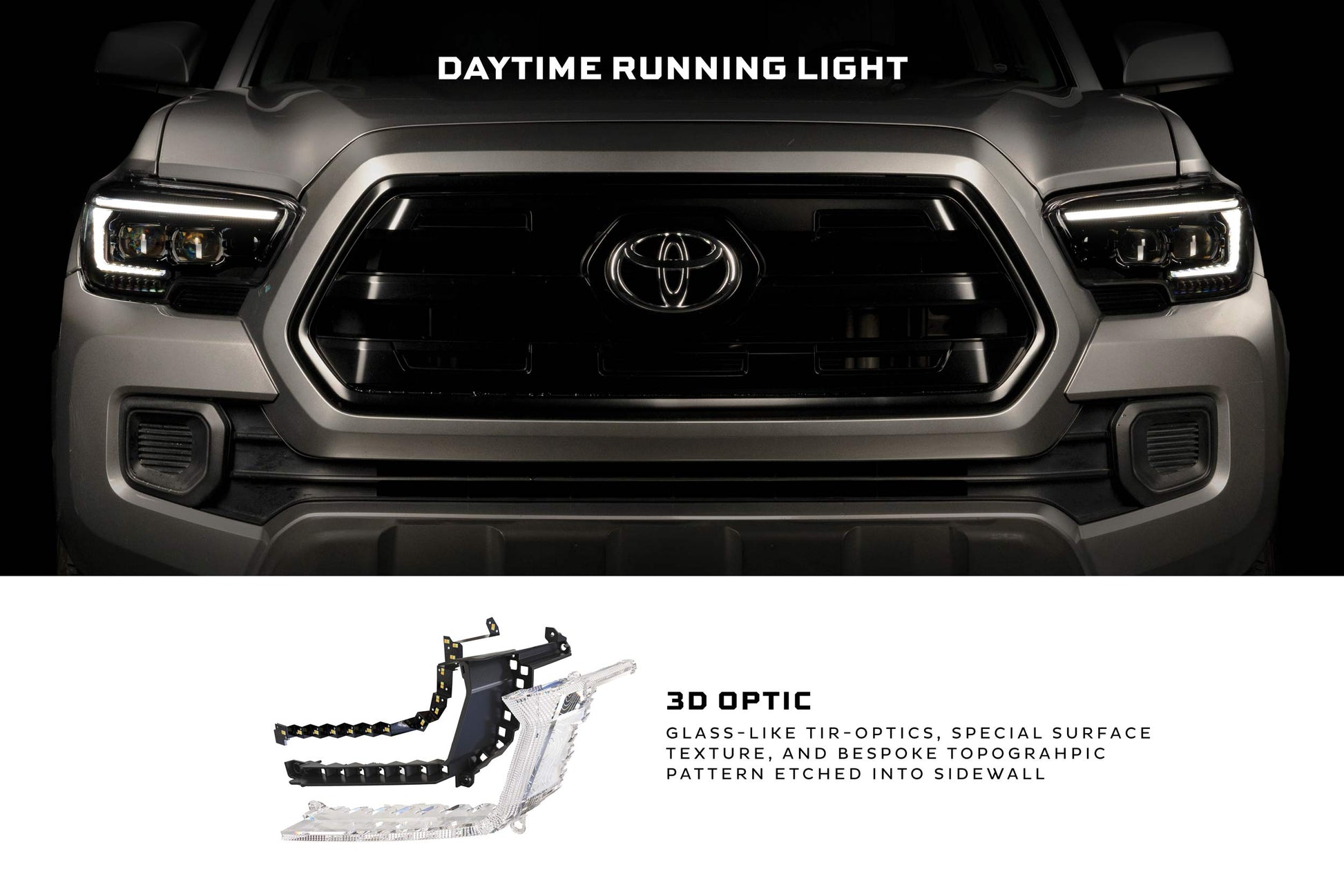

• High-Performance DRL Optics:

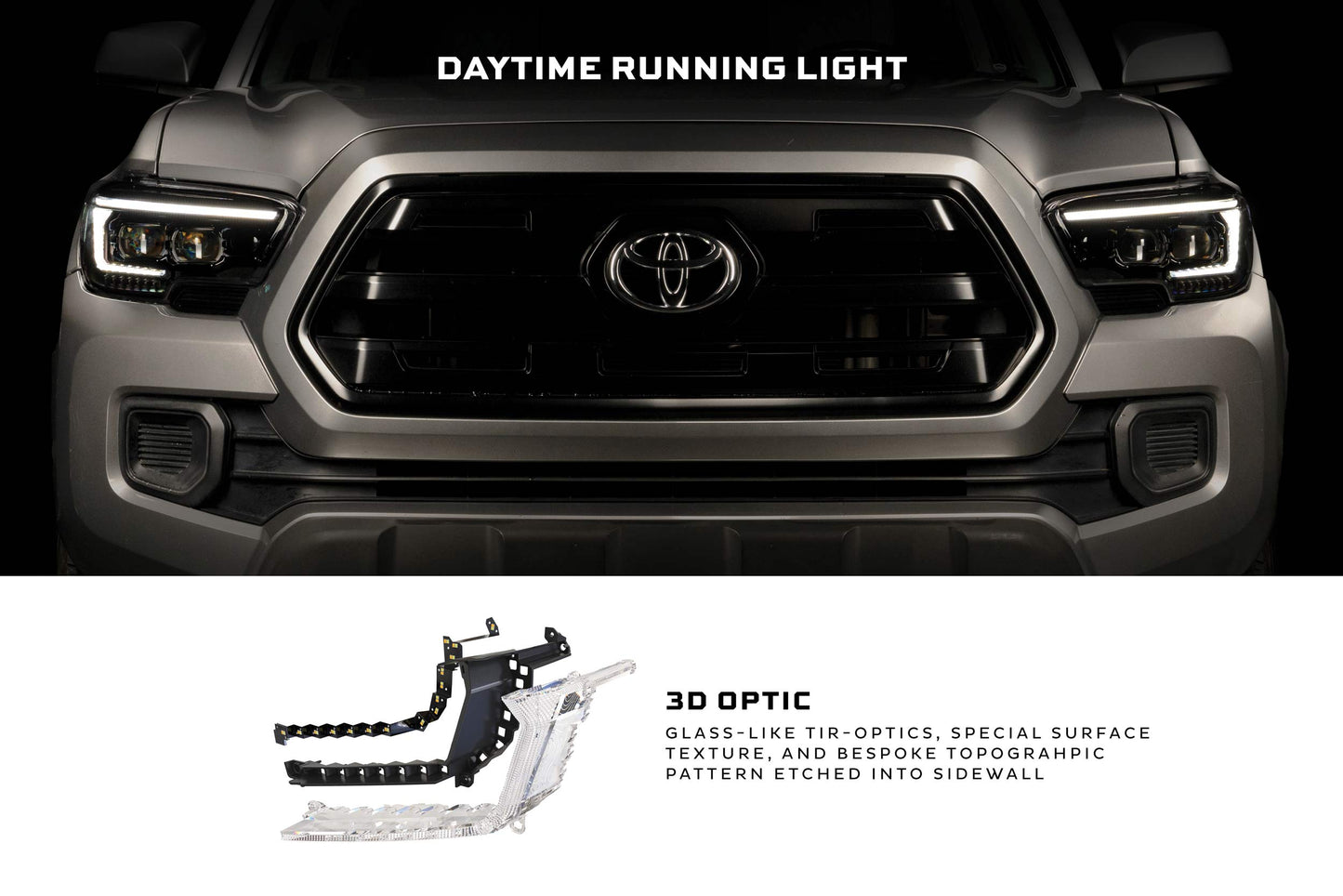

  The integrated white daytime running lights and turn signals use Morimoto’s glass-like 3D TIR optics with etched topographic sidewall textures. This unique design offers maximum intensity and a distinctive, high-end appearance from every angle.

• OEM Fitment and Easy Installation:
  Designed for a perfect fit, the XB Evo headlights bolt directly into factory mounting points and connect using OEM-style plugs. No cutting, splicing, or modification is required. They integrate seamlessly with factory wiring, operate error-free, and maintain all OEM functionality.

• Built to Last:
  Designed, engineered, and tested in the USA, the Evo Hybrids use Japanese Nichia LEDs, OE-grade wiring, and a UV-resistant hard coating that surpasses Toyota’s own standards for protection against cracking, fading, and yellowing. Backed by Morimoto’s 5-year warranty, they’re built to last the life of your truck.

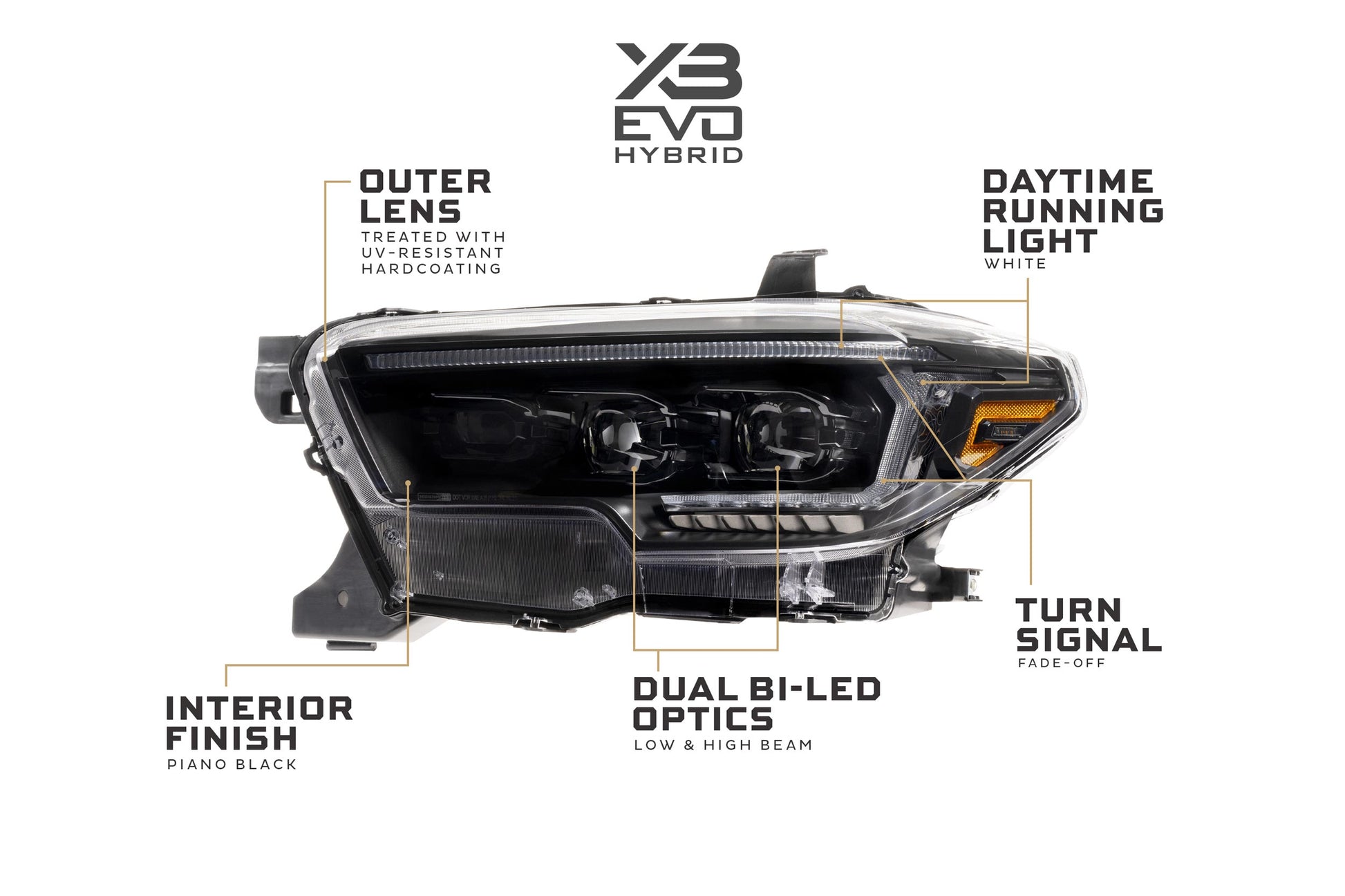

Technical Details

• Traffic Pattern: LHD / Right-Hand Traffic Only

• Output (Standard Drivers): DOT (FMVSS108) Compliant

• Output (Supercharged Drivers): Non-Compliant / Off-Road Use Only

• Optics: Dual Type 1 Ishida Optic Bi-LED Projectors (1x Nichia NC4W193F @ 750mA)

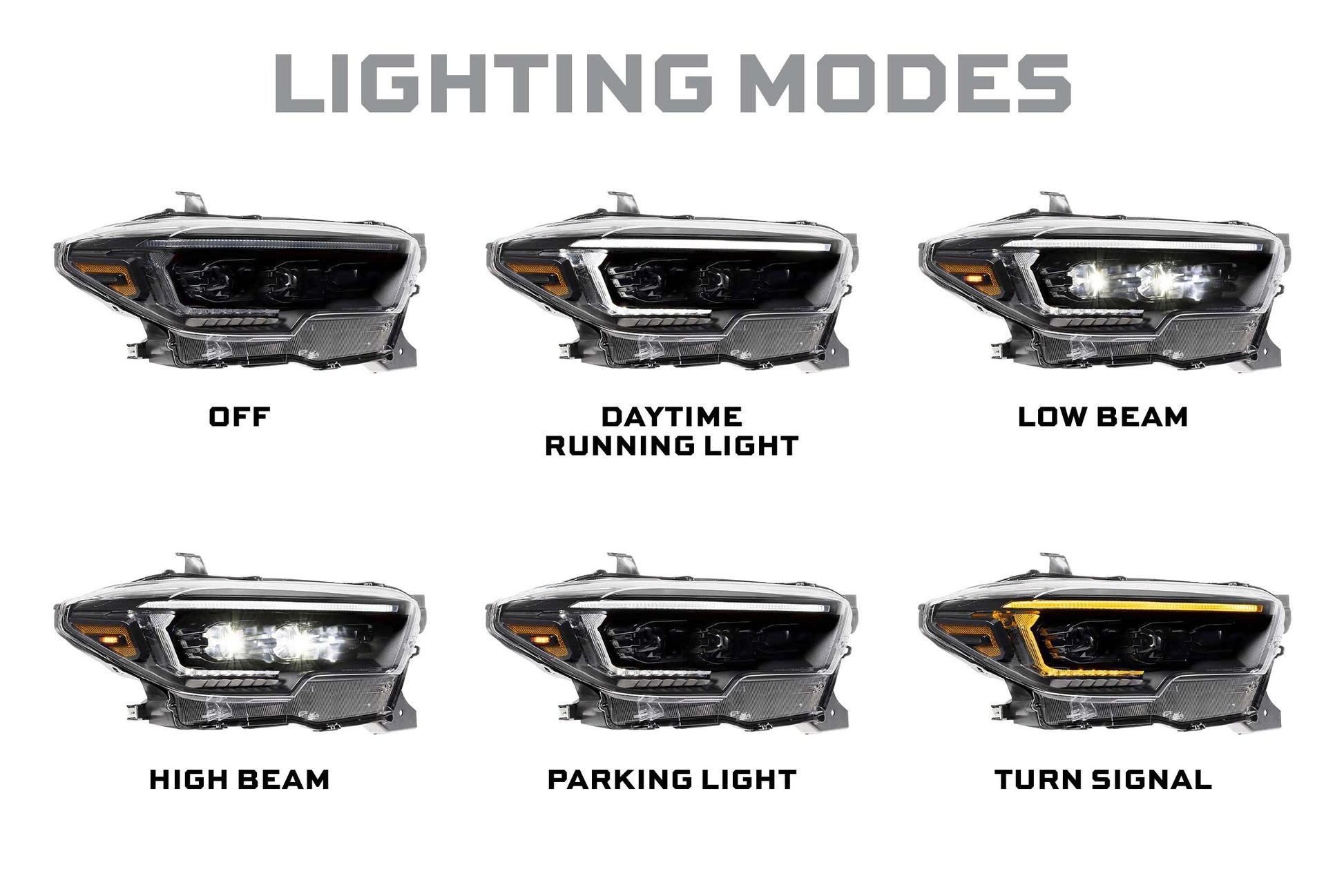

• Functions: Low Beam, High Beam, Parking, Turn Signal, and DRL

• Turn Signal Mode: Fade Off

• DRL Color: White

• DRL / Signal Optics: Glass-Like 3D TIR Optics with Topographic Pattern

• Internal Finish: Piano Black

• Side Marker: Amber Reflex Reflector (DOT Compliant)

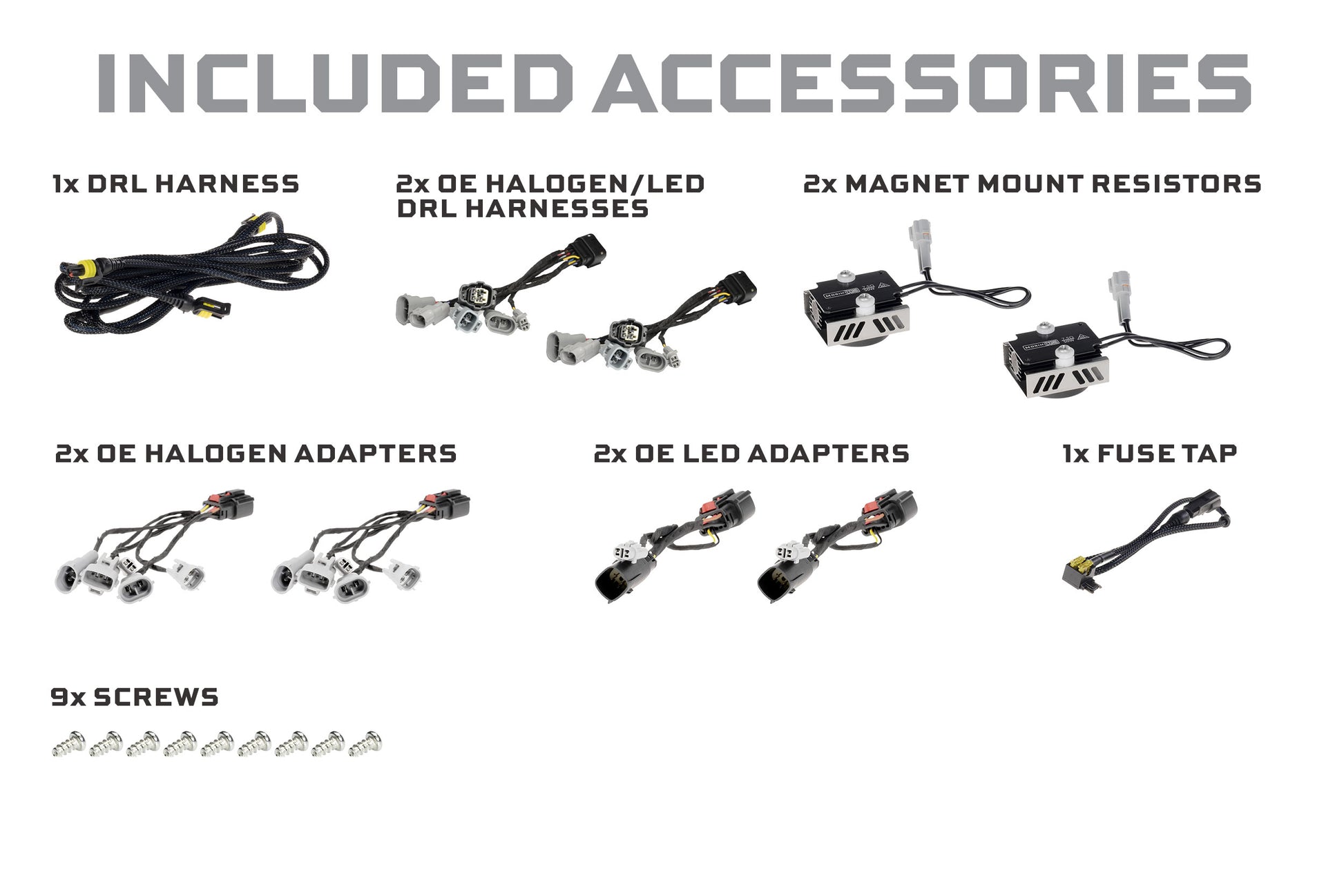

What’s Included

• (2) Morimoto XB Evo Hybrid Headlights (Pair)

• (2) Halogen Adapters

• (2) LED Adapters

• (2) Magnet Mount Resistors

• (1) DRL Harness

• (1) Fuse Tap

• (9) Mounting Screws

• Five (5) Year Warranty

Vehicle Fitment

• Toyota Tacoma: 2016–2023
  (SR, SR5, TRD Sport, TRD Off-Road, Limited, Trail Special Edition, and TRD Pro)

• Compliance: Meets all DOT, SAE, and FMVSS108 standards

• Optional Accessory: Supercharged Drivers (LF2-DRVSC9) for off-road use

• Note: Designed for North American vehicles. Compatibility outside North America is not guaranteed.
