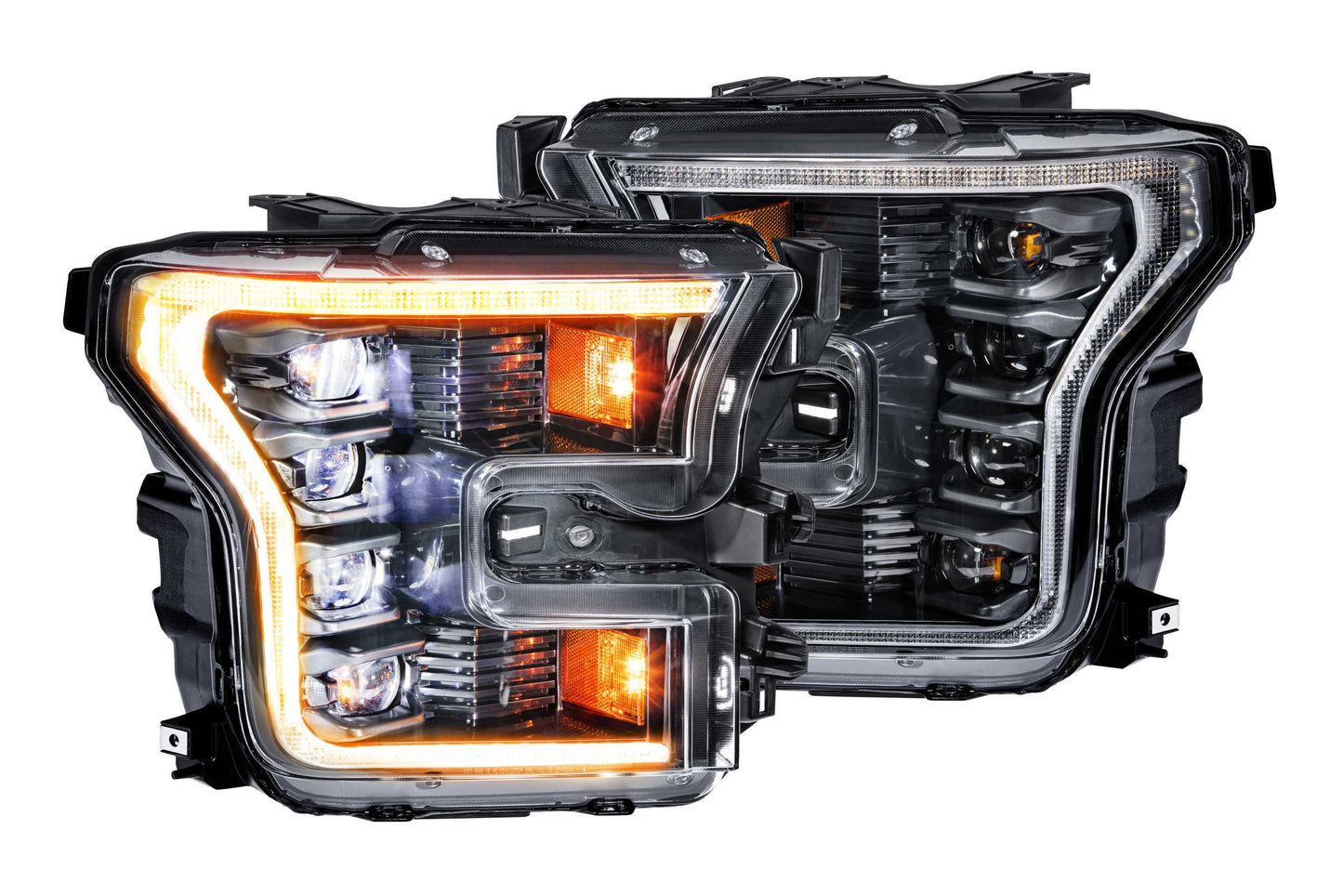

Morimoto XB LED Headlights Amber DRL – 2015–2017 Ford F-150 / 2016–2021 Raptor (LF502-A.2-ASM)

Morimoto XB LED Headlights Amber DRL – 2015–2017 Ford F-150 / 2016–2021 Raptor (LF502-A.2-ASM)

Regular price $1,605.53 USD
Regular price $2,308.80 USD Sale price $1,605.53 USD
-30%
Shipping calculated at checkout.
Morimoto
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

LF502-A.2-ASM
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Ships from the MFG
Headlights
The Morimoto LF502-A.2-ASM XB LED Headlights are a high-performance lighting upgrade for 2015–2017 Ford F-150 and 2016–2021 F-150 Raptor models. Featuring quad-projector optics with dual Bi-LED technology, these headlights deliver...
Read more
Found a better price elsewhere?
secure-payments
View full details

Description

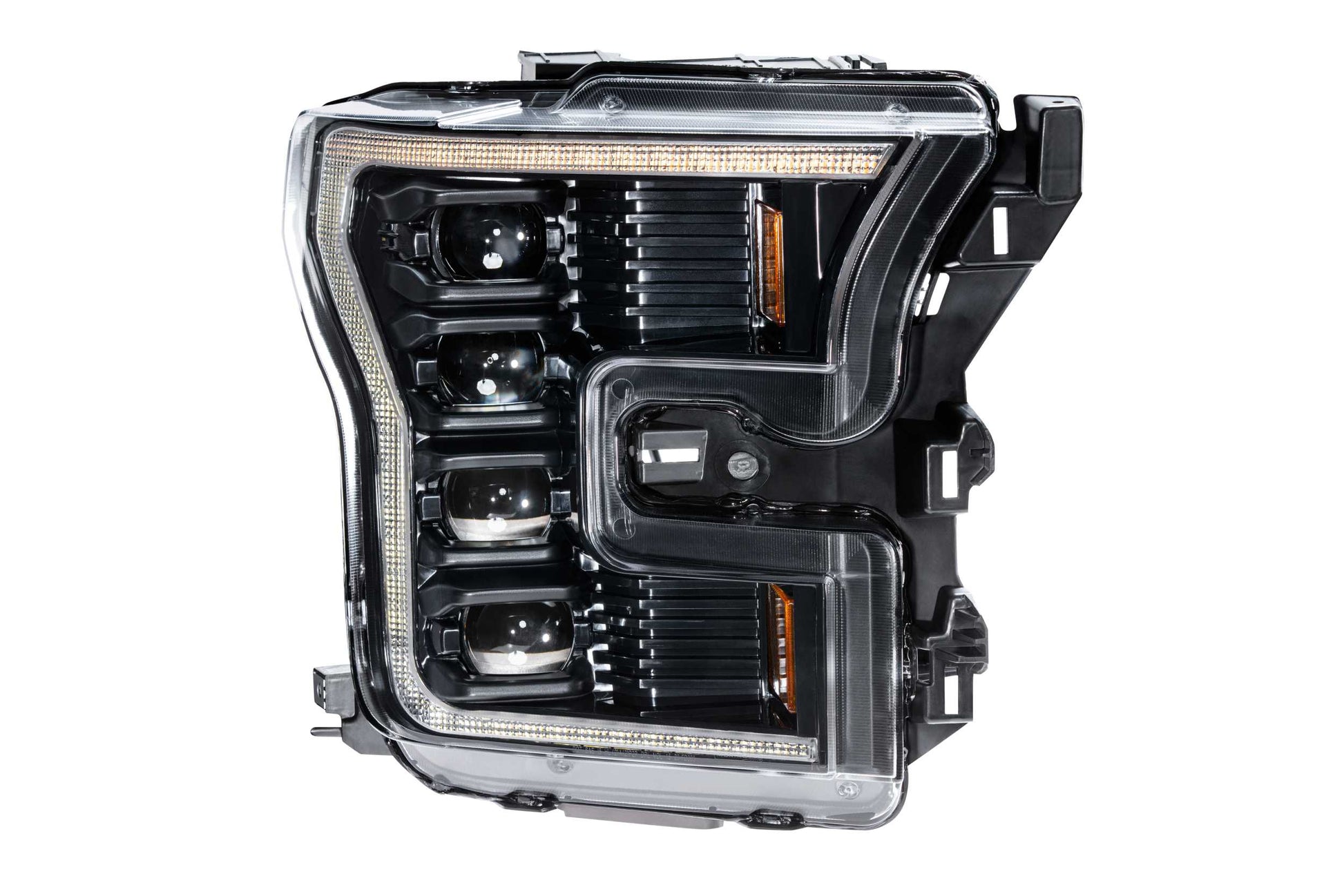

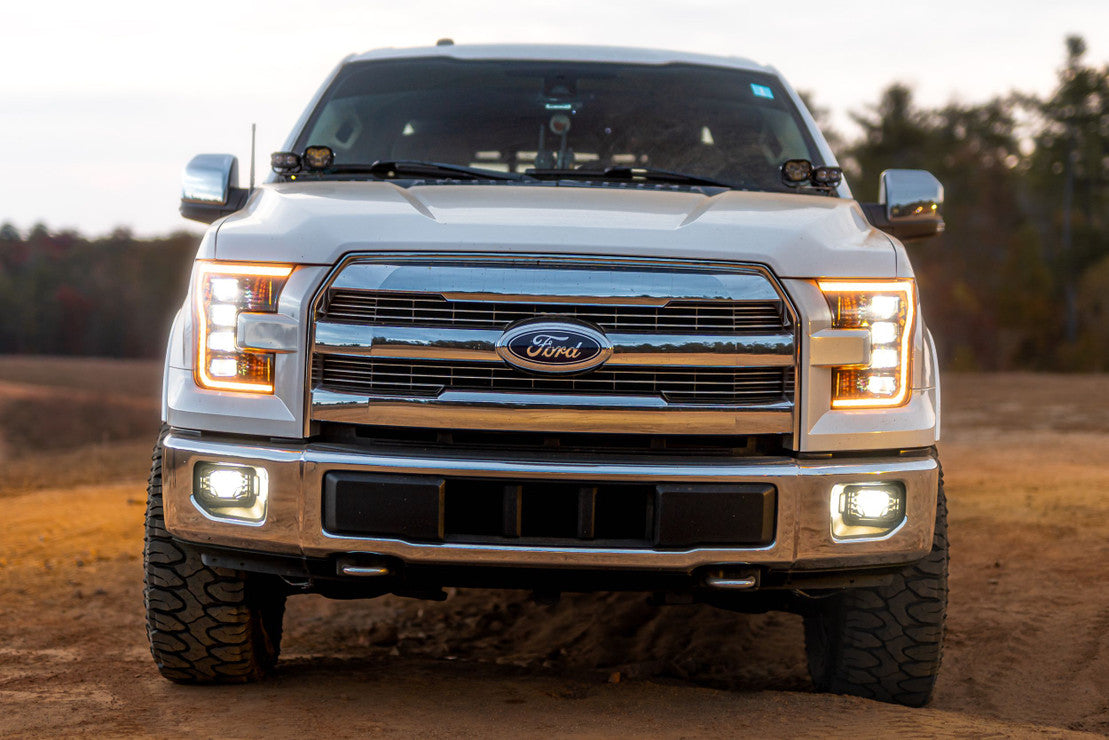

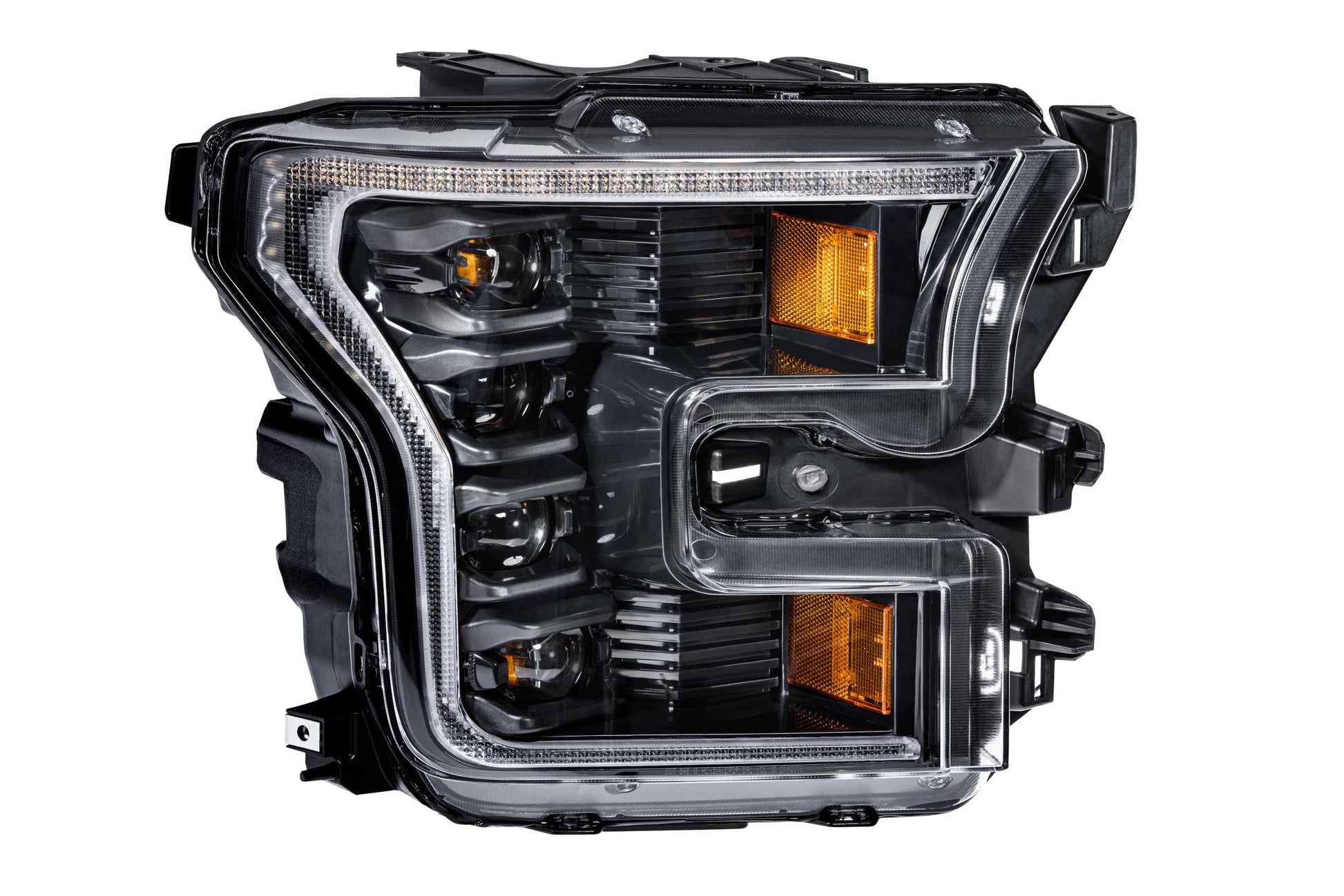

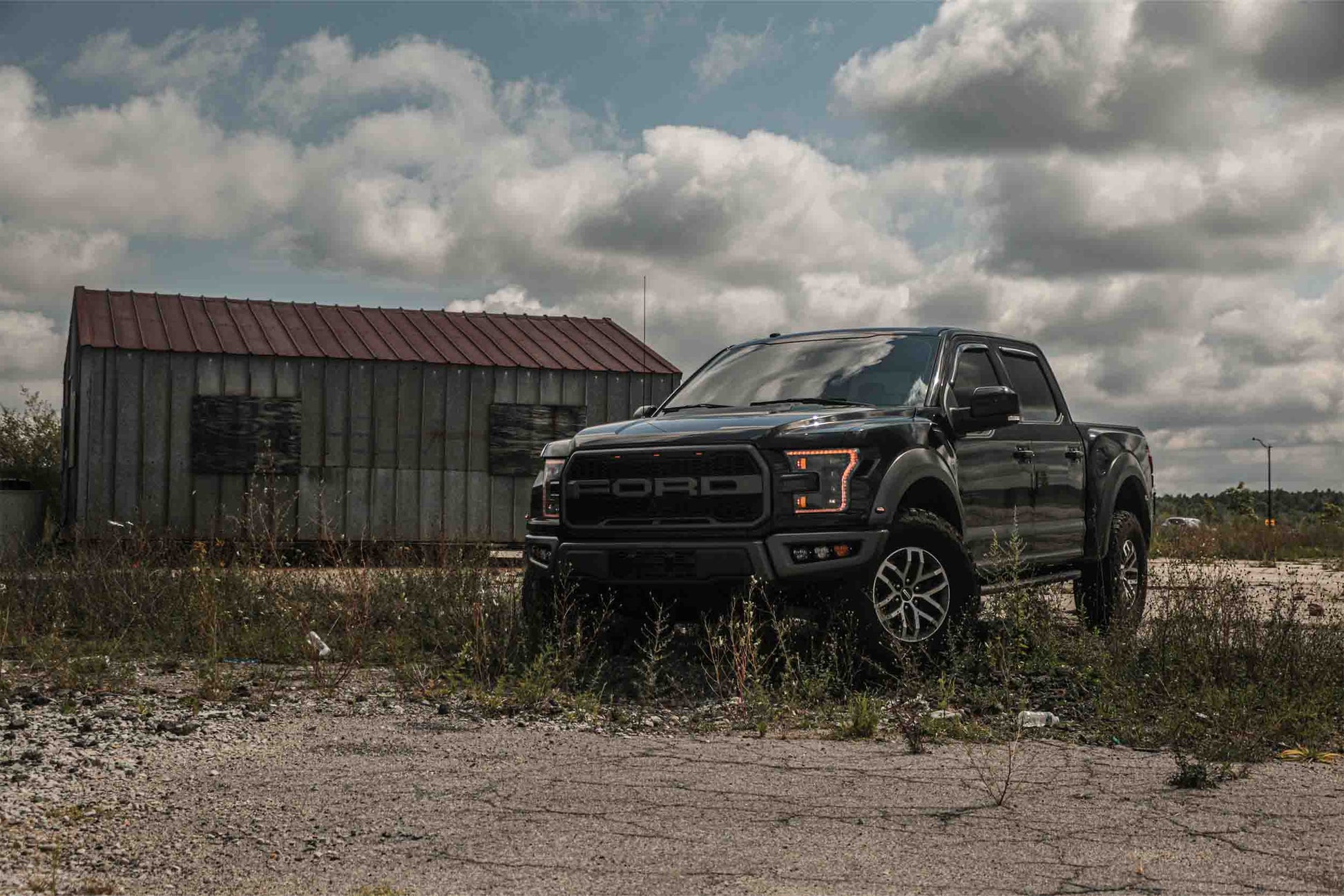

The Morimoto LF502-A.2-ASM XB LED Headlights are a high-performance lighting upgrade for 2015–2017 Ford F-150 and 2016–2021 F-150 Raptor models. Featuring quad-projector optics with dual Bi-LED technology, these headlights deliver up to 200% more light output than factory lighting while maintaining proper beam control for safe, confident night driving.

Designed with amber LED DRLs for a bold, aggressive look, the XB LED headlights install using a true plug-and-play system that connects directly to factory wiring without flickering or error codes. Durable materials, OE-style fitment, and DOT-compliant performance make these headlights a premium upgrade backed by Morimoto’s 5-year warranty.



Key Features & Benefits

  • Quad-Projector / Dual Bi-LED Optics for powerful low and high beam output

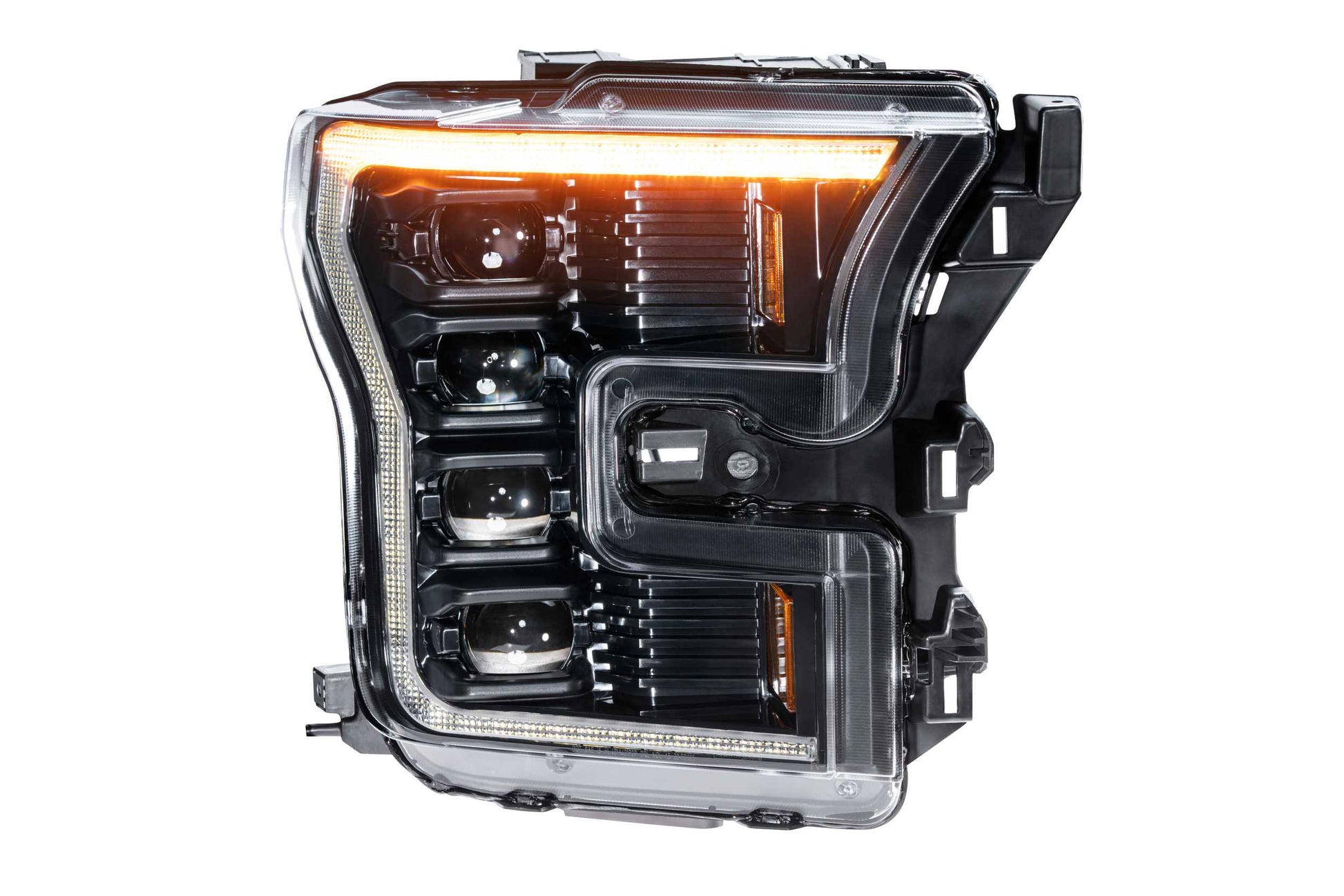

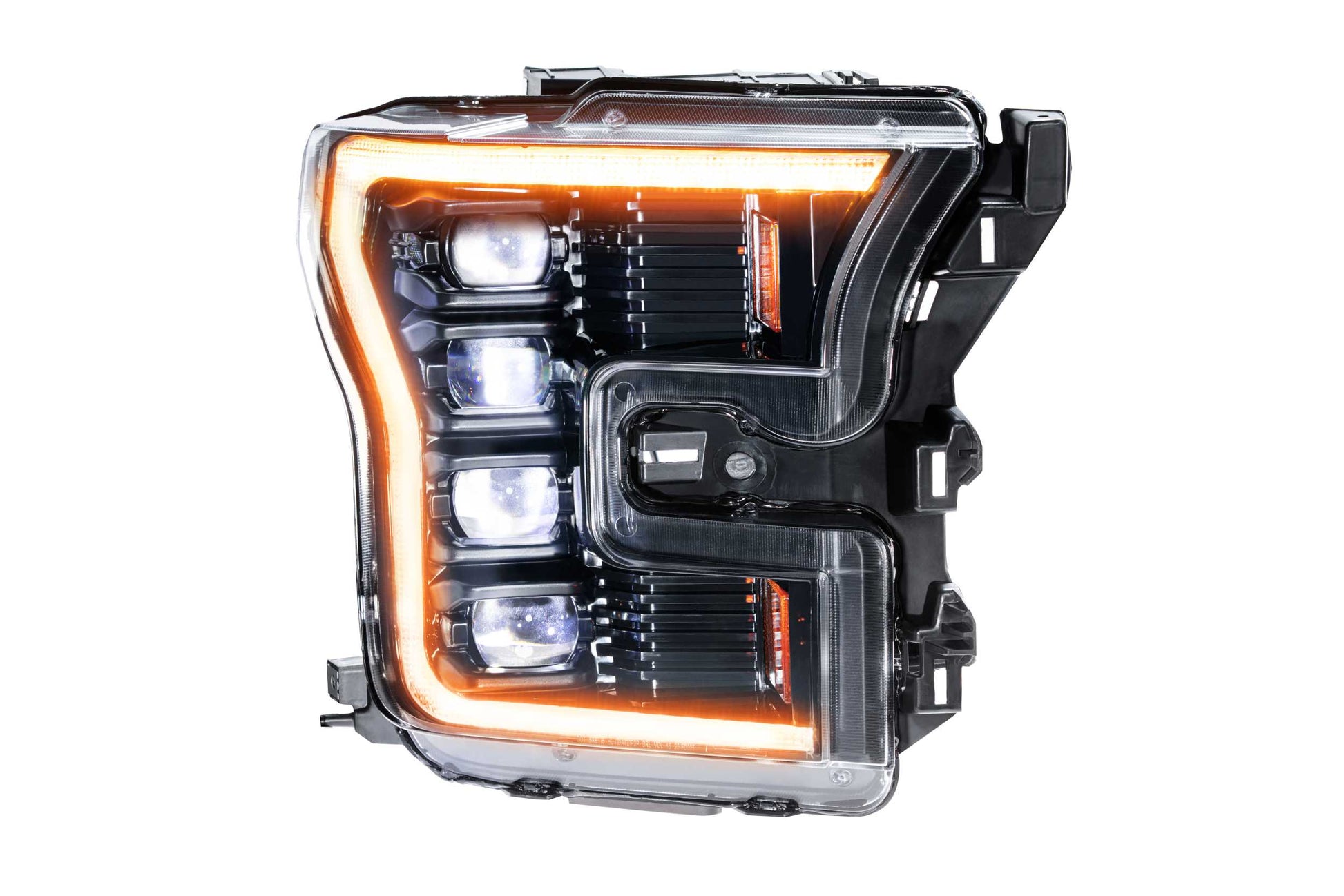

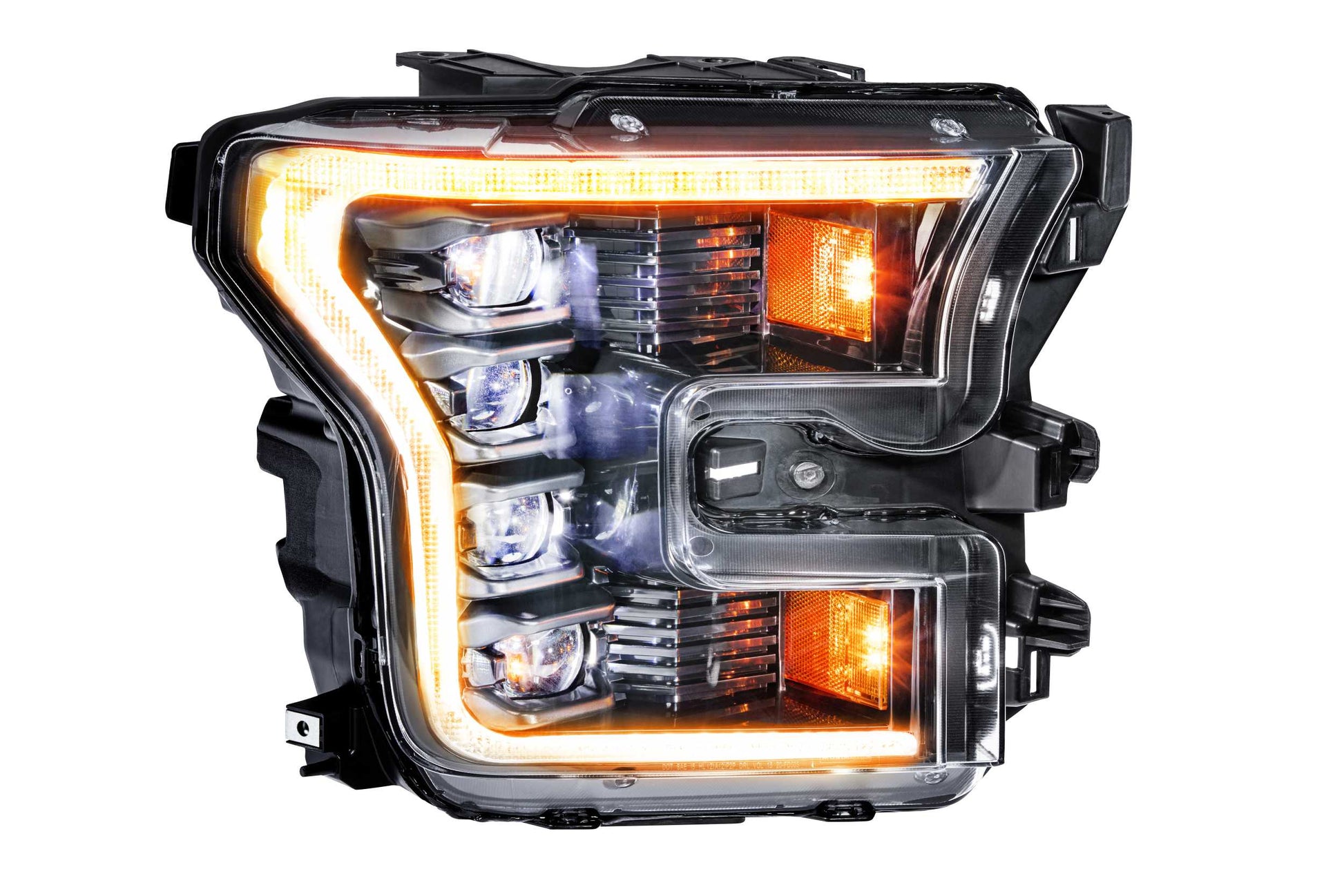

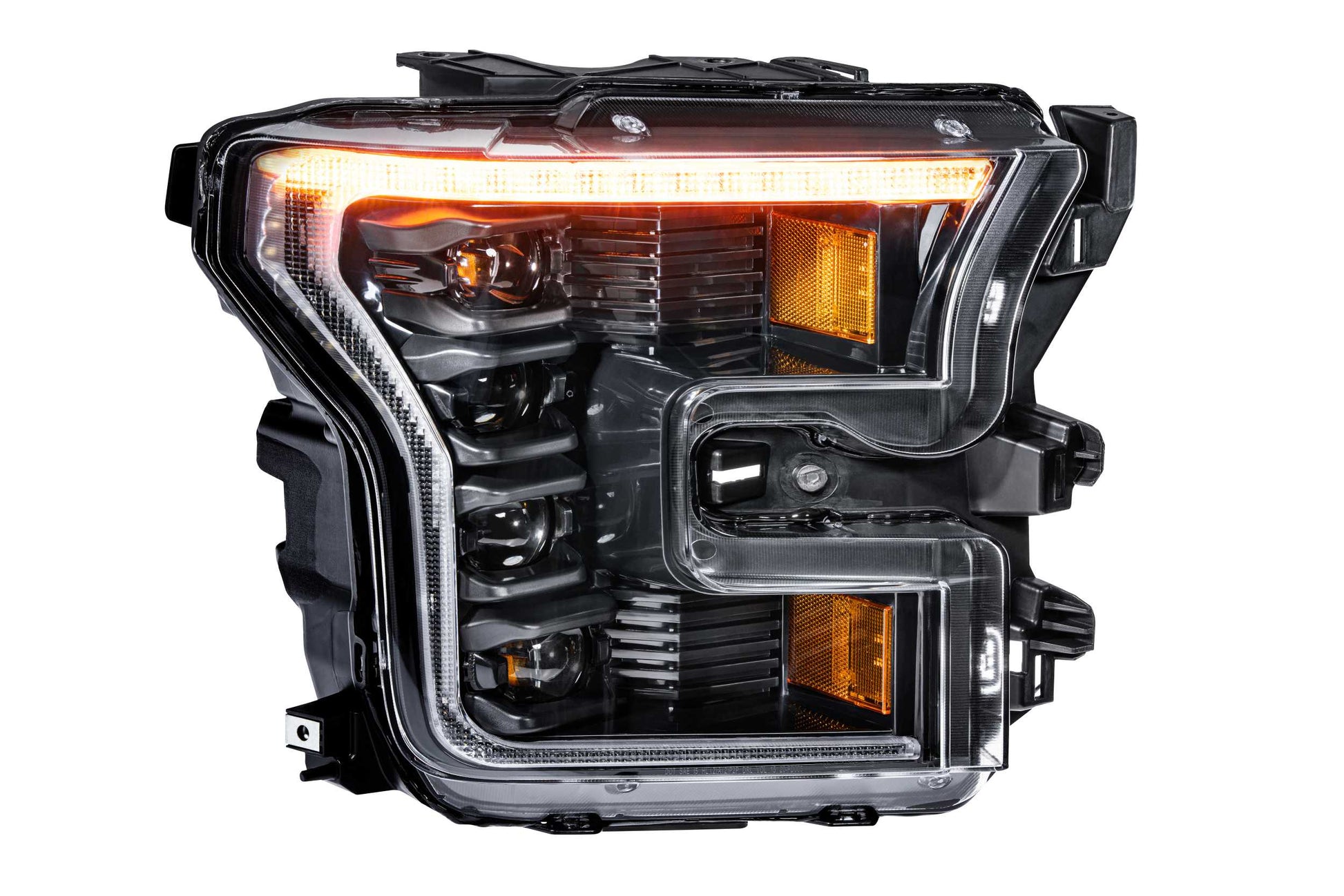

  • Amber LED DRLs for enhanced visibility and aggressive styling
  • Up to 200% More Light Output compared to factory headlights
  • DOT / SAE / FMVSS108 Compliant for on-road use

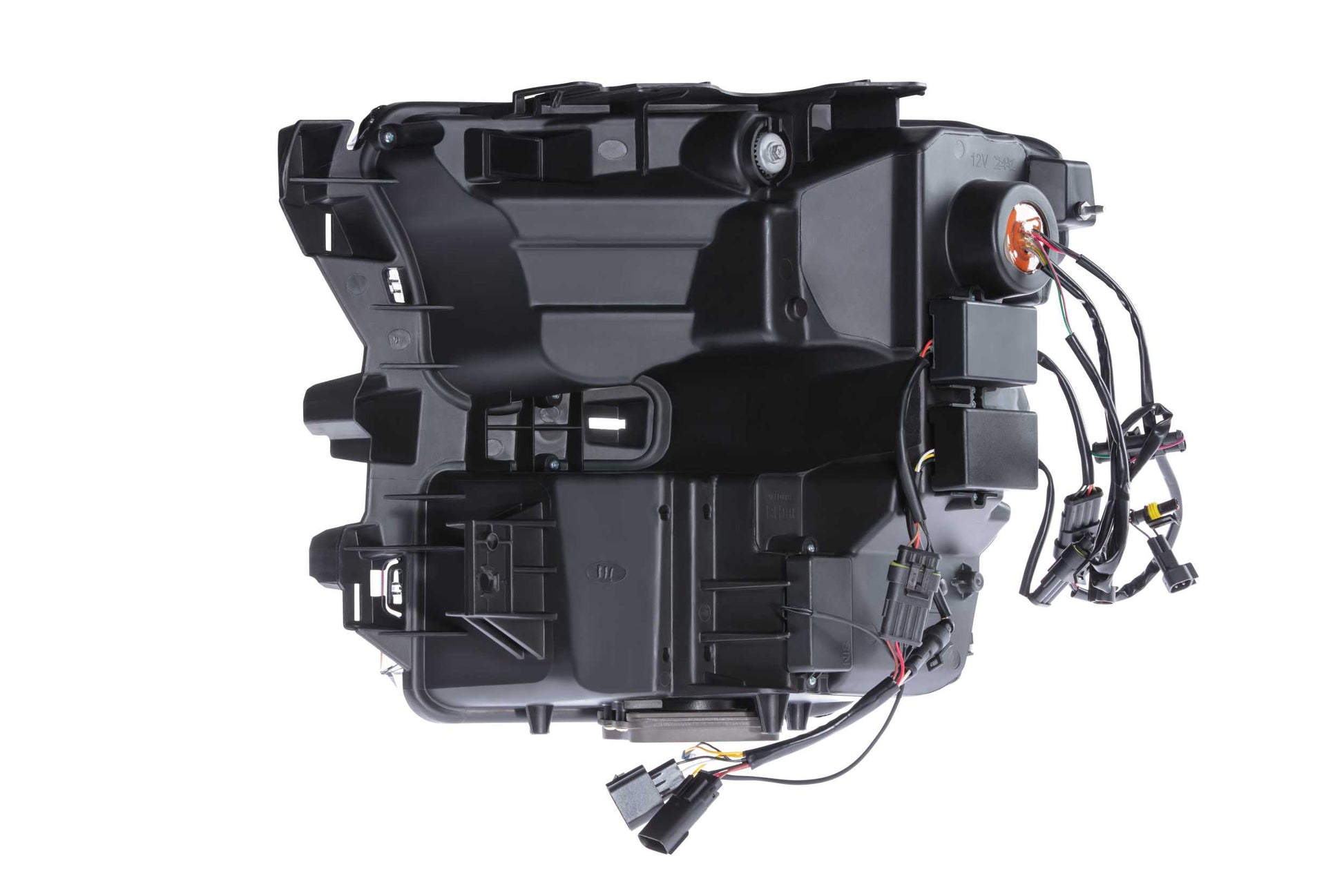

  • Plug-and-Play Installation with factory connectors
  • Durable Construction: UV-coated polycarbonate lenses and PPS housings
  • Efficient Heat Management: Die-cast aluminum heat sinks
  • Paintable Housings: Sealed with butyl rubber for customization
  • 5-Year Morimoto Warranty



What’s Included

Headlights

  • (2) Morimoto XB LED Headlights (Driver & Passenger Side)

Wiring

  • Plug-and-Play Harness

  • Fuse Tap



Technical Specifications

  • Lighting Technology: Quad-Projector / Dual Bi-LED
  • DRL Color: Amber
  • Housing Material: PPS Plastic
  • Lens Material: UV-Coated Polycarbonate
  • Heat Management: Die-Cast Aluminum Heat Sinks
  • Installation: Plug-and-Play (No Error Codes or Flickering)



Vehicle Fitment

Ford F-150

  • 2015–2017

Ford F-150 Raptor

  • 2016–2021



OEM Replacement References

Replaces Ford Part Numbers:
FL3Z-13008A, FL3Z-13008B, HL3Z-13008-A, GL3Z13008A, GL3Z13008B, FO2502344, FO2503344, FO2502335, FO2503335, FL3Z13008K, FL3Z13008L, FL3Z13008M, HL3V13006VC
