PLM B-Series Hood Exit Up-Pipe & Dump Tube for Top Mount Turbo

Part Number: PLM-B-T3-TOP-UP

Description:
The PLM Power Driven Hood Exit Up-Pipe & Dump Tube is engineered for B-Series and H-Series Honda/Acura engines using a top mount turbo manifold. Built for high performance, this 3-inch V-band up-pipe features a teardrop hood exit and is paired with a 44mm teardrop dump tube for wastegate routing.

Perfect for high-boost applications, this setup maximizes flow while providing an aggressive hood-exit look. Designed to work only with PLM top mount turbo manifolds, it offers precision fitment and race-ready performance.

Kit Includes:

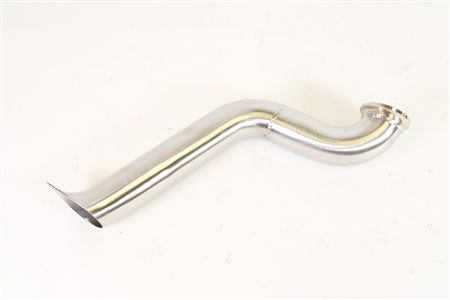

• 3" V-band Up-Pipe with Teardrop Hood Exit Cut
• 44mm Wastegate Dump Tube with Teardrop Hood Exit Cut

Key Features:

• Mandrel-bent 3” stainless steel tubing
• Precision TIG-welded construction
• V-band flange for secure turbo outlet connection
• Teardrop exit design for visual and functional appeal
• Direct bolt-on fit to PLM top mount turbo manifolds
• Designed for hood exit turbo applications

Vehicle Fitment:

• Honda Civic (1988–2000) – EF, EG, EK
• Acura Integra (1990–2001) – DA, DC2
• Compatible Engines: B16, B18, B20, H22, F20B VTEC

Important Note:
Due to variations in turbo and wastegate setups, slight trimming or angle adjustment of the teardrop exit may be required for optimal hood fitment.
