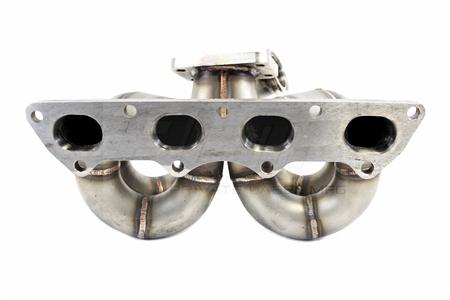

PLM T3 Ramhorn Turbo Manifold – Honda D-Series D15 D16 (A/C & P/S Compatible)

Part Number: PLM-D-TM-AC

Product Name or Type: T3 Ramhorn Turbo Manifold – A/C & P/S Compatible

Vehicle Fitment:

• Honda D-Series D15 – SOHC Engines
• Honda D-Series D16 – SOHC Engines

Description:

The PLM Power Driven Ramhorn Turbo Manifold is engineered for quick turbo spool and strong midrange torque gains in D-Series applications. Featuring an equal-length, one-piece design, it retains A/C and power steering—making it ideal for street builds that demand both performance and comfort.

Key Features and Benefits:

• Equal-length ramhorn design for optimal spool and flow
• Fully compatible with factory A/C and power steering systems
• One-piece TIG welded construction
• Precision CNC machined flanges for a reliable seal
• Surfaced head flange ensures proper fitment
• Fully ported low-angle merge collector

Technical Specs / Material Info:

• Made from high-quality 304 stainless steel
• 1/2-inch thick flanges
• Thick 8-gauge, schedule 40 piping
• T3 turbo flange
• 38mm external wastegate flange
• One-year warranty

Installation Info:

• Direct bolt-on for D15/D16 SOHC engines
• No modifications needed for A/C or P/S retention
