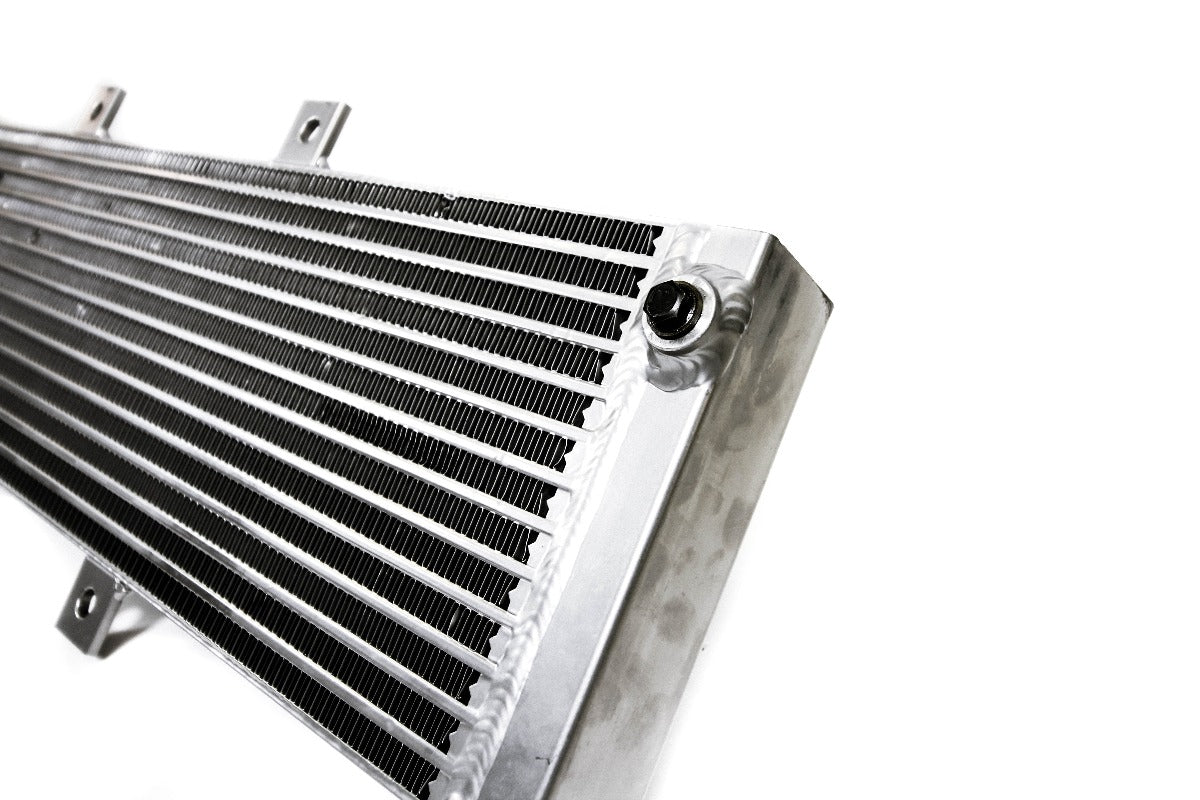

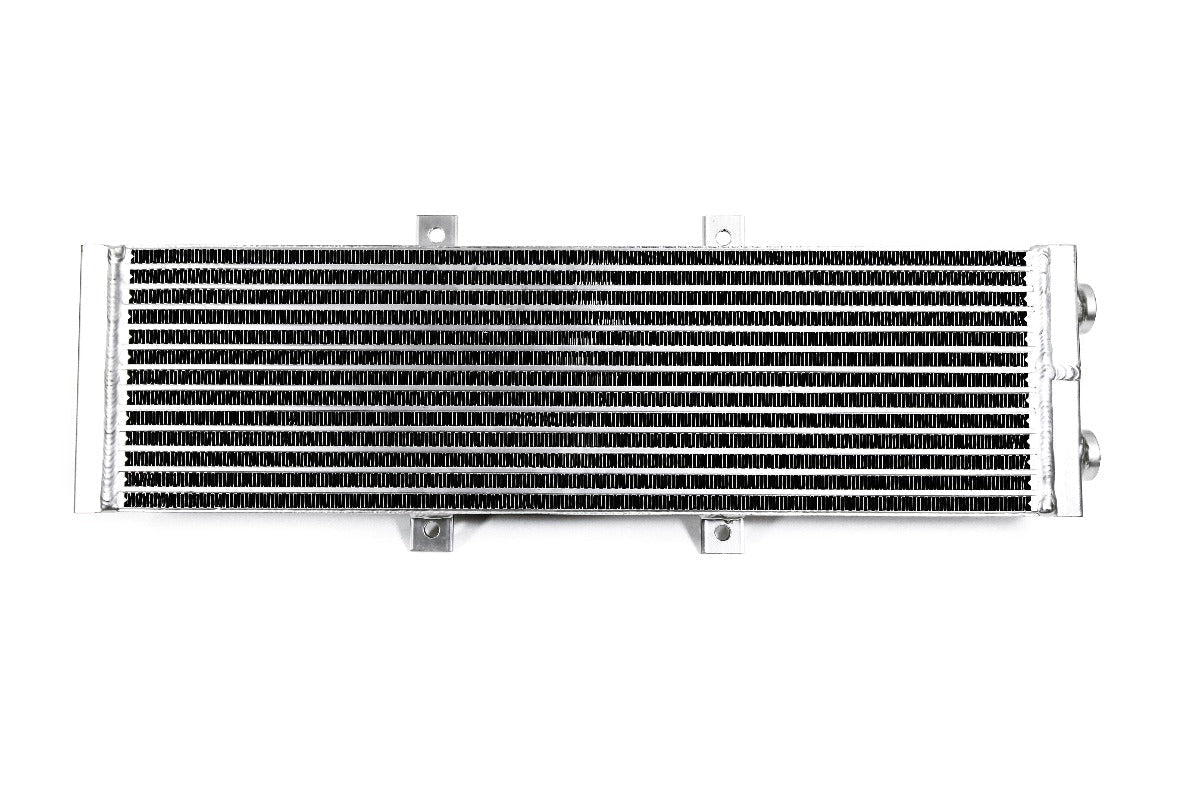

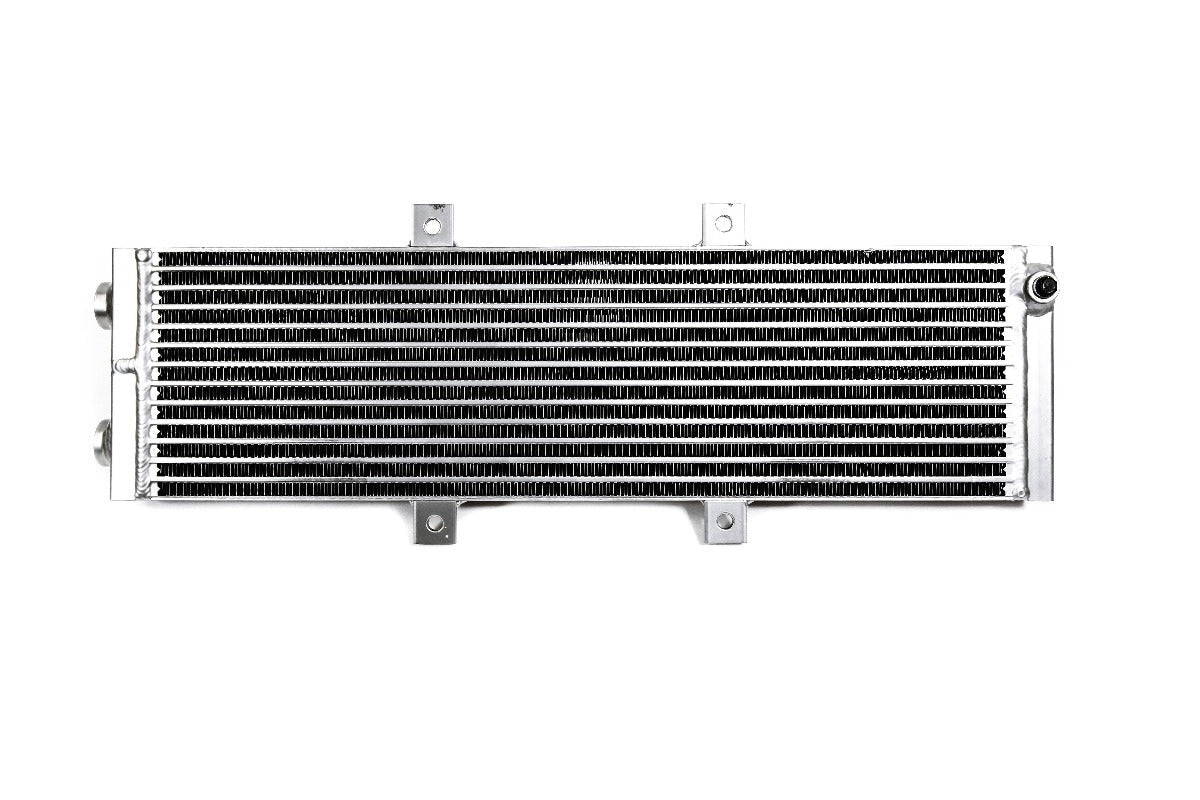

By popular market demand, We are offering an universal Heat exchanger for customers who want to customize them into their vehicles.
The Heat exchanger is produced with the same process of all of our other heat exchangers.
PLM (Private Label Mfg.) Heat Exchanger is the best kit in the marketplace today. With 2 mounting tabs on both top and bottom, this gives you the flexibility to create a bolt-on installation.
Size: 26" x 7" x 2".
Mounting points are 8" from all sides.
Core Width is 24" (total width is 26".)
Tapped with water temperature sensor inlet (1/8-27 NPT)

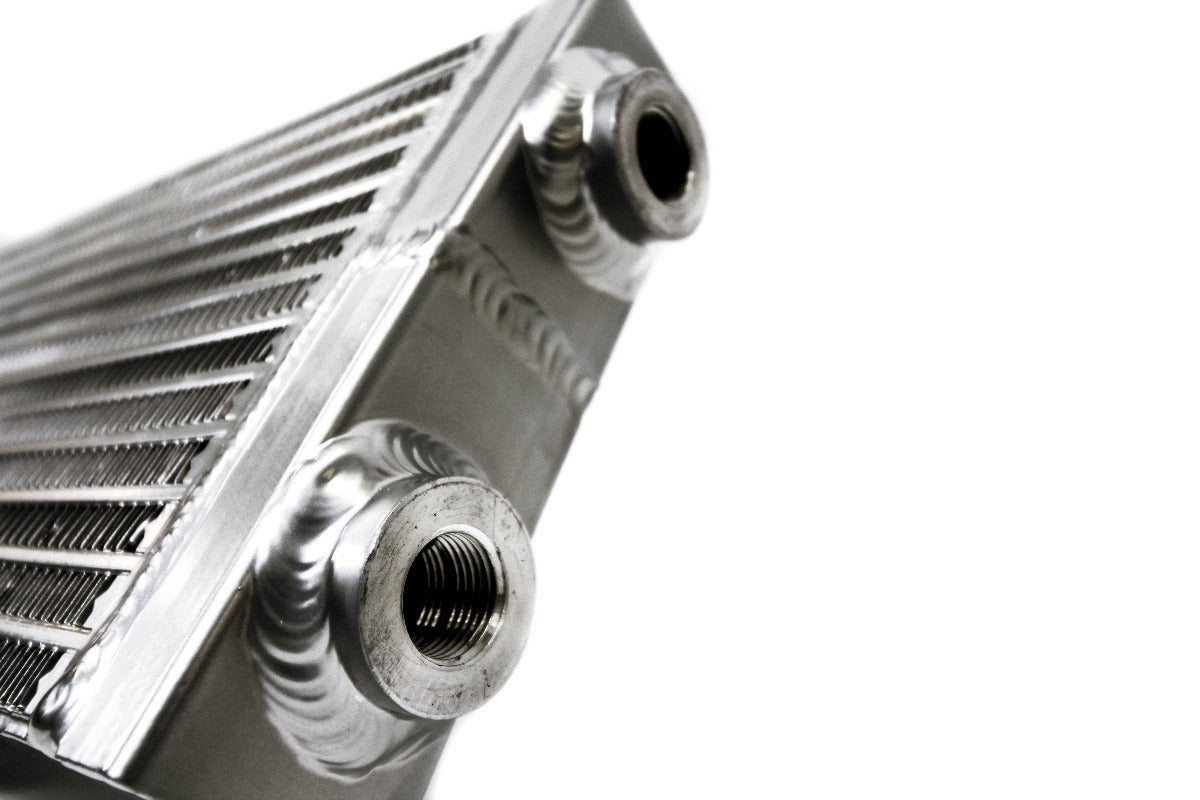

Inlet / Outlet size are 1/2" NPT threads.
Mounts either to left or right side of port openings.
PLM DUAL CORE/ DUAL PASS HEAT EXCHANGER
100% TIG WELDED
High DENSITY FIN CORE
DESIGNED TO PURGE ALL AIR WHEN INSTALLED PROPERLY
CORROSION RESISTANT COATING
ALL ALUMINUM FOR LIGHTWEIGHT ADVANTAGE
***UNIVERSAL FIT: MEANING THAT IT WILL FIT ANY CAR APPLICATION, YOU MAY OR MAY NOT NEED TO CUSTOM BRACKETS, MOVE TUBING OR RELOCATE ITEMS TO FIT***
***ALL DIMENSIONS ARE PROVIDED, PLEASE MEASURE EVERYTHING BEFORE PURCHASING***
***HARDWARE AND HOSES ARE NOT PROVIDED***
