PLM K-Series Hood Exit Up-Pipe & Dump Tubes – Civic / Integra K20 K24

Part Number: PLM-K20-TM-TOP-UP-PIPE

Product Name or Type: Hood Exit Up-Pipe & Dump Tube

Vehicle Fitment:

• 1988 – 2000 Honda Civic EF/EG/EK
• 1994 – 2001 Acura Integra DC2
• K-Series K20/K24 engine swaps

Description:

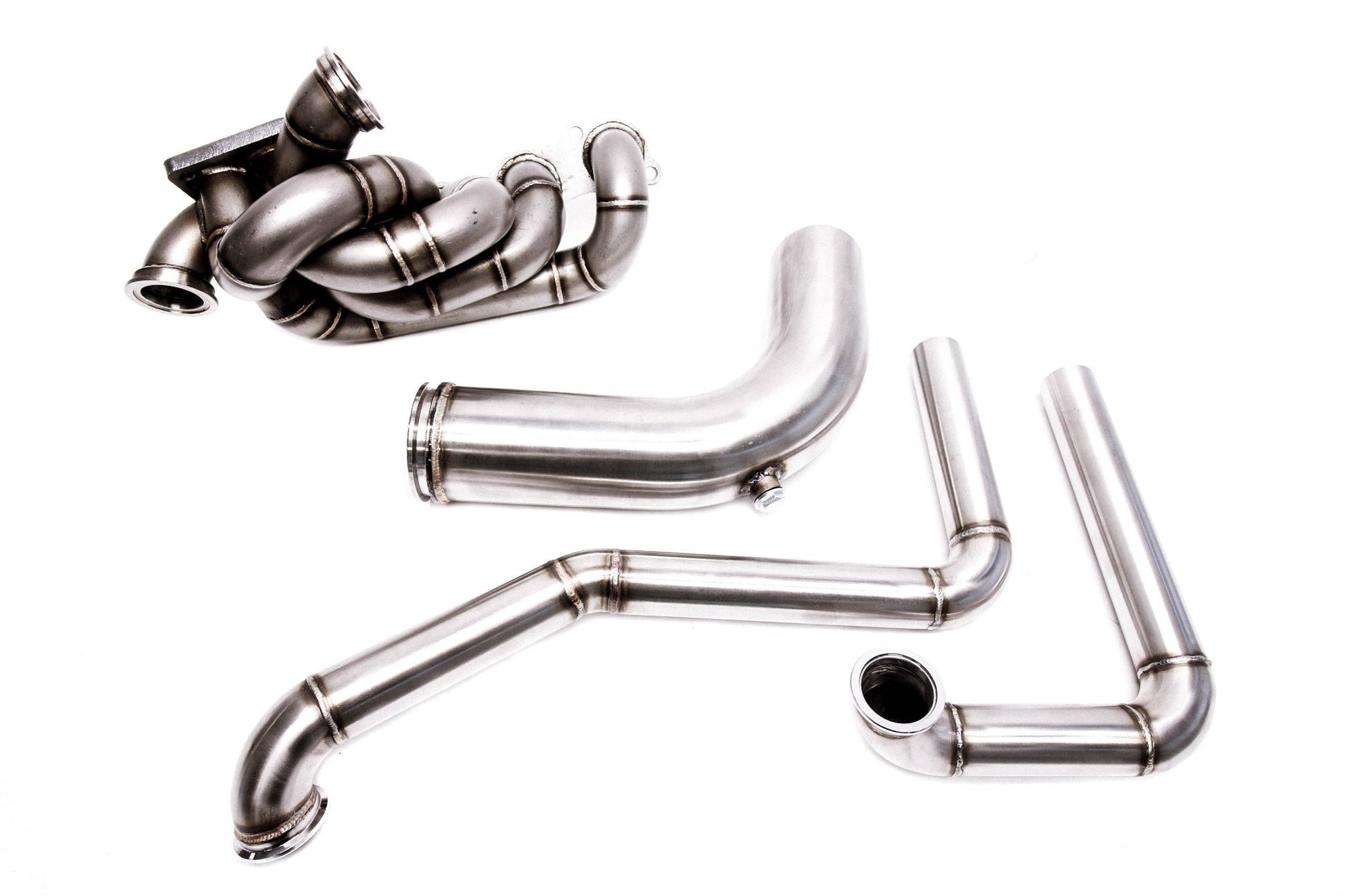

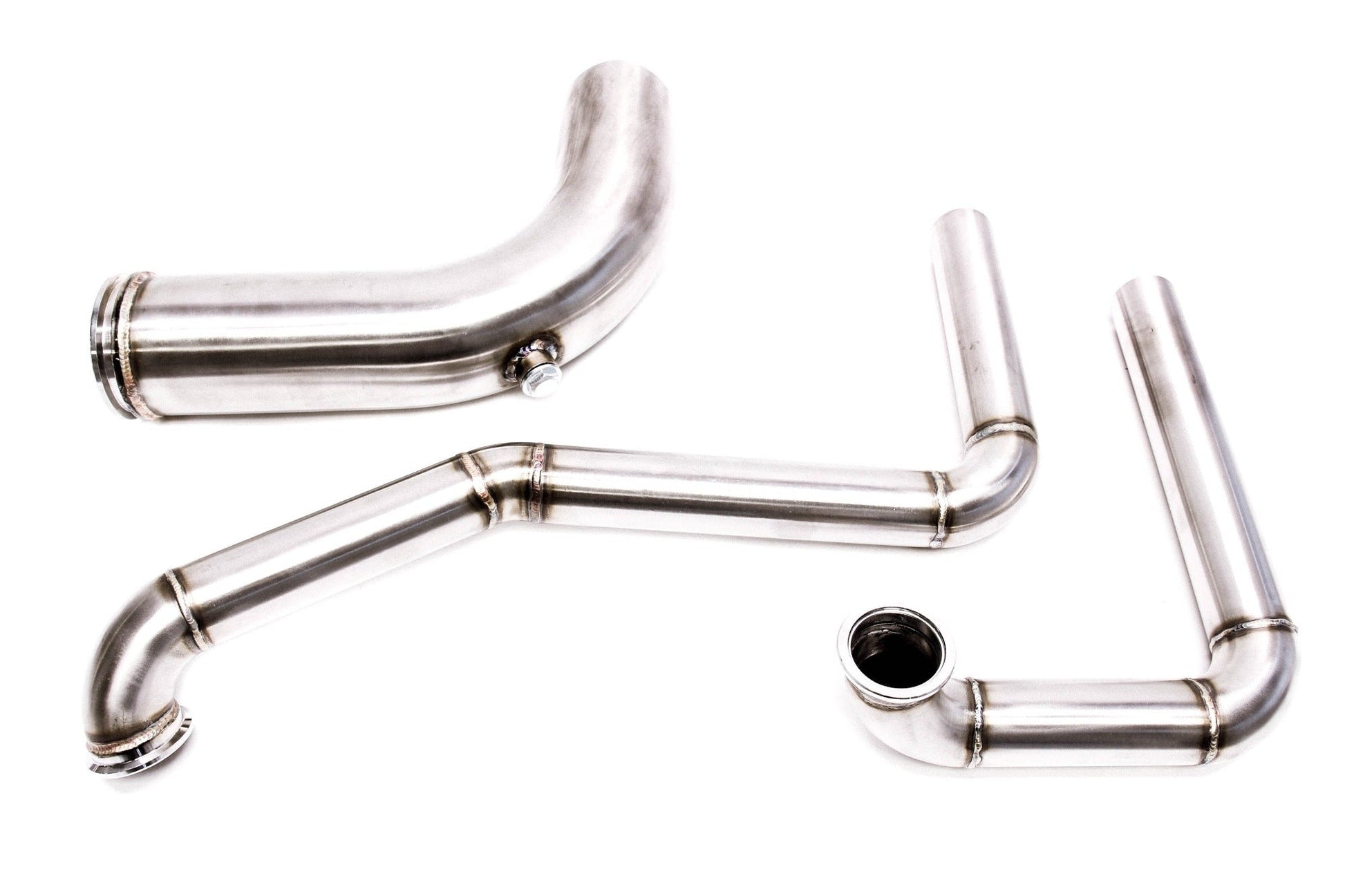

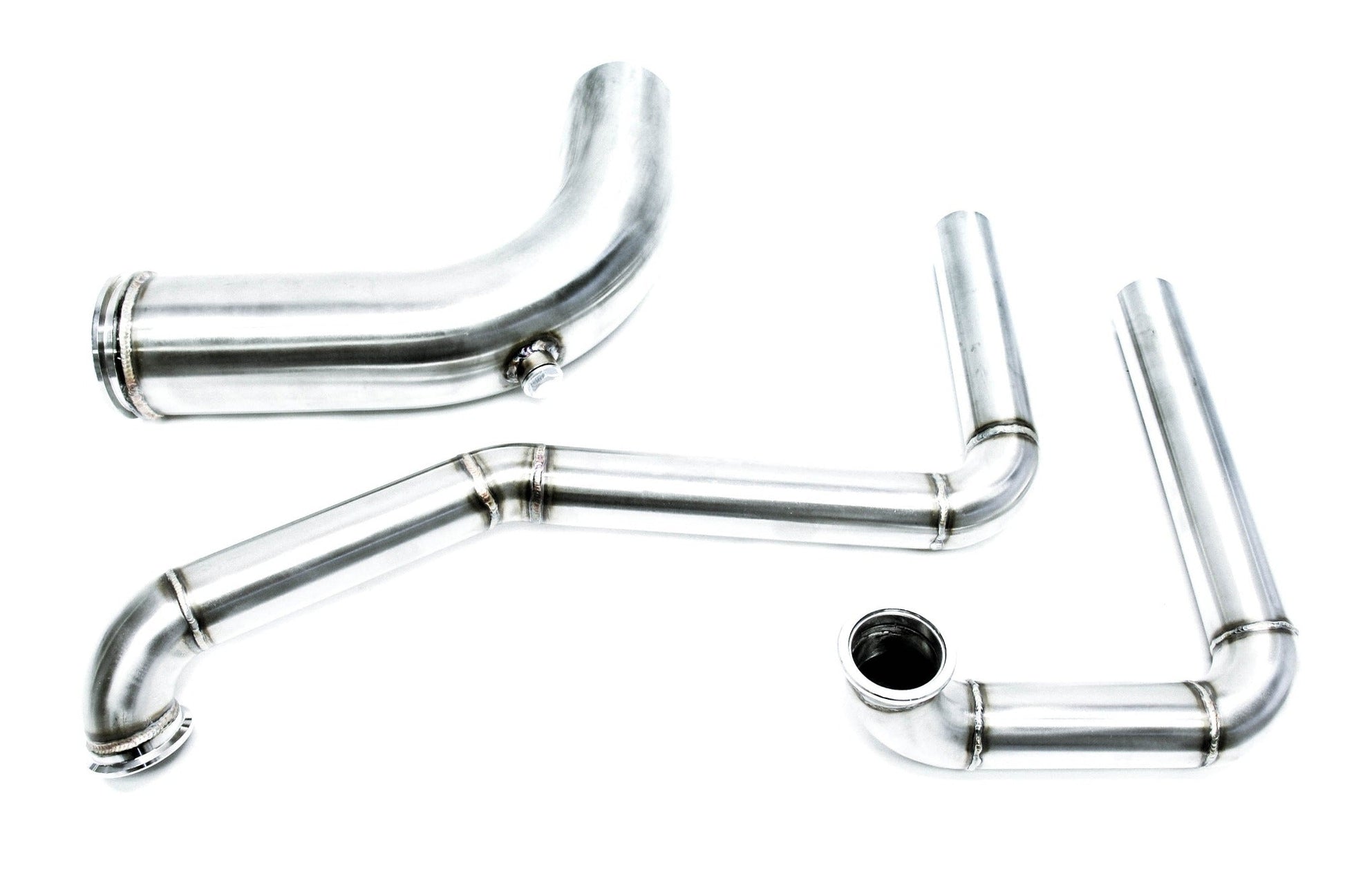

This PLM Hood Exit Up-Pipe & Dump Tube kit is designed to pair with PLM's Top Mount K-Series turbo manifold. The straight-cut 3" up-pipe and dual wastegate dump tubes route through the hood for maximum exhaust clearance and aggressive styling. V-band flanges are pre-welded for a direct, secure fit to your turbo and wastegate setup.

Key Features and Benefits:

• Optimized for PLM K-Series Top Mount Turbo Manifolds
• Clean hood-exit configuration for maximum clearance
• Includes both up-pipe and dual dump tubes

Technical Specs / Material Info:

• 3" v-band up-pipe (straight cut, hood exit)
• 44mm/45mm wastegate dump tubes (straight cut, hood exit)
• Precision TIG welded
• Stainless steel construction

Installation Info:

• Direct bolt-on to PLM Top Mount Turbo Manifolds
• Requires hood trimming or pre-cut venting

Images:
