PLM Heat Exchanger – Ford Mustang GT500 2020–2022

Part Number: PLM-HE-FD-GT500-22 / PLM-HE-FD-GT500-22-BLK

Product Name or Type: High Performance Heat Exchanger

Vehicle Fitment:

• 2020 – Ford Mustang GT500 – S550
• 2021 – Ford Mustang GT500 – S550
• 2022 – Ford Mustang GT500 – S550

Description:

Designed for high-horsepower Shelby GT500 builds, the PLM heat exchanger delivers superior cooling performance over the factory unit. Ideal for vehicles pushing 1000+ HP, this upgraded core maintains intake charge temps under demanding conditions. With a direct bolt-on design, it retains factory mounting points and lines for an easy install while supporting up to 1500HP.

Key Features and Benefits:

• Supports power levels up to 1500HP
• Significantly reduces intercooler coolant temps
• Direct OEM bolt-on fitment
• Improves intake charge cooling efficiency

Technical Specs / Material Info:

• Core thickness: 1.5" all-aluminum (vs. 1.0" OEM)
• Dimensions: 26.5" W x 20.5" H x 1.5" T
• Furnace brazed, no epoxy used
• 100% TIG-welded construction
• Available in silver or black finish

Installation Info:

• Direct bolt-on with hand tools
• Reuses OEM lines and brackets
• Instructions not included; tech support available

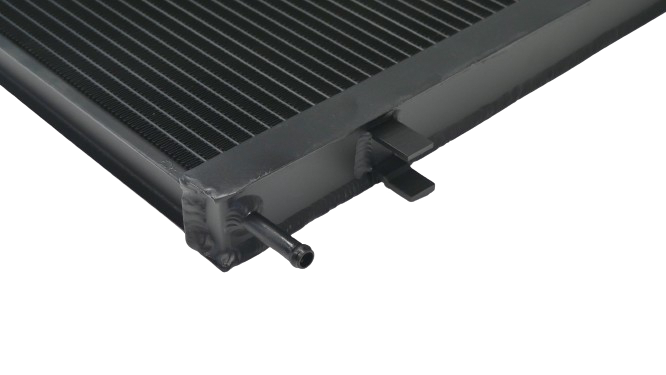

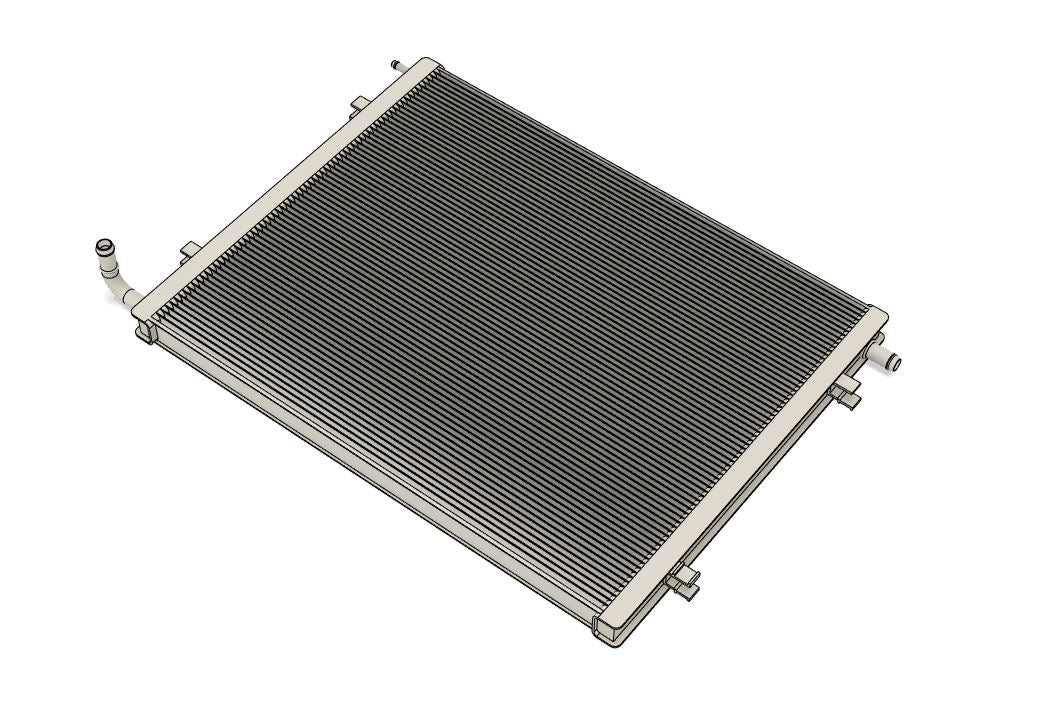

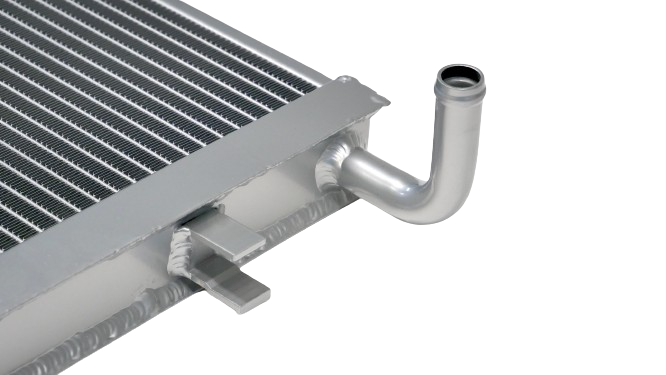

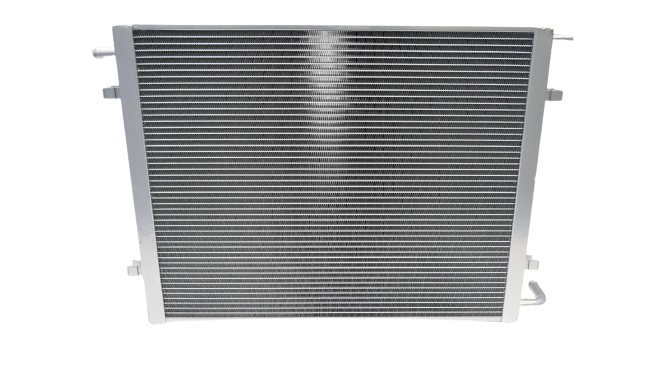

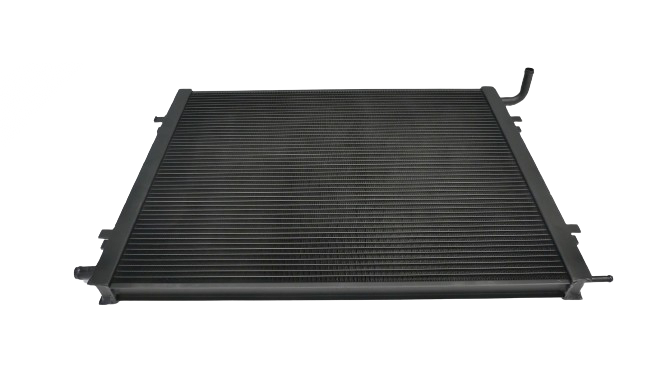

Images:
