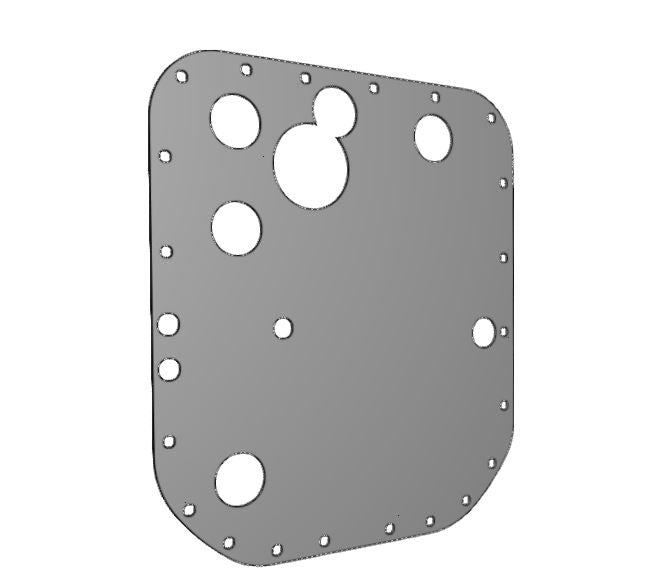

PLM Oil Pan Baffle Plate – Mazda RX-7 13B 1986–1992

Part Number: PLM-OPB-RX7-13B

Product Name or Type: Oil Pan Baffle Plate

Vehicle Fitment:

• 1986–1992 Mazda RX-7 – 13B Engine

Description:

This PLM oil pan baffle plate is engineered to improve oil control in 13B rotary engines by slowing oil return to the pan and allowing air to separate more efficiently. Reducing air in the oil helps maintain stable oil pressure and enhances heat dissipation at high RPMs. The plate installs between the engine block and oil pan and requires two OEM gaskets for proper sealing. Ideal for track use or any high-performance rotary setup.

Key Features and Benefits:

• Improves oil aeration control under high RPM
• Reduces oil pressure fluctuation
• Enhances engine reliability during aggressive driving

Technical Specs / Material Info:

• Laser-cut aluminum construction
• CAD designed for precision fitment
• Made in the USA
• Includes baffle plate only
• Oil pan and gaskets not included

Installation Info:

• Sandwich installation between block and oil pan
• Requires two oil pan gaskets (not included)

Images:
