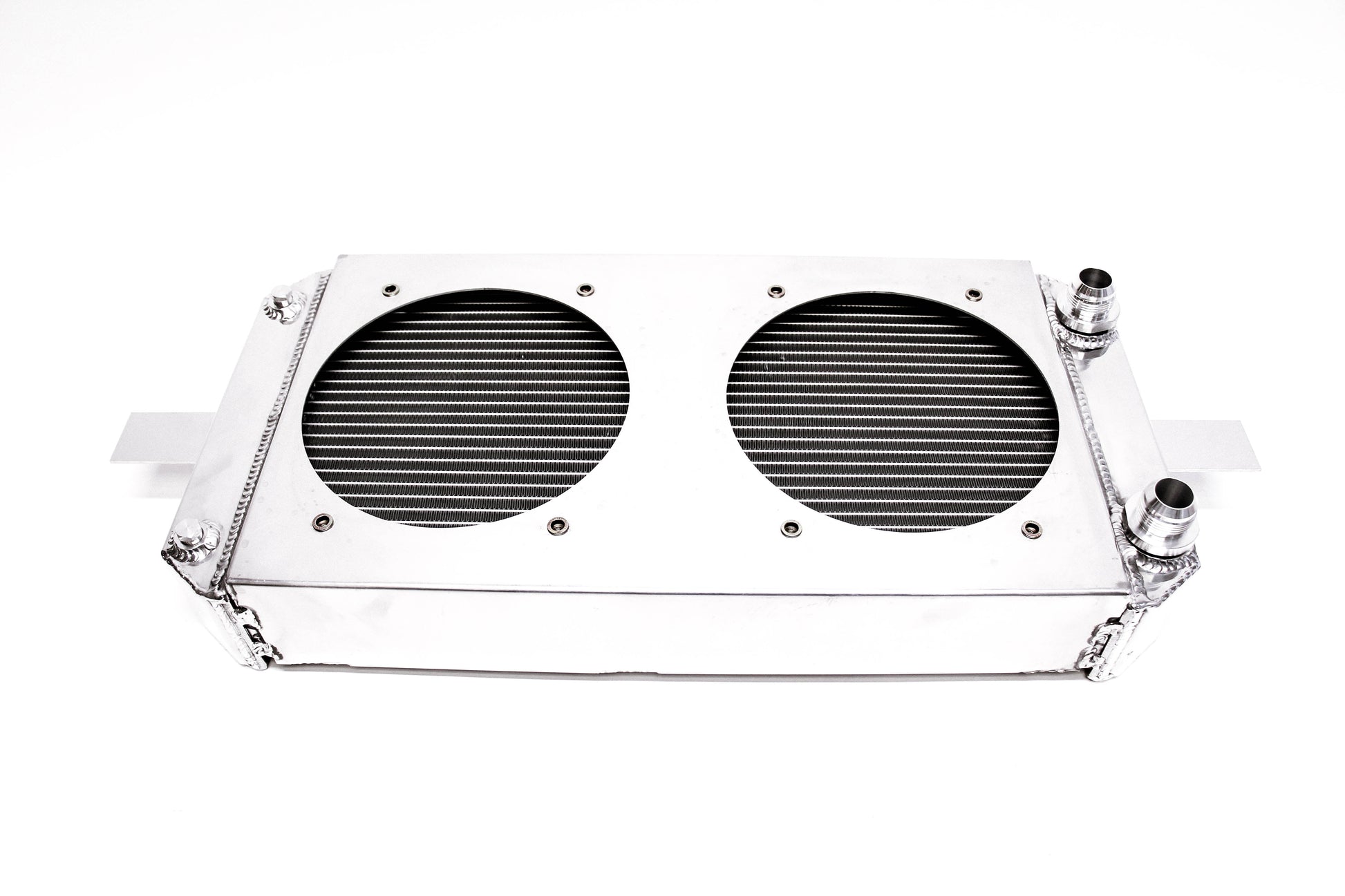

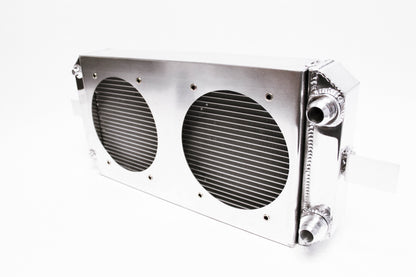

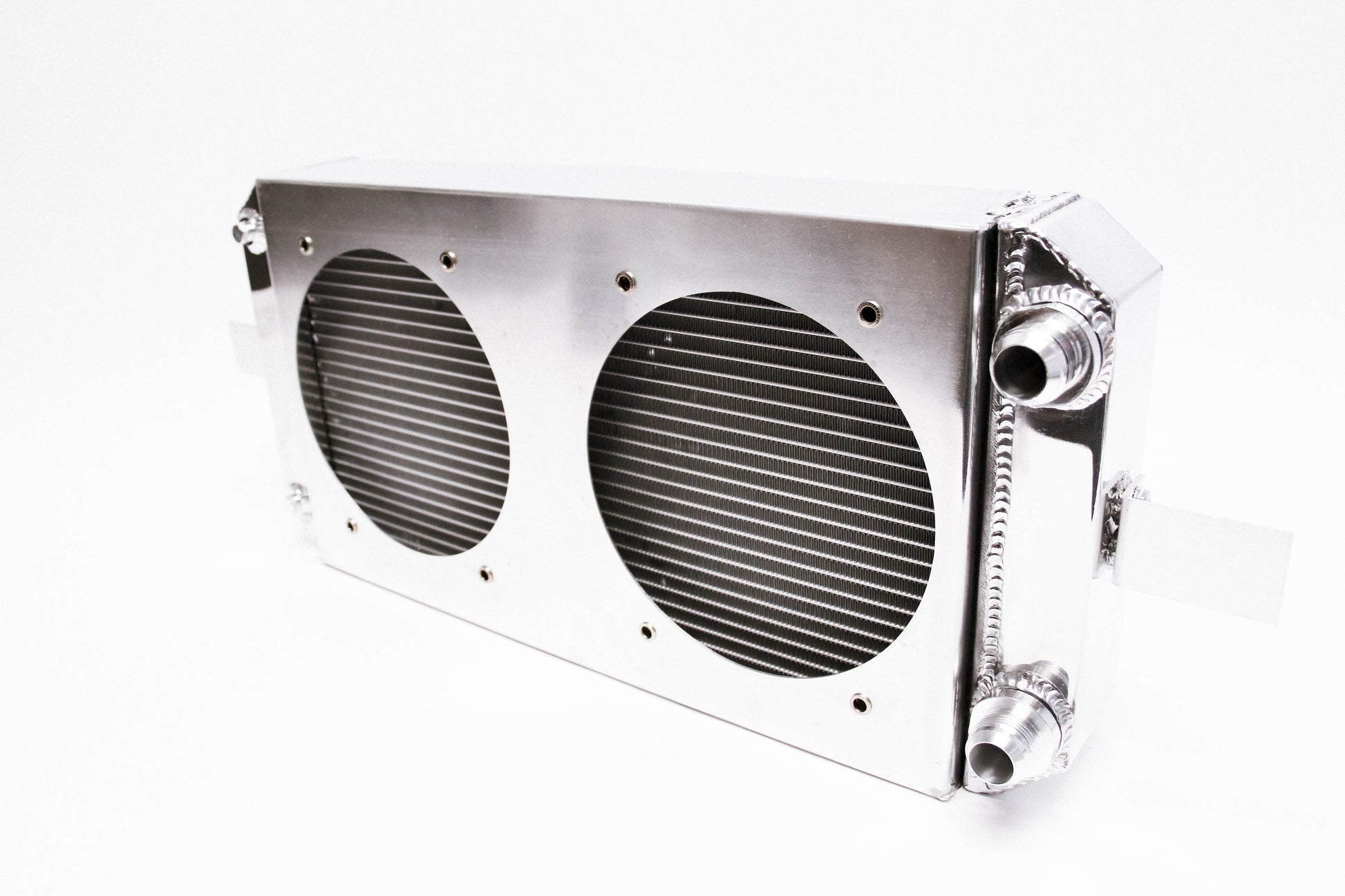

PLM Power Driven Tucked Radiator XL – High-Capacity Cooling for Honda/Acura

Part Number: PLM-RD-TCK-XL

Product Type: Tucked Radiator XL – High-Capacity Aluminum

Vehicle Fitment:
- Universal fitment for Honda & Acura chassis
- Ideal for engine-swapped vehicles and high-performance builds
- Compatible with both manual and automatic transmissions

Full product description from PLM:
The PLM Power Driven Tucked Radiator XL is the oversized evolution of our popular standard tucked radiator, offering greater cooling capacity while retaining the compact, tucked form factor. Designed to be installed beneath the radiator support, this radiator helps maximize usable engine bay space while boosting thermal efficiency for demanding builds.

The XL version features precision TIG-welded aluminum construction, a slim profile, and includes both AN and slip-on hose fittings. The unique floating bracket system allows adjustable positioning and enhanced fitment versatility across multiple platforms.

Key features and benefits:

• Extra-large core for increased cooling efficiency

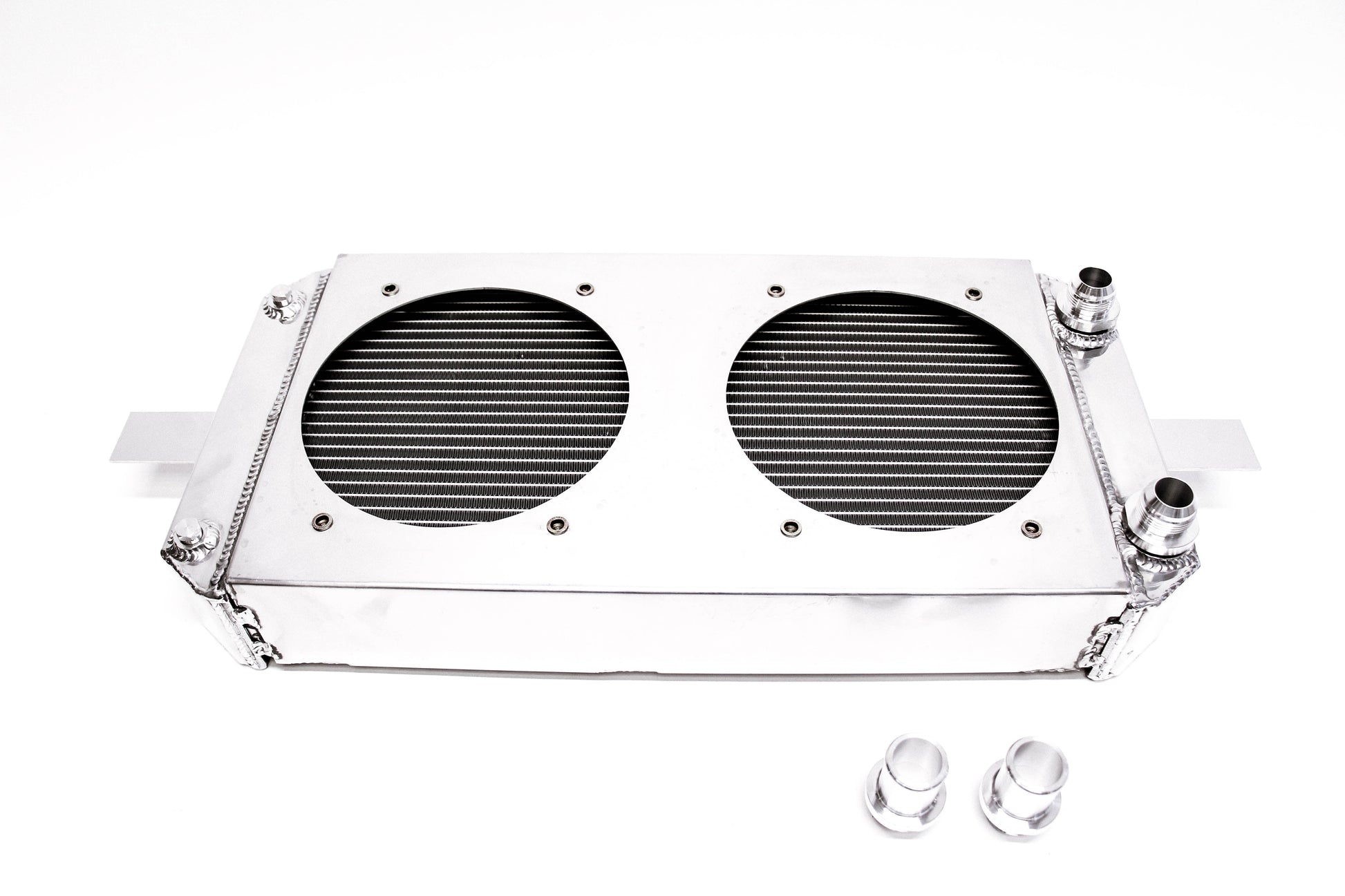

• Threaded 16AN inlet & outlet fittings (also includes slip-on fittings)
• Compatible with clamp-on hoses or AN adapters (e.g., 16AN to 20AN)
• Durable TIG-welded 100% aluminum construction
• Non-welded mounting brackets – reversible and adjustable
• Slim design for tight engine bays and tucked installations

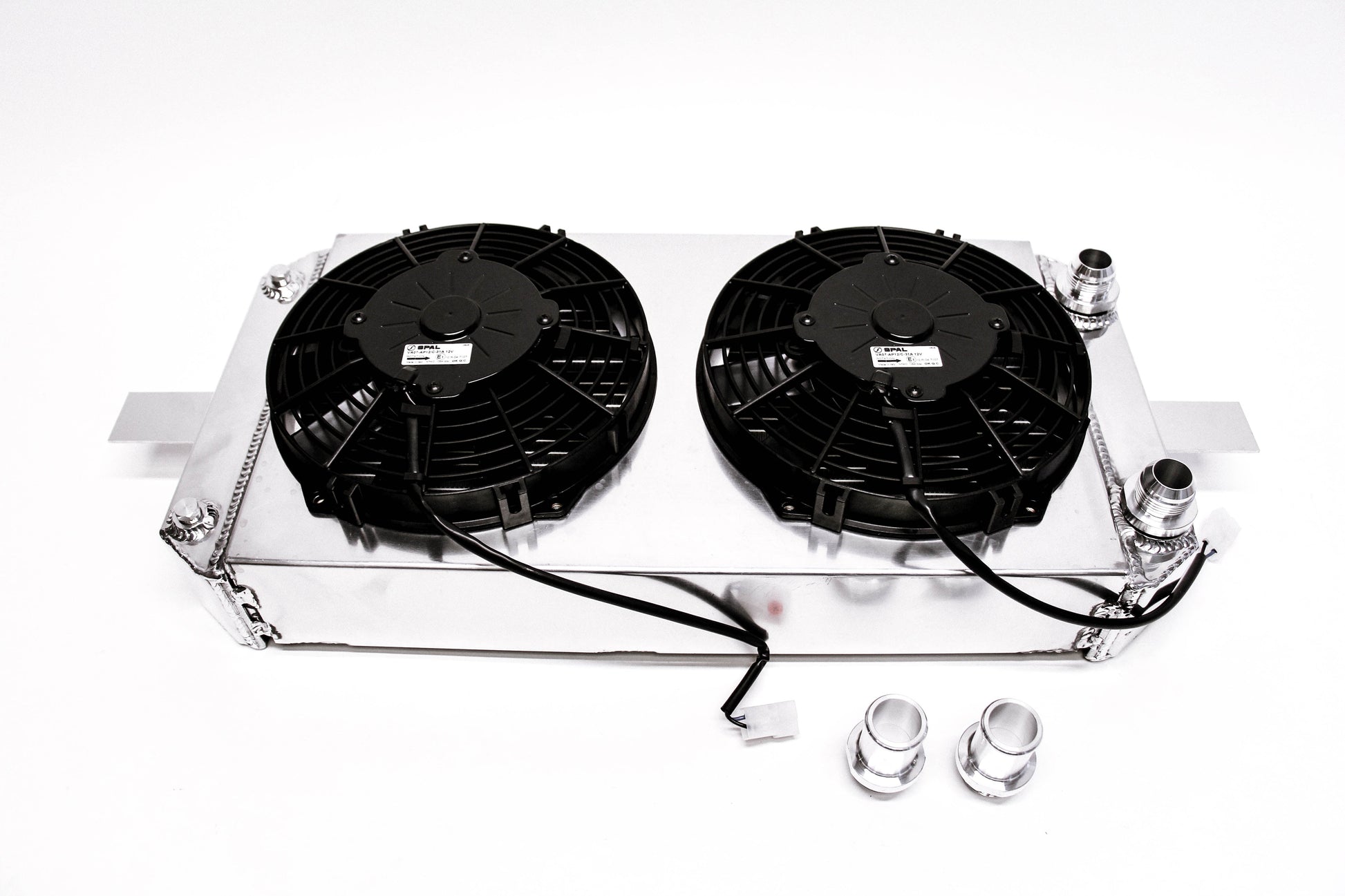

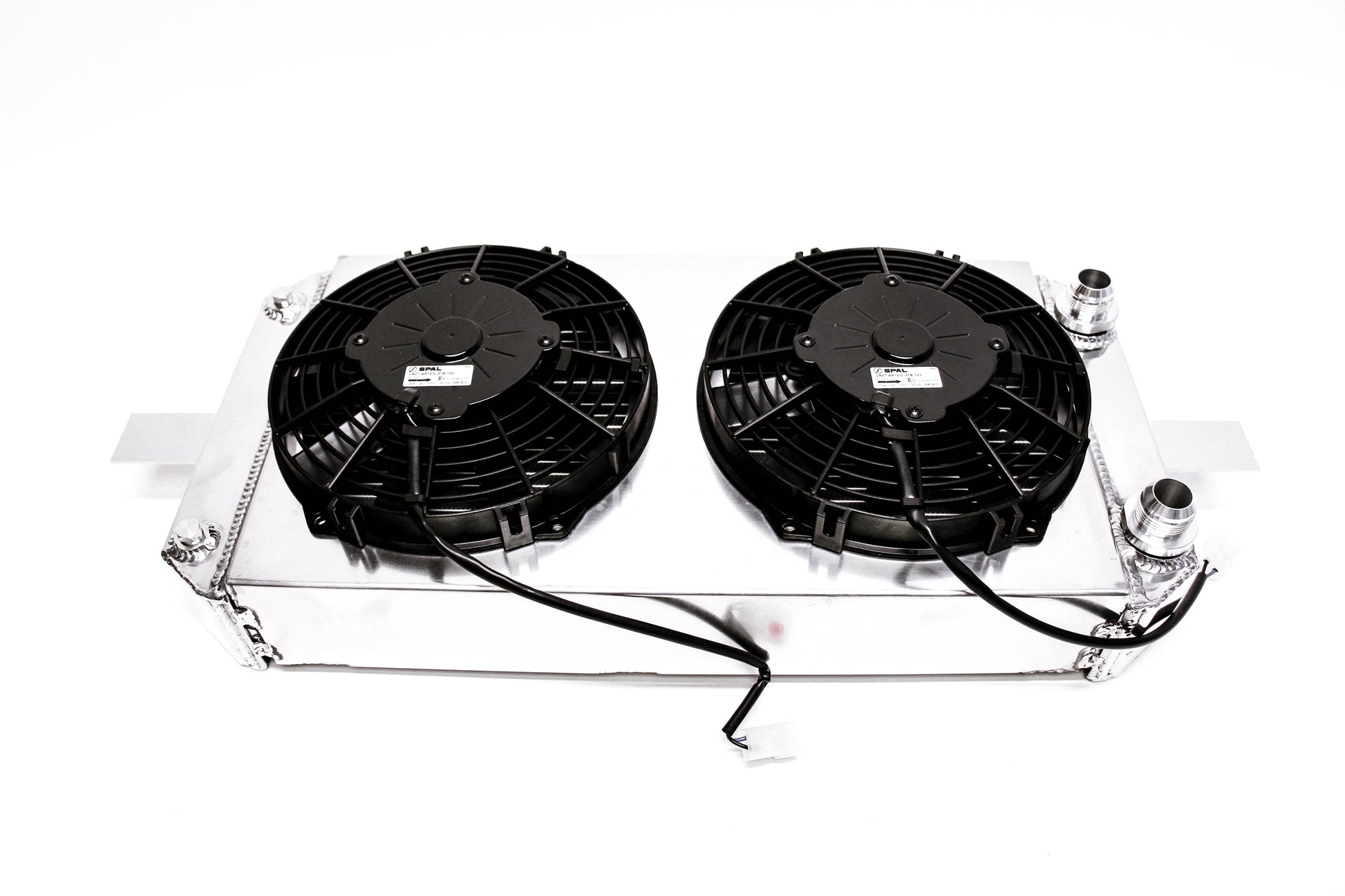

• Supports optional SPAL fan mounting (SPAL version: PLM-RD-TCK-XL-SPAL)

Technical Specs / Material Info:

• Material: Aircraft-grade aluminum
• Core type: XL high-capacity single-core
• Fittings: 2x 16AN + 2x slip-on included
• Mounting: Adjustable aluminum brackets w/ hardware

Installation Info:
- Tucks under the front radiator support
- Universal fit; some fabrication or adjustment may be required depending on chassis
- Ideal for custom setups, high horsepower builds, and track vehicles

Images:

Any Special Notes:
Comes complete with fittings and mounting hardware. Optional SPAL fan available. Compatible with a variety of PLM and aftermarket intercooler or cooling systems.
