PLM Seat Rail Bracket for Recaro LS LX SR2 SR3 – Honda & Nissan

Part Number:
PLM-SEAT-RAIL-BKT-EK-SR3 – Civic EK 96–00
PLM-SEAT-RAIL-BKT-EG-SR3 – Civic EG 92–95 & Integra DC2 94–01
PLM-SEAT-RAIL-BKT-FC-SR3 – Civic FC/FK 16–21
PLM-SEAT-RAIL-BKT-240SX-SR3 – Nissan 240SX S13/S14/S15 89–98
PLM-RAIL-RECARO-UNI – Universal (requires seat base bracket)

Product Name or Type: Recaro Seat Rail Bracket Set

Vehicle Fitment:

• 1992–1995 Honda Civic – EG
• 1994–2001 Acura Integra – DC2
• 1996–2000 Honda Civic – EK
• 2016–2021 Honda Civic – FC/FK
• 1989–1998 Nissan 240SX – S13/S14/S15

Description:

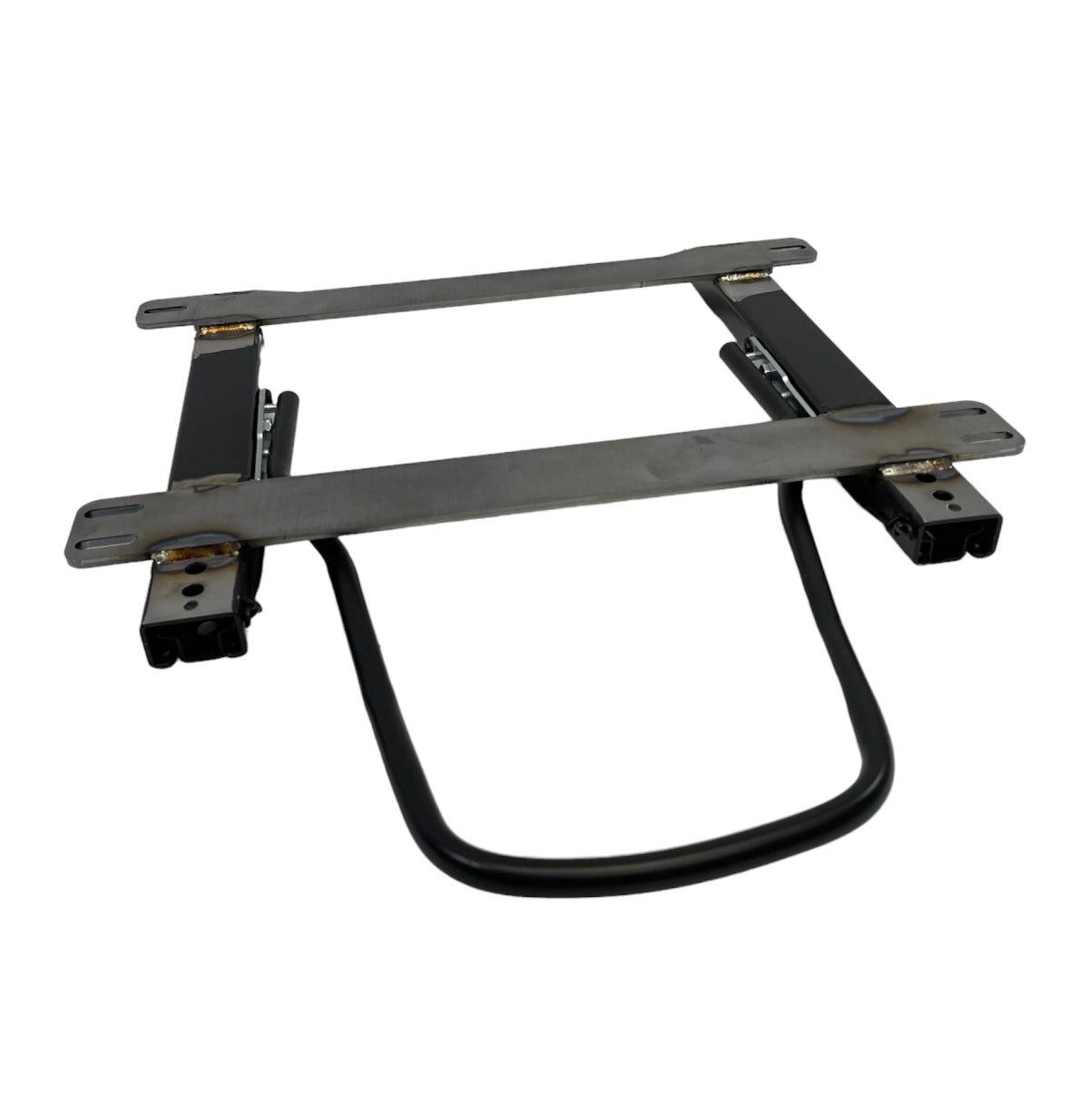

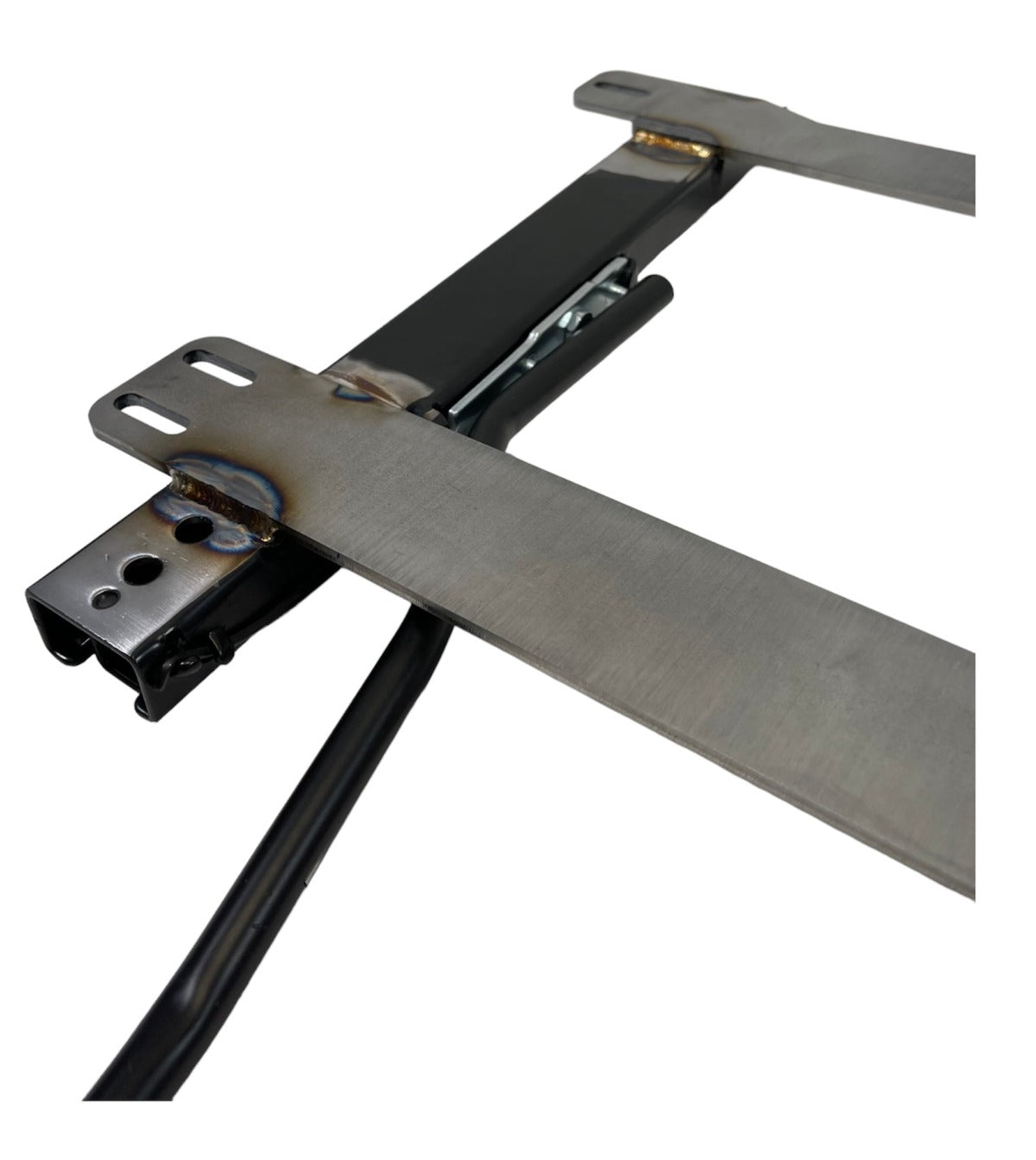

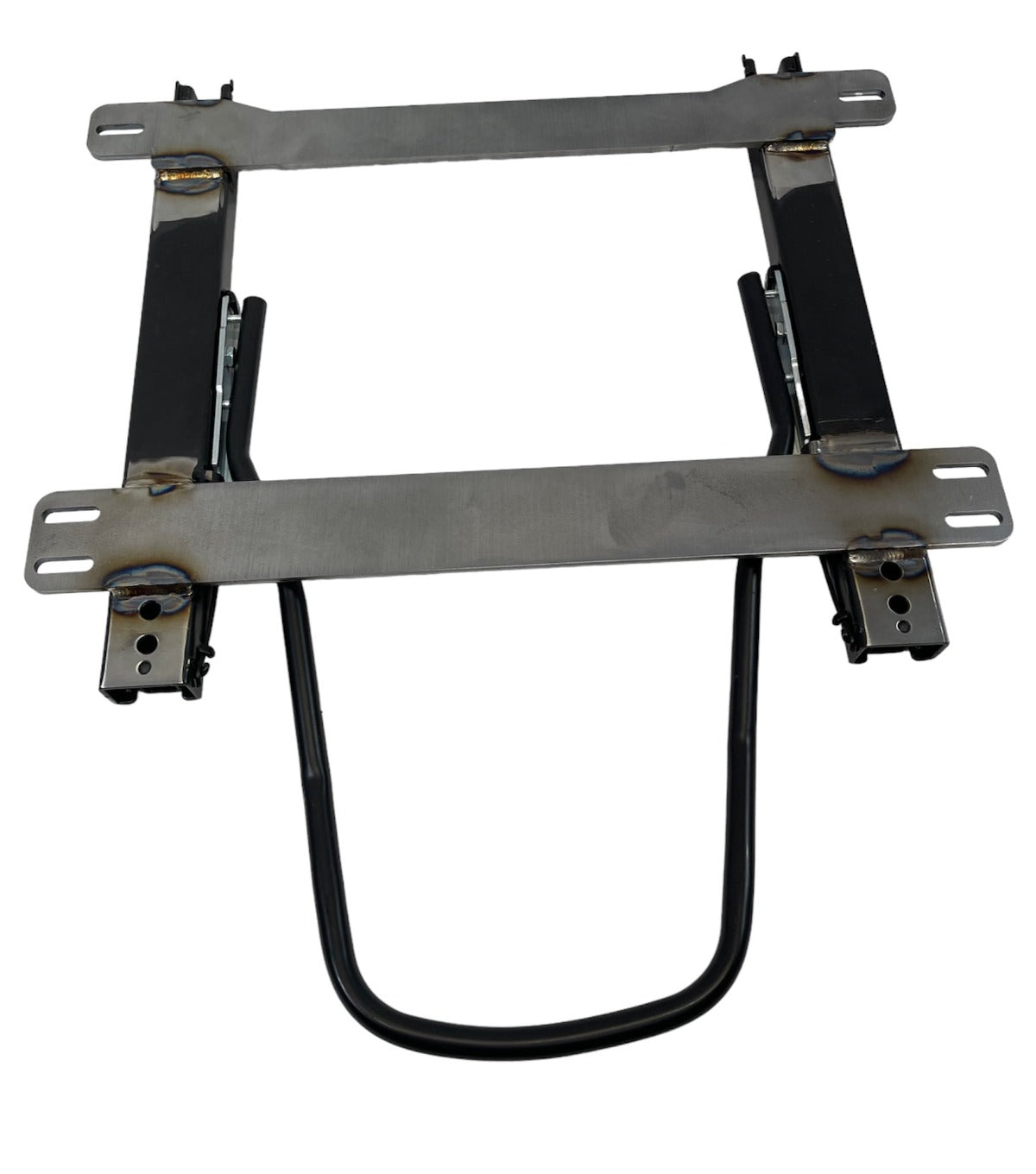

The PLM Seat Rail Bracket is a complete bolt-in solution for fitting factory Recaro bottom-mount seats, including SR2, SR3, SR4, SRD, LS, and LX models. Each bracket set is CAD-designed and CNC laser cut from carbon steel, with seat sliders welded directly for precise alignment and reliability. Available in vehicle-specific versions or a universal option that requires a base bracket.

Key Features and Benefits:

• Direct fitment for popular Honda and Nissan chassis
• Compatible with OEM Recaro bottom-mount seats
• No drilling or modifications required
• Multiple mounting hole options for seat adjustment

Technical Specs / Material Info:

• Laser cut high-strength carbon steel (1/8" thick)
• Double locking seat sliders
• TIG and MIG welded construction
• Front-to-back spacing: 9¼" to 10¼"
• Side-to-side spacing: 15¾" to 16¼" (adjustable slots)
• Universal model sold individually (select qty 2 for pair)

Installation Info:

• Vehicle-specific kits are bolt-on for left & right seats
• Universal version requires compatible seat base bracket
• Hardware included for mounting to seat base
