PLM Power Driven Top Mount Turbo Manifold – K20 K24 K-Swap

Part Number: PLM-K20-TM-TOP

Product Name or Type: Top Mount Turbo Manifold – T3/T4

Vehicle Fitment:

• Honda Civic – K-Swap
• Acura Integra – K-Swap
• Honda RSX – K-Series (modification required)
• Honda Civic EP3 – K-Series (modification required)

Description:

Building on the success of the PLM Sidewinder series, this top mount turbo manifold supports both FWD and AWD K-Series setups. Designed for T3 and T4 flanged turbos with dual wastegate compatibility, it offers exceptional performance and durability for high-horsepower builds.

Key Features and Benefits:

• Supports K20 and K24 K-Series engines
• Compatible with FWD and AWD configurations
• Works with non-lean engine mounts
• Accepts T3 and T4 turbo flanges
• Dual 44mm/45mm wastegate flange support
• Dyno proven to 700hp; tested to 1000hp
• Used by racers and tuners; proven on 10-second 1/4 mile setups

Technical Specs / Material Info:

• 304 stainless steel construction
• 1/2" CNC-machined flange
• 8-gauge Schedule 40 runners
• 4-1 merge collector design
• TIG welded with fully ported flanges
• PLM 1-year warranty against defects

Installation Info:

• Direct fit for most K-Swap chassis
• Firewall and steering modifications may be required on EP3 and RSX
• Coolant lines may need rerouting
• Smaller or billet coolant housing recommended for clearance on some turbo/head combinations

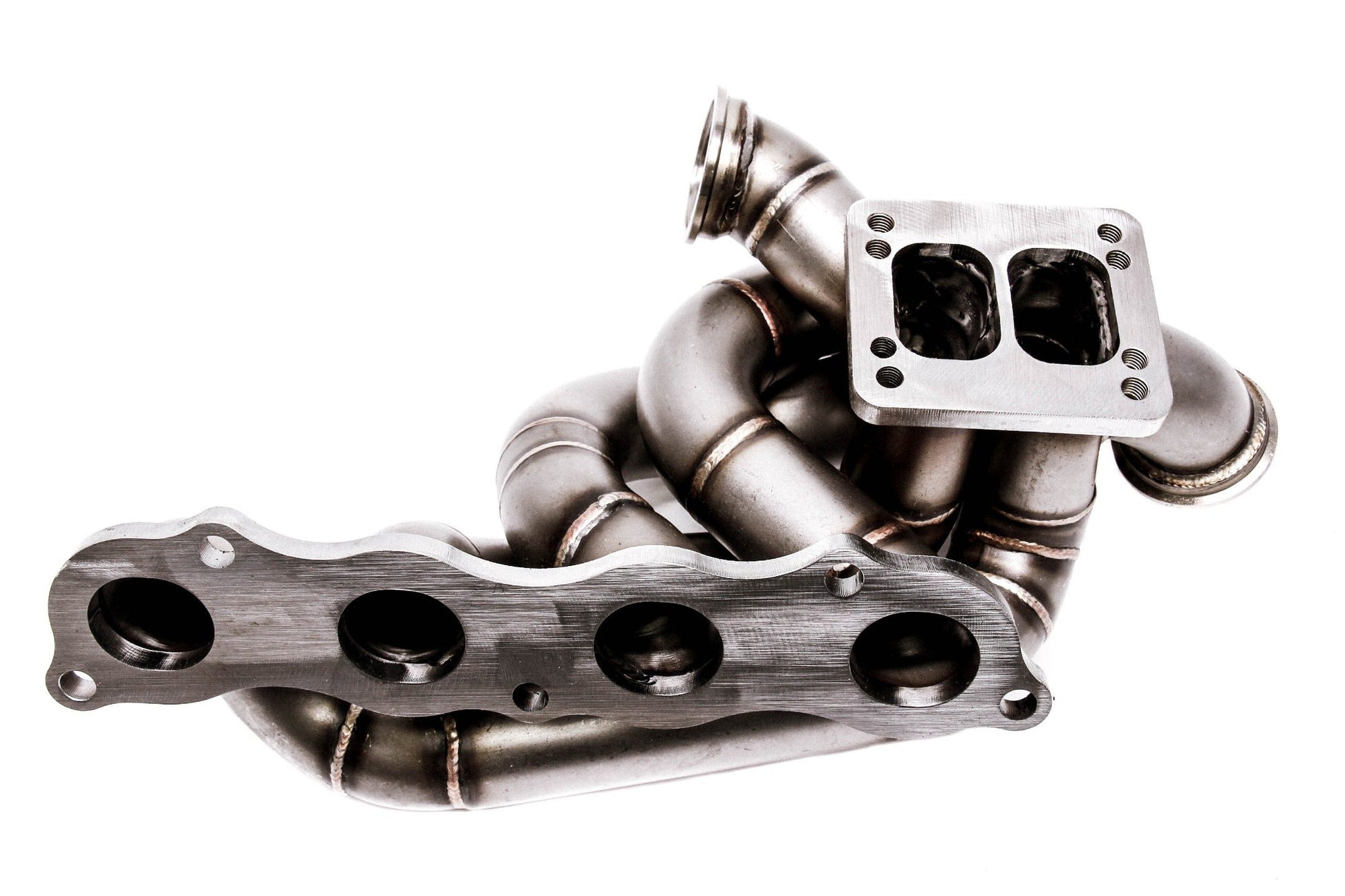

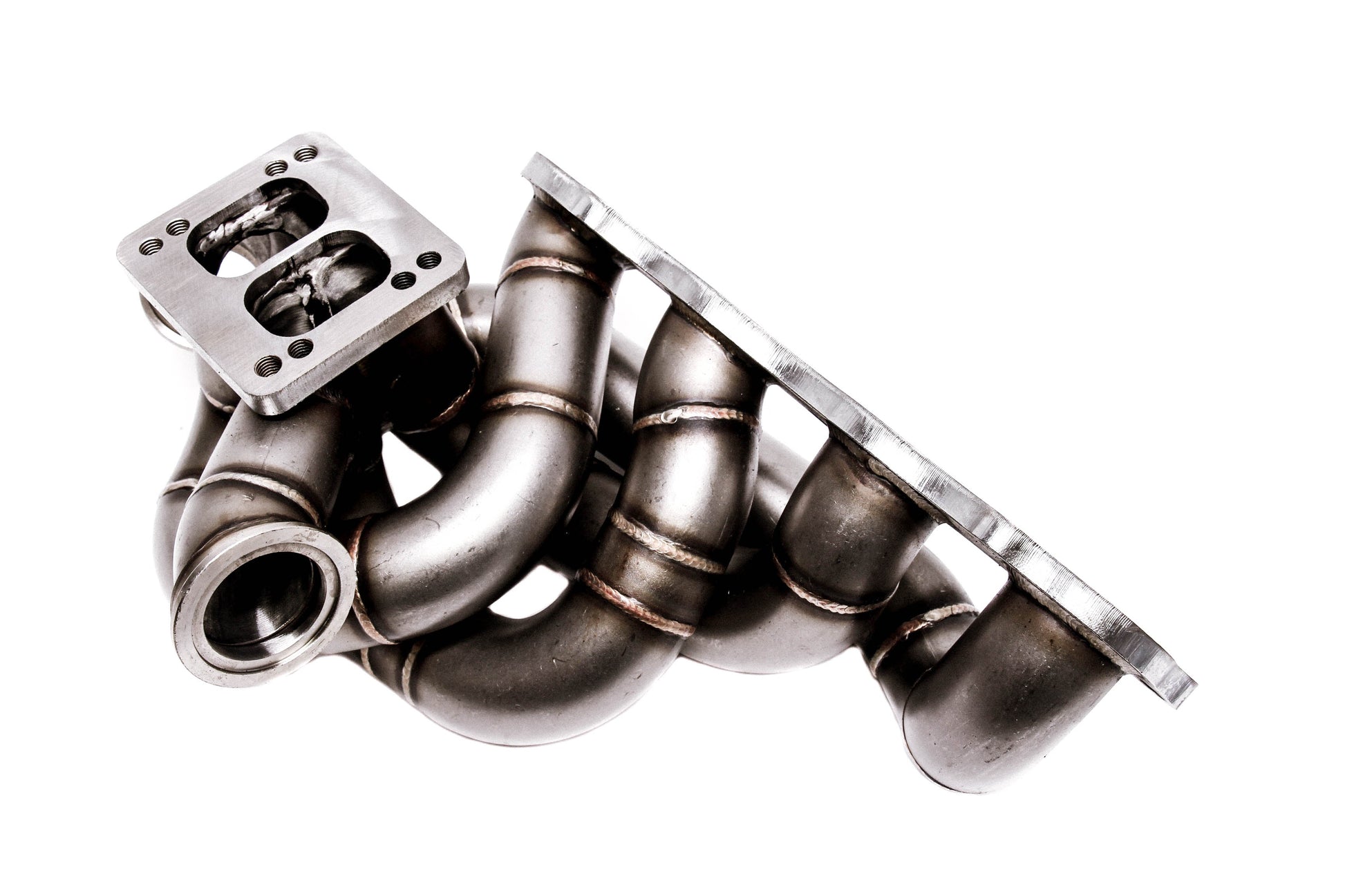

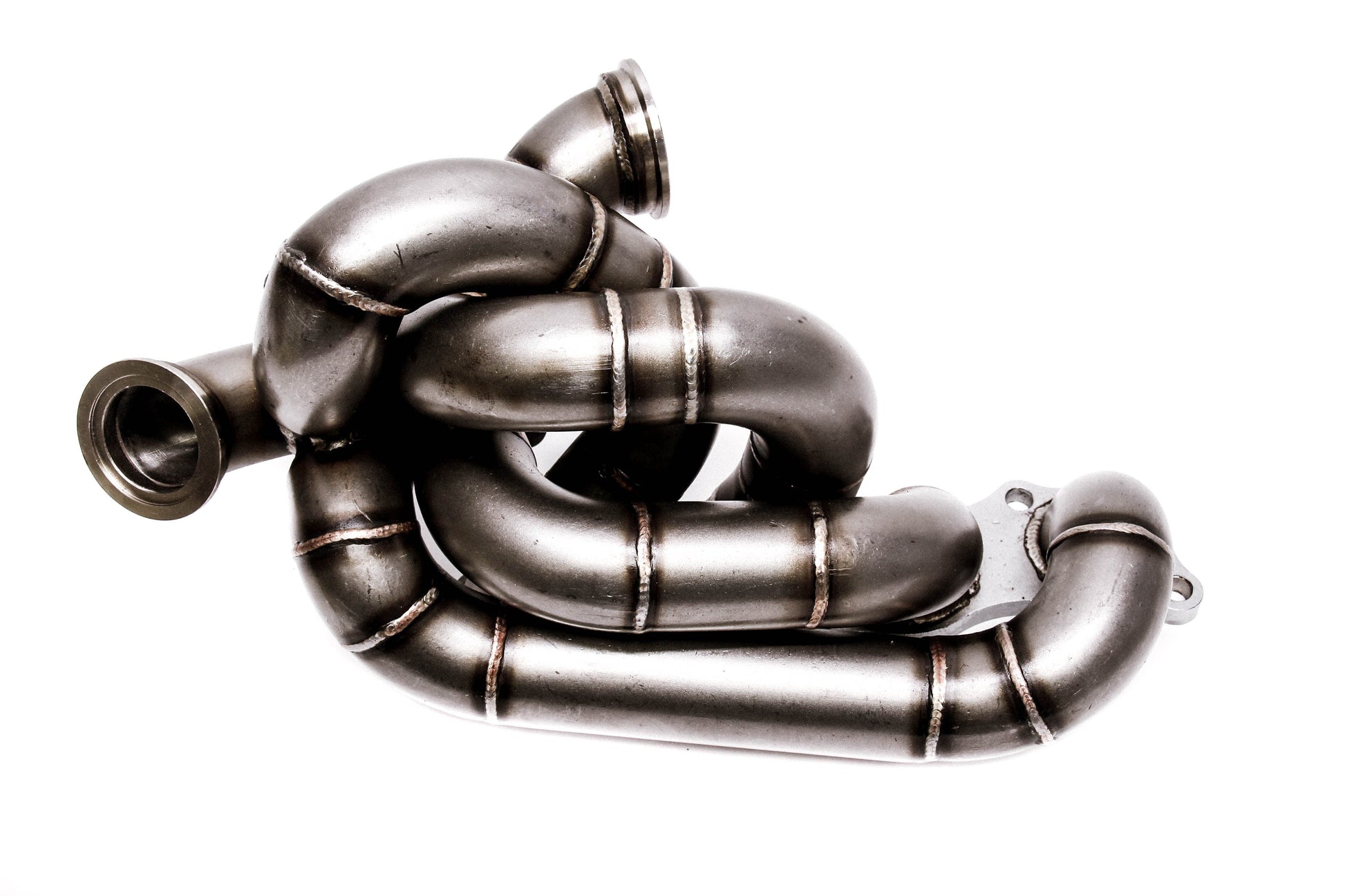

Images:
